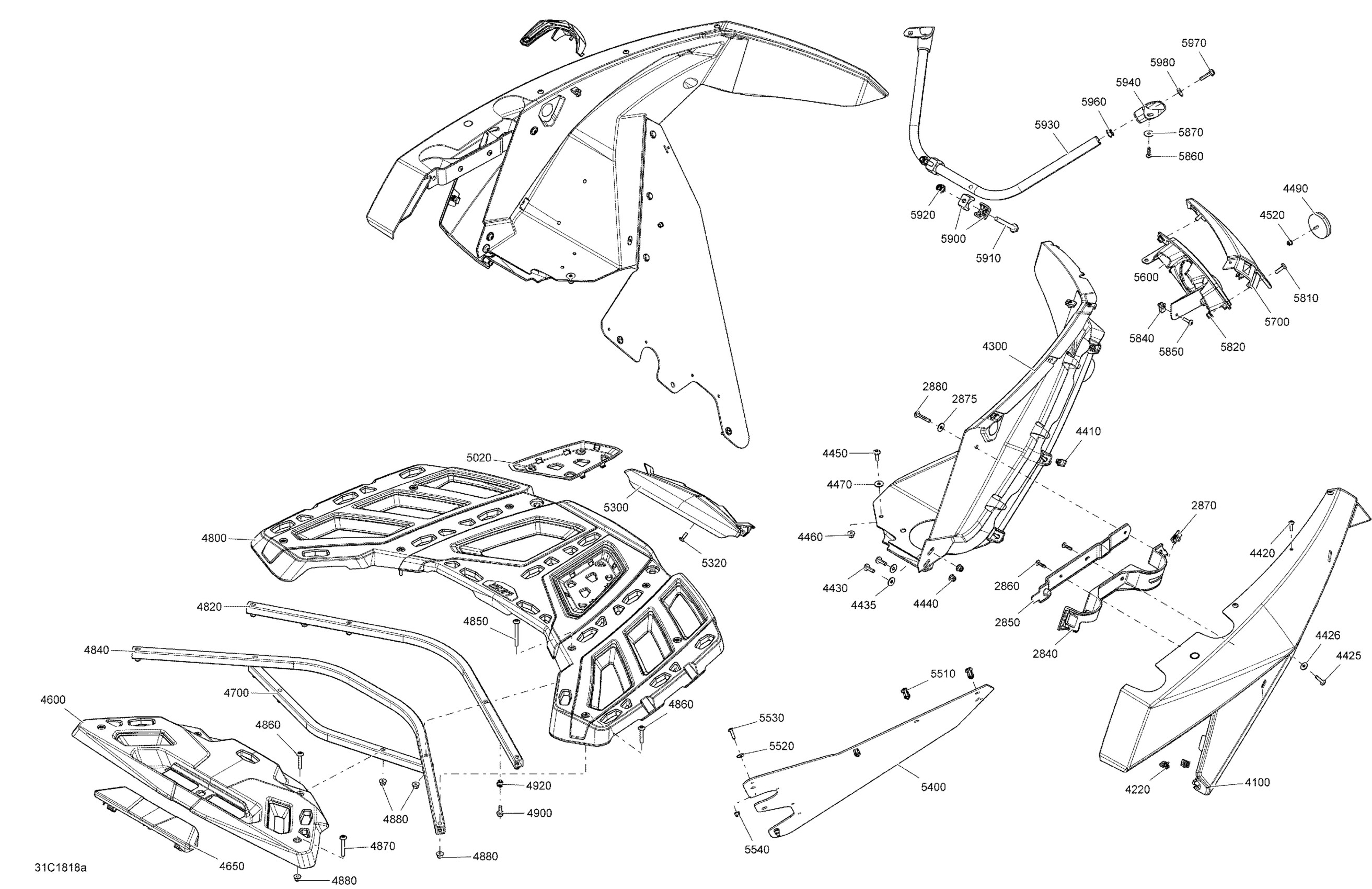

Can-Am 2- Maverick MAX, 2018 09- Body Rear Part Maverick MAX - Package DPS Diagram

#

Description
Price

2840

LH REAR FENDER SUPPORT - Call your local BRP dealership

705007918

Unavailable

2840

RH REAR FENDER SUPPORT - Call your local BRP dealership

705007919

$12.49

2850

Support Plate

705007917

$13.99

2860

Torx Screw Truss Head K50X20 T20

250000760

$2.11

2870

Panel Nut M6 X 1.0

250100198

$2.11

2875

Stainless Steel Flat Washer

234062670

$2.11

2880

Black, Torx Screw M6 X 35

250000646

$0.98

4100

White LH Rear Fender | Model-STD White

705009037

$139.99

4100

White RH Rear Fender | Model-STD White

705009038

$139.99

4220

Edge Clip

517302785

$0.88

4300

LH Inner Fender

705009548

$55.99

4300

RH Inner Fender

705009549

$55.99

4410

Panel Nut M5 X 0.8

250000958

$4.23

4420

Torx Screw M5 X 20

250000724

$1.69

4425

Torx Screw M5 X 25

250000762

$2.11

4426

Washer M5

250200025

$0.74

4430

Torx Screw M6 X 20

250000712

$2.11

4435

Stainless Steel Flat Washer

234062670

$2.11

4440

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4450

Torx Screw M6 X 20

250000712

$2.11

4460

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4470

Stainless Steel Flat Washer

234062670

$2.11

4490

Red Reflector

705011221

$14.49

4520

Elastic Flange Nut M5

233251494

$2.11

4600

Bagage Central Rack

705006128

$53.99

4650

Central Bagage Rack Cap

705006132

$10.99

4700

Bagage Rack Tube

705006279

$38.99

4800

BAGGAGE RACK KIT - Call your local BRP dealership

715004180

Unavailable

4820

Sectional Bent Tube

705016640

$38.99

4840

Bent Sectional Tube

705016092

$42.99

4850

Torx Screw M6 X 60

250000648

$7.51

4860

Black, Torx Screw M6 X 35

250000646

$0.98

4870

Torx Screw M6 X 45

250000647

$6.82

4880

Flange Elastic Nut M6

233261434

$4.44

4900

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.11

4920

Threaded Insert M6 X 1.0

250100242

Unavailable

5020

LH Bagage Rack Cover

705006713

$10.99

5020

RH BAGAGE RACK COVER - Call your local BRP dealership

705006714

Unavailable

5300

LOGO Support

705005994

$13.99

5320

Torx Screw K50 X 16

250000720

$1.69

5400

Deflector

705007828

$55.99

5510

Tuflok Plastic Rivet

293150230

$1.47

5520

Washer M5

250200025

$0.74

5530

Torx Screw M5 X 20

250000724

$1.69

5540

Elastic Flange Nut M5

233251494

$2.11

5600

LH Rear Facia | North America, International

705004731

$19.99

5600

RH Rear Facia | North America, International

705004732

$19.99

5700

WHITE LH REAR FACIA TRIM - Call your local BRP dealership | Model-STD White

705007370

Unavailable

5700

WHITE RH REAR FACIA TRIM - Call your local BRP dealership | Model-STD White

705007371

Unavailable

5810

Torx Screw M6 X 20

250000712

$2.11

5820

Flange Elastic Nut M6

233261434

$4.44

5840

Panel Nut M5 X 0.8

250000958

$4.23

5850

Torx Screw M5 X 20

250000724

$1.69

5860

Torx Screw Truss Head K50X20 T20

250000760

$2.11

5870

Flat Washer

224060201

$1.26

5900

Rear Support Facia Clip

705007044

$2.79

5910

Hex. Flange Screw M8 X 70

207687044

$7.41

5920

Hex. Flange Elastic Nut M8

233281414

$1.47

5930

Body Tube

705007299

$73.99

5940

LH Rear Facia Support

705007045

$11.49

5950

RH Rear Facia Support

705007046

$11.49

5960

TUBE CONNECTOR - Call your local BRP dealership

705007047

Unavailable

5970

Hex. Flange Screw M6 X 25

207662544

$0.64

5980

Flat Washer

224061201

$1.37
