Description

Price

2500

Painted Sunburst Yellow LH Front Panel | Carbon Black Models

705012077

$379.99

2500

Painted Sunburst Yellow RH Front Panel | Carbon Black Models

705012078

$379.99

2620

Panel Nut M6 X 1.0

250100198

$2.11

2630

Torx Screw M6 X 20

250000722

$1.68

2640

Panel Nut M6 X 1.0

250100198

$2.11

2650

Torx Screw Truss Head K50X20 T20

250000760

$2.11

2660

Flat Washer M5

234051410

$0.53

2670

Tuflok Plastic Rivet

293150230

$1.47

2700

Painted Carbon Black Lh Rear Panel | Carbon Black Models

705012083

$539.99

2700

Painted Carbon Black RH Rear Panel

705012089

$539.99

2810

Torx Truss Screw M6 X 30

250000843

$2.11

2820

Torx Screw M6 X 45

250000748

$1.90

2830

Panel Nut M6 X 1.0

250100198

$2.11

2900

Painted Carbon Black Panel Cover

705012090

$97.99

3020

Black, LH Lower Panel | Model-DPS

705005423

$63.99

3020

Black, RH Lower Panel | Model-DPS

705005424

$62.99

3040

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3050

Black, LH Rear Lower Panel

705005425

$109.99

3050

Black, RH Rear Lower Panel

705005426

$114.99

3070

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3072

Torx Screw K50 X 16

250000720

$1.69

3075

Washer M5

250200025

$0.74

3080

Painted Carbon Black Lh Center Panel

705012091

$379.99

3080

Painted Carbon Black Rh Center Panel

705012092

$379.99

3100

INNER FENDER - Call your local BRP dealership

705007827

$15.49

3210

Tuflok Plastic Rivet

293150230

$1.47

3220

Hex. Flange Screw M6 X 16

210261650

$1.67

3240

Stainless Steel Flat Washer

234062670

$2.11

3300

LH BUMPER SKID CAP - Call your local BRP dealership

705006038

Unavailable

3350

Side Protector Plate

705008421

$51.99

3400

RH BUMPER SKID CAP - Call your local BRP dealership

705006039

$15.49

3410

Torx Screw M6 X 20

250000712

$2.11

3420

Hex. Flange Elastic Nut M6

233261494

$1.58

3600

Front Skid Plate

705005798

$94.49

3620

Pad

291001932

$10.99

3700

Rear Skid Plate

705005480

$86.99

3810

Cup | Package Hunter

705007171

$7.89

3820

Hexagonal Head Screw

210262050

$2.11

3825

Panel Nut M6 X 1.0

250100198

$2.11

3860

RH Lateral Skid Plate

705007038

$64.49

3870

Flat Washer

250200097

$2.11

3880

Hexagonal Head Screw

210262050

$2.11

3890

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

3900

Skid Plate

705009447

$121.49

6400

LH Front Deflector | Model-Red

705008988

$53.99

6400

RH Front Deflector | Model-Red

705008989

$53.99

6420

Stainless, Torx Screw M6 X 30

250000842

$2.11

6430

Stainless Steel Flat Washer

234062670

$2.11

6435

Elastic Stop Nut M6

232561434

$1.99

6460

LH Rear Deflector | Model-Red

705007637

$55.99

6460

RH Rear Deflector | Model-Red

705007638

$55.99

6475

Torx Screw M6 X 20

250000712

$2.11

6476

Stainless Steel Flat Washer

234062670

$2.11

6480

Torx Screw M6 X 25

250000758

$2.11

6485

Stainless Steel Flat Washer

234062670

$2.11

6495

Elastic Stop Nut M6

232561434

$1.99

6500

Hardened Washer

706200281

$2.85

6600

Painted Carbon Black LH Cage Cover

705012094

$549.99

6600

Painted Carbon Black RH Cage Cover

705012095

$549.99

6610

"P" Bracket, 2" Dia.

705005626

$27.99

6620

Hex. Flange Screw M6 X 20

207662054

$1.01

6630

Panel Nut M6 X 1.0

250100198

$2.11

6640

Stainless Steel Flat Washer

234062670

$2.11

6650

Tie Wrap 368 mm

293750008

$1.04

6660

Hex. Flange Elastic Nut M6

233261494

$1.58

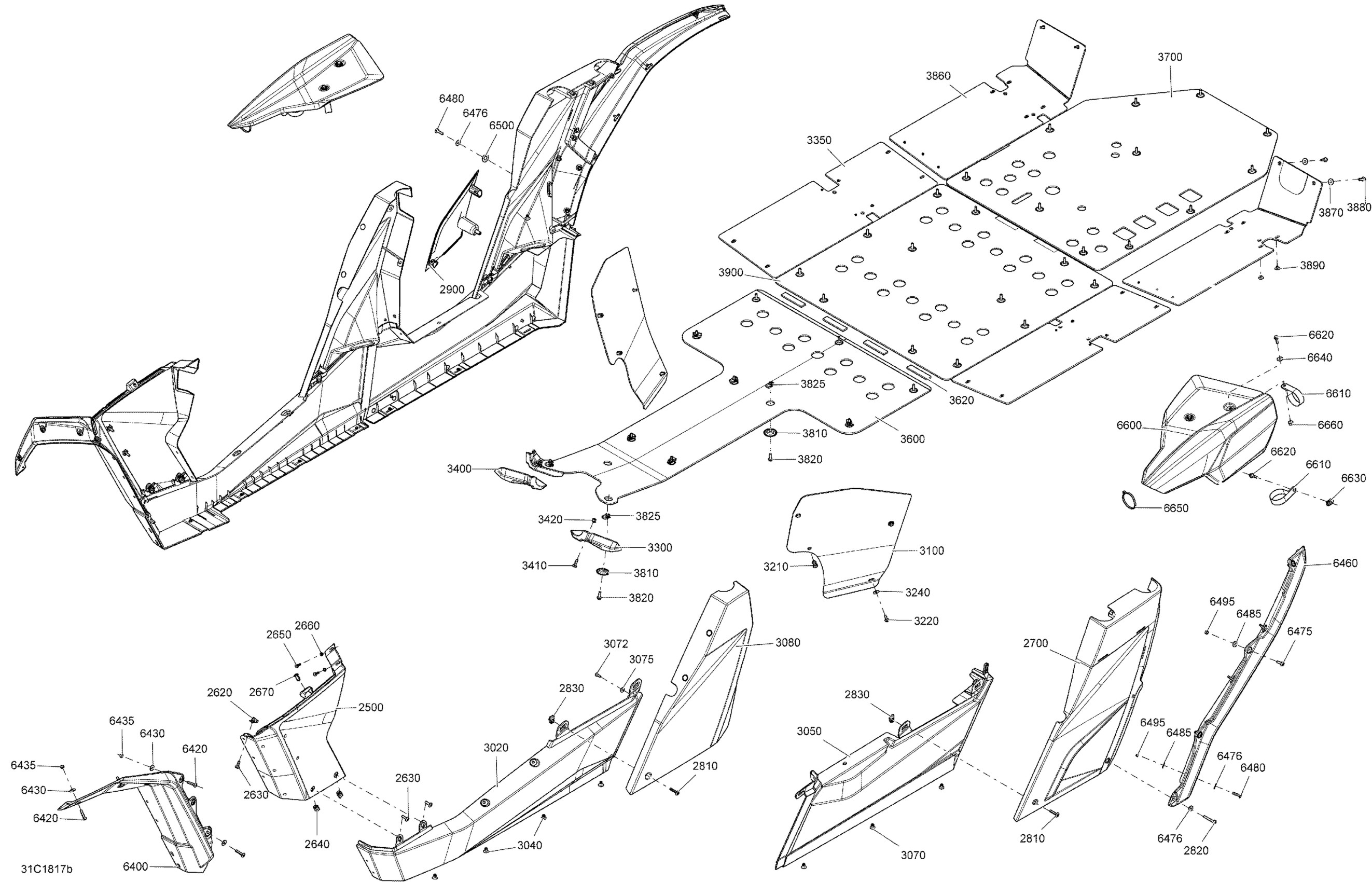

Can-Am 2- Maverick MAX, 2018 09- Body Central Part Maverick MAX - Package XMR Diagram

Painted Sunburst Yellow LH Front Panel | Carbon Black Models

Painted Sunburst Yellow RH Front Panel | Carbon Black Models

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Torx Screw Truss Head K50X20 T20

Flat Washer M5

Tuflok Plastic Rivet

Painted Carbon Black Lh Rear Panel | Carbon Black Models

Painted Carbon Black RH Rear Panel

Torx Truss Screw M6 X 30

Torx Screw M6 X 45

Panel Nut M6 X 1.0

Painted Carbon Black Panel Cover

Black, LH Lower Panel | Model-DPS

Black, RH Lower Panel | Model-DPS

Pop Rivet 3/16" | DS 650 X

Black, LH Rear Lower Panel

Black, RH Rear Lower Panel

Pop Rivet 3/16" | DS 650 X

Torx Screw K50 X 16

Washer M5

Painted Carbon Black Lh Center Panel

Painted Carbon Black Rh Center Panel

INNER FENDER - Call your local BRP dealership

Tuflok Plastic Rivet

Hex. Flange Screw M6 X 16

Stainless Steel Flat Washer

LH BUMPER SKID CAP - Call your local BRP dealership

Side Protector Plate

RH BUMPER SKID CAP - Call your local BRP dealership

Torx Screw M6 X 20

Hex. Flange Elastic Nut M6

Front Skid Plate

Pad

Rear Skid Plate

Cup | Package Hunter

Hexagonal Head Screw

Panel Nut M6 X 1.0

RH Lateral Skid Plate

Flat Washer

Hexagonal Head Screw

Pop Rivet 3/16" | DS 650 X

Skid Plate

LH Front Deflector | Model-Red

RH Front Deflector | Model-Red

Stainless, Torx Screw M6 X 30

Stainless Steel Flat Washer

Elastic Stop Nut M6

LH Rear Deflector | Model-Red

RH Rear Deflector | Model-Red

Torx Screw M6 X 20

Stainless Steel Flat Washer

Torx Screw M6 X 25

Stainless Steel Flat Washer

Elastic Stop Nut M6

Hardened Washer

Painted Carbon Black LH Cage Cover

Painted Carbon Black RH Cage Cover

"P" Bracket, 2" Dia.

Hex. Flange Screw M6 X 20

Panel Nut M6 X 1.0

Stainless Steel Flat Washer

Tie Wrap 368 mm

Hex. Flange Elastic Nut M6
