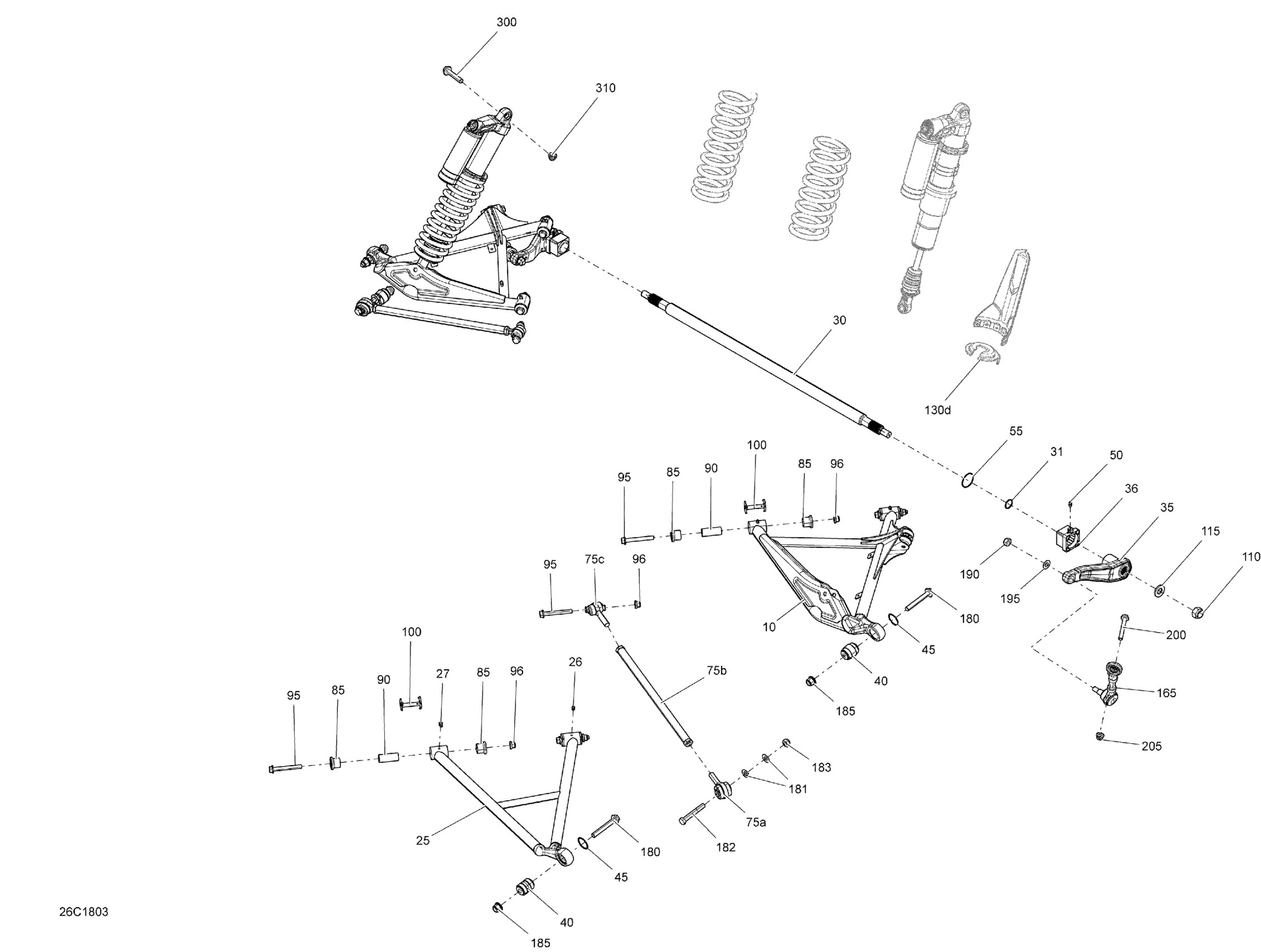

Can-Am 2- Maverick MAX, 2018 08- Rear Suspension Maverick Diagram

#

Description
Price

10

SUSPENSION ARM REAR L ECOAT - Call your local BRP dealership | Package XC

706001848

Unavailable

10

RED LH REAR UPPER ARM - Call your local BRP dealership | Model-XXC White

706001882

Unavailable

10

RED LH REAR UPPER ARM - Call your local BRP dealership | Model-XRS White

706002095

Unavailable

10

ARM_SUSPENSION REAR L B-352 PAINTED - Call your local BRP dealership | Package XXC Quarry Gray Model

706002154

Unavailable

10

SUSPENSION ARM REAR L B-354 SUNB YELLOW - Call your local BRP dealership | Package XMR Carbon Black MAX Models

706002764

Unavailable

15

Black RH Rear Upper Arm | Package XC

706001849

$190.99

15

RED RH REAR UPPER ARM - Call your local BRP dealership | Model-XXC White

706001884

Unavailable

15

Red RH Rear Upper Arm | Model-XRS White

706002096

$201.49

15

SUSPENSION ARM REAR R B-352 GULFS BLUE - Call your local BRP dealership | Package XXC Quarry Gray Model

706002155

Unavailable

15

SUSPENSION ARM REAR R B-354 SUNB YELLOW - Call your local BRP dealership | Package XMR Carbon Black MAX Models

706002766

Unavailable

10

SUSPENSION ARM REAR R B-354 SUNB YELLOW - Call your local BRP dealership | Package XMR Carbon Black MAX Models

706002766

Unavailable

25

Black LH Rear Lower Arm

706001354

$201.49

25

LH REAR PAINTED LOWER ARM - Call your local BRP dealership

706001484

$179.99

25

LH REAR YELLOW LOWER ARM - Call your local BRP dealership | Package XMR Carbon Black

706002792

Unavailable

25

Black RH Rear Lower Arm

706001355

$201.49

25

Black RH Rear Lower Arm

706001485

$190.99

25

RH Rear Yellow Lower Arm | Package XMR Carbon Black MAX Models

706002794

$201.49

26

Grease Fitting

408200700

$3.49

27

Grease Fitting 90°

293550056

$1.15

28

Synthetic Grease, 400 G

293550010

Unavailable

30

Sway Bar

706001356

$185.49

30

SWAY BAR - Call your local BRP dealership

706001625

Unavailable

31

Retaining Ring

706000251

$6.35

35

Sway Bar Lever

706001371

$169.99

36

Sway Bar Housing

706001402

$15.49

40

Radial Joint

706001373

$52.99

45

Retaining Ring

293370093

$7.59

50

Grease Fitting

408200700

$3.49

55

O-Ring

293300100

$5.72

75a

Ball Joint | Package-STD, XRS, XRSDPS

706001437

$51.99

75b

Adjustment Rod

706001801

$46.49

75c

Ball Joint | Package-STD, XRS, XRSDPS

706001798

$51.99

75b

Adjustment Rod | Package-STD, XRS, XRSDPS

706002081

$46.49

85

Suspension Arm Bushing

706204409

$9.10

90

Sleeve

706201590

$11.99

95

Hex Flange Screw M10 X 80

207608046

$6.69

96

Hex. Flange Elastic Nut M10

233201436

$2.11

100

Wear Plate

706201660

$0.95

110

Elastic Stop Nut M18

232591414

$4.39

115

Washer

250200045

$7.73

165

LH Double Ball Joint

706001741

$102.99

165

RH Double Ball Joint

706001742

$102.99

180

Hex. Flange Screw M12 X 85

207628546

$6.77

181

Hardened Washer

706200281

$2.85

182

Hex. Screw M12 X 80

207028046

$3.91

183

Elastic Stop Nut M12

232521416

$1.69

185

Elastic Flange Nut M12

233221416

$2.85

190

Hex. Flange Elastic Nut M12

250000047

$1.90

195

Hardened Washer

706200281

$2.85

200

Hex. Flange Screw M10 X 70

207607046

$2.96

205

Hex. Flange Elastic Nut M10

233201436

$2.11

300

Hex. Flange Screw M12 X 60

207626046

$7.41

310

Elastic Flange Nut M12

233221416

$2.85
