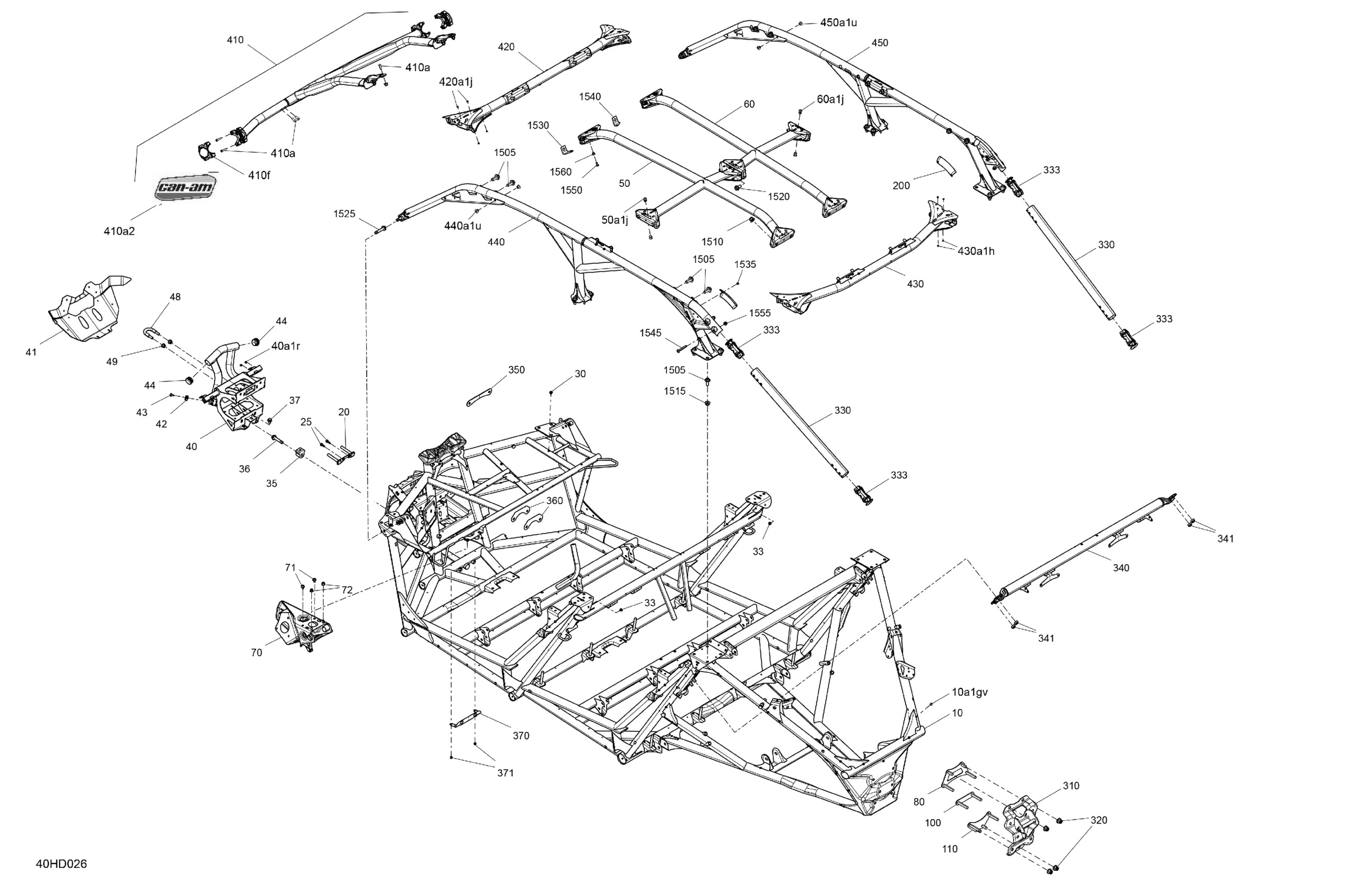

Can-Am North America - Maverick MAX Turbo RR - XRC - 9MRF - Hybrid White Pearl - 72" Width, 2024 06- Frame - System Diagram

#

Description
Price

10

Black, Frame Kit

715009106

$3,359.99

10a1gv

Pop Rivet 3/16 X ,425

293150293

$0.35

20

Front Plate

705211561

$22.99

25

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

30

Insert Half Hex Body M6 x 1.0

250100199

$3.19

33

Insert Half Hex Body M6 x 1.0

250100199

$3.19

35

Bumper Link

705206992

$18.49

36

Flange Screw M12 X 60

250000857

$7.41

37

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.70

40

Legion Red, Front Bumper Kit

715009850

$370.99

40a1r

Pop Rivet 3/16 X ,425

293150293

$0.35

41

Front Master Plate

715006996

$206.49

42

Panel Nut M6 X 1.0

250100198

$2.11

43

Torx Screw M6 X 20

250000722

$1.68

44

Cap

705202455

$5.69

48

Deep Black, Flange

705212138

$39.99

49

Hex. Flange Elastic Nut M10

233201436

$2.11

50

Legion Red, LH Cage Reinforcement | Includes 50 to 50a1j

705211518

$91.99

50a1j

Pop Rivet 3/16 X ,425

293150293

$0.35

60

Legion Red, RH Cage Reinforcement | Includes 60 to 60a1j

705211519

$91.99

60a1j

Pop Rivet 3/16 X ,425

293150293

$0.35

70

DPS Support

705206924

$71.99

71

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

72

Hex. Elastic Flange Nut M8

233281416

$1.48

80

Rear Upper Plate

705211557

$20.99

100

Rear Central Plate

705211558

$20.99

110

Rear Lower Plate

705211556

$18.49

200

Legion Red, Upper Plate Kit

705211614

$24.99

310

Junction Plate Kit

715008492

$44.99

320

Elastic Flange Nut M12

250001195

$2.64

330

Legion Red, Rear Pillar

705211512

$24.99

333

Sleeve

705210648

$9.90

340

Safety Belt Anchorage

705212141

$124.99

341

Elastic Stop Nut M12

232521416

$1.69

350

Connecting Plate

705211552

$5.39

360

Retaining Plate

705210249

$5.29

370

Support

705211560

$14.49

371

Pop Rivet 3/16"

390402200

$0.35

410

Black, Front Intrusion Bar | Includes 410 to 410f

715002889

$436.49

410a

Common Parts Kit | Includes 410a to 410a6

715003531

$163.99

410a2

Decal "Can-Am" | Not Shown

704904566

$10.99

410a5

Torx Truss M/S M8 X 20

229000057

$2.00

410a6

Hex. Elastic Flange Nut M8

229000122

$1.26

410f

Black, Clamp

705205709

$79.49

420

Legion Red, Front Cross Member | Includes 420 to 420a1j

705211513

$194.99

420a1j

Pop Rivet 3/16 X ,425

293150293

$0.35

430

Legion Red, Rear Cross Member | Includes 430 to 430a1h

705211514

$194.99

430a1h

Pop Rivet 3/16 X ,425

293150293

$0.35

440

Legion Red, LH Cage Kit

715009812

$619.99

440a1u

Pop Rivet 3/16 X ,425

293150293

$0.35

450

Legion Red, RH Cage Kit

715009819

$619.99

450a1u

Pop Rivet 3/16 X ,425

293150293

$0.35

1510

Elastic Flange Nut M12

250001195

$2.64

1520

Hex. Flange Screw DIN.6921 M12X25

250000856

$6.67

1530

Deep Black, LH Cage Reinforcement

705211746

$58.99

1540

Deep Black, RH Cage Reinforcement

705211747

$58.99

1550

Torx Head Screw M6 X 16

250000717

$2.11

1560

Hex. Flange Elastic Nut M6

233261466

$2.00

1505

Hex. Flange Screw M12 X 30, Scotch Grip

207523056

$6.14

1515

Elastic Flange Nut M12

250001195

$2.64

1525

Flange Screw M12 X 60

250000857

$7.41

1535

Black, Pop Rivet 3/16 X ,425

293150300

$0.72

1545

Torx Truss M8 X 65

250000901

$1.90

1555

Elastic Flange Nut M8

250100025

$1.48
