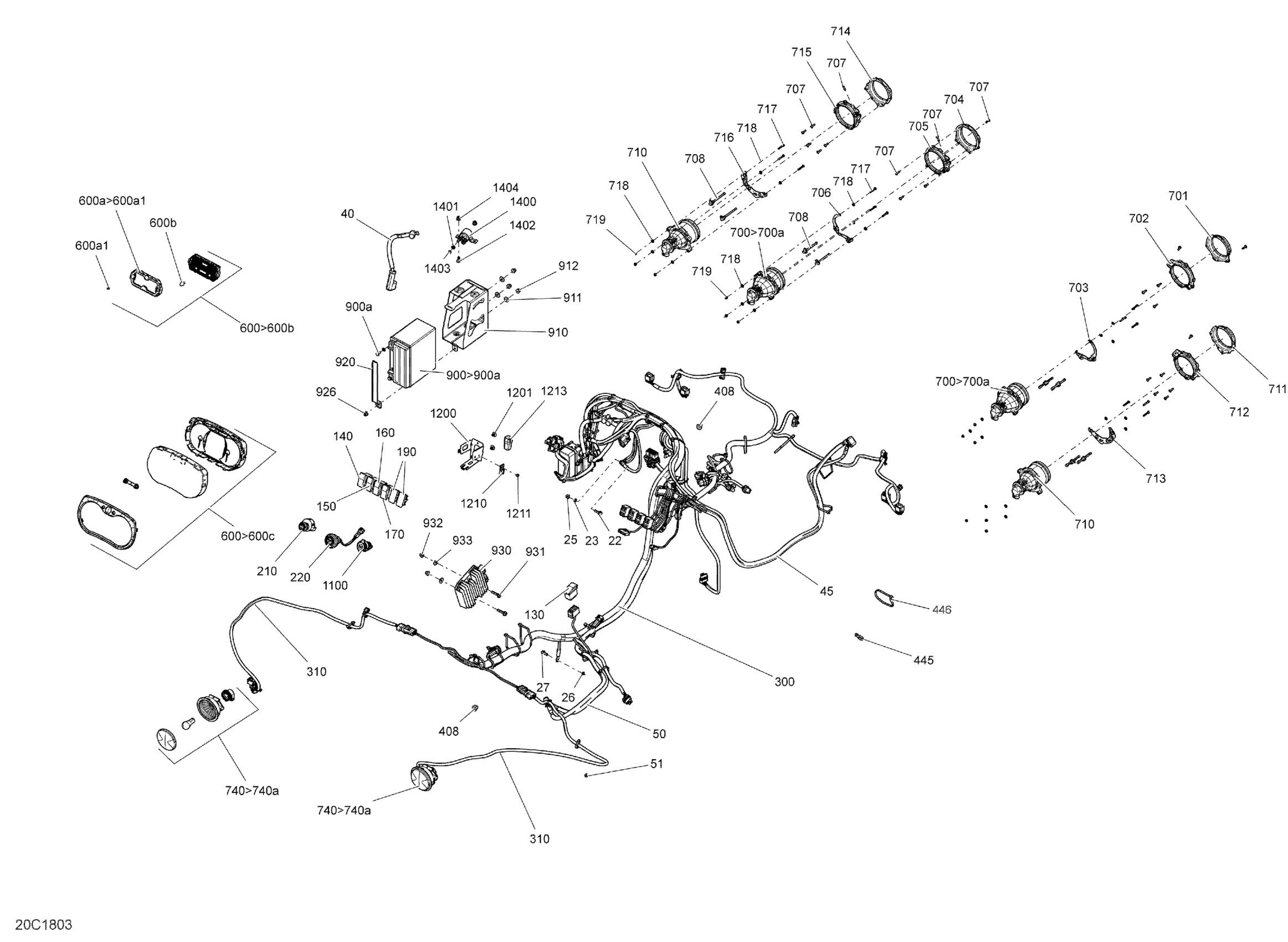

Can-Am 1- Maverick, 2018 10- Electrical System Maverick - Except XMR Diagram

#

Description
Price

22

Hex. Flange Screw M6 X 20

207662044

$2.00

23

External Serrated Lock Washer 6 mm

234461608

$1.15

25

Hex. Flange Nut M6

233061414

$1.68

26

External Serrated Lock Washer 6 mm

234461608

$1.15

27

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

40

Positive Cable | Package STD

710004384

$35.99

45

POSITIVE CABLE - Call your local BRP dealership | Package DPS Except MAX Model

710004878

Unavailable

50

Positive Cable

710004383

$42.99

51

Elastic Stop Nut M6

232561414

$0.55

130

Switch, Over ride

710002053

$19.49

140

Hi/Low Switch | Except Europe

710001725

$21.49

150

4X4 Switch

710001737

$31.99

160

Switch PPS Sport

710003541

$19.49

170

Switch DPS

710001781

$22.99

190

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

210

Ignition Switch

710008400

$78.49

220

Engine Start Button

710002594

$60.49

300>300a

WIRING HARNESS ASSY - Call your local BRP dealership | Includes 300 to 300a

710005674

Unavailable

300a

DPS Connector Cap | Not Shown

710005760

$16.86

310

WIRING HARNESS REAR - Call your local BRP dealership

710004685

$44.99

408

Mount Dart

293730040

$1.04

445

Tie-Rap 180 mm

414115200

$0.11

446

Tie Wrap 368 mm

293750008

$1.04

600>600b

Speedometer | Includes 600 to 600b

710005553

$339.99

10a

Trim Ring Ass'y

710001183

$19.99

10a1

BRP Logo13 mm

704904615

$13.49

10b

Button

715900265

$13.71

600>600c

Speedometer | Package Hunter, XT, XTP

710005653

$439.99

10a

Gauge Ring

415129348

$13.99

10b

Lens | XTP

415129349

$24.49

10c

Speedometer Button | XTP

415129355

$15.80

700>700a

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

700a

Halogen Bulb

415129249

$41.49

701

RH Low Front Housing

710001081

$19.99

702

RH Low Rear Housing

710001082

$12.99

703

RH Low Light Support

710001094

$9.09

704

LH Low Front Housing

710001083

$19.99

705

LH Low Rear Housing

710001084

$12.99

706

LH Low Light Support

710001037

$9.09

707

Phillips Screw K40 X 16

250000723

$0.98

708

Setting Screw

710001147

$12.71

710>710a

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

710a

Halogen Bulb

415129249

$41.49

711

RH High Front Housing

710001085

$19.99

712

RH High Rear Housing

710001086

$12.99

713

RH High Light Support

710001115

$5.29

714

LH High Front Housing

710001087

$19.99

715

LH High Rear Housing

710001088

$12.99

716

LH High Light Support

710001036

$5.29

717

Hex. Screw M4 X 25

207142544

$2.00

718

Flat Washer M5

234051410

$0.53

719

Elastic Stop Nut M4

232541414

$0.58

740>740a

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

740a

Bulb

520000758

$9.10

900>900a

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

900a

Battery Bolt Kit

250000282

$7.29

910

Battery Support

710003129

$48.99

911

Flat Washer 6 mm

234062410

$0.77

912

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

920

Battery Holder

710001916

$21.99

926

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

930

Voltage Regulator

710005842

$189.99

931

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

932

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

933

Stainless Steel Flat Washer

234062670

$2.11

1100

DC Outlet

710001248

$37.99

1200

Fuse Holder

710003335

$10.11

1201

Pop Rivet 3/16"

293150103

$0.55

1210

Clip

270000141

$11.49

1211

Pop Rivet 3/16"

390402400

$0.35

1213

Housing

710003006

$8.79

1400

Starter Relay

710007777

$48.49

1401

Lock Washer Helical M6

234161601

$1.15

1402

Torx Head Screw M6 X 16

250000717

$2.11

1403

Hex. Nut M6

232061600

$1.15

1404

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
