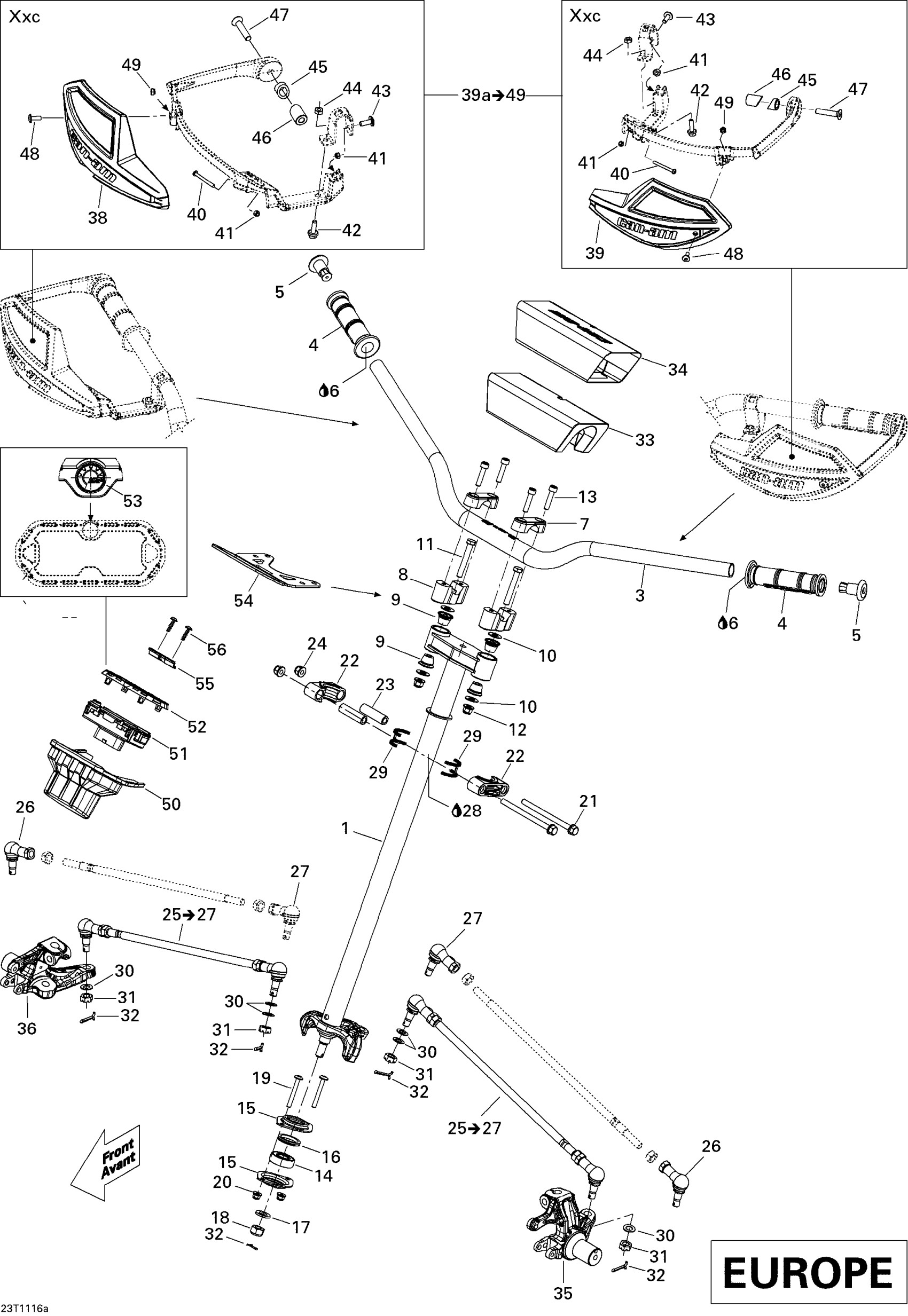

Can-Am DS 450 Xxc, Xmx EFI, 2011 07- Steering Xmx Europe Diagram

#

Description
Price

1

STEERING COLUMN - Call your local BRP dealership | Xmx

709400805

Unavailable

3

HANDLE BAR ALUMINUM - Call your local BRP dealership

709400668

Unavailable

4

Handle Grip

709400493

$14.83

5

END PIECE - Call your local BRP dealership

709400627

Unavailable

6

Loctite 406, 7 Oz

293800100

$36.99

7

Support

709400496

$22.49

8

ALUMINUM SUPPORT - Call your local BRP dealership

709400592

Unavailable

9

DAMPER BUSHING - Call your local BRP dealership

293830131

Unavailable

10

Washer

506152194

$4.55

11

Screw Hex. M10 X 70

250001024

$2.11

12

Elastic Flange Nut M10

232501416

$1.48

13

Socket Head Screw

205083534

$2.11

14

Ball Bearing

709400439

$19.49

15

THRUST WASHER - Call your local BRP dealership

709400468

Unavailable

16

Seal

293250177

$7.29

17

Flat Washer

234021430

$2.11

18

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

250100090

Unavailable

19

Torx Screw M6 X 50

250000317

$2.11

20

Flange Elastic Nut M6

233261434

$4.44

21

Hex. Flange Screw M8 X 110

230681034

$4.44

22

Half Bushing

709400471

$14.30

23

BUSHING - Call your local BRP dealership

709400072

Unavailable

24

Hex. Flange Elastic Nut M8

233281434

$2.11

25

ROD_TIE ASSY - Call your local BRP dealership

709400352

Unavailable

26

BALL JOINT - Call your local BRP dealership

715900053

Unavailable

27

BALL JOINT - Call your local BRP dealership

715900052

Unavailable

28

Synthetic Grease, 400 G

293550010

Unavailable

29

HALF-SEAL - Call your local BRP dealership

293300120

$6.69

30

Flat Washer

250200084

$3.38

31

CASTLE NUT - Call your local BRP dealership

250100094

Unavailable

32

Cotter Pin

250400034

$2.11

33

Foam

709400422

$17.49

34

Cover

709400423

$33.99

35

LH KNUCKLE - Call your local BRP dealership

709400346

Unavailable

36

RH KNUCKLE - Call your local BRP dealership

709400348

Unavailable

38

Not Available As Spare Parts

XXX

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

39a

Not Available As Spare Parts

XXX

Unavailable

40

Not Available As Spare Parts

XXX

Unavailable

41

Not Available As Spare Parts

XXX

Unavailable

42

Not Available As Spare Parts

XXX

Unavailable

43

Not Available As Spare Parts

XXX

Unavailable

44

Not Available As Spare Parts

XXX

Unavailable

45

Not Available As Spare Parts

XXX

Unavailable

46

Not Available As Spare Parts

XXX

Unavailable

47

Not Available As Spare Parts

XXX

Unavailable

48

Not Available As Spare Parts

XXX

Unavailable

49

Not Available As Spare Parts

XXX

Unavailable

50

Speedometer Cover

709400514

$16.99

51

Calibrated Speedometer | Includes 16 to 17

710003288

$349.99

52

Trim Ring Ass'y

710001183

$19.99

53

BRP Logo13 mm

704904615

$13.49

54

INDICATOR SUPPORT - Call your local BRP dealership

709400671

Unavailable

55

Latch Indicator Cover

709400573

$11.99

56

Truss Head Torx Screw K50 X 20

250000297

$2.11
