Description

Price

10a

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

10a

Backrest Ass'y Black | XTP

708002246

$349.99

10a

BACKREST - Call your local BRP dealership | Package XXC Can-Am Red Models

708002621

Unavailable

10a

Backrest | Package XXC Gulfstream Blue Models

708002626

$439.99

10a

BACKREST - Call your local BRP dealership | Package XMR Carbon Black Models

708002629

Unavailable

10a1

Backrest Cover

708000675

$97.99

10a1

Backrest Cover Black | XTP

708002248

$128.99

10a1

COVER - Call your local BRP dealership | Package XXC Can-Am Red Models

708002622

Unavailable

10a1

Cover | Package XXC Gulfstream Blue Models

708002627

$291.49

10a1

COVER - Call your local BRP dealership | Package XMR Carbon Black Models

708002630

Unavailable

10b

Cushion Ass'y | Includes 4 to 5

703500943

$349.99

10b

Cushion Ass'y Black | XTP

708002247

$319.99

10b

CUSHION - Call your local BRP dealership | Package XMR

708002267

Unavailable

10b

Cushion Ass'y Gulfstream Blue | Package XMR, XXC

708002273

$249.99

10b

CUSHION - Call your local BRP dealership | Package XMR Carbon Black Models

708002631

Unavailable

10b1

Seat Cover

708001103

$117.99

10b1

Cushion Cover Black | XTP

708002249

$81.49

10b1

Seat Cover Can-Am Red | Package XMR

708002268

$128.99

10b1

Seat Cover Gulfstream Blue | Package XMR, XXC

708002274

$128.99

10b1

COVER - Call your local BRP dealership | Package XMR Carbon Black Models

708002632

Unavailable

10c

LH Rail

708000848

$53.99

10d

RH Rail

708001739

$35.99

10e

Operator Seat Frame

708001356

$329.99

10f

Seat Member

708000667

$56.99

10g

Seat Latch

708001355

$2.59

10h

Rubber Bumper

708001671

$2.89

10j

Spring

708000921

$1.29

10k

Socket Screw M10 X 16

205501644

$4.29

10m

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

10n

Hex. Elastic Stop Nut M6

232561600

$1.15

10p

Hex. Flange Screw M6 X 25

207562544

$1.69

10q

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

10r

Hex. Flange Elastic Nut M8

233281414

$1.47

10s

Hex. Flange Screw M6

250000672

$2.11

10t

Head Rest

708001074

$104.99

10u

Seat Support

708001245

$28.99

10v

Hex. Flange Screw K50 X 40

250000897

Unavailable

20a

Backrest Ass'y | Includes 2 to 3

703500945

$399.99

20a

Backrest Ass'y Black | XTP

708002246

$349.99

20a

BACKREST - Call your local BRP dealership | Package XXC Can-Am Red Models

708002621

Unavailable

20a

Backrest | Package XXC Gulfstream Blue Models

708002626

$439.99

20a

BACKREST - Call your local BRP dealership | Package XMR Carbon Black Models

708002629

Unavailable

20a1

Backrest Cover

708000675

$97.99

20a1

Backrest Cover Black | XTP

708002248

$128.99

20a1

COVER - Call your local BRP dealership | Package XXC Can-Am Red Models

708002622

Unavailable

20a1

Cover | Package XXC Gulfstream Blue Models

708002627

$291.49

20a1

COVER - Call your local BRP dealership | Package XMR Carbon Black Models

708002630

Unavailable

20b

Cushion Ass'y | Includes 4 to 5

703500943

$349.99

20b

Cushion Ass'y Black | XTP

708002247

$319.99

20b

CUSHION - Call your local BRP dealership | Package XMR

708002267

Unavailable

20b

Cushion Ass'y Gulfstream Blue | Package XMR, XXC

708002273

$249.99

20b

CUSHION - Call your local BRP dealership | Package XMR Carbon Black Models

708002631

Unavailable

20b1

Seat Cover

708001103

$117.99

20b1

Cushion Cover Black | XTP

708002249

$81.49

20b1

Seat Cover Can-Am Red | Package XMR

708002268

$128.99

20b1

Seat Cover Gulfstream Blue | Package XMR, XXC

708002274

$128.99

20b1

COVER - Call your local BRP dealership | Package XMR Carbon Black Models

708002632

Unavailable

20c

Passenger Seat Frame

708001357

$319.99

20d

Seat Latch

708001355

$2.59

20e

Rubber Bumper

708001671

$2.89

20f

Spring

708000921

$1.29

20g

Socket Screw M10 X 16

205501644

$4.29

20h

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

20j

Hex. Elastic Stop Nut M6

232561600

$1.15

20k

Hex. Flange Screw M6 X 25

207562544

$1.69

20m

Hex. Flange Screw M6

250000672

$2.11

20n

Head Rest

708001074

$104.99

20p

Seat Support

708001245

$28.99

20q

Hex. Flange Screw K50 X 40

250000897

Unavailable

30

Driver Buckle Side

708002061

$70.99

35

Tie Wrap 368 mm

293750008

$1.04

40

Passenger Buckle Side | Model-North America, International

708002062

$53.99

50

Safety Belt

708002644

$280.99

55

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$7.09

56

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

70

Insert Half Hex Body M6 x 1.0

250100199

$3.19

75

Retaining Rod RH

708002303

$16.49

80

Retaining Rod LH

708002302

$14.99

81

Torx Head Screw M6 X 16

250000717

$2.11

1000

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$7.09

1010

Safety Belt Screw

708000890

$3.79

1020

Position Washer

708000891

$1.29

1030

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

1040

Hex. Elastic Flange Nut M6

233161464

$1.01

1050

Hex. Flange Screw M6

250000672

$2.11

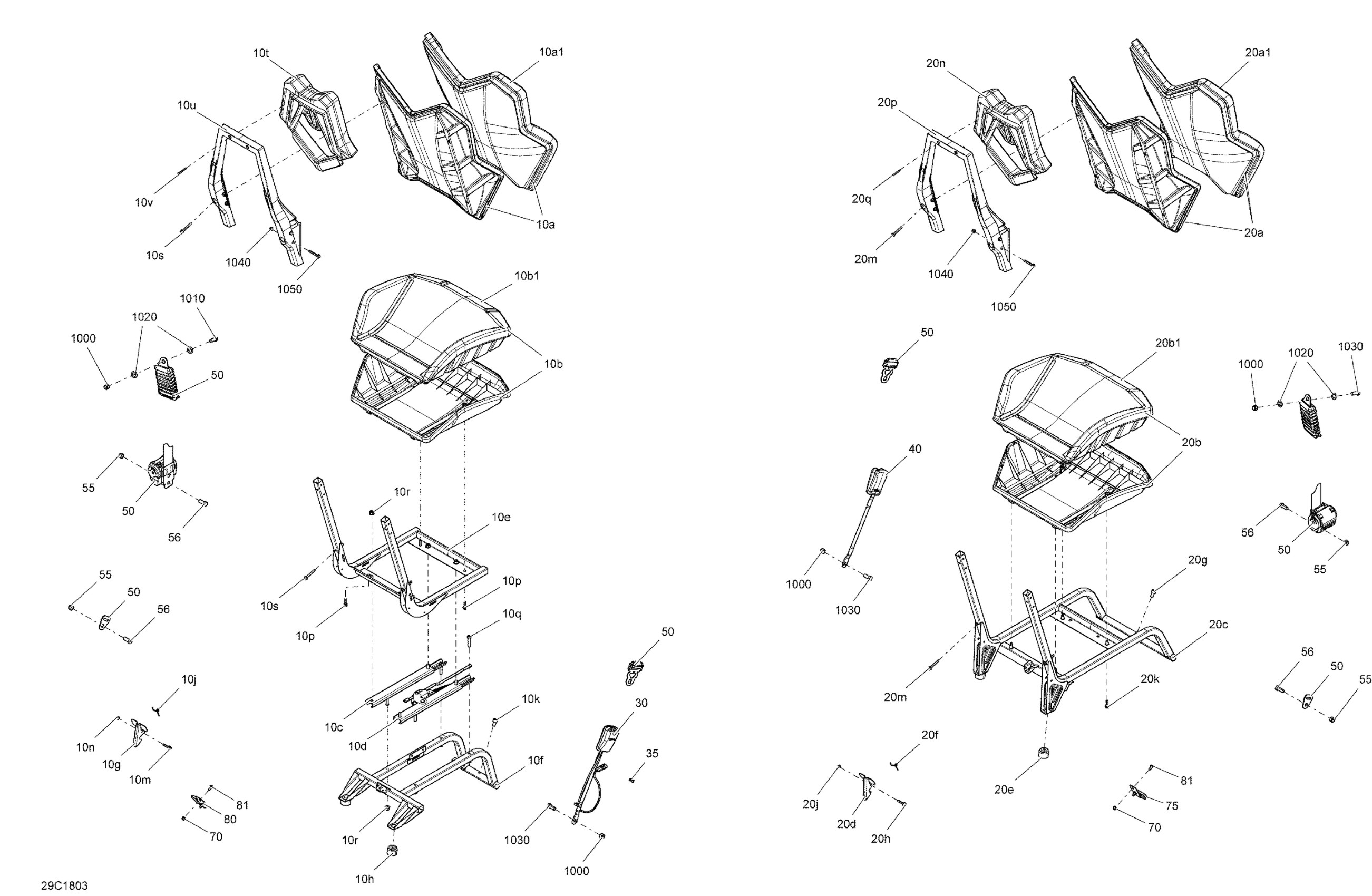

Can-Am 1- Maverick, 2018 09- Seat Maverick Non MAX Diagram

Backrest Ass'y | Includes 2 to 3

Backrest Ass'y Black | XTP

BACKREST - Call your local BRP dealership | Package XXC Can-Am Red Models

Backrest | Package XXC Gulfstream Blue Models

BACKREST - Call your local BRP dealership | Package XMR Carbon Black Models

Backrest Cover

Backrest Cover Black | XTP

COVER - Call your local BRP dealership | Package XXC Can-Am Red Models

Cover | Package XXC Gulfstream Blue Models

COVER - Call your local BRP dealership | Package XMR Carbon Black Models

Cushion Ass'y | Includes 4 to 5

Cushion Ass'y Black | XTP

CUSHION - Call your local BRP dealership | Package XMR

Cushion Ass'y Gulfstream Blue | Package XMR, XXC

CUSHION - Call your local BRP dealership | Package XMR Carbon Black Models

Seat Cover

Cushion Cover Black | XTP

Seat Cover Can-Am Red | Package XMR

Seat Cover Gulfstream Blue | Package XMR, XXC

COVER - Call your local BRP dealership | Package XMR Carbon Black Models

LH Rail

RH Rail

Operator Seat Frame

Seat Member

Seat Latch

Rubber Bumper

Spring

Socket Screw M10 X 16

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

Hex. Elastic Stop Nut M6

Hex. Flange Screw M6 X 25

Socket Head Screw M8 X 1.25 X 40

Hex. Flange Elastic Nut M8

Hex. Flange Screw M6

Head Rest

Seat Support

Hex. Flange Screw K50 X 40

Backrest Ass'y | Includes 2 to 3

Backrest Ass'y Black | XTP

BACKREST - Call your local BRP dealership | Package XXC Can-Am Red Models

Backrest | Package XXC Gulfstream Blue Models

BACKREST - Call your local BRP dealership | Package XMR Carbon Black Models

Backrest Cover

Backrest Cover Black | XTP

COVER - Call your local BRP dealership | Package XXC Can-Am Red Models

Cover | Package XXC Gulfstream Blue Models

COVER - Call your local BRP dealership | Package XMR Carbon Black Models

Cushion Ass'y | Includes 4 to 5

Cushion Ass'y Black | XTP

CUSHION - Call your local BRP dealership | Package XMR

Cushion Ass'y Gulfstream Blue | Package XMR, XXC

CUSHION - Call your local BRP dealership | Package XMR Carbon Black Models

Seat Cover

Cushion Cover Black | XTP

Seat Cover Can-Am Red | Package XMR

Seat Cover Gulfstream Blue | Package XMR, XXC

COVER - Call your local BRP dealership | Package XMR Carbon Black Models

Passenger Seat Frame

Seat Latch

Rubber Bumper

Spring

Socket Screw M10 X 16

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

Hex. Elastic Stop Nut M6

Hex. Flange Screw M6 X 25

Hex. Flange Screw M6

Head Rest

Seat Support

Hex. Flange Screw K50 X 40

Driver Buckle Side

Tie Wrap 368 mm

Passenger Buckle Side | Model-North America, International

Safety Belt

Nylon Insert Hex. Lock Nut 7/16-20

Hex. Cap Screw 7/16'' X 1'' | Europe

Insert Half Hex Body M6 x 1.0

Retaining Rod RH

Retaining Rod LH

Torx Head Screw M6 X 16
