Description

Price

10

Console Kit | Engine 1000R Except Europe Model, Except XMR

715003355

$46.99

20

Tuflok Plastic Rivet

293150230

$1.47

30

Cup Retainer

707900036

$6.89

100

LH Side Console

707900001

$44.99

120

Insert

707900133

$2.89

130

Washer

503189273

$3.28

250

RH Side Console

707900002

$36.99

350

Front Side Dash Panel

707900193

$69.99

370

Torx Screw M6 X 20

250000722

$1.68

380

Threaded Insert M6 X 1.0

250100242

Unavailable

390

Stainless Steel Flat Washer

234062670

$2.11

400

RH Fixe Side Console

707900021

$76.99

480

Washer

506151252

$3.17

500

LH Front Floor

707900181

$83.99

520

Torx Screw M6 X 20

250000712

$2.11

525

Torx Screw M6 X 25

250000758

$2.11

530

Hex. Flange Elastic Nut M6

233261494

$1.58

550

Panel Nut M6 X 1.0

250100198

$2.11

570

Torx Screw K50 X 16

250000720

$1.69

580

Flat Washer 6 mm

234062410

$0.77

600

LH Lower Floor

707900022

$269.99

625

Torx Truss Screw M6 X 25

250000807

$2.11

670

Rubber Cover

293250242

$6.99

680

Was 293250381 Seal Tray

219704382

$43.99

800

Grille

707900178

$10.99

805

Grille

707900180

$10.99

825

Torx Truss Screw M6 X 30

250000843

$2.11

845

Washer M5

250200025

$0.74

850

RH Front Floor

707900004

$83.99

920

Oblong Grommet

705003668

$5.79

950

RH Lower Floor

707900023

$194.99

1030

DEFLECTOR - Call your local BRP dealership

707900152

Unavailable

1030

Deflector | XRS-DPS

707900204

$17.49

1050

Upper Seal

293250252

$2.59

1060

Bottom Seal

293250253

$2.79

1300

Floor Support LH

707900561

$21.99

1330

Torx Screw Truss Head K50X20 T20

250000760

$2.11

1340

Flat Washer

224060201

$1.26

1370

Was 293200017 Neoprene Seal

219704365

$149.99

1400

RIGHT FLOOR SUPPORT - Call your local BRP dealership

707900562

Unavailable

1470

Was 293200017 Neoprene Seal

219704365

$149.99

1600

LH Under Seat Plate

707900218

$81.99

1700

RH Under Seat Plate

707900006

$114.99

1800

LH Rear Deflector

707900164

$97.99

1820

Hex. Flange Screw M6 X 20

207662034

$2.11

1850

Flat Washer

250200040

$1.90

1910

Heat Shield

707900182

$8.89

1920

Heat Shield

707900183

$5.29

2000

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900166

Unavailable

2050

Torx Screw M6 X 16

250000755

$0.87

2094

Heat Shield

707900167

$9.39

2098

Heat Shield

707900184

$5.29

2200

Dashboard Ass'y

715001250

$79.99

2230

Support Plate

705003841

$0.99

2240

Edge Clip

517302785

$0.88

2300

Lower Central Dashboard Ass'y | Europe

707900019

$40.99

2310

Torx Screw M5 X 20

250000724

$1.69

2320

Panel Nut M5 X 0.8

250000958

$4.23

2350

DASH CAP - Call your local BRP dealership | Carbon Black Models

707900600

Unavailable

2400

Passenger Handle

707900011

$13.75

2420

Connector Tube

707900048

$6.19

2500

Storage Bin

707900009

$114.99

2530

CAP - Call your local BRP dealership

414859400

Unavailable

2540

Rubber Bumper

293830005

$8.09

2600

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

$49.99

2610

Latch

707900031

$8.49

2620

Trim Glove Box

707900062

$18.49

2650

Front LH Safety Net

707900237

$119.99

2660

Front RH Safety Net

707900238

$119.99

2670

Hex. Flange Elastic Nut M8

233281414

$1.47

2690

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2710

Hex. Flange Screw M6 X 20

207662044

$2.00

2730

Flat Washer 8 mm

234082410

$1.47

3000

Lever Indicator

707900070

$15.49

3100

Torx Screw M6 X 25 | XT Models

250000728

$4.44

3300

Front Central Console Foam

707900619

$18.99

3320

Left Upper Lateral Console Foam

707900620

$16.49

3330

LH Lower Lateral Console Foam

707900621

$23.99

3340

RH Lateral Console Foam

707900622

$16.49

3350

RH Lateral Console Foam

707900623

$16.49

3360

RH Lateral Console Foam

707900624

$16.49

3550

Heat Sheet

707900148

$7.49

3600

Heat Sheet

707900149

$8.89

3650

Heat Sheet

707900150

$1.09

3700

Heat Sheet

707900151

$10.99

3750

Heat Sheet

707900146

$11.99

3800

Heat Sheet

707900147

$8.89

3850

Heat Sheet

707900145

$11.99

3900

Heat Sheet

707900190

$9.39

3950

Heat Sheet

707900191

$1.09

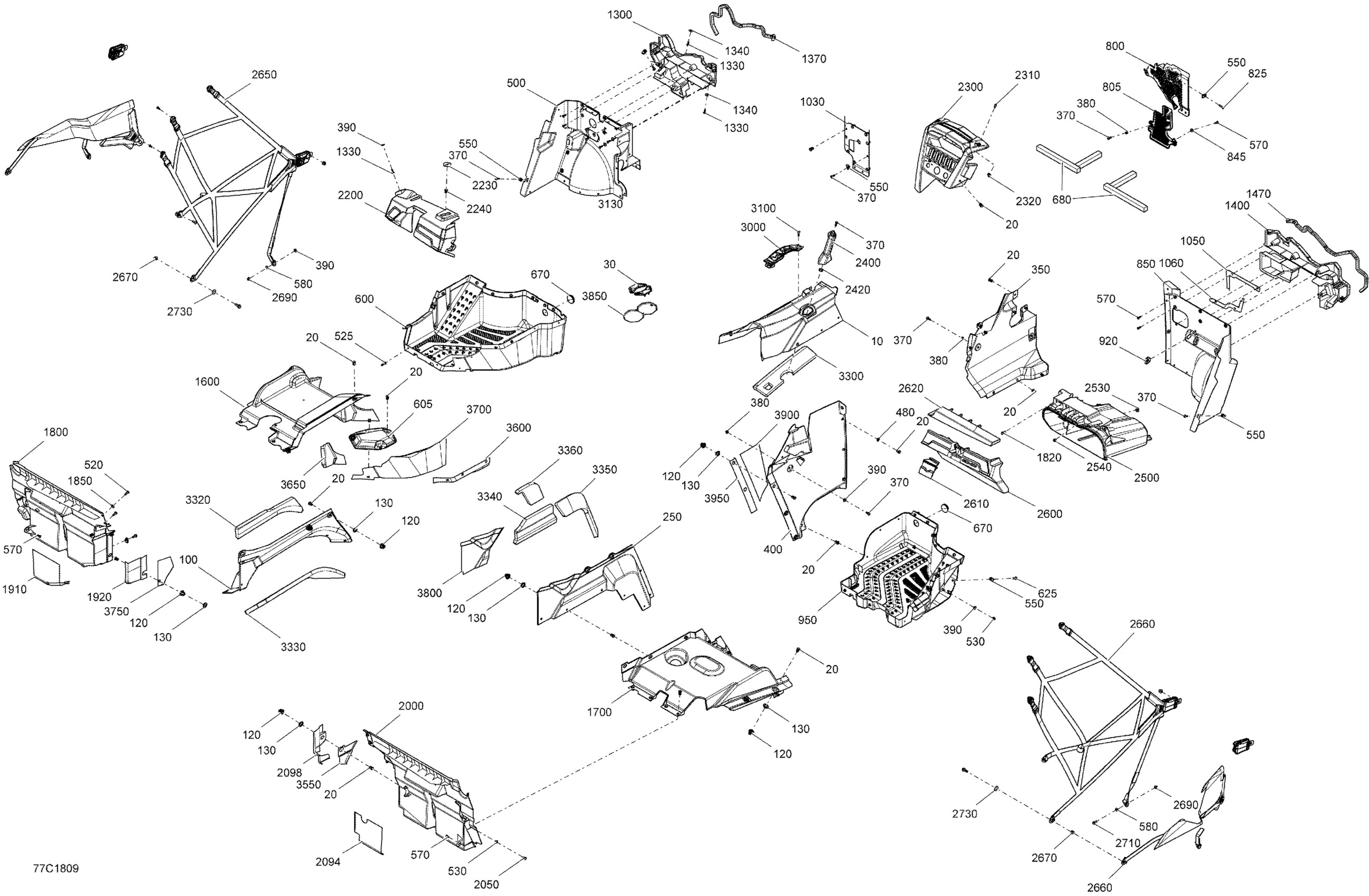

Can-Am 1- Maverick, 2018 09- Cab Interior Maverick Non MAX - Except Package XMR Diagram

Console Kit | Engine 1000R Except Europe Model, Except XMR

Tuflok Plastic Rivet

Cup Retainer

LH Side Console

Insert

Washer

RH Side Console

Front Side Dash Panel

Torx Screw M6 X 20

Threaded Insert M6 X 1.0

Stainless Steel Flat Washer

RH Fixe Side Console

Washer

LH Front Floor

Torx Screw M6 X 20

Torx Screw M6 X 25

Hex. Flange Elastic Nut M6

Panel Nut M6 X 1.0

Torx Screw K50 X 16

Flat Washer 6 mm

LH Lower Floor

Torx Truss Screw M6 X 25

Rubber Cover

Was 293250381 Seal Tray

Grille

Grille

Torx Truss Screw M6 X 30

Washer M5

RH Front Floor

Oblong Grommet

RH Lower Floor

DEFLECTOR - Call your local BRP dealership

Deflector | XRS-DPS

Upper Seal

Bottom Seal

Floor Support LH

Torx Screw Truss Head K50X20 T20

Flat Washer

Was 293200017 Neoprene Seal

RIGHT FLOOR SUPPORT - Call your local BRP dealership

Was 293200017 Neoprene Seal

LH Under Seat Plate

RH Under Seat Plate

LH Rear Deflector

Hex. Flange Screw M6 X 20

Flat Washer

Heat Shield

Heat Shield

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

Torx Screw M6 X 16

Heat Shield

Heat Shield

Dashboard Ass'y

Support Plate

Edge Clip

Lower Central Dashboard Ass'y | Europe

Torx Screw M5 X 20

Panel Nut M5 X 0.8

DASH CAP - Call your local BRP dealership | Carbon Black Models

Passenger Handle

Connector Tube

Storage Bin

CAP - Call your local BRP dealership

Rubber Bumper

LUGGAGE COVER KIT - Call your local BRP dealership

Latch

Trim Glove Box

Front LH Safety Net

Front RH Safety Net

Hex. Flange Elastic Nut M8

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 20

Flat Washer 8 mm

Lever Indicator

Torx Screw M6 X 25 | XT Models

Front Central Console Foam

Left Upper Lateral Console Foam

LH Lower Lateral Console Foam

RH Lateral Console Foam
