Description

Price

100

WHITE LH FRONT FENDER - Call your local BRP dealership | Model-STD White

705007978

Unavailable

100

White RH Front Fender | Model-STD White

705007979

$139.99

300

WHITE LH FRONT FENDER TRIM - Call your local BRP dealership | Model-STD White

705007981

Unavailable

300

WHITE RH FRONT FENDER TRIM - Call your local BRP dealership | Model-STD White

705007982

Unavailable

410

Edge Clip

517302785

$0.88

420

Self Tapping Screw #8 X 5/8

250000202

$1.48

430

Torx Screw K50 X 16

250000720

$1.69

440

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

500

White LH Cover Front Fender | Model-STD White

705007983

$24.49

500

Cover Fender LH Can-Am Red | Package XMR

705010783

$22.99

500

White RH Cover Front Fender | Model-STD White

705007984

$24.49

500

Cover Fender RH Can-Am Red | Package XMR

705010784

$22.99

610

Grommet

517303756

$4.09

620

Grommet

705003264

$4.09

700

White LH Fixe Hood | Model-White

705007348

$134.99

700

White RH Fixe Hood | Model-White

705007349

$134.99

810

Black, Dart

414644300

$0.98

820

Panel Nut M6 X 1.0

250100198

$2.11

830

Torx Screw M6 X 20

250000722

$1.68

900

Fixe Center Hood

705005821

$399.99

910

Panel Nut M6 X 1.0

250100198

$2.11

920

Torx Screw M6 X 20

250000722

$1.68

925

Stainless Steel Flat Washer

234062670

$2.11

930

Support Plate

705003841

$0.99

940

Edge Clip

517302785

$0.88

950

Torx Screw Truss Head K50X20 T20

250000760

$2.11

960

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

970

Clamp

705006623

$3.98

975

Hex. Flange Screw M6 X 20

207662054

$1.01

980

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

985

Stainless Steel Flat Washer

234062670

$2.11

1000

Black Removable Hood | Black Models

705007060

$339.99

1010

Oval Washer

705005156

$4.97

1200

LH Bumper Grille

705007497

$21.99

1250

RH Bumper Grille

705007498

$21.99

1300

WHITE LH BUMPER CAP - Call your local BRP dealership | Model-STD White

705007352

Unavailable

1300

TRIM_BUMPER FL B-101 - Call your local BRP dealership | Model-XRS White

705010791

Unavailable

1400

WHITE RH BUMPER CAP - Call your local BRP dealership | Model-STD White

705007353

$91.99

1400

TRIM_BUMPER FR B-101 - Call your local BRP dealership | Model-XRS White

705010792

Unavailable

1410

Torx Screw Truss Head K50X20 T20

250000760

$2.11

1420

Torx Screw M5 X 20

250000724

$1.69

1430

Panel Nut M5 X 0.8

250000958

$4.23

1440

Washer M5

250200025

$0.74

1500

Front Radiator Grille

705005784

$62.49

1510

Radiator Grille Bracket

705006635

$11.06

1520

Torx Truss Screw M6 X 16

250000721

$1.69

1600

LH Rear Radiator Grille

705005983

$20.49

1650

Rubber Bumper

293830005

$8.09

1700

RH Rear Radiator Grille

705005984

$20.49

1710

Edge Clip

517302785

$0.88

1740

Panel Nut M5 X 0.8

250000958

$4.23

1750

Torx Screw M5 X 20

250000724

$1.69

1760

Washer M5

250200025

$0.74

1780

Amber Reflector | Except Europe Model

705011222

$14.49

1800

LH Front Facia

705004508

$51.99

1800

RH Front Facia

705004509

$51.99

1910

Torx Screw M6 X 25

250000758

$2.11

1920

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1930

Torx Screw M6 X 20

250000712

$2.11

1940

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2100

LH Front Facia Trim

705005992

$11.49

2100

RH Front Facia Trim

705005993

$11.49

2300

LH Front Facia Support

705006078

$11.49

2300

RH Front Facia Support

705006079

$11.49

2410

Torx Screw Truss Head K50X20 T20

250000760

$2.11

2420

Panel Nut M6 X 1.0

250100198

$2.11

2450

Torx Screw M6 X 20

250000722

$1.68

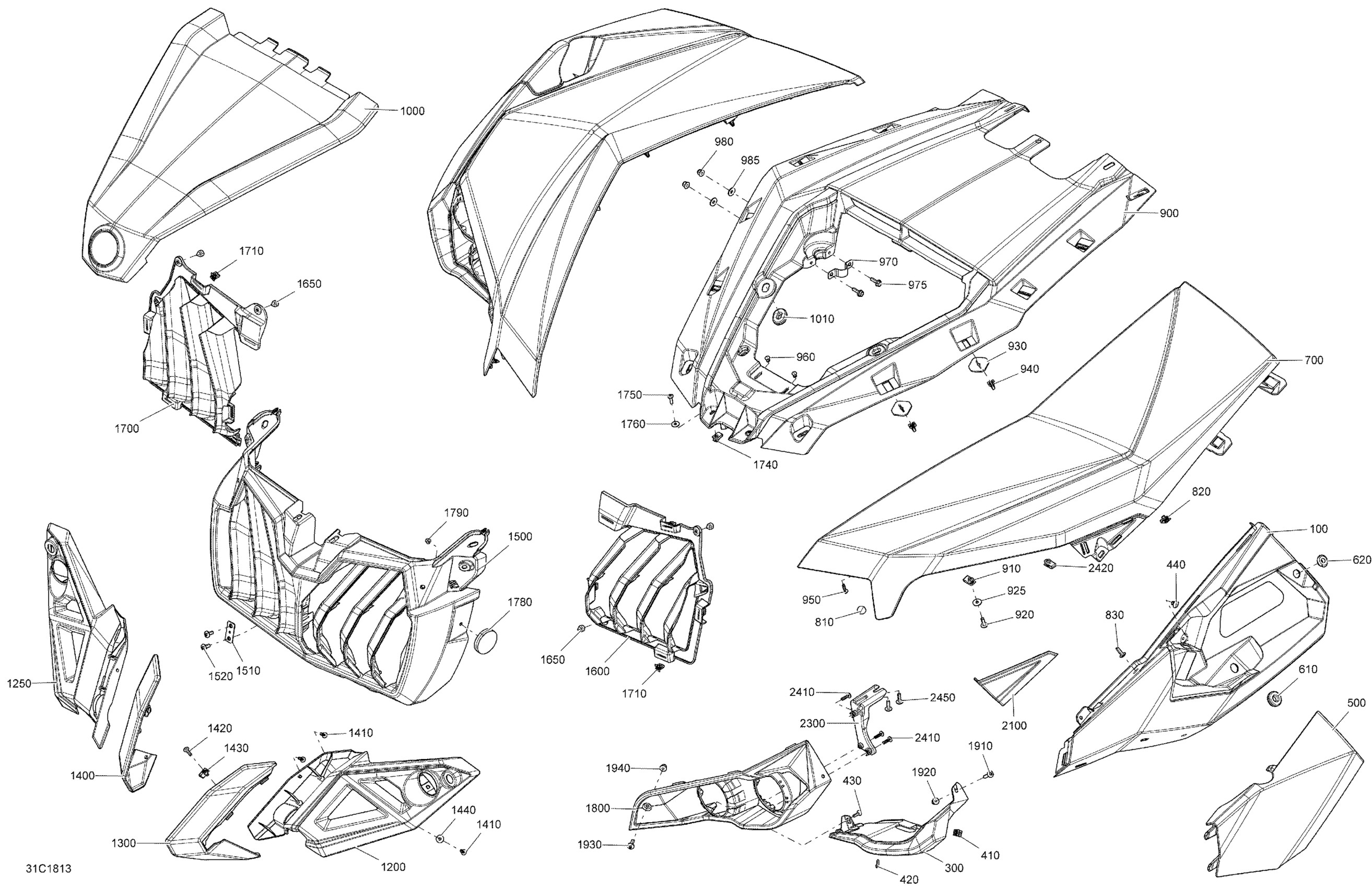

Can-Am 1- Maverick, 2018 09- Body Front Part Maverick - Bright White Models Diagram

WHITE LH FRONT FENDER - Call your local BRP dealership | Model-STD White

White RH Front Fender | Model-STD White

WHITE LH FRONT FENDER TRIM - Call your local BRP dealership | Model-STD White

WHITE RH FRONT FENDER TRIM - Call your local BRP dealership | Model-STD White

Edge Clip

Self Tapping Screw #8 X 5/8

Torx Screw K50 X 16

Pop Rivet 3/16" | DS 650 X

White LH Cover Front Fender | Model-STD White

Cover Fender LH Can-Am Red | Package XMR

White RH Cover Front Fender | Model-STD White

Cover Fender RH Can-Am Red | Package XMR

Grommet

Grommet

White LH Fixe Hood | Model-White

White RH Fixe Hood | Model-White

Black, Dart

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Fixe Center Hood

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Stainless Steel Flat Washer

Support Plate

Edge Clip

Torx Screw Truss Head K50X20 T20

Pop Rivet 3/16" | DS 650 X

Clamp

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Stainless Steel Flat Washer

Black Removable Hood | Black Models

Oval Washer

LH Bumper Grille

RH Bumper Grille

WHITE LH BUMPER CAP - Call your local BRP dealership | Model-STD White

TRIM_BUMPER FL B-101 - Call your local BRP dealership | Model-XRS White

WHITE RH BUMPER CAP - Call your local BRP dealership | Model-STD White

TRIM_BUMPER FR B-101 - Call your local BRP dealership | Model-XRS White

Torx Screw Truss Head K50X20 T20

Torx Screw M5 X 20

Panel Nut M5 X 0.8

Washer M5

Front Radiator Grille

Radiator Grille Bracket

Torx Truss Screw M6 X 16

LH Rear Radiator Grille

Rubber Bumper

RH Rear Radiator Grille

Edge Clip

Panel Nut M5 X 0.8

Torx Screw M5 X 20

Washer M5

Amber Reflector | Except Europe Model

LH Front Facia

RH Front Facia

Torx Screw M6 X 25

Hex. Flange Elastic Nut M6 x 1.0

Torx Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

LH Front Facia Trim

RH Front Facia Trim

LH Front Facia Support

RH Front Facia Support

Torx Screw Truss Head K50X20 T20

Panel Nut M6 X 1.0

Torx Screw M6 X 20
