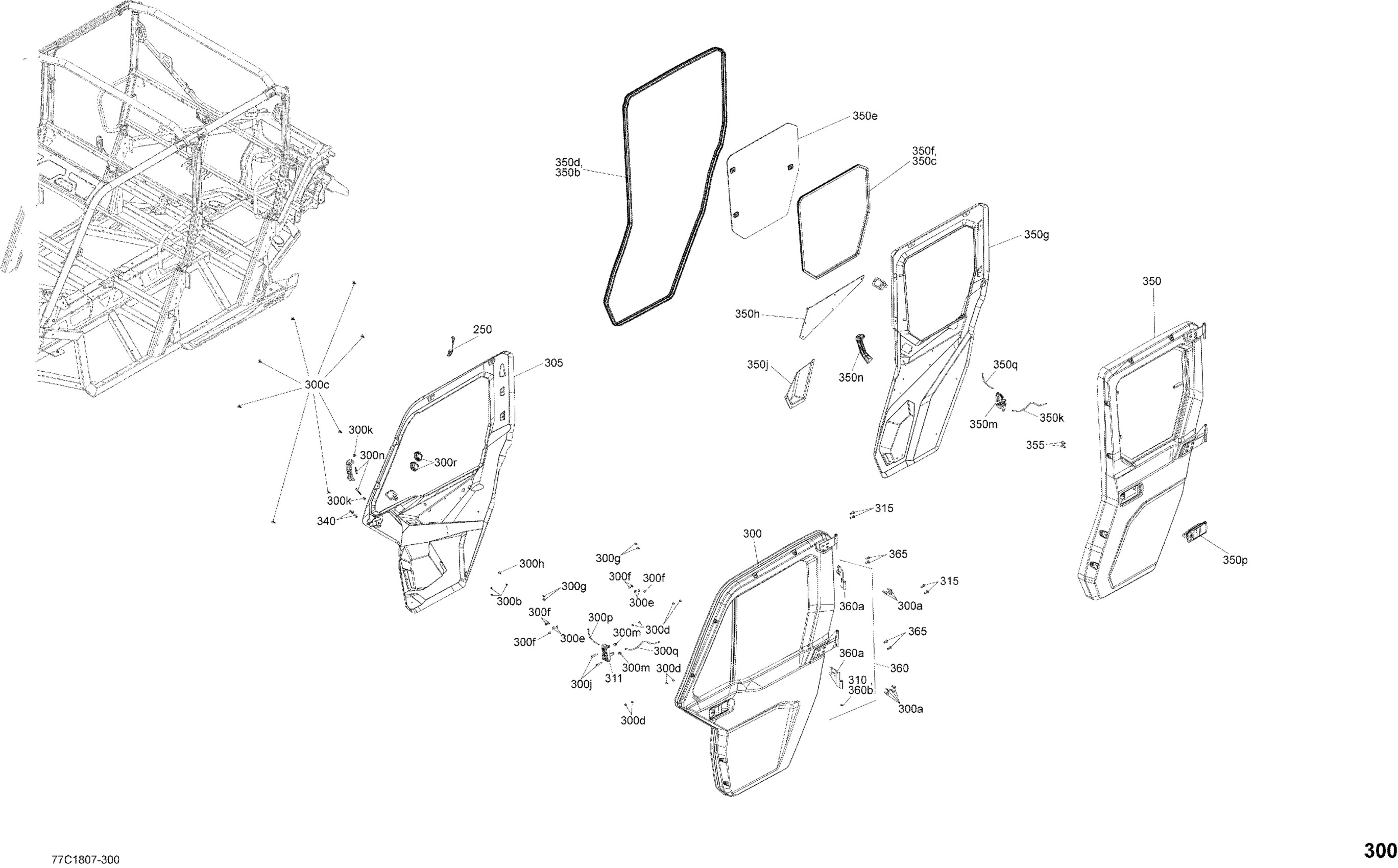

Can-Am 7- Defender MAX HD10, 2018 09- Cab Interior, Door Defender Max - CAB Package Diagram

#

Description
Price

250

Door Limit Device Kit | 2nd version, 2 Holes

703500982

$21.99

260

Torx Screw M6 X 20

250000722

$1.68

270

Stainless Steel Flat Washer

234062670

$2.11

300

LH Front Rigid Door Ass'y | Includes 300 to 300a10

705800659

$3,149.99

300

DOOR_RIGID FR ASSY - Call your local BRP dealership | Includes 300 to 300a10

705800660

$2,859.99

300a

Torx Truss M8 X 25

250000874

$2.11

300b

Socket Head Screw M5 X 10

205951046

$2.43

300c

Black, Dart

293730011

$0.99

300d

Socket Screw M6 X 8

205460860

$0.52

300e

Stainless Steel Flat Washer

234062670

$2.11

300f

Torx-truss M/s M6 X 10

250000995

$4.44

300g

Torx Truss M6X14

250000789

$5.39

300h

Black, Socket Screw, M6 X 16 S.Grip

250000616

$2.11

300j

Socket Head Screw M8 X 40

205484060

$4.12

300k

Hex. Flange Elastic Nut M6

233261494

$1.58

300m

Elastic Flange Nut M8

233281466

$1.01

300n

Hex. Flange Screw M6 X 20

207662044

$2.00

300p

LH Latch Cable 2.4''

715900493

$59.99

300p

RH Latch Cable 2.9''

715900494

$59.99

300q

Interior Latch Cable 28''

715900504

$98.99

300r

LH Power Window Switch Housing

715900526

$15.49

300r

RH Power Window Switch Housing

715900527

$21.99

300s

Driver Door Harness

705800047

$244.99

300s

Passenger Door Harness

705800050

$249.99

300t

LH Window Actuator

705800046

$709.99

300t

RH Window Actuator

705800051

$709.99

300u

LH Roll-Down Glass

705800016

$559.99

300u

RH Roll-Down Glass

705800025

$559.99

300x

A-Pillar Glass LH

705800044

$349.99

300x

A-Pillar Glass RH

705800052

$349.99

300y

Lh Door Outer Panel

705800407

$1,309.99

300y

Rh Door Outer Panel

705800408

$1,309.99

300z

Window Switch

710004979

$35.99

300a1

Exterior Paddle Latch | Keys 705800184 sold separately

705800015

$269.99

300a2

Seal 705800290 - 5000 MM

705800289

$229.99

300a3

LH Hinge Kit

703500917

$299.99

300a3

RH Hinge Kit

703500918

$289.99

300a4

LH Hinge Kit

703500917

$299.99

300a4

RH Hinge Kit

703500918

$289.99

300a5

LH Interior Handle

705800324

$119.99

300a5

RH Interior Handle

705800325

$119.99

300a6

Door Frame Bracket Lh

705800411

$184.99

300a6

RH Door Frame Bracket

705800149

$184.99

300a7

Window Guide Bracket

705800150

$70.99

300a8

Window Guide Extrusion

705800590

$174.99

300a9

Key Set

705800184

$25.99

300a10

Flocked Beltline Trim 705800294 - 600 MM

705800293

$48.99

305

LH Door Panel Kit

715006687

$229.99

305

Door Panel Kit RH

715003568

$114.99

310

Retaining Ring

293370125

$2.59

311

LH Interior Latch Kit

703500915

$209.99

311

RH Interior Latch Kit

703500916

$209.99

315

Torx Truss M8 X 25

250000874

$2.11

340

Torx Truss M8 X 25

250000874

$2.11

350

LH Rear Rigid Door Ass'y | Includes 350 to 350u

705800476

$3,489.99

350

RH Rear Rigid Door Ass'y | Includes 350 to 350u

705800477

$3,489.99

350b

Seal 705800290 - 5000 MM

705800289

$229.99

350c

Seal 705800290 - 5000 MM

705800289

$229.99

350d

Seal 705800290 - 5000 MM

705800289

$229.99

350e

LH Sub-Ass'y, Window

705800233

$559.99

350e

RH Sub-Ass', Window

705800234

$559.99

350f

Seal 705800298 - 2200 MM

705800297

$104.99

350g

LH Routed Inner Door

705800235

$1,239.99

350g

Routed Inner Door Rh

705800236

$1,239.99

350h

Interior Color Panel LH

705800237

$409.99

350h

Interior Color Panel DR

705800238

$409.99

350j

Rear Door Pocket LH

705800249

$419.99

350j

Rear Door Pocket RH

705800250

$419.99

350k

Cable Ass', Exterior Latch

705800241

$159.99

350m

LH Interior Latch Kit

703501002

$209.99

350m

RH Interior Latch Kit

703501003

$209.99

350n

LH Interior Handle

705800243

$119.99

350n

RH Interior Handle

705800244

$119.99

350p

Exterior Paddle Latch | Keys 705800184 sold separately

705800015

$269.99

350q

Cable Ass'y, Interior Latch

705800242

$159.99

350r

Lh Door Outer Panel

705800415

$1,309.99

350r

Rh Door Outer Panel

705800416

$1,309.99

350s

LH Hinge Kit

703500917

$299.99

350s

RH Hinge Kit

703500918

$289.99

350t

Key Set

705800184

$25.99

350u>350u5

Window Hardware Kit

703500983

$244.99

350u1

Not Available As Spare Part - Friction Washer

Unavailable

350u2

Not Available As Spare Part - Friction Washer

Unavailable

350u3

Not Available As Spare Part - Friction Washer

Unavailable

350u4

Not Available As Spare Part - Friction Washer

Unavailable

350u5

Not Available As Spare Part - Friction Washer

Unavailable

355

Torx Truss M/S M8 X 20

250000953

$2.11

360

Max Hinges and Strikers Kit LH

705800160

$389.99

360

Max Hinges And Strikers Kit Rh

705800565

$369.99

360a

LH Hinge Kit

703500917

$299.99

360a

RH Hinge Kit

703500918

$289.99

360b

Retaining Ring

293370125

$2.59

365

Torx Truss M/S M8 X 20

250000953

$2.11

370

Door Pocket Lh

705800413

$184.99

370

RH Door Pocket

705800605

$184.99

375

Plastic Dart

705009405

$1.99
