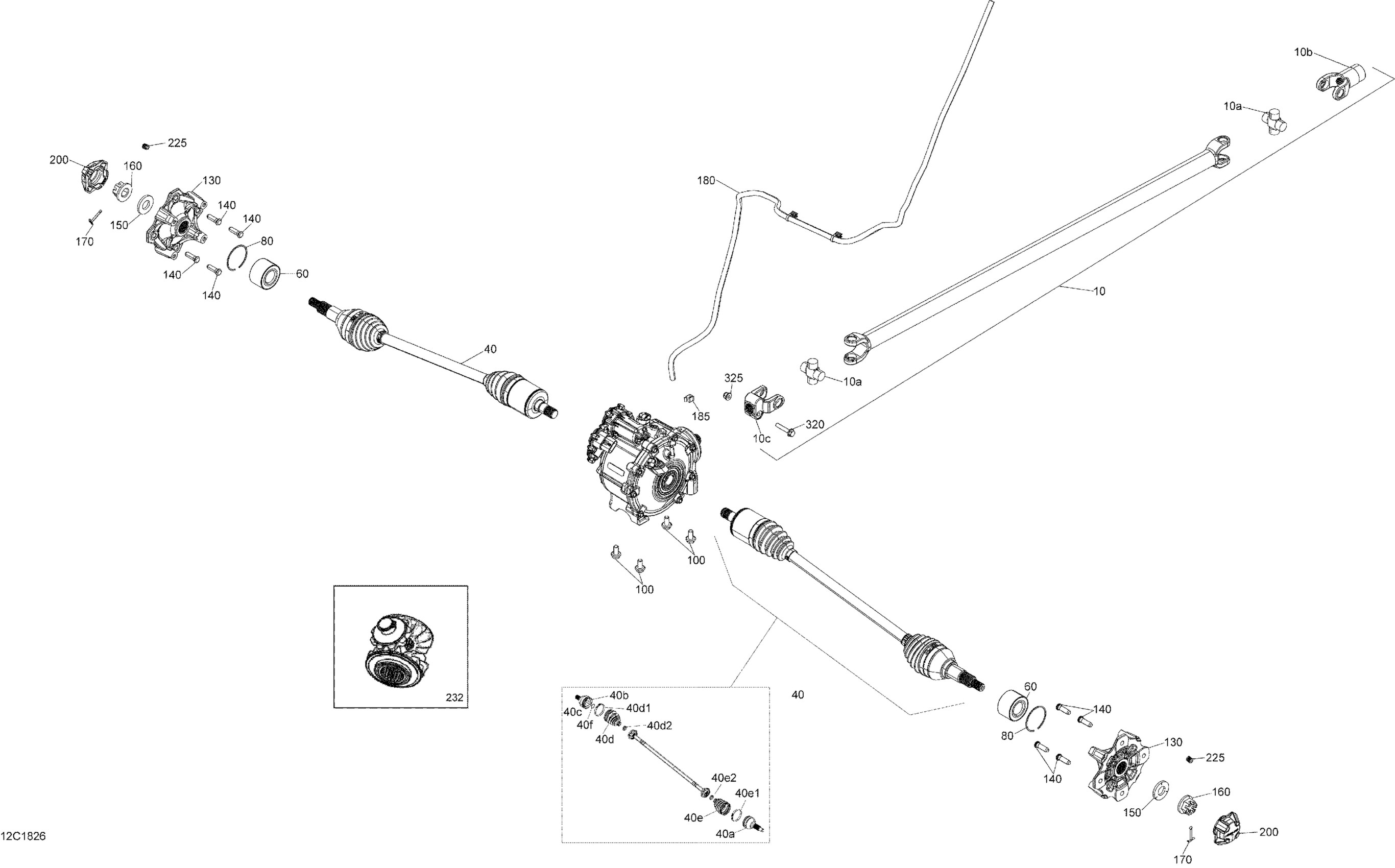

Can-Am 5- Defender HD10 - XMR, 2018 07- Front Drive - Main Parts - Defender XMR Diagram

Description

Price

Axle Ass'y

705402125

$243.49

10a

J-Joint Cross Kit

715900402

$89.99

10b

Fixed Yoke

715900400

$59.49

10c

Yoke

715900401

$35.99

40>40f

Half Shaft

705402228

$275.49

40a

CV Joint

715900567

$259.49

40b

LH Plunging Joint

715900568

$275.49

40c

Circlip

715900569

$5.50

40d

Boot Kit, Wheel Side

705401354

$42.49

40d1

Oetiker Clamp, Large

715900260

$10.33

40d2

Oetiker Clamp, Small

715900261

$5.29

40e

Boot Kit, Différential Side

705401355

$42.49

40e1

Oetiker Clamp, Small

715900261

$5.29

40e2

Oetiker Clamp, Large

715900262

$10.33

40f

O-ring

715900580

$2.51

Ball Bearing

293350150

$52.99

Circlip

293370019

$4.68

100

Hex. Flange Screw M10 X 20

207502046

$2.11

130

Wheel Hub

705502338

$116.49

140

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.49

150

Conical Spring Washer M20

250200170

$14.74

160

Castle Nut M20

250100193

$8.05

170

Cotter Pin

250400084

$2.29

180

Polyurethane Hose 10000Mm Long

219704410

$56.99

185

Clip

414227300

$1.67

200

Wheel Cap | Package XMR 850, XMR 1000

705401541

$11.49

225

Valve Cap

293000110

$1.59

232

Side Gear Kit

703501023

$465.99

320

Hex. Flange Screw M8 X 42

250001050

$1.16

325

Hex. Elastic Flange Nut M8

233281416

$1.48
