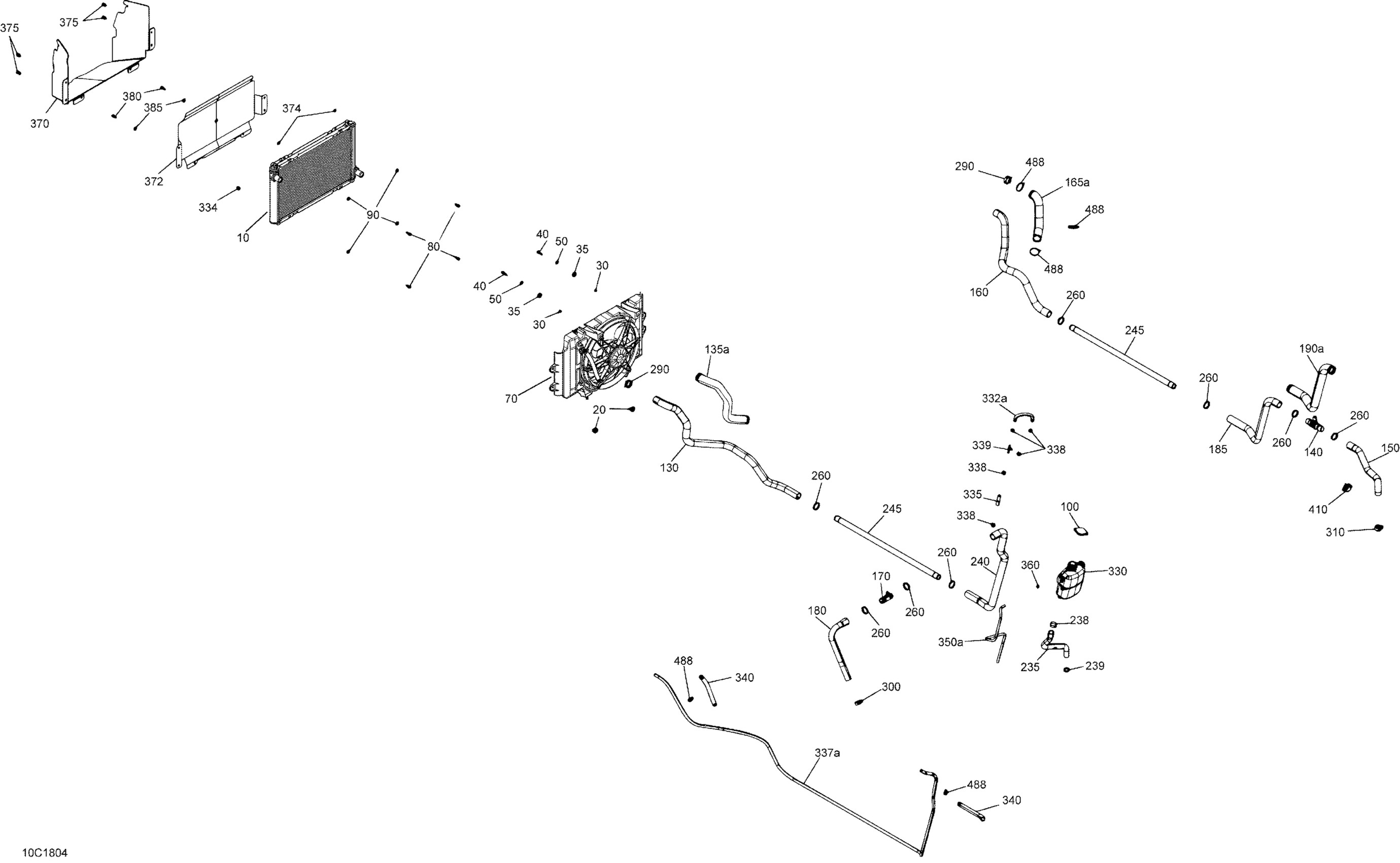

Can-Am 5- Defender HD10 - XMR, 2018 01- Cooling Defender Package XMR Diagram

#

Description
Price

10

Radiator

709200951

$370.99

20

Grommet

709200285

$9.69

30

Bushing

293900105

$7.65

35

Grommet

709000582

$4.69

40

Hex. Flange Screw M6 X 25

207662544

$0.64

50

Flat Washer 6 mm

234062410

$0.77

70

Fan Ass'y

709200534

$339.99

80

Hex. Flange Screw M6 X 20

207662044

$2.00

90

Flat Washer 6 mm

234062410

$0.77

100

Radiator Pressure Cap

709200207

$25.49

130

Radiator Inlet Hose

709200537

$67.99

135

Tubing 35 MM 1000MM Long

219704428

$10.99

140

T-Fitting

509000219

$15.89

150

Pump Hose

709200545

$9.79

160

Hose_Thermostat Out | Except Package Cab

709200914

$35.99

170

T-Fitting

509000510

$13.16

180

Hose Engine Out

709200915

$41.49

185

Hose Engine In

709200916

$41.49

220

Thermostat Housing

709200581

$104.99

230

Hose

709200299

$8.60

235

Hose Coolant Tank Out

709200918

$33.99

238

Oetiker Gear Clamp

293650165

$5.39

239

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

240

Hose Thermostat in | Except Package Cab

709200917

$35.99

245

Heater Tubing

709200657

$19.49

256

Thermostat Hose

709200913

$18.15

260

Gear Clamp

509000162

$7.29

290

Norma Spring Clamp

293650166

$4.44

330

Coolant Tank

709201323

$80.99

332

Was 415129508 Bleeder Hose

219704416

$12.18

334

Oetiker Gear Clamp

293650025

$3.09

335

Bleeding Hose

709200606

$20.99

338

Crimp Clamp, 15.3-706R

293650047

$3.29

339

Y-Fitting

293710059

$9.69

340

Tubing 16 Mm 1000Mm Long

219704408

$7.49

350

Polyurethane Hose 10000Mm Long

219704410

$56.99

360

Spring Clamp

414554800

$0.88

370

Deflector

705012573

$58.49

372

Grille

708200609

Unavailable

374

Clip | Europe Models

517306751

$2.09

375

Tuflok Plastic Rivet

293150230

$1.47

380

Hex. Flange Screw M6 X 20

207662044

$2.00

385

Flat Washer 6 mm

234062410

$0.77

788

Tie Wrap 94 mm | 4X4

293750001

$1.03

788

Tie Wrap 368 mm

293750008

$1.04

788

Tie-Rap 180 mm

414115200

$0.11
