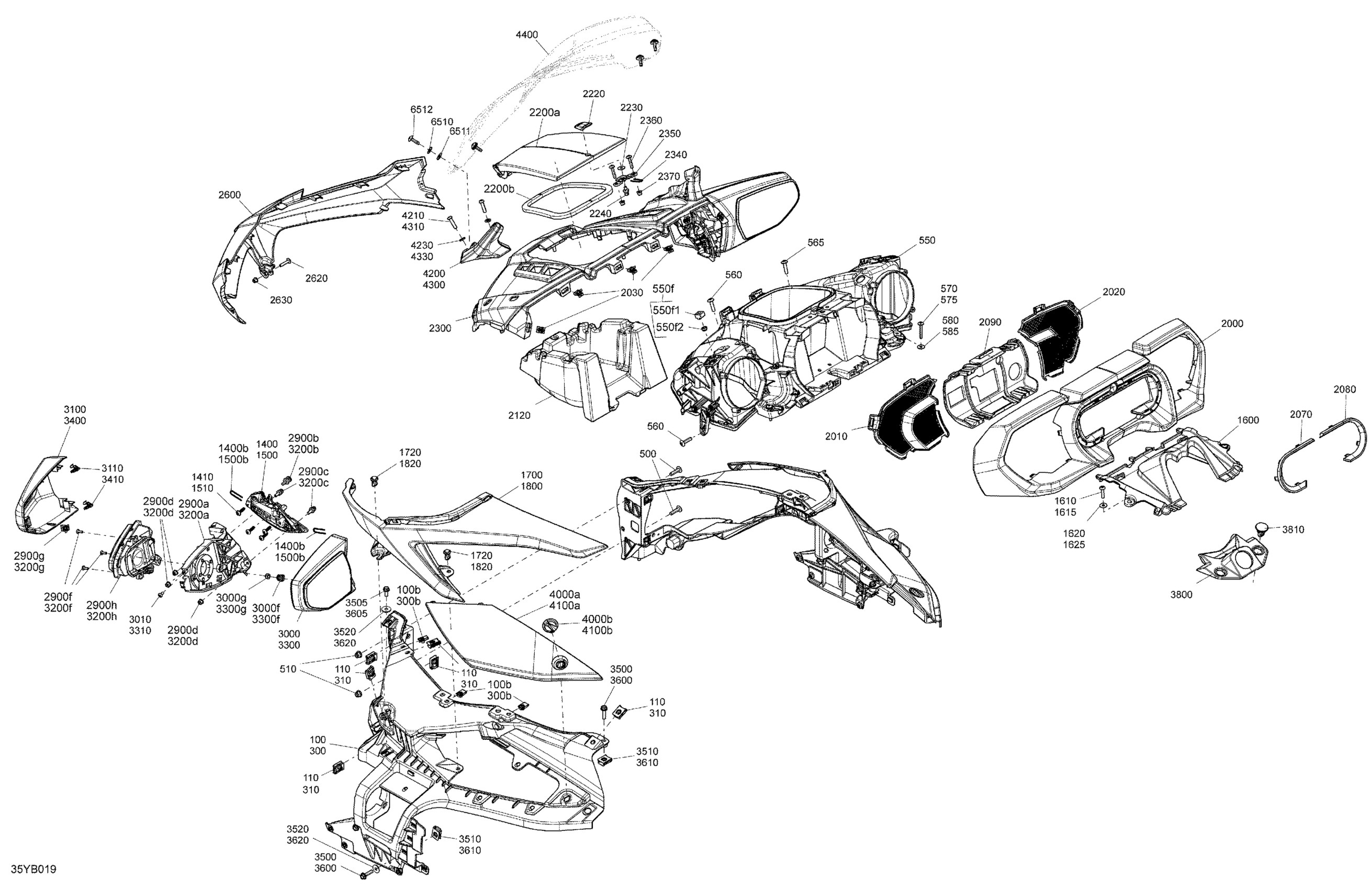

Can-Am 021 - F3 LIMITED - Dark Edition - Monolith Black Satin, Australia, 2022 07- Body - Console Diagram

LH Console Support | Included 100 to 100b

708400170

$99.99

Panel Nut M5 X 0.8

250000958

$4.23

Panel Nut M6 X 1.0

250100208

$1.46

RH Console Support | Included 300 to 300b

708400171

$104.99

Panel Nut M5 X 0.8

250000958

$4.23

Panel Nut M6 X 1.0

250100208

$1.46

Torx Screw M6 X 25

250000758

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

Upper Pod | Included 550 to 550f

708400219

$154.99

Housing Nut M6 | Included 550f to 550f2

269502408

$6.74

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

Elastic Stop Nut M6, Brass

232561200

$4.23

Torx Truss Screw M6 X 25

250000807

$2.11

Torx Truss Screw M6 X 25

250000807

$2.11

Torx Screw Nylon

250000732

$2.11

Torx Screw Nylon

250000732

$2.11

Stainless Steel Flat Washer M5

234052670

$1.01

Stainless Steel Flat Washer M5

234052670

$1.01

LH Mirror Plate Support Ass'y | Included 1400 to 1400b

705008211

$27.99

Spring

705006661

$3.39

Torx Screw Truss Head K50X20 T20

250000760

$2.11

RH Mirror Plate Support Ass'y | Included 1500 to 1500b

705008210

$27.99

Spring

705006661

$3.39

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Column Fairing

708400108

$17.99

Torx Screw M5 X 25

250000762

$2.11

Torx Screw M5 X 25

250000762

$2.11

Stainless Steel Flat Washer M5

234052670

$1.01

Stainless Steel Flat Washer M5

234052670

$1.01

Monolith Black, LH Console Fairing

708400566

$219.99

Tuflok Plastic Rivet

293150230

$1.47

Monolith Black, RH Console Fairing

708400567

$219.99

Tuflok Plastic Rivet

293150230

$1.47

Dashboard

708400230

$63.99

LH Grille

708400231

$10.99

RH Grille

708400232

$10.99

Edge Clip

517302785

$0.88

Carbon Black, LH Trim Gauge

705012356

$44.99

Carbon Black, RH Trim Gauge

705012357

$44.99

Speedometer Support

705012178

$10.99

Pod Foam

708400103

$16.49

Glove Box Door

708400217

$169.99

Seal

293250406

$28.99

Lever

708400213

$42.99

Stainless Steel Flat Washer M5

234052670

$1.01

Stud M5

705011056

$19.49

Upper Fairing

708400221

$36.99

Spring

705006661

$3.39

Receptacle

708400215

$7.87

Torx Screw M5 X 25

250000762

$2.11

Elastic Flange Nut M5

233251494

$2.11

Monolith Black, Front Fairing

708400571

$229.99

Torx Screw M5 X 25

250000762

$2.11

Elastic Flange Nut M5

233251494

$2.11

LH Mirror Support

708400224

$33.99

Flat Head Stud M5

705006733

$20.99

Stud Ball M5

708400538

$18.49

Flange Elastic Nut M5

233251434

$2.00

Torx Truss PT K40 x 12

250001131

$2.11

Edge Clip

517302785

$0.88

LH Front Flasher Unit

710006197

$164.49

LH Rear View Mirror Housing Ass'y | Included 3000 to 3000g

708400592

$144.99

Spring

705010625

$10.99

Hex. Elastic Stop Nut M6

232561600

$1.15

Torx Truss PT K40 x 12

250001131

$2.11

Monolith Black, LH Front Rear View Mirror Trim

708400581

$58.99

Clip

517306478

$1.09

RH Mirror Support

708400225

$33.99

Flat Head Stud M5

705006733

$20.99

Stud Ball M5

708400538

$18.49

Flange Elastic Nut M5

233251434

$2.00

Torx Truss PT K40 x 12

250001131

$2.11

Edge Clip

517302785

$0.88

RH Front Flasher Unit

710006198

$164.49

RH Rear View Mirror Housing Ass'y | Included 3300 to 3300g

708400593

$144.99

Spring

705010625

$10.99

Hex. Elastic Stop Nut M6

232561600

$1.15

Torx Truss PT K40 x 12

250001131

$2.11

Monolith Black, RH Front Rear View Mirror Trim

708400582

$57.99

Clip

517306478

$1.09

Hex. Flange Screw M6 X 25

250000793

$2.11

Hex. Flange Screw M6 X 16

210261650

$1.67

Panel Nut M6 X 1.0

250100208

$1.46

Flat washer M6

250200164

$1.01

Hex. Flange Screw M6 X 25

250000793

$2.11

Hex. Flange Screw M6 X 16

210261650

$1.67

Panel Nut M6 X 1.0

250100208

$1.46

Flat washer M6

250200164

$1.01

Switch Bezel

708400205

$14.67

Cap

708400046

$3.89

Carbon Monolith, LH Front Access Cover

708400575

$234.99

Cover Latch Quarter Turn

708400065

$2.79

Carbon Monolith, RH Front Access Cover

708400576

$234.99

Cover Latch Quarter Turn

708400065

$2.79

Carbon Black, LH Windshield Base

708400127

$129.99

Torx Screw M6 X 25, Scotch Grip

250000328

$2.19

Stainless Flat Washer M6

234061600

$0.33

Carbon Black, RH Windshield Base

708400128

$129.99

Torx Screw M6 X 25, Scotch Grip

250000328

$2.19

Stainless Flat Washer M6

234061600

$0.33

Windshield

708400342

$399.99

Stainless Steel Flat Washer M5

234052670

$1.01

Rubber Washer

293830190

$2.43

Torx Screw M5 X 20

250000528

$2.11
