Description

Price

10

Radiator

709200951

$370.99

20

Grommet

709200285

$9.69

30

Bushing

293900105

$7.65

35

Grommet

709000582

$4.69

40

Hex. Flange Screw M6 X 25

207662544

$0.64

50

Flat Washer 6 mm

234062410

$0.77

70

Fan Ass'y

709200534

$339.99

80

Hex. Flange Screw M6 X 20

207662044

$2.00

90

Flat Washer 6 mm

234062410

$0.77

100

Radiator Pressure Cap

709200207

$25.49

130

Radiator Inlet Hose

709200537

$67.99

135

Tubing 35 MM 1000MM Long

219704428

$10.99

140

T-Fitting

509000219

$15.89

150

Pump Hose

709200545

$9.79

160

Hose_Thermostat Out | Except Package Cab

709200914

$35.99

170

T-Fitting

509000510

$13.16

172

Not Available As Spare Parts

XXX

Unavailable

180

Hose Engine Out

709200915

$41.49

185

Hose Engine In

709200916

$41.49

220

Thermostat Housing

709200581

$104.99

230

Hose

709200299

$8.60

235

Hose Coolant Tank Out

709200918

$33.99

238

Oetiker Gear Clamp

293650165

$5.39

239

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

240

Hose Thermostat in | Except Package Cab

709200917

$35.99

245

Heater Tubing

709200657

$19.49

245

Heater Tubing

709200658

$39.99

256

Thermostat Hose

709200913

$18.15

260

Gear Clamp

509000162

$7.29

275

Was 415129508 Bleeder Hose

219704416

$12.18

290

Norma Spring Clamp

293650166

$4.44

330

Coolant Tank

709201323

$80.99

332

Was 415129508 Bleeder Hose

219704416

$12.18

334

Oetiker Gear Clamp

293650025

$3.09

335

Bleeding Hose

709200606

$20.99

338

Crimp Clamp, 15.3-706R

293650047

$3.29

339

Y-Fitting

293710059

$9.69

340

Tubing 16 Mm 1000Mm Long

219704408

$7.49

350

Polyurethane Hose 10000Mm Long

219704410

$56.99

360

Spring Clamp

414554800

$0.88

370

Deflector

705012573

$58.49

372

Grille

708200609

Unavailable

374

Clip | Europe Models

517306751

$2.09

375

Tuflok Plastic Rivet

293150230

$1.47

380

Hex. Flange Screw M6 X 20

207662044

$2.00

385

Flat Washer 6 mm

234062410

$0.77

788

Tie Wrap 94 mm | 4X4

293750001

$1.03

788

Tie Wrap 368 mm

293750008

$1.04

788

Tie-Rap 180 mm

414115200

$0.11

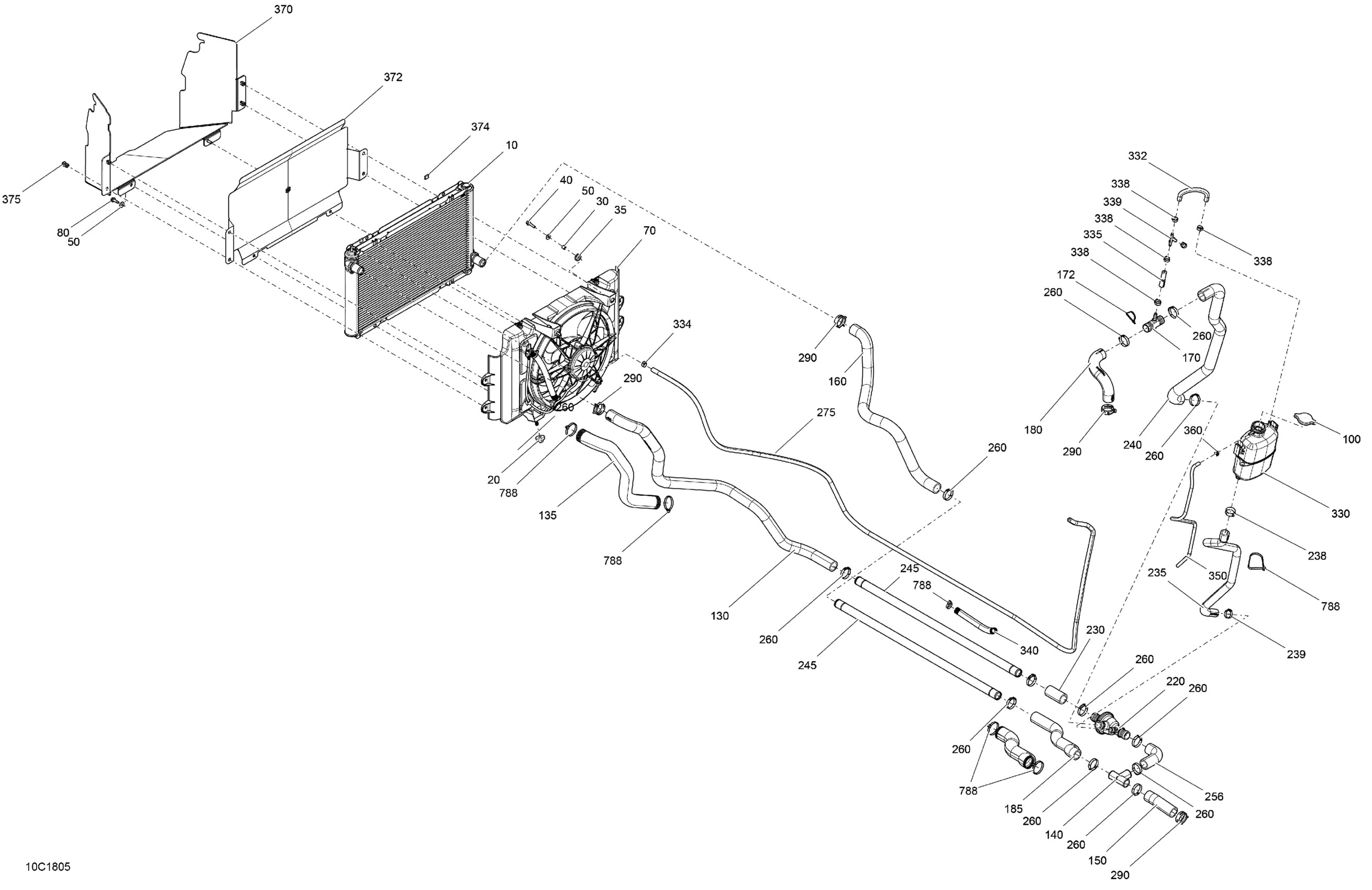

Can-Am 4- Defender HD10 - XTP, 2018 01- Cooling Defender HD8, HD10 - All Models Except Package CAB Diagram

Radiator

Grommet

Bushing

Grommet

Hex. Flange Screw M6 X 25

Flat Washer 6 mm

Fan Ass'y

Hex. Flange Screw M6 X 20

Flat Washer 6 mm

Radiator Pressure Cap

Radiator Inlet Hose

Tubing 35 MM 1000MM Long

T-Fitting

Pump Hose

Hose_Thermostat Out | Except Package Cab

T-Fitting

Not Available As Spare Parts

Hose Engine Out

Hose Engine In

Thermostat Housing

Hose

Hose Coolant Tank Out

Oetiker Gear Clamp

Oeticker Gear Clamp, 25.6-706R

Hose Thermostat in | Except Package Cab

Heater Tubing

Heater Tubing

Thermostat Hose

Gear Clamp

Was 415129508 Bleeder Hose

Norma Spring Clamp

Coolant Tank

Was 415129508 Bleeder Hose

Oetiker Gear Clamp

Bleeding Hose

Crimp Clamp, 15.3-706R

Y-Fitting

Tubing 16 Mm 1000Mm Long

Polyurethane Hose 10000Mm Long

Spring Clamp

Deflector

Grille

Clip | Europe Models

Tuflok Plastic Rivet

Hex. Flange Screw M6 X 20

Flat Washer 6 mm

Tie Wrap 94 mm | 4X4

Tie Wrap 368 mm

Tie-Rap 180 mm
