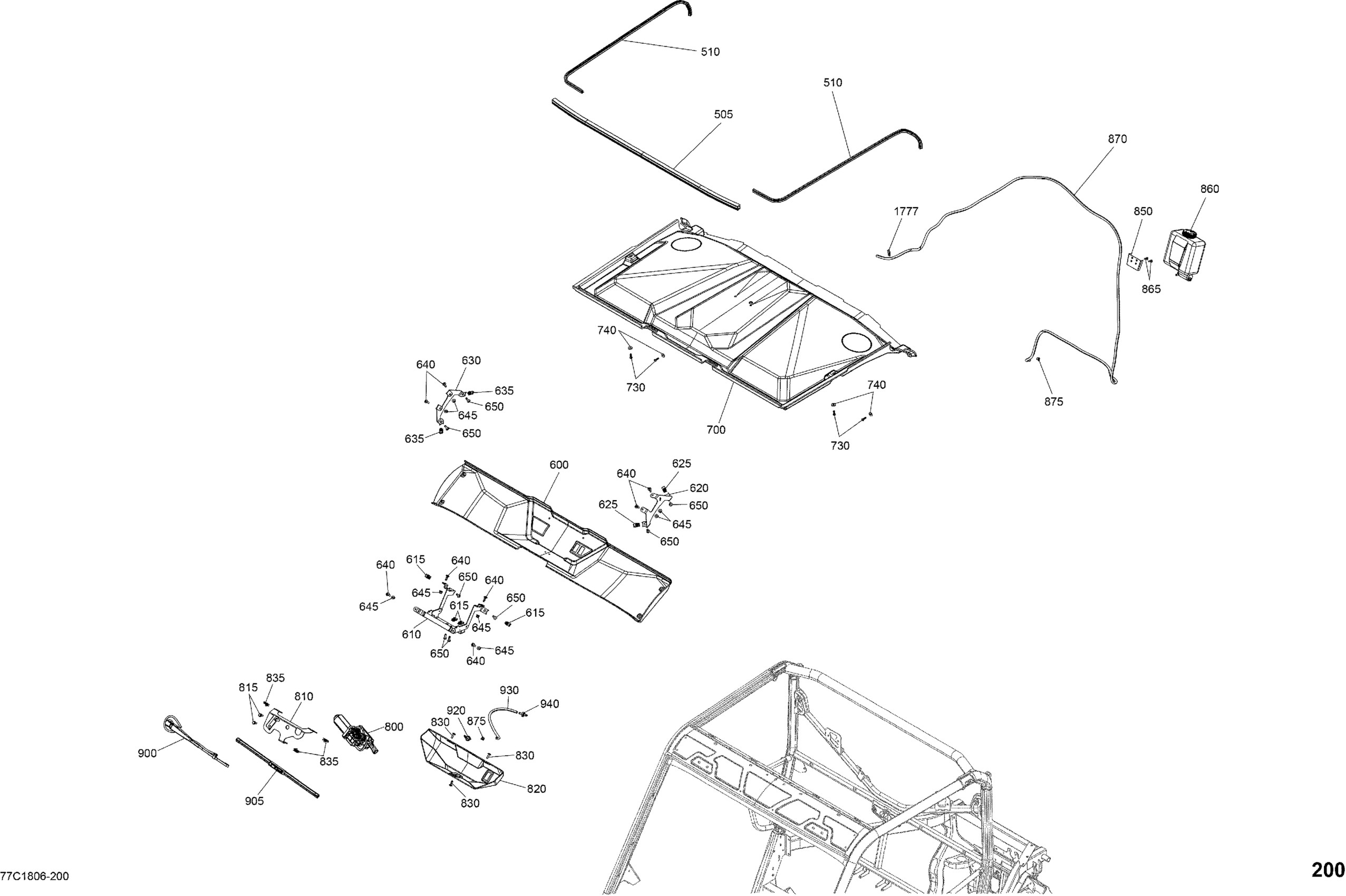

Can-Am 3- Defender HD10, 2018 09- Cab Interior - Roof Diagram

#

Description
Price

505a

Was 293250361 Gasket

219704379

$78.99

510a

Outer Seal

705800054

$35.99

600

Radio Support Kit

715006524

$214.99

610

Support

705800060

$60.99

615

Panel Nut M6 X 1.0

250100198

$2.11

620

LH Support

705800108

$26.99

625

Panel Nut M6 X 1.0

250100198

$2.11

630

RH Support

705800109

$25.99

635

Panel Nut M6 X 1.0

250100198

$2.11

640

Torx Screw M6 X 20

250000722

$1.68

645

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

650

Torx Screw M6 X 20

250000722

$1.68

700>700b

Roof Liner | Includes 700 to 700b

705800253

$349.99

730

Torx Screw Truss Head K50X20 T20

250000760

$2.11

740

Stainless Steel Flat Washer

234062670

$2.11

800

Wiper Motor

705010657

$379.99

810

Cover Support Ass'y

705800073

$85.99

815

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

820

Wiper Motor Trim

705800805

$71.99

830

Torx Screw M6 X 20

250000722

$1.68

835

Panel Nut M6 X 1.0

250100198

$2.11

850

Windshield Washer Tank Support

705800086

$19.99

860

Windshield Washer Tank

705800039

$79.99

865

Torx Screw K50 X 16

250000720

$1.69

870

Polyurethane Hose 10000Mm Long

219704410

$56.99

875

Spring Clamp

414554800

$0.88

900

Wiper Arm

705010656

$80.99

905

Winshield Wiper

705011443

$42.99

920

90° Elbow Connector

705800103

$13.76

930

Polyurethane Hose 10000Mm Long

219704410

$56.99

940

Check Valve

275500398

$10.99

1777

Tie Wrap 368 mm

293750008

$1.04
