Description

Price

10

LH Foot Board | Includes 10 to 10b

705009454

$109.99

20

RH Foot Board | Includes 20 to 20b

705009455

$109.99

30

Carbon Black, LH Footrest Support | Includes 30 to 30b

705008955

$119.99

40

Carbon Black, RH Footrest Support | Includes 40 to 40b

705008954

$119.99

50

LH Footrest Pad

705015846

$66.99

60

RH Footrest Pad

705015847

$66.99

70

Platinum Silver, RH Footrest Support

705018724

Unavailable

80

Platinum Silver, LH Footrest Support

705018723

Unavailable

110

LH Outer Protective Film

705014178

$9.21

111

RH Outer Protective Film

705014179

$10.43

115

RH Inner Protective Film

705014175

$6.50

116

LH inner Protective Film

705014174

$6.50

150

Tube Support | Includes 150 to 150a

705008950

$22.99

160

Carbon Black, LH Slider Outside | Includes 160 to 160b

705009466

$64.99

170

Carbon Black, RH Slider Outside | Includes 170 to 170b

705009463

$62.99

200

Foot Board Pad, Passenger

705009234

$53.99

205

Foot Board Pad, Passenger

705009234

$53.99

210

Carbon Black, RH Foot Board | Includes 210 to 210b

705010759

$109.99

215

Carbon Black, RH Foot Board | Includes 210 to 210b

705010759

$109.99

219

Pivot Pin | Includes 220 to 220

705013628

$17.82

221

Pivot Pin | Includes 220 to 220

705013628

$17.82

225

Allen Plastite Screw #12

250000099

$2.19

260

Rubber Stopper

708000759

$4.19

270

Socket Head Screw M8 X 25

250000830

$1.90

271

Thin Socket Screw, Scotch Grip, M10

250000997

$6.77

272

Socket Head Screw M8 X 25

250000830

$1.90

275

Stainless Flat Washer, 10 mm

250200105

$2.11

300

Spacer Bushing

705008166

$5.59

305

Black, LH Slider Clamp | Includes 305 to 305b

705013117

$39.99

307

Black, RH Slider Clamp | Includes 307 to 307b

705013120

$39.99

310

Hex. Cap Screw Full Thread M10 X 20

250000719

$5.82

320

Washer

506152582

$4.55

330

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

244003560

Unavailable

340

Socket Head Screw M8 X 25

250000830

$1.90

345

Back Plate

705008553

$24.99

370

Hex Screw Washer Head M8 X 20

207582054

$3.17

410

Spacer

705018575

$12.99

420

Hex. Flange Screw M6 X 60

250000778

$4.44

430

Hex. Flange Elastic Nut M6

233261466

$2.00

440

Washer M6

250200029

$2.50

480

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

490

Hex. Flange Elastic Nut M6

233261466

$2.00

530

Rubber Bumper

293830005

$8.09

540

Pivot Cap | Includes 540 to 540b

705010203

$27.99

700

LH Fairing Support

705008961

$16.49

705

Black, Flat Washer 6 mm

234061670

$1.25

710

Hex. Flange Screw M6 X 12

210261250

$1.90

720

Panel Nut M6 X 1.0

250100198

$2.11

800

RH Fairing Support

705008962

$16.49

805

Black, Flat Washer 6 mm

234061670

$1.25

810

Hex. Flange Screw M6 X 12

210261250

$1.90

820

Panel Nut M6 X 1.0

250100198

$2.11

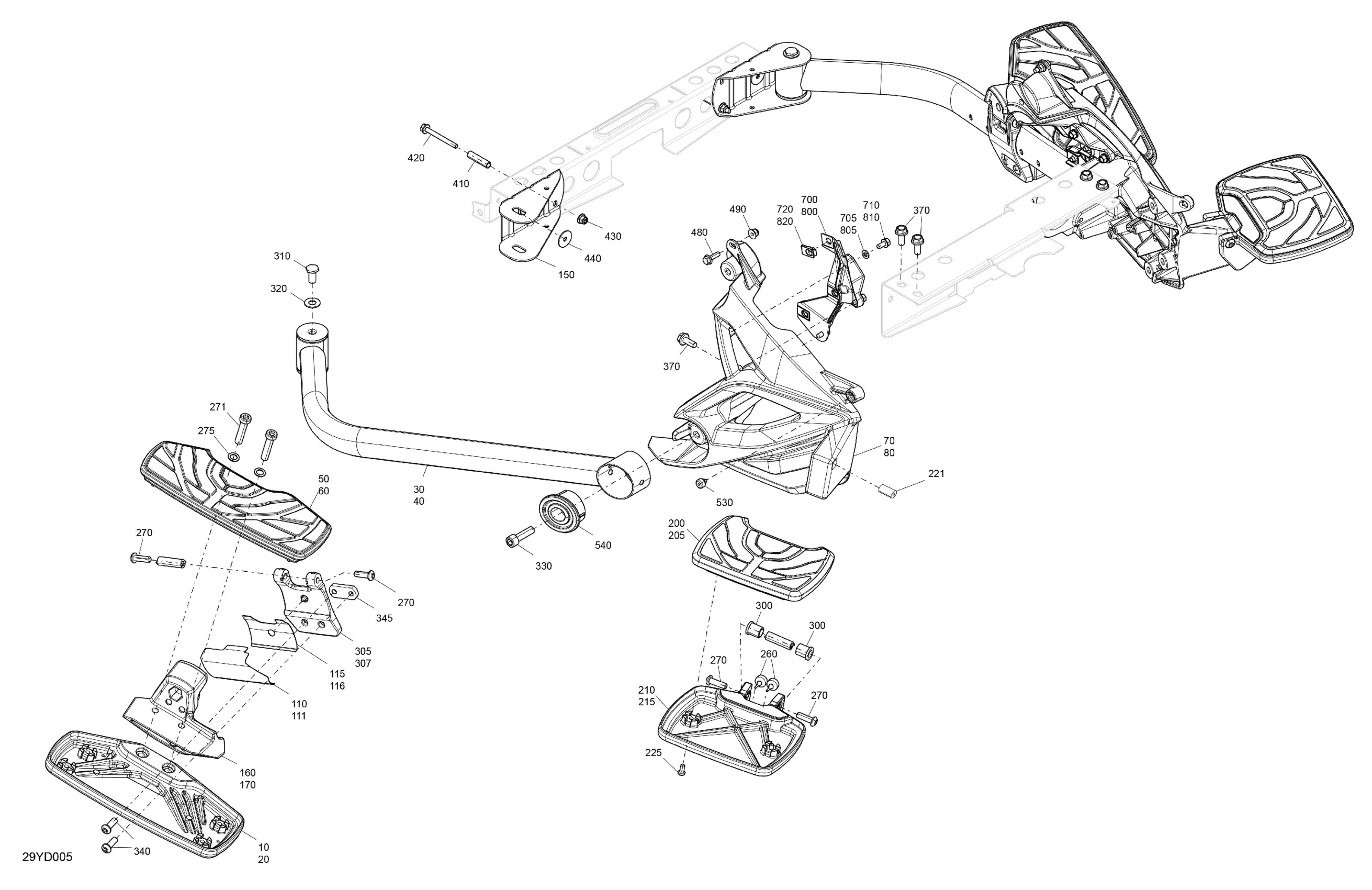

Can-Am Japan - F3 LIMITED - Special Edition - H7RC - LIMITED - Cognac, 2024 06- Frame - Footrest Diagram

LH Foot Board | Includes 10 to 10b

RH Foot Board | Includes 20 to 20b

Carbon Black, LH Footrest Support | Includes 30 to 30b

Carbon Black, RH Footrest Support | Includes 40 to 40b

LH Footrest Pad

RH Footrest Pad

Platinum Silver, RH Footrest Support

Platinum Silver, LH Footrest Support

LH Outer Protective Film

RH Outer Protective Film

RH Inner Protective Film

LH inner Protective Film

Tube Support | Includes 150 to 150a

Carbon Black, LH Slider Outside | Includes 160 to 160b

Carbon Black, RH Slider Outside | Includes 170 to 170b

Foot Board Pad, Passenger

Foot Board Pad, Passenger

Carbon Black, RH Foot Board | Includes 210 to 210b

Carbon Black, RH Foot Board | Includes 210 to 210b

Pivot Pin | Includes 220 to 220

Pivot Pin | Includes 220 to 220

Allen Plastite Screw #12

Rubber Stopper

Socket Head Screw M8 X 25

Thin Socket Screw, Scotch Grip, M10

Socket Head Screw M8 X 25

Stainless Flat Washer, 10 mm

Spacer Bushing

Black, LH Slider Clamp | Includes 305 to 305b

Black, RH Slider Clamp | Includes 307 to 307b

Hex. Cap Screw Full Thread M10 X 20

Washer

SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

Socket Head Screw M8 X 25

Back Plate

Hex Screw Washer Head M8 X 20

Spacer

Hex. Flange Screw M6 X 60

Hex. Flange Elastic Nut M6

Washer M6

Hex. Flange Screw S.Grip M6 X 20

Hex. Flange Elastic Nut M6

Rubber Bumper

Pivot Cap | Includes 540 to 540b

LH Fairing Support

Black, Flat Washer 6 mm

Hex. Flange Screw M6 X 12

Panel Nut M6 X 1.0

RH Fairing Support

Black, Flat Washer 6 mm

Hex. Flange Screw M6 X 12

Panel Nut M6 X 1.0
