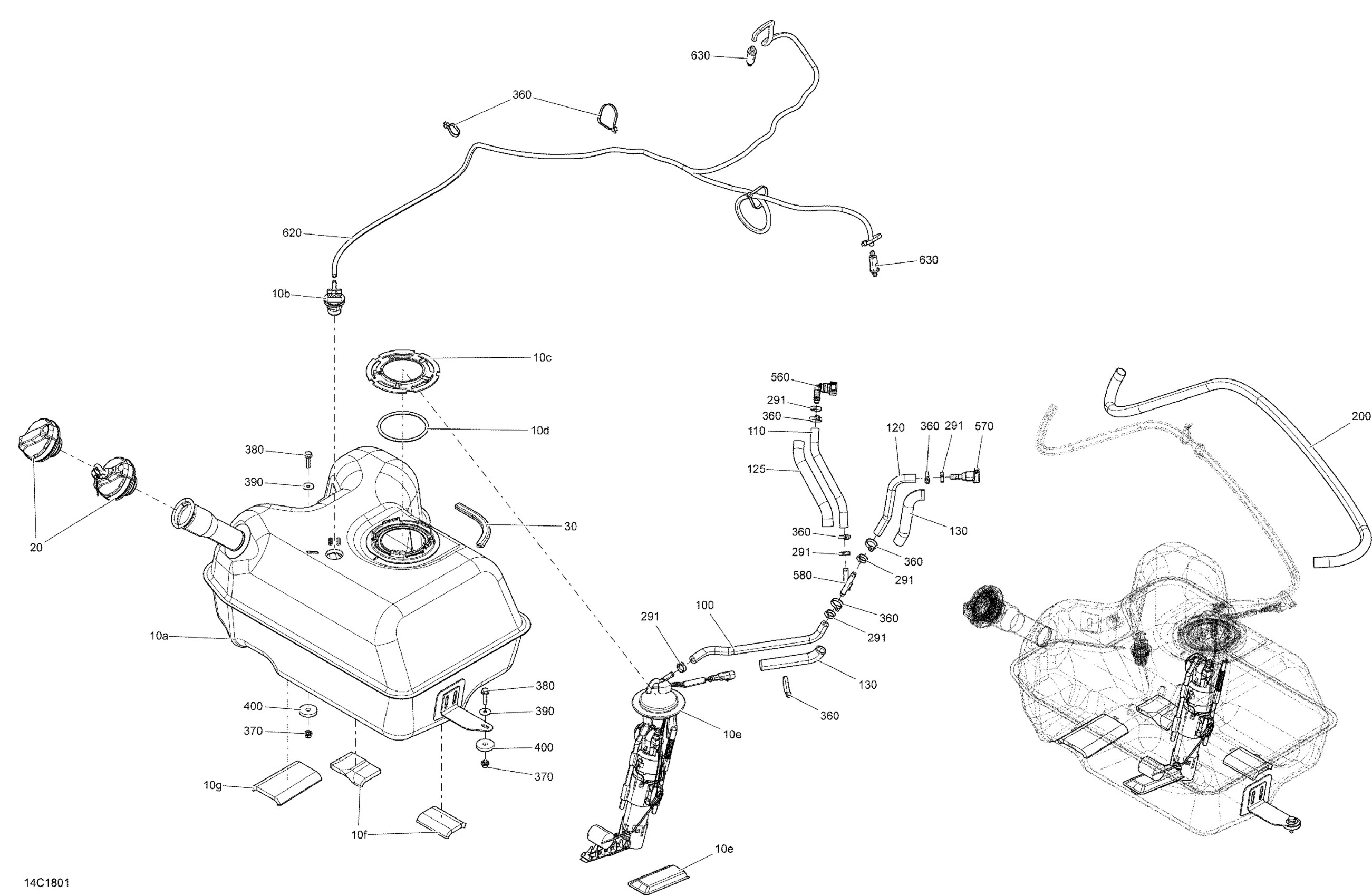

Can-Am 3- Commander MAX 800R EFI, 2018 02- Fuel - Commander And Maverick Diagram

Description

Price

10a

Fuel Tank

709000753

$749.99

10b

Rollover Valve

709000413

$55.99

10c

Ring

709000274

$15.99

10d

O-Ring

709000275

$18.10

10e

Fuel Pump | Includes 5 to 6

709000759

$372.49

10e

Fuel Pre-Filter Kit

709000389

$79.49

10f

Neoprene Pad

709000288

$13.99

10g

NEOPRENE PAD - Call your local BRP dealership

709000289

Unavailable

Fuel Cap | Except Europe

709000529

$28.49

100

Was 709000163 Fuel Line

219704440

$28.99

110

Was 709000163 Fuel Line

219704440

$28.99

120

Was 709000163 Fuel Line

219704440

$28.99

125

Tubing 16 Mm 1000Mm Long

219704408

$7.49

130

Tubing 16 Mm 1000Mm Long

219704408

$7.49

200

Tubing 16 Mm 1000Mm Long

219704408

$7.49

291

Crimp Clamp, 15.3-706R

293650047

$3.29

370

Threaded Insert M6 X 1.0

250100242

Unavailable

380

Hex. Flange Screw M6 X 25

207662544

$0.64

390

Flat Washer

224060201

$1.26

400

Rubber Washer

293830037

$2.68

560

Quick Attach 90°

275500700

$16.49

570

Female Quick Fitting Ass'y

709000125

$15.49

570a

Locking Clip

513033135

$5.89

580

Y-Fitting, 5/16''

293710136

$6.49

620

Polyurethane Hose 10000Mm Long

219704410

$56.99

630

Filter

709000330

$7.79

888

Tie-Rap 180 mm

414115200

$0.11
