Description

Price

10

Radiator

709200395

$370.99

20

Grommet

709200285

$9.69

30

Bushing

293900105

$7.65

35

Grommet

709000582

$4.69

40

Hex. Flange Screw M6 X 25

207662534

$2.11

50

Flat Washer

250200082

$0.42

60

Flange Elastic Nut M6

233261434

$4.44

70

Fan Ass'y

709200566

$279.99

80

Hex. Flange Screw M6 X 20

207662044

$2.00

90

Flat Washer 6 mm

234062410

$0.77

100

Radiator Pressure Cap

709200207

$25.49

110

Filler Neck

709200179

$18.49

120

Filler Neck Hose

709200264

$11.07

130

Hose_Radiator In

709200909

$21.99

130

Radiator Inlet Hose | Engine 800 Max Model

709200620

$63.99

140

T-Fitting

509000219

$15.89

150

Pump Hose

709200519

$27.99

150

Pump Hose | Engine 800 Max Model

709200619

$27.99

155

Pump Hose

709200496

$27.99

160

Radiator Outlet Hose

709200265

$12.63

170

T-Fitting

509000372

$10.33

180

Intermediate Hose

709200904

$23.99

190

Hose Retainer

293650218

$9.39

200

Hex. Flange Screw M6 X 25

207662534

$2.11

210

Flange Elastic Nut M6

233261434

$4.44

220

Thermostat

709200406

$98.99

230

Hose

709200447

$22.49

240

Intermediate Hose

709200520

$24.99

240

Intermediate Hose | Engine 800 Max Model

709200618

$59.99

245

Hose

709200497

$48.99

245

Hose | Engine 800 Max Model

709200617

$51.99

250

was 709200646 Hose | Engine 800 Max Model

219704444

$13.22

255

Clip Tie-Rap

710002899

$8.49

265

Crimp Clamp

293650053

$3.09

275

Gear Clamp

509000162

$7.29

280

Crimp Clamp

293650099

$4.29

310

Norma Gear Clamp

293650098

$4.44

330

Coolant Tank Ass'y

709200624

$27.99

330a

Coolant Tank Ass'y

709200624

$27.99

330b

Tank Cap

709200587

$5.40

350

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

360

Spring Clamp

414554800

$0.88

370

Hose Anchor

709200036

$11.12

375

Hex. Flange Screw M6 X 16

207661644

$0.74

450

Fitting

509000914

$7.59

455

T-Fitting

509000510

$13.16

460

Tubing 35 MM 1000MM Long

219704428

$10.99

470

Tie Wrap 368 mm

293750008

$1.04

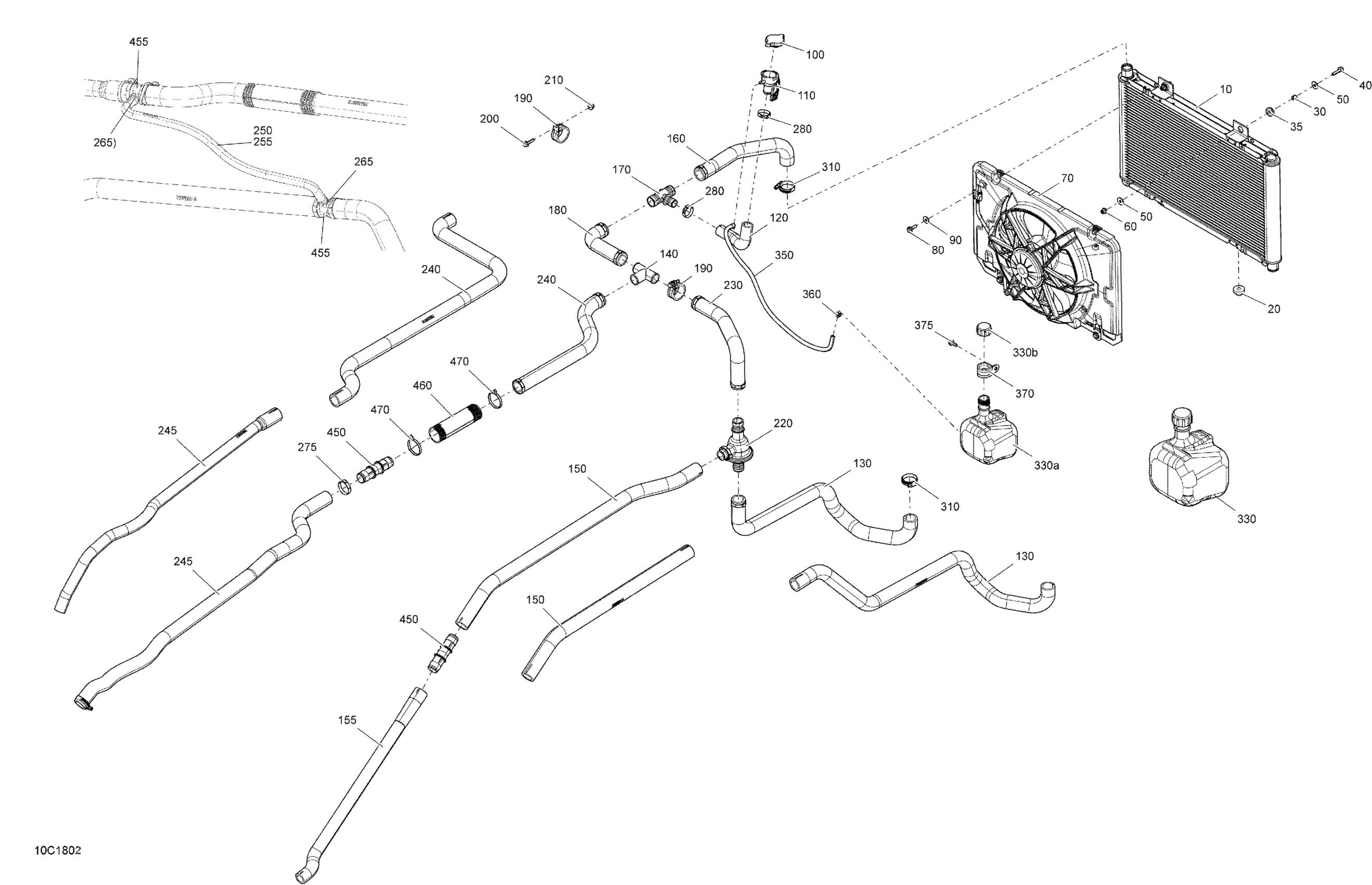

Can-Am 3- Commander MAX 800R EFI, 2018 01- Cooling Commander - Max Diagram

Radiator

Grommet

Bushing

Grommet

Hex. Flange Screw M6 X 25

Flat Washer

Flange Elastic Nut M6

Fan Ass'y

Hex. Flange Screw M6 X 20

Flat Washer 6 mm

Radiator Pressure Cap

Filler Neck

Filler Neck Hose

Hose_Radiator In

Radiator Inlet Hose | Engine 800 Max Model

T-Fitting

Pump Hose

Pump Hose | Engine 800 Max Model

Pump Hose

Radiator Outlet Hose

T-Fitting

Intermediate Hose

Hose Retainer

Hex. Flange Screw M6 X 25

Flange Elastic Nut M6

Thermostat

Hose

Intermediate Hose

Intermediate Hose | Engine 800 Max Model

Hose

Hose | Engine 800 Max Model

was 709200646 Hose | Engine 800 Max Model

Clip Tie-Rap

Crimp Clamp

Gear Clamp

Crimp Clamp

Norma Gear Clamp

Coolant Tank Ass'y

Coolant Tank Ass'y

Tank Cap

Was 415110000 Polyurethane Hose 5.2 mm

Spring Clamp

Hose Anchor

Hex. Flange Screw M6 X 16

Fitting

T-Fitting

Tubing 35 MM 1000MM Long

Tie Wrap 368 mm
