Description

Price

10

Console Ass'y | Except Europe

715004113

$164.99

20

Tuflok Plastic Rivet

293150230

$1.47

30

Cup Retainer

707900036

$6.89

100

LH Side Console

707900001

$44.99

110

Tuflok Plastic Rivet

293150230

$1.47

120

Insert

707900133

$2.89

130

Washer

503189273

$3.28

270

Insert

707900133

$2.89

280

Washer

503189273

$3.28

360

Tuflok Plastic Rivet

293150230

$1.47

500

LH Front Floor

707900181

$83.99

510

Torx Screw M6 X 20

250000722

$1.68

520

Torx Screw M6 X 20

250000712

$2.11

525

Torx Screw M6 X 25

250000758

$2.11

530

Hex. Flange Elastic Nut M6

233261494

$1.58

540

Stainless Steel Flat Washer

234062670

$2.11

550

Panel Nut M6 X 1.0

250100198

$2.11

560

Stainless Steel Flat Washer

234062670

$2.11

570

Torx Screw K50 X 16

250000720

$1.69

580

Flat Washer 6 mm

234062410

$0.77

600

LH Lower Floor

707900022

$269.99

610

Torx Screw M6 X 20

250000712

$2.11

615

Stainless Steel Flat Washer

234062670

$2.11

620

Torx Screw M6 X 20

250000722

$1.68

625

Torx Truss Screw M6 X 25

250000807

$2.11

630

Panel Nut M6 X 1.0

250100198

$2.11

635

Torx Screw M6 X 20

250000722

$1.68

640

Hex. Flange Elastic Nut M6

233261494

$1.58

650

Stainless Steel Flat Washer

234062670

$2.11

660

Threaded Insert M6 X 1.0

250100242

Unavailable

670

Rubber Cover

293250242

$6.99

680

SEAL-TRAY 300MM LONG - Call your local BRP dealership

219704380

Unavailable

1030

Deflector

707900108

$17.49

1030

Deflector

707900192

$17.49

1040

Tuflok Plastic Rivet

293150230

$1.47

1300

SUPPORT_PANEL LH - Call your local BRP dealership

707900029

$12.99

1310

Panel Nut M6 X 1.0

250100198

$2.11

1320

Torx Screw M6 X 20

250000722

$1.68

1330

Torx Screw K50 X 16

250000720

$1.69

1340

Flat Washer

224060201

$1.26

1350

Hex. Screw M6 X 25

207162544

$1.15

1360

Flat Washer

224061201

$1.37

1370

Was 293200017 Neoprene Seal

219704365

$149.99

1600

LH Under Seat Plate Kit

715002356

$149.99

1600

LH Under Seat Plate

707900218

$81.99

1610

Tuflok Plastic Rivet

293150230

$1.47

1620

Insert

707900133

$2.89

1630

Washer

503189273

$3.28

1800

LH Rear Deflector

707900164

$97.99

1810

Tuflok Plastic Rivet

293150230

$1.47

1820

Hex. Flange Screw M6 X 20

207662034

$2.11

1830

Panel Nut M6 X 1.0

250100198

$2.11

1840

Torx Screw K50 X 16

250000720

$1.69

1850

Flat Washer

250200040

$1.90

1860

Torx Screw M6 X 20

250000712

$2.11

1870

Hex. Flange Elastic Nut M6

233261494

$1.58

1880

Tuflok Plastic Rivet

293150230

$1.47

1890

Insert

707900133

$2.89

1900

Washer

503189273

$3.28

1910

Heat Shield

707900182

$8.89

1920

Heat Shield

707900183

$5.29

2200

Dashboard Ass'y

715001250

$79.99

2210

Torx Screw Truss Head K50X20 T20

250000760

$2.11

2220

Stainless Steel Flat Washer

234062670

$2.11

2230

Support Plate

705003841

$0.99

2240

Edge Clip

517302785

$0.88

2290

Was 271000110 Protection Trim

219704353

$15.99

2300

Central Dashboard Ass'y

715002178

$38.99

2300

Central Dashboard Ass'y

715002187

$38.99

2310

Torx Screw M5 X 20

250000724

$1.69

2320

Panel Nut M5 X 0.8

250000958

$4.23

2330

Tuflok Plastic Rivet

293150230

$1.47

2350

Gauge Support | LTD Model

707900066

$38.99

2360

Torx Screw K50 X 16

250000720

$1.69

2370

Push Nut

732610072

$2.19

2400

Passenger Handle

707900011

$13.75

2410

Torx Screw M6 X 20

250000722

$1.68

2420

Connector Tube

707900048

$6.19

2650>2650a

Front LH Safety Net

707900237

$119.99

2650a

Buckle

707900035

$53.99

2660>2660a

Front RH Safety Net

707900238

$119.99

2660a

Buckle

707900035

$53.99

2670

Hex. Flange Elastic Nut M8

233281414

$1.47

2690

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2700

Flat Washer 6 mm

234062410

$0.77

2705

Stainless Steel Flat Washer

234062670

$2.11

2710

Hex. Flange Screw M6 X 20

207662044

$2.00

2715

Torx Screw M6 X 25

250000758

$2.11

2730

Flat Washer 8 mm

234082410

$1.47

2740

Hex. Flange Elastic Nut M8

233281414

$1.47

3000

Lever Indicator

707900070

$15.49

3100

Torx Screw M6 X 25 | XT Models

250000728

$4.44

3330

LH Lower Lateral Console Foam

707900621

$23.99

3600

Heat Sheet

707900149

$8.89

3650

Heat Sheet

707900150

$1.09

3700

Heat Sheet

707900151

$10.99

3750

Heat Sheet

707900146

$11.99

3850

Heat Sheet

707900145

$11.99

3900

Heat Sheet

707900190

$9.39

3950

Heat Sheet

707900191

$1.09

4000

Torx Screw M5 X 14

250000742

$1.47

4010

Flat Washer

250200040

$1.90

4020

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

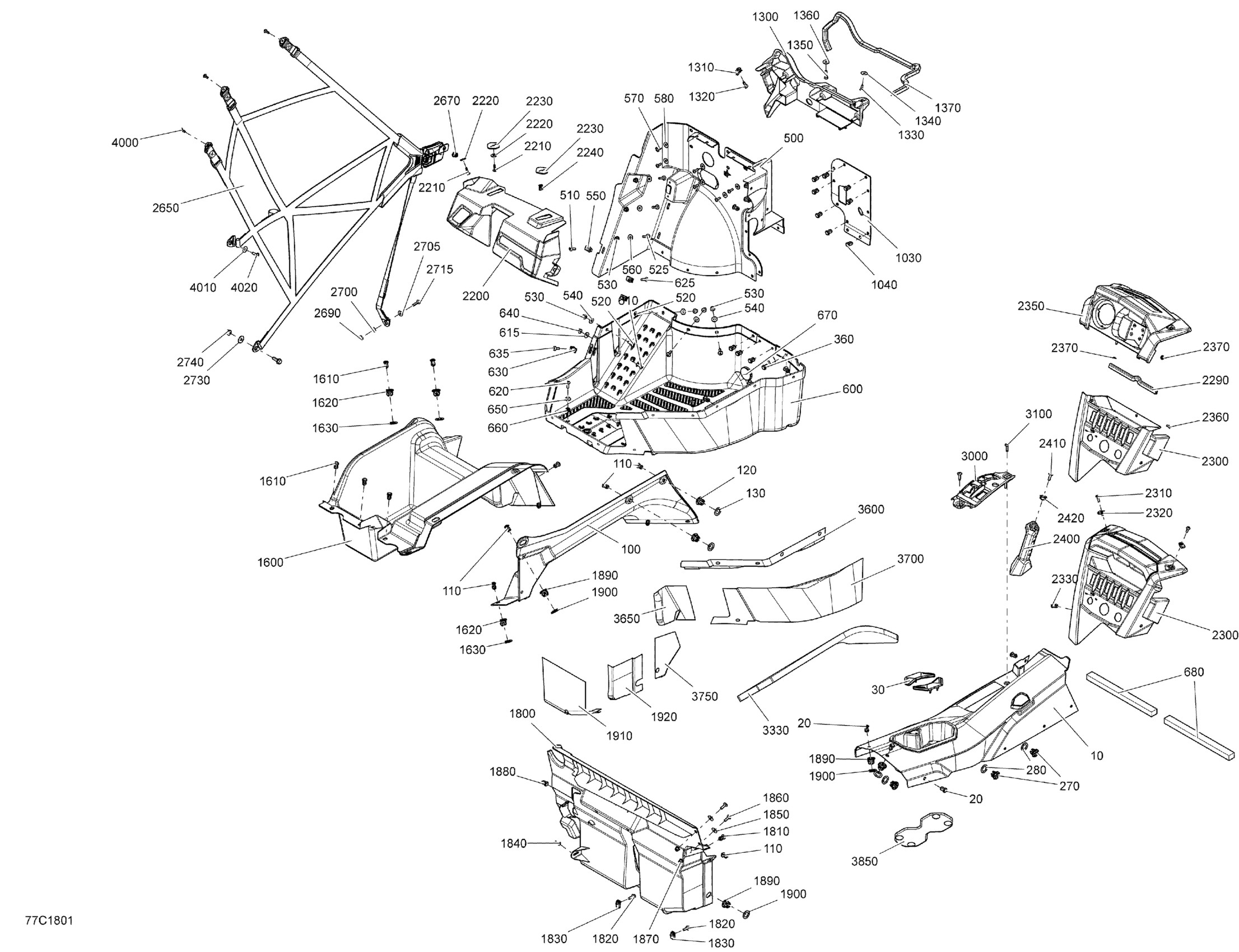

Can-Am 2- Commander 1000R EFI, 2018 09- Cab Interior Commander Non MAX - Cab Diagram

Console Ass'y | Except Europe

Tuflok Plastic Rivet

Cup Retainer

LH Side Console

Tuflok Plastic Rivet

Insert

Washer

Insert

Washer

Tuflok Plastic Rivet

LH Front Floor

Torx Screw M6 X 20

Torx Screw M6 X 20

Torx Screw M6 X 25

Hex. Flange Elastic Nut M6

Stainless Steel Flat Washer

Panel Nut M6 X 1.0

Stainless Steel Flat Washer

Torx Screw K50 X 16

Flat Washer 6 mm

LH Lower Floor

Torx Screw M6 X 20

Stainless Steel Flat Washer

Torx Screw M6 X 20

Torx Truss Screw M6 X 25

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Hex. Flange Elastic Nut M6

Stainless Steel Flat Washer

Threaded Insert M6 X 1.0

Rubber Cover

SEAL-TRAY 300MM LONG - Call your local BRP dealership

Deflector

Deflector

Tuflok Plastic Rivet

SUPPORT_PANEL LH - Call your local BRP dealership

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Torx Screw K50 X 16

Flat Washer

Hex. Screw M6 X 25

Flat Washer

Was 293200017 Neoprene Seal

LH Under Seat Plate Kit

LH Under Seat Plate

Tuflok Plastic Rivet

Insert

Washer

LH Rear Deflector

Tuflok Plastic Rivet

Hex. Flange Screw M6 X 20

Panel Nut M6 X 1.0

Torx Screw K50 X 16

Flat Washer

Torx Screw M6 X 20

Hex. Flange Elastic Nut M6

Tuflok Plastic Rivet

Insert

Washer

Heat Shield

Heat Shield

Dashboard Ass'y

Torx Screw Truss Head K50X20 T20

Stainless Steel Flat Washer

Support Plate

Edge Clip

Was 271000110 Protection Trim

Central Dashboard Ass'y

Central Dashboard Ass'y

Torx Screw M5 X 20

Panel Nut M5 X 0.8

Tuflok Plastic Rivet

Gauge Support | LTD Model

Torx Screw K50 X 16

Push Nut

Passenger Handle

Torx Screw M6 X 20

Connector Tube

Front LH Safety Net
