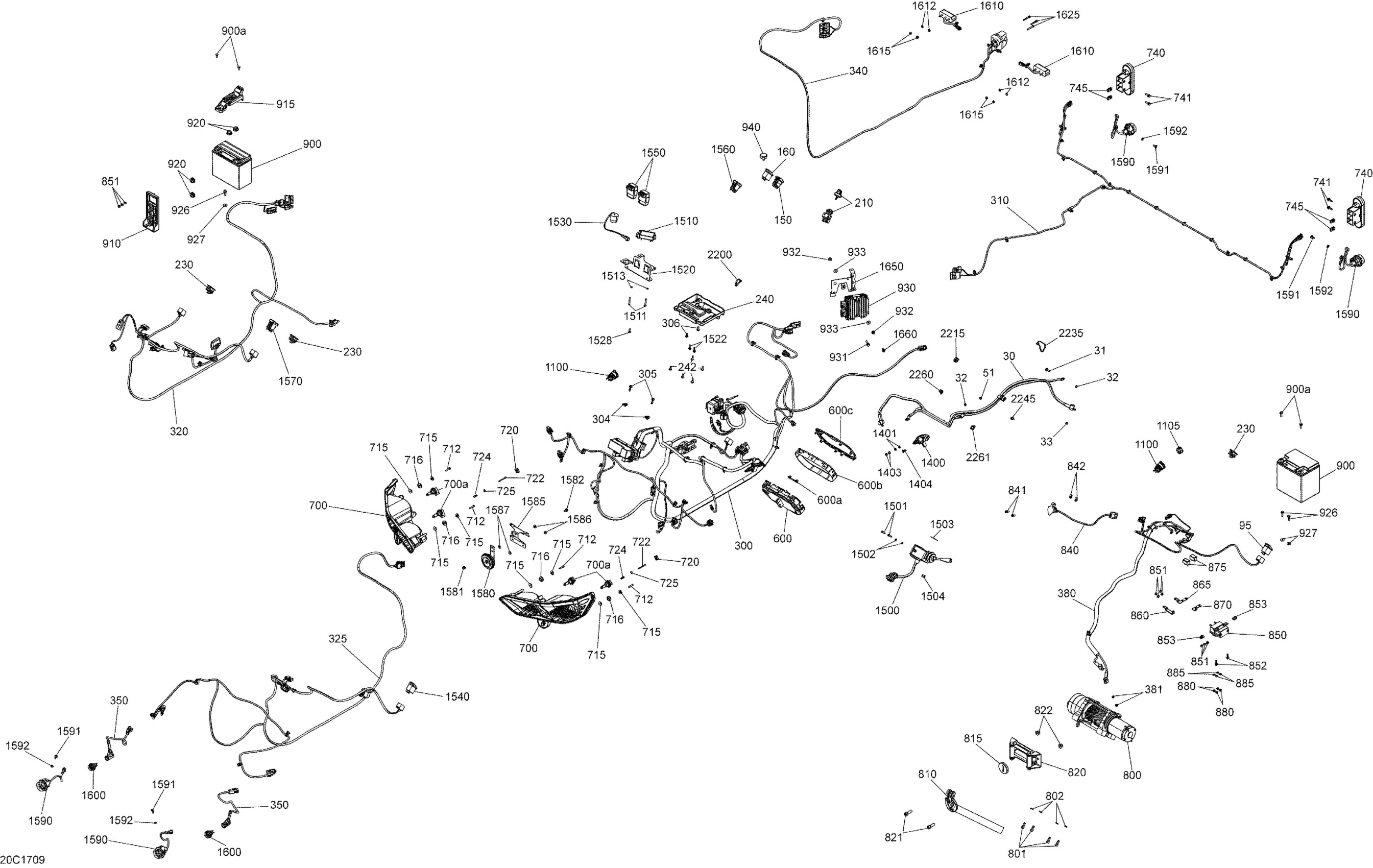

Can-Am Traxter T, 2017 10- Electrical System - All Models Diagram

Negative Cable

710005512

$46.99

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

External Serrated Lock Washer 6 mm

234461608

$1.15

Elastic Stop Nut M6

232561434

$1.99

Elastic Stop Nut M6

232561434

$1.99

Switch Winch

710002052

$28.49

Switch 2X4

710005489

$31.99

Differential Lock Switch

710005470

$46.49

Inter Allumage *Ignition

710007870

$55.99

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Housing Support

710004741

$7.69

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

Main Harness Ass'y | Non Max Version

710005530

$929.99

Panel Nut M6 X 1.0

250100198

$2.11

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

Rear Harness

710005544

$229.99

Wiring Harness

710006158

$229.99

Flasher Harness

710005546

$239.99

Trailer Harness

710006034

$229.99

Position Light Harness

710005676

$15.49

Winch Harness | Winch Equipped Model

710004465

$110.99

Elastic Stop Nut M6

232561434

$1.99

Speedometer Ass'y | Package XT, Cab

710005135

$439.99

Speedometer Button | XTP

415129355

$15.80

Lens | XTP

415129349

$24.49

Gauge Ring

415129348

$13.99

LH Headlamp | Includes 700 to 700a

710008313

$214.99

RH Beam Ass'y

710005730

$229.99

Halogen Bulb H8 12V 35W

219800149

$41.49

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.44

Shoulder Bushing

710004749

$2.69

Grommet

709000582

$4.69

Handle

572106600

$10.33

Hex. Screw K40 X 45

250000718

$2.11

Spring

517168600

$7.39

Flat Washer 4 mm, Stainless

234042600

$1.15

Tail Light

710004257

$91.99

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Electric Winch | Includes 800 to 800a

710006993

$208.49

Socket Head Screw M8 X 25

205082544

$1.15

Lock Washer 8 mm

234181401

$0.92

Winch Hook Kit

705014949

$24.99

Stopper

710007028

$3.82

Fairlead Roller

710007082

$59.49

Socket Screw M10 x 30 | XT

205003044

$3.17

Hex. Flange Elastic Nut M10

233201414

$1.58

Remote Control & Connector_Winch Kit | Winch Equipped Model

715006504

$26.49

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

Panel Nut M5 X 0.8

250000958

$4.23

Solenoid

710006991

$62.49

Elastic Stop Nut M6, Brass

232561200

$4.23

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

Panel Nut M5 X 0.8

250000958

$4.23

Power Bar

710004772

$12.16

Power Bar

710004872

$12.16

Power Bar

710004873

$12.16

Circuit Breaker 50 Amp

710007039

$19.49

Hex. Flange Nut M5

250100071

$2.11

Lock Washer Helical M6

234161601

$1.15

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Battery | Includes 900 to 900a

515176151

$219.99

Battery Bolt Kit

250000282

$7.29

Battery Bolt Kit

515176081

$6.99

Fixation Plate

710004788

$11.49

Fixation Plate

710004789

$9.29

Stopper Rubber

705014429

$5.95

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Flat Washer 6 mm

234062410

$0.77

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Flat Washer 6 mm

234062410

$0.77

Rubber Stopper

708001827

$6.89

DC Outlet

710001248

$37.99

Cap

710004993

$7.69

Starter Relay

278003012

$42.49

Lock Washer Helical M6

234161601

$1.15

Hex. Nut M6

232061600

$1.15

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

Turn Signal | Europe

710001721

$209.99

Hex. Forming Screw M5 X 16

210251650

$1.15

Lock Washer 5 mm | Europe

234151401

$0.55

Flasher Decal | Europe

704902614

$19.99

Clip

414227300

$1.67

MODULE - Call your local BRP dealership

710005436

$159.99

Hex. Screw M5 X 35

207053544

$1.15

Flat Washer M5

234051410

$0.53

SKM Holder

710005475

$24.99

Hex.Flange Screw M5 X 20

207652044

$1.90

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

Buzzer Ass'y

204470913

$92.99

Switch Hazard | Europe

710002076

$19.49

Flasher Unit

710003239

$78.49

Brake Fluid Indicator

710005478

$20.99

Trailer Flasher Indicator

710005479

$20.99

Horn

710004791

$38.99

Threaded Insert M6 X 1.0

250100242

Unavailable

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

Horn Bracket

710005495

$24.99

Pop Rivet 3/16"

293150103

$0.55

Washer M5

250200025

$0.74

Flasher | Europe

710002964

$35.99

Torx Truss Screw M6 X 16

250000721

$1.69

Flat Washer 6 mm

234061410

$1.36

Day Light | Europe

710001726

$35.99

License Light

710002055

$58.49

Lock Washer Helical M6

234161601

$1.15

Hex. Nut M6

232061600

$1.15

Phillips Screw M5 X 35

208653560

$2.22

Housing Holder

710005620

$20.49

Hex. Flange Screw M5 X 16

207651646

$2.11

Tie-Rap 180 mm

414115200

$0.11

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

Tie Wrap 368 mm

293750008

$1.04

Hex. Flange Screw M6 X 16

210261650

$1.67

Dart Tie Rap 200MM

710003168

$7.09

Christmas Tree Tie-Rap

710005237

$7.16
