Description

Price

10>10d

LH Front Brake Caliper | LH Front

705601887

$360.49

10>10d

RH Front Brake Caliper | RH Front

705601888

$370.99

10a>10a1

LH Brake Pads

715900379

$79.49

10a>10a1

RH Brake Pads

715900380

$79.49

10a1

Pin Kit | Packages STD & PRO

715900384

$12.12

10b

Bleeding Screw

705601017

$6.35

10d

Cap Spring Kit

715900385

$17.59

30>30b

Master Cylinder | Includes 30 to 30b

705601803

$379.99

30a

Boot Rod Kit

715900373

$51.99

30b

Fork Kit

715900374

$26.49

35>35g

Brake Fluid Reservoir Ass'y | Includes 35 to 35g

705601596

$119.99

35a

Diaphragm Cover Ass'y

219800350

$17.59

35d

Oil Level Sensor

515176508

$31.99

35f

Spindle Lock

705601294

$15.81

35g

Push Nut | Not shown

211100002

$2.19

36

Hose

705601603

$10.49

37

Crimp Clamp, 15.3-706R

293650047

$3.29

40

Brake Hose

705601623

$148.49

45

Brake Hose

705601595

$163.99

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

60

Copper Washer

705601628

$4.44

90

Hex. Flange Screw M8 X 25

207682534

$2.11

95

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Clamp

293650220

$0.90

140

Pop Rivet 3/16"

390402200

$0.35

145

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

150

Brake Switch

705601250

$59.49

180>180d

LH Rear Brake Caliper | LH Rear

705601928

$259.49

180>180d

RH Rear Brake Caliper | RH Rear

705601929

$280.99

180a>180a1

LH Brake Pads

715900381

$79.49

180a>180a1

RH Brake Pads

715900382

$79.49

180a1

Pin Kit | Packages STD & PRO

715900384

$12.12

180b

Bleeding Screw

705601017

$6.35

180d

Cap Spring Kit

715900385

$17.59

250

Brake Pedal | Includes 250 to 250a

705601777

$57.99

260

Brake Pedal Spring

705600792

$9.10

300

O-Ring

293300144

$3.82

350

Inside Sleeve

705601373

$12.11

360

Hex. Flange Screw, M10 X 130

230603046

$7.41

370

Hex. Flange Elastic Nut M10

233201436

$2.11

385

Brake Disc

705601511

$66.49

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

445

Hex. Flange Screw M10 X 25

207502546

$2.11

500

Support

705601567

$14.76

505

Stopper Bracket

705601608

$7.55

510

Hex. Flange Elastic Nut M8

233281414

$1.47

515

Hex. Flange Screw M8 X 20

207682044

$1.15

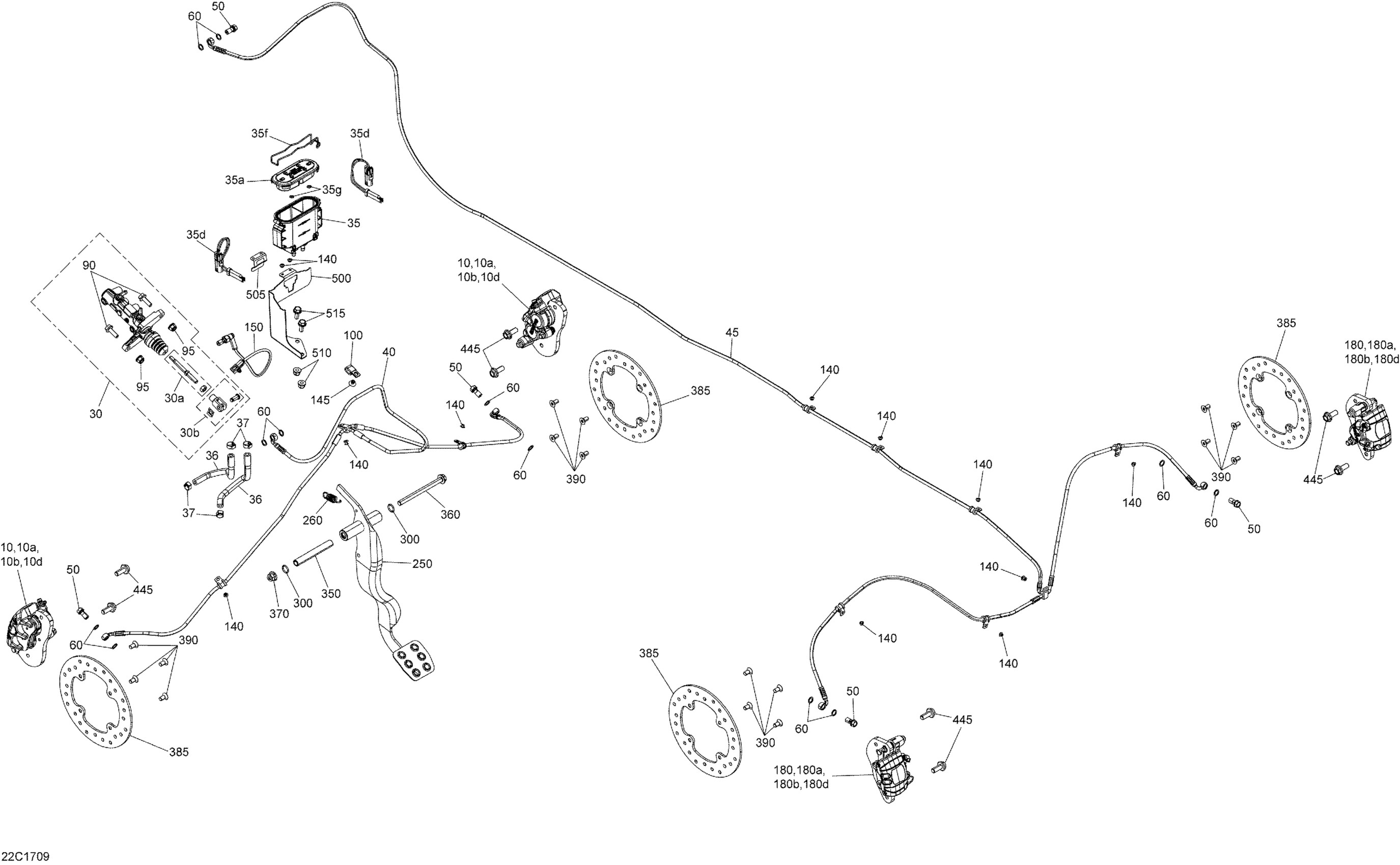

Can-Am Traxter T, 2017 06- Brakes - All Models Diagram

LH Front Brake Caliper | LH Front

RH Front Brake Caliper | RH Front

LH Brake Pads

RH Brake Pads

Pin Kit | Packages STD & PRO

Bleeding Screw

Cap Spring Kit

Master Cylinder | Includes 30 to 30b

Boot Rod Kit

Fork Kit

Brake Fluid Reservoir Ass'y | Includes 35 to 35g

Diaphragm Cover Ass'y

Oil Level Sensor

Spindle Lock

Push Nut | Not shown

Hose

Crimp Clamp, 15.3-706R

Brake Hose

Brake Hose

Banjo Bolt (M10 x 1.25 thread)

Copper Washer

Hex. Flange Screw M8 X 25

Hex. Flange Elastic Nut M8

Clamp

Pop Rivet 3/16"

Pop Rivet 3/16" | DS 650 X

Brake Switch

LH Rear Brake Caliper | LH Rear

RH Rear Brake Caliper | RH Rear

LH Brake Pads

RH Brake Pads

Pin Kit | Packages STD & PRO

Bleeding Screw

Cap Spring Kit

Brake Pedal | Includes 250 to 250a

Brake Pedal Spring

O-Ring

Inside Sleeve

Hex. Flange Screw, M10 X 130

Hex. Flange Elastic Nut M10

Brake Disc

Torx Screw M8 X 16, Scotch Grip

Hex. Flange Screw M10 X 25

Support

Stopper Bracket

Hex. Flange Elastic Nut M8

Hex. Flange Screw M8 X 20
