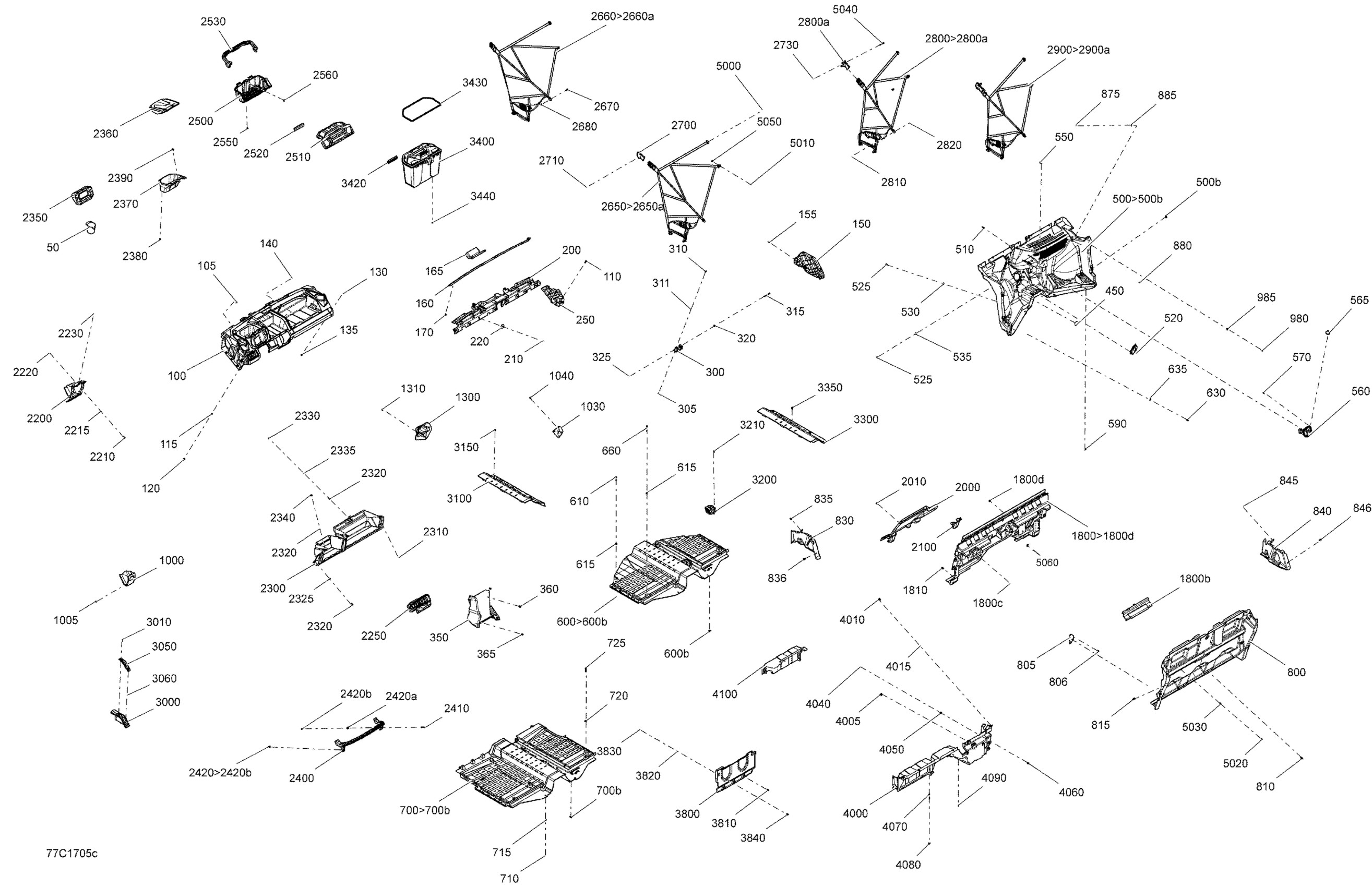

Can-Am Traxter MAX, 2017 09- Cab Interior - All Models Diagram

Cup Holder

707900288

$16.99

Dashboard Upper Kit

715006520

$204.99

Torx Screw K50 X 16

250000720

$1.69

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.11

Torx Truss Screw M6 X 16

250000721

$1.69

Threaded Insert M6 X 1.0

250100242

Unavailable

Torx Screw M6 X 20

250000712

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

Torx Screw K50 X 16

250000720

$1.69

Dash Support

707900249

$65.99

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.11

Dash Trim

707900411

$16.99

Fuse Box Holder

707900439

$12.63

Edge Clip

517302785

$0.88

Upper Front Deflector

707900296

$54.99

Torx Screw K50 X 16

250000720

$1.69

Support Plate

705003841

$0.99

RH Support

707900367

$38.99

Plier

707900940

$5.39

Threaded Insert M6 X 1.0

250100242

Unavailable

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

Flat Washer 6 mm

234061410

$1.36

Hex. Screw M6 X 80

207068044

$4.12

Stainless Steel Flat Washer

234062670

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

Front Bulkhead Cover

707900289

$45.99

Tuflok Plastic Rivet

293150230

$1.47

Tuflok Plastic Rivet

293150230

$1.47

Rubber Cover

293250242

$6.99

Front Bulkhead

707900430

$284.99

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw M6 X 20

250000722

$1.68

DPS Cover

707900408

$17.49

Torx Screw M6 X 20

250000712

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

Stainless Steel Flat Washer

234062670

$2.11

Bumber Cap | Except Cab Package

291002744

$14.49

RH Rubber Cover

707900390

$17.49

Tie Wrap 368 mm

293750008

$1.04

Tuflok Plastic Rivet

293150230

$1.47

Threaded Insert M6 X 1.0

250100242

Unavailable

Floor Ass'y | Includes 600 to 600b

707900431

$229.99

Panel Nut M6 X 1.0

250100198

$2.11

Torx Truss M6 X 50

250000868

$2.11

Flat Washer M6.6 X 22

250200162

$2.32

Torx Truss Screw M6 X 25

250000807

$2.11

Flat Washer M6.6 X 22

250200162

$2.32

Torx Screw Button Head M6 X 70

235567084

$7.51

Rear Floor Ass'y | Includes 700 to 700b

707900464

$299.99

Panel Nut M6 X 1.0

250100198

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Torx Screw M6 X 20

250000722

$1.68

Flat Washer M6.6 X 22

250200162

$2.32

Torx Truss M6 X 50

250000868

$2.11

Median Deflector Kit

715007481

$309.99

Plate

707900469

$30.99

Tuflok Plastic Rivet

293150230

$1.47

Tuflok Plastic Rivet

293150230

$1.47

Panel Nut M6 X 1.0

250100198

$2.11

LH Lower Cover

707900443

$84.99

Tuflok Plastic Rivet

293150230

$1.47

Panel Nut M6 X 1.0

250100198

$2.11

RH Lower Cover

707900444

$84.99

Tuflok Plastic Rivet

293150230

$1.47

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw M6 X 20

250000712

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

Stainless Steel Flat Washer

234062670

$2.11

Torx Truss Screw M6 X 25

250000807

$2.11

Flat Washer M6.6 X 22

250200162

$2.32

Drawer

707900252

$20.99

O-Ring

293300194

$1.25

STEERING COLUMN DEFLECTOR - Call your local BRP dealership | Except STD, Except Base

707900597

Unavailable

Tuflok Plastic Rivet

293150230

$1.47

Exterior Cover

707900389

$14.49

Tuflok Plastic Rivet

293150230

$1.47

Rear Upper Deflector Ass'y

707900635

$229.99

UPPER COVER - Call your local BRP dealership

707900357

Unavailable

Rubber Bumper

293830005

$8.09

Panel Nut M6 X 1.0

250100198

$2.11

Tuflok Plastic Rivet

293150230

$1.47

Engine Service Cover

707900326

$39.99

Tuflok Plastic Rivet

293150230

$1.47

Support belt cover

707900419

$12.99

LH Lower Dash | Except Base Package

707900251

Unavailable

Torx Screw M6 X 20

250000722

$1.68

Stainless Steel Flat Washer

234062670

$2.11

Threaded Insert M6 X 1.0

250100242

Unavailable

Torx Screw K50 X 16

250000720

$1.69

Switch Support

703501098

$16.86

RH Lower Dash | Except Base, Cab Package

707900250

$66.99

Torx Screw K50 X 16

250000720

$1.69

Torx Screw M6 X 20

250000722

$1.68

Stainless Steel Flat Washer

234062670

$2.11

Threaded Insert M6 X 1.0

250100242

Unavailable

Stainless Steel Flat Washer

234062670

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Cluster Support | Except XT, Cab Package

707900285

$22.99

Cluster Support | Package XT, Cab

707900358

$20.99

Storage Box Ass'y | Includes 2370 to 2370b

703501087

$43.99

Storage Box Ass'y | Includes 2370 to 2370b

703501087

$43.99

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

Grommet

705003264

$4.09

Passenger Handhold

707900248

$49.99

Torx Screw M6 X 60

250000648

$7.51

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.86

Hex. Elastic Stop Nut M6

232561600

$1.15

Removable Storage Bin

715004344

$88.99

Removable Storage Bin

715004344

$88.99

Clip | Outlander Max

269501945

$15.89

Handle | DPS Package

707900567

$19.99

Rubber Bumper

293830005

$8.09

Cap

293000120

$2.89

LH Front Protection Net | Includes 2650 to 2650a

707900672

$189.99

Upper Link

707900049

$43.99

RH Front Protection Net | Includes 2660 to 2660a

707900673

$189.99

Upper Link

707900049

$43.99

Torx Truss Screw M6 X 16

250000721

$1.69

Threaded Insert M6 X 1.0

250100242

Unavailable

Safety Net Link

707900592

$4.14

Torx Screw K50 X 16

250000720

$1.69

Threaded Insert M6 X 1.0

250100242

Unavailable

LH Rear Net Protection | Includes 2800 to 2800a

707900674

$219.99

Safety Net Link

707900592

$4.14

Torx Truss Screw M6 X 16

250000721

$1.69

Threaded Insert M6 X 1.0

250100242

Unavailable

RH Rear Net Protection | Includes 2900 to 2900a

707900675

$219.99

Safety Net Link

707900592

$4.14

Shifter Gate

707900608

$8.99

Torx Screw M6 X 25 | XT Models

250000728

$4.44

Shifter Gate Deflector

707900506

$5.69

Push Nut

250100178

$0.63

Floor Panel

707900806

$43.99

Tuflok Plastic Rivet

293150230

$1.47

Hose Support

707900325

$14.49

Tuflok Plastic Rivet

293150230

$1.47

Floor Cover

707900413

$49.99

Tuflok Plastic Rivet

293150230

$1.47

Storage Box

715003314

$106.49

Clip | Outlander Max

269501945

$15.89

Neoprene Seal

293250453

$19.49

Rubber Bumper

293830005

$8.09

Rear Panel

707900426

$98.99

Tuflok Plastic Rivet

293150230

$1.47

Flat Washer M6.6 X 22

250200162

$2.32

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

Rear Lower Bulkhead

707900228

$97.99

Oval Washer

705005156

$4.97

Tuflok Plastic Rivet

293150230

$1.47

Washer

503192494

$3.17

Torx Screw M6 X 20

250000722

$1.68

Stainless Steel Flat Washer

234062670

$2.11

Threaded Insert M6 X 1.0

250100242

Unavailable

Torx Screw Button Head M6 X 70

235567084

$7.51

Flat Washer M6.6 X 22

250200162

$2.32

Torx Screw M6 X 20

250000722

$1.68

Battery Cover

707900282

$33.99

Torx Truss Screw M6 X 16

250000721

$1.69

Hex. Elastic Flange Nut M6

233161464

$1.01

Tuflok Plastic Rivet

293150230

$1.47

Flat Washer 8 mm, Nylon

292001663

$1.47

Torx Truss M6 X 50

250000868

$2.11

Torx Screw M6 X 20

250000722

$1.68

Tuflok Plastic Rivet

293150230

$1.47
