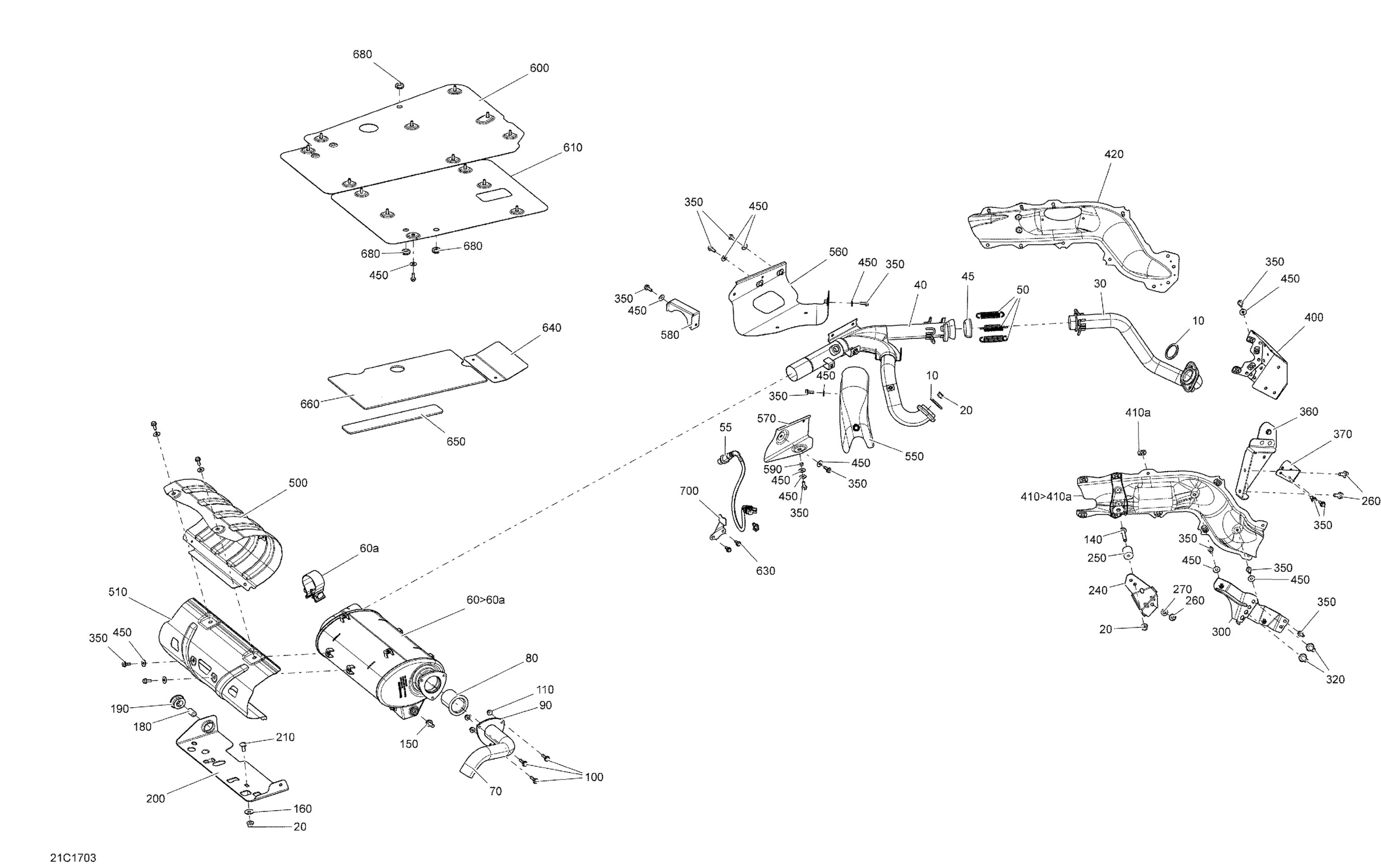

Can-Am Traxter MAX, 2017 01- Exhaust System - Before December 2016 Diagram

#

Description
Price

10

Gasket

707600317

$11.60

20

Hex. Flange Nut M8

233081416

$1.15

30

Front Exhaust Pipe | Engine HD10

707601903

$174.49

30

Front Exhaust Pipe | Engine HD8

707601913

$174.49

40

Rear Exhaust Pipe | Engine HD10

707601812

Unavailable

40

REAR EXHAUST PIPE - Call your local BRP dealership | Engine HD8

707601813

Unavailable

45

Exhaust Gasket

707601814

$13.69

50

Spring

707601834

$6.35

55

Oxygen Sensor

707600872

$144.99

60>60a

Exhaust Muffler | Include 60a

703501046

$847.49

60a

Exhaust Pipe Clamp

293650228

$12.49

70

EXHAUST TAIL PIPE - Call your local BRP dealership

707601526

Unavailable

80

Spark Arrestor

707601803

$49.99

90

Gasket

707601799

$5.99

100

Hex. Flange Screw M6 X 25

207662556

$4.44

110

Hex. Flange Nut M6

233061414

$1.68

140

Hex. Flange Screw M8 X 40

207684044

$1.48

150

Hex. Flange Screw M8 X 20

207682044

$1.15

160

Flat Washer 8 mm

234082410

$1.47

170

Hex. Flange Nut M8

233081416

$1.15

180

SPACER - Call your local BRP dealership

707601901

Unavailable

190

Rubber Mount

707601902

$7.90

200

Muffler Support

707601588

$30.49

210

Carriage Bolt, M8 X 20

207782044

$1.90

220

Hex. Flange Nut M8

233081416

$1.15

230

Flat Washer 8 mm

234082410

$1.47

240

HEAT SHIELD SUPPORT - Call your local BRP dealership | Man Date March 1rst 2016 And Up

707602003

Unavailable

250

SPACER - Call your local BRP dealership

707601910

Unavailable

260

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

270

Conical Spring Washer M8

234281474

$1.48

280

Hex. Flange Screw M8 X 40

207684044

$1.48

290

Hex. Flange Nut M8

233081416

$1.15

300

HEAT SHIELD SUPPORT - Call your local BRP dealership

707601856

Unavailable

320

Hex. Flange Screw M10 X 20

207502046

$2.11

330

Conical Spring Washer M8

234281474

$1.48

340

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$2.11

350

Hex. Flange Screw M6 X 16

207661646

$1.36

360

Heat Shield Support

707601858

$28.49

370

BRACE - Call your local BRP dealership

707601912

Unavailable

400

HEAT SHIELD - Call your local BRP dealership

707601853

Unavailable

410>410a

Heat Shield | Include 410a

707601859

$68.99

410a

Nut Welded, M6

293100003

$9.12

420

Lateral Heat Shield

707602069

$46.99

440

Hex. Flange Screw M6 X 16

207661646

$1.36

450

Flat Washer 6 mm

234062410

$0.77

460

Flat Washer 6 mm

234062410

$0.77

470

Hex Flange Screw M6 X 16

250000906

$5.29

500

Heat Shield

707601521

$27.99

510

Heat Shield

707602170

$27.99

550

PIPE PROTECTOR - Call your local BRP dealership

707601523

Unavailable

560

Heat Shield

707601848

$46.99

570

HEAT SHIELD - Call your local BRP dealership

707601849

Unavailable

580

BRACE - Call your local BRP dealership

707601911

Unavailable

590

Hex. Nut M6

232061414

$0.53

600

Heat Shield

707602083

$53.99

610

Heat Shield

707601759

$53.99

620

Flat Washer 6 mm

234062410

$0.77

630

Hex. Flange Screw M6 X 16

210261640

$2.11

640

Heat Shield

707601970

$22.49

650

Reflective Sheet

707601921

$19.99

660

Reflective Sheet

707602032

$46.99

680

Grommet

709000582

$4.69

700

Oxygen Sensor Connector Support

707602379

$3.89

710

Hex. Flange Screw M6 X 16

210261640

$2.11

720

Dart Mount

710005529

$2.99
