Description

Price

10

Radiator

709200951

$370.99

20

Grommet

709200285

$9.69

30

Bushing

293900105

$7.65

35

Grommet

709000582

$4.69

40

Hex. Flange Screw M6 X 25

207662544

$0.64

50

Flat Washer 6 mm

234062410

$0.77

70

Fan Ass'y

709200534

$339.99

80

Hex. Flange Screw M6 X 20

207662044

$2.00

90

Flat Washer 6 mm

234062410

$0.77

100

Radiator Pressure Cap

709200207

$25.49

130

Radiator Inlet Hose

709200537

$67.99

135a

Tubing 35 MM 1000MM Long

219704428

$10.99

140

T Fitting | Package Cab

509000995

$12.99

150

Pump Hose

709200653

$10.99

160

Hose_Thermostat Out | Except Package Cab

709200914

$35.99

165a

Tubing 35 MM 1000MM Long

219704428

$10.99

168

Tie Wrap 368 mm

293750008

$1.04

170

T-Fitting

509000510

$13.16

180

Hose

709200652

$40.99

185

Hose

709200659

$42.49

190a

Tubing 35 MM 1000MM Long

219704428

$10.99

235

Hose

709200654

$31.99

238

Oetiker Gear Clamp

293650165

$5.39

239

Oeticker Gear Clamp, 25.6-706R

509000442

$5.19

240

Hose

709200656

$35.99

245

Heater Tubing

709200657

$19.49

260

Gear Clamp

509000162

$7.29

290

Norma Spring Clamp

293650166

$4.44

300

Norma Spring Clamp

293650109

$4.12

310

Norma Spring Clamp

293650108

$4.12

330

Coolant Tank

709201323

$80.99

332a

Was 415129508 Bleeder Hose

219704416

$12.18

334

Oetiker Gear Clamp

293650025

$3.09

335

Bleeding Hose

709200606

$20.99

337a

Was 415129508 Bleeder Hose

219704416

$12.18

338

Crimp Clamp, 15.3-706R

293650047

$3.29

339

Y-Fitting

293710059

$9.69

340a

Tubing 16 Mm 1000Mm Long

219704408

$7.49

341

Tie-Rap 180 mm

414115200

$0.11

350a

Polyurethane Hose 10000Mm Long

219704410

$56.99

360

Spring Clamp

414554800

$0.88

370

Radiator Deflector

705009325

$38.99

372

Grille

708200609

Unavailable

374

Clip | Europe Models

517306751

$2.09

375

Tuflok Plastic Rivet

293150230

$1.47

380

Hex. Flange Screw M6 X 20

207662044

$2.00

385

Flat Washer 6 mm

234062410

$0.77

410

Retainer

275500526

$4.55

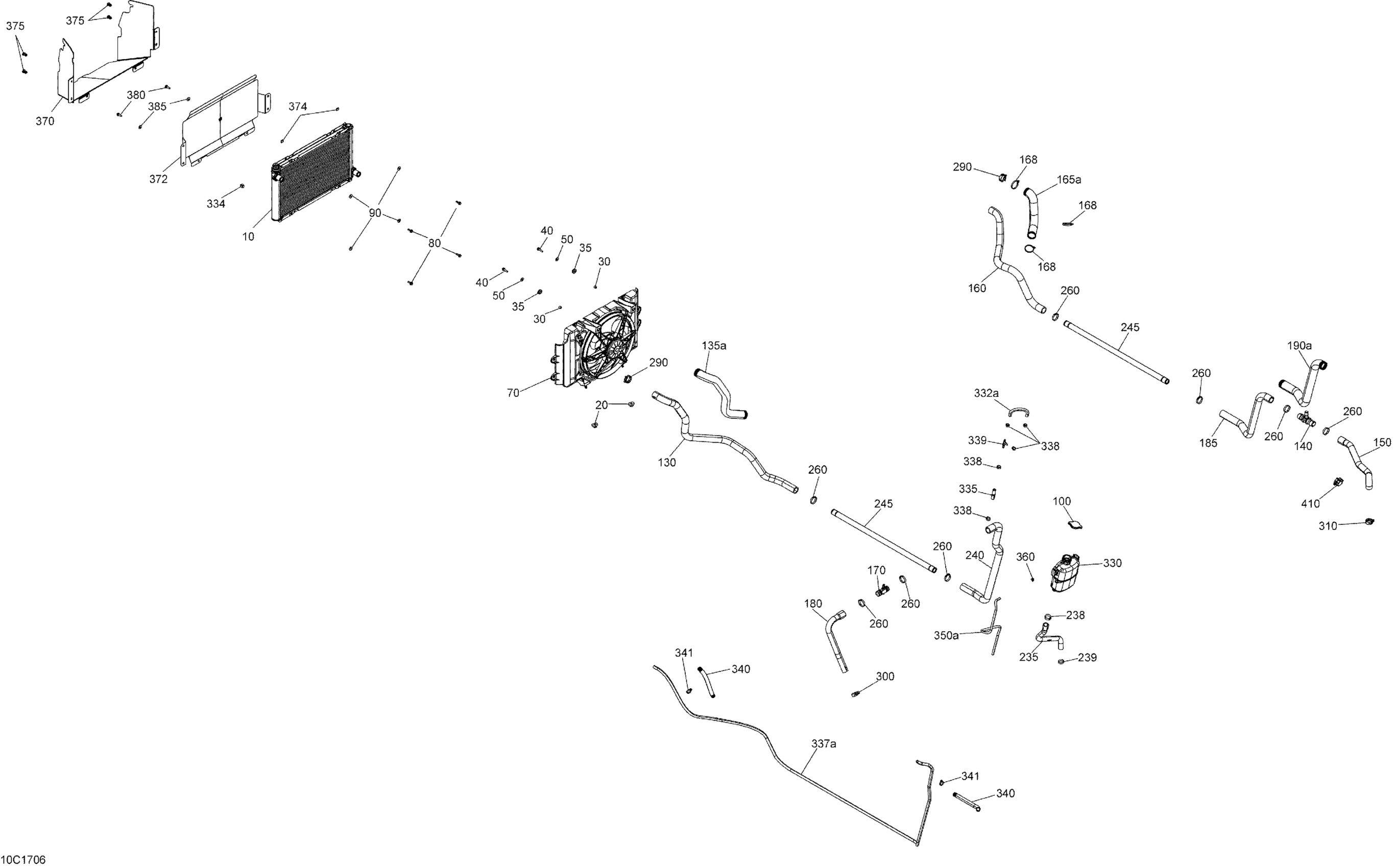

Can-Am Traxter HD5, 2017 01- Cooling System Diagram

Radiator

Grommet

Bushing

Grommet

Hex. Flange Screw M6 X 25

Flat Washer 6 mm

Fan Ass'y

Hex. Flange Screw M6 X 20

Flat Washer 6 mm

Radiator Pressure Cap

Radiator Inlet Hose

Tubing 35 MM 1000MM Long

T Fitting | Package Cab

Pump Hose

Hose_Thermostat Out | Except Package Cab

Tubing 35 MM 1000MM Long

Tie Wrap 368 mm

T-Fitting

Hose

Hose

Tubing 35 MM 1000MM Long

Hose

Oetiker Gear Clamp

Oeticker Gear Clamp, 25.6-706R

Hose

Heater Tubing

Gear Clamp

Norma Spring Clamp

Norma Spring Clamp

Norma Spring Clamp

Coolant Tank

Was 415129508 Bleeder Hose

Oetiker Gear Clamp

Bleeding Hose

Was 415129508 Bleeder Hose

Crimp Clamp, 15.3-706R

Y-Fitting

Tubing 16 Mm 1000Mm Long

Tie-Rap 180 mm

Polyurethane Hose 10000Mm Long

Spring Clamp

Radiator Deflector

Grille

Clip | Europe Models

Tuflok Plastic Rivet

Hex. Flange Screw M6 X 20

Flat Washer 6 mm

Retainer
