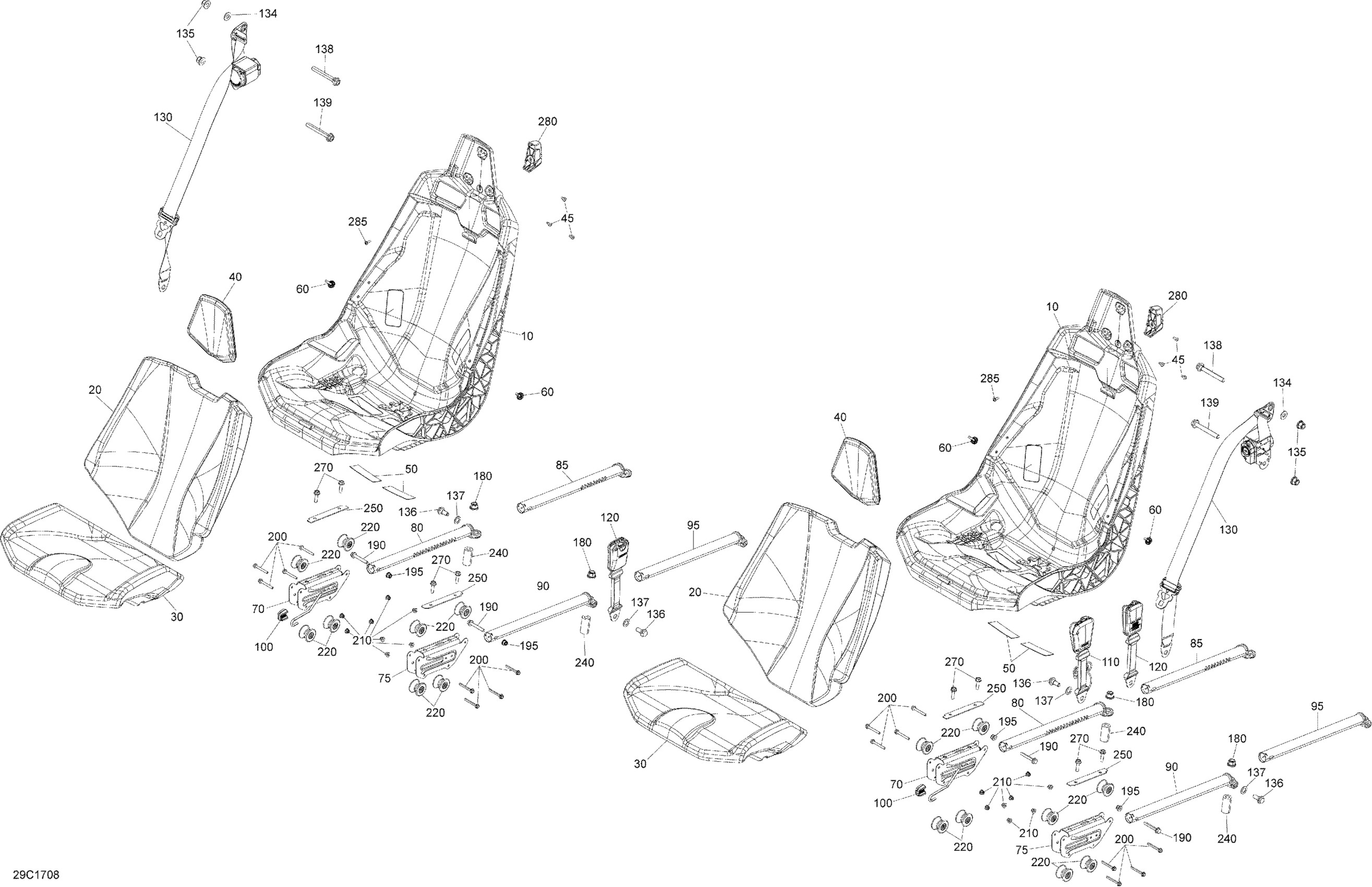

Can-Am 4-Maverick X3 MAX, 2017 09- Seat Diagram

LH Seat Shell

715005155

$249.99

RH Seat Shell

715005156

$249.99

Backrest Ass'y

708002121

$349.99

Backrest Ass'y | Model Black

708002127

$439.99

BACKREST ASS'Y - Call your local BRP dealership | Model Gold

708002380

$319.99

BACKREST - Call your local BRP dealership | Model Yellow

708002393

Unavailable

Cushion Ass'y

708002124

$239.99

Cushion Ass'y | Model Black

708002129

$239.99

Seat Base Cushion | Model Gold

708002382

$239.99

CUSHION ASS'Y - Call your local BRP dealership | Model Yellow

708002396

Unavailable

Headrest

708002131

$104.99

Torx Screw K50 X 16

250000720

$1.69

Velcro Tape

708002535

$4.14

Button Head Tie Rap

708002533

$2.39

Adjustable Trolley Kit

703500997

$63.99

Trolley

708002298

$63.99

Seat Rail

708003061

$53.99

Rail

708002578

$54.99

Seat Rail

708003064

$53.99

Rail

708002575

$54.99

Adjustment Handle

708002655

$16.99

Driver Buckle

708002714

$98.49

Passenger Buckle

708002385

$86.99

Safety Belt Passenger

708002654

$275.49

Flat Washer M12

250200102

$2.11

Elastic Flange Nut M12

233221416

$2.85

Safety Belt screw

708002504

$5.29

Position Washer

708000891

$1.29

Hex. Flange Screw M12 X 97.5

250000896

$10.54

Hex. Flange Screw M12 X 95

250000876

$6.77

Elastic Flange Nut M12

233221416

$2.85

Hex. Flange Screw M8 X 55

207685544

$5.39

Elastic Flange Nut M8

233281464

$1.01

Hex. Flange Screw M6 X 50

207665044

$4.12

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Wheel

708002134

$15.99

Rear Bushing

708002299

$10.99

Plate | Includes 250 to 250a

708003680

$2.69

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69
