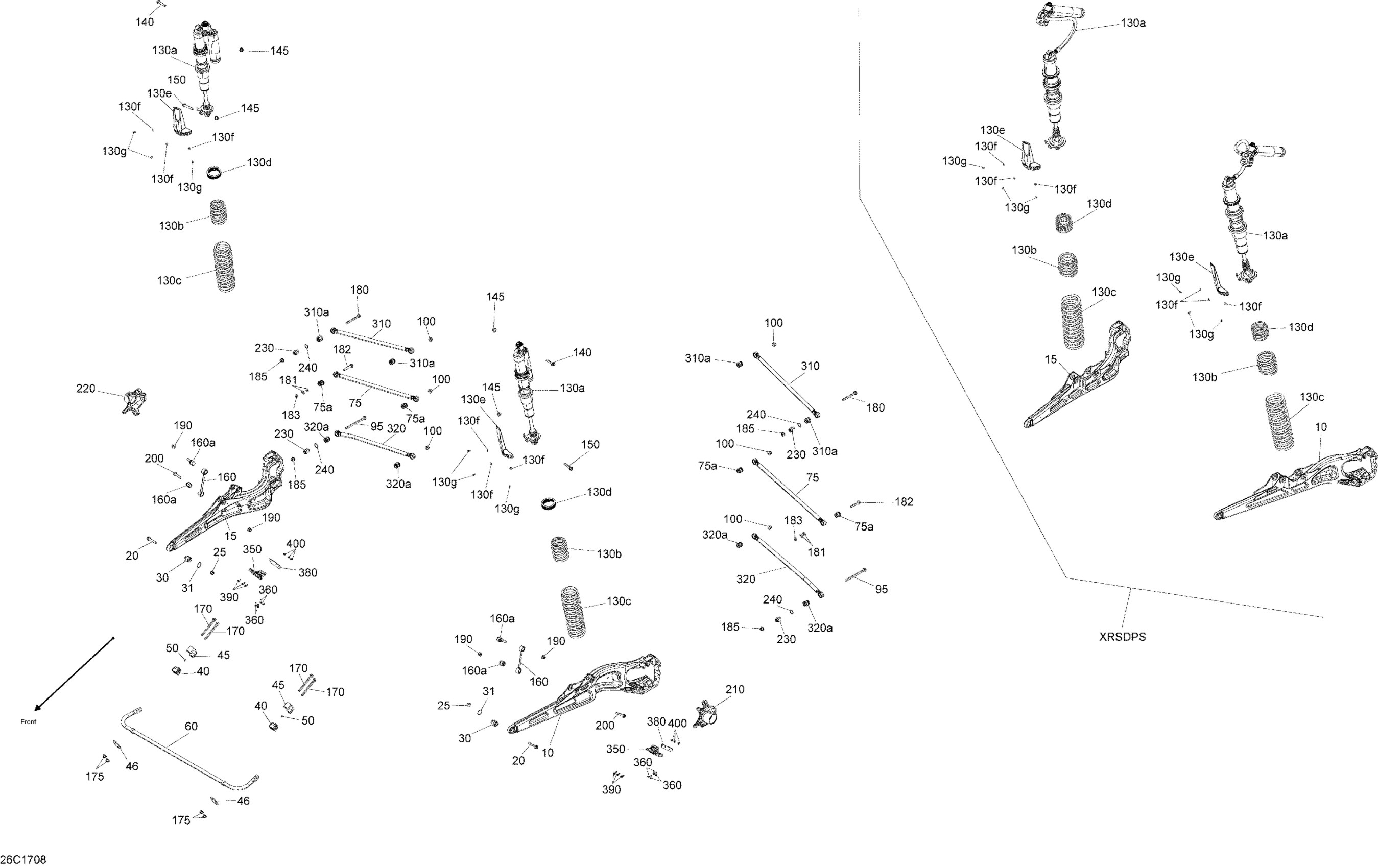

Can-Am 4-Maverick X3 MAX, 2017 08- Rear Suspension Diagram

#

Description
Price

10

Deep Black, LH Rear Suspension Arm

706004593

$360.49

10

Red LH Rear Arm | Model X3 Xrs Gold

706002569

$360.49

10

Black LH Rear Arm | Model X3 Xrs Black

706002694

$360.49

15

Black, RH Rear Suspension Arm | Model X3

706002568

$360.49

15

Red RH Rear Arm | Model X3 Xrs Gold

706002570

$360.49

15

Deep Black, RH Rear Suspension Arm

706004606

$391.99

20

Hex. Flange Screw M12 X 70

250000858

$3.80

25

Elastic Flange Nut M12

233221466

$2.89

30

Radial Joint

706001373

$52.99

31

Retaining Ring

293370093

$7.59

40

Stabilizer Bar Bushing

706004264

$3.61

45

Clamp

706002303

$17.05

46

Support Plate

706002357

$5.09

50

Grease Fitting

408200700

$3.49

60

Stabilizer Bar Ass'y

706002100

$98.49

75>75a

Central Control Link | Includes 75 to 75a

706002099

$119.99

75a

Radial Joint

706002135

$43.49

75>75a

Central Control Link | Includes 75 to 75a

706002307

$129.99

95

Screw Flange M12 X 175

250000862

$6.67

100

Elastic Flange Nut M12

233221466

$2.89

130a

LH Rear Shock | Includes 130a to 130a5

706002660

$1,179.99

130a

LH Rear Shock | Standard Package

706002666

$989.99

130a

Rear Shock | XRSDPS Package, Liquid Gold

706002671

$1,529.99

130a

Rear Shock | XRSDPS Package, Timeless Black Metallic

706002672

$1,529.99

130a

RH Rear Shock | Includes 135a to 135a5

706002663

$1,159.99

130a

RH Rear Shock | Standard Package

706002667

$999.99

130b

Deep Black, Compression Spring

706005126

$100.49

130b

SPRING - Call your local BRP dealership | XRSDPS Package, Liquid Gold

706002675

Unavailable

130b

SPRING - Call your local BRP dealership | XRSDPS Package, Timeless Black Metallic

706002669

Unavailable

130c

Black Rear Spring | Except XRSDPS Package

706002661

$153.49

130c

Rear Spring | XRSDPS Package, Liquid Gold

706002674

$153.49

130c

Black Rear Spring | XRSDPS Package, Timeless Black Metallic

706002668

$153.49

130e

Protector

706202215

$11.99

130f

Washer M5

250200025

$0.74

130g

Hex Flange Screw M5 X 11

210251150

$2.11

140

Flange Screw M12 X 60

250000857

$7.41

145

Elastic Flange Nut M12

233221466

$2.89

150

Flange Screw M12 X 60

250000857

$7.41

150

Hex. Flange Screw M12 X 70

250000858

$3.80

160>160a

Rear Stabilizer Bar Link | Includes 160 to 160a

706003752

$93.99

160a

Radial Joint

706002135

$43.49

170

Screw Flange M12 X 135

250000892

$6.49

175

Elastic Flange Nut M12

233221466

$2.89

180

Screw Flange M12 X 115

250000860

$6.67

181

Hardened Washer

706200281

$2.85

182

Hex. Flange Screw M12 X 70

250000858

$3.80

183

Elastic Stop Nut M12

232521416

$1.69

185

Elastic Flange Nut M12

233221466

$2.89

190

Elastic Flange Nut M12

233221466

$2.89

200

Flange Screw M12 X 60

250000857

$7.41

210

LH Khuckle

706001960

$148.49

220

RH Khuckle

706001961

$148.49

230

Radial Joint

706002317

$43.49

240

Retaining Ring

293370118

$7.59

310>310a

Upper Control Link | Includes 310 to 310a

706002136

$134.99

310a

Radial Joint

706002135

$43.49

310>310a

Upper Control Link | Includes 310 to 310a

706002751

$126.99

320>320a

Lower Control Link | Model X3 Xds

706002139

$134.99

320a

Radial Joint

706002135

$43.49

320>320a

Lower Control Link | Model X3 Xrs

706002311

$134.99

350

Deflector

706002905

$16.99

360

Hex. Flange Screw M6 X 20

207662044

$2.00

380

Wear Plate

706002851

$11.49

390

Hex. Flange Screw M6 X 20

207662044

$2.00

400

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
