Description

Price

10>10c

LH Front Brake Caliper | LH Front

705601887

$360.49

10>10c

RH Front Brake Caliper | RH Front

705601888

$370.99

10a>10a1

LH Brake Pads

715900379

$79.49

10a>10a1

RH Brake Pads

715900380

$79.49

10a1

Pin Kit | Packages STD & PRO

715900384

$12.12

10b

Bleeding Screw

705601017

$6.35

10c

Cap Spring Kit

715900385

$17.59

30>30b

Master Cylinder

705601863

$279.99

30a

Oil Tank

705601020

$39.99

30b

Oil Housing Hose

705601019

$15.87

40>40a

Front Flexible Hose | Includes 40 to 40a

705601492

$153.49

40a

Clamp

293650256

$5.49

40

Front Flexible Hose | Includes 40 to 40a

705601495

$153.49

45>45a

Rear Flexible Hose | Includes 45 to 45a

705601570

$211.99

45a

Clamp

293650256

$5.49

45

Rear Flexible Hose | Includes 45 to 45a

705601571

$211.99

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

60

Copper Washer

705601628

$4.44

90

Hex. Flange Screw M8 X 25

207682534

$2.11

95

Hex. Flange Elastic Nut M8

233281414

$1.47

105

Threaded Insert M6 X 1.0

250100242

Unavailable

120

Torx Screw M6 X 16 | Not shown

235661644

$5.29

130

Hex. Flange Screw M6 X 16

207661644

$0.74

140

Pop Rivet 3/16"

390402200

$0.35

142

Hex. Flange Screw M6 X 10

210261040

$1.48

150

Brake Switch

705601250

$59.49

160

Tie Wrap 142 mm

293750002

$1.25

170>170d

LH Rear Brake Caliper | Includes 170 to 170d

705602186

$307.49

170>170d

RH Rear Brake Caliper | Includes 170 to 170d

705601892

$312.49

170a>170a1

LH Brake Pads

715900386

$79.49

170a>170a1

RH Brake Pads

715900387

$79.49

170a1

Pin Kit | Packages STD & PRO

715900384

$12.12

170b

Bleeding Screw

705601017

$6.35

170c

Cap Spring Kit

715900385

$17.59

200

Torx Screw K50 X 16

250000720

$1.69

201

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

210

Torx Screw M5 X 20

250000724

$1.69

215

Panel Nut M5 X 0.8

250000958

$4.23

220

Flat Washer

224060201

$1.26

225

Bushing

293900112

$10.06

230

Grommet

414036300

$2.79

240

Brake Support Plate Ass'y

705207621

$50.99

250

Brake Pedal

705601453

$57.99

260

Brake Pedal Spring

705600792

$9.10

265

Rubber Stopper

708000759

$4.19

270

Bearing

705600458

$19.99

350

Bushing | RT

705601275

$15.81

360

Hex. Flange Screw, M10 X 130

230603046

$7.41

370

Hex. Flange Elastic Nut M10

233201436

$2.11

380

Brake Disc

705601533

$49.99

385

Brake Disc

705601376

$49.99

390

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

445

Hex. Flange Screw M10 X 25

207502546

$2.11

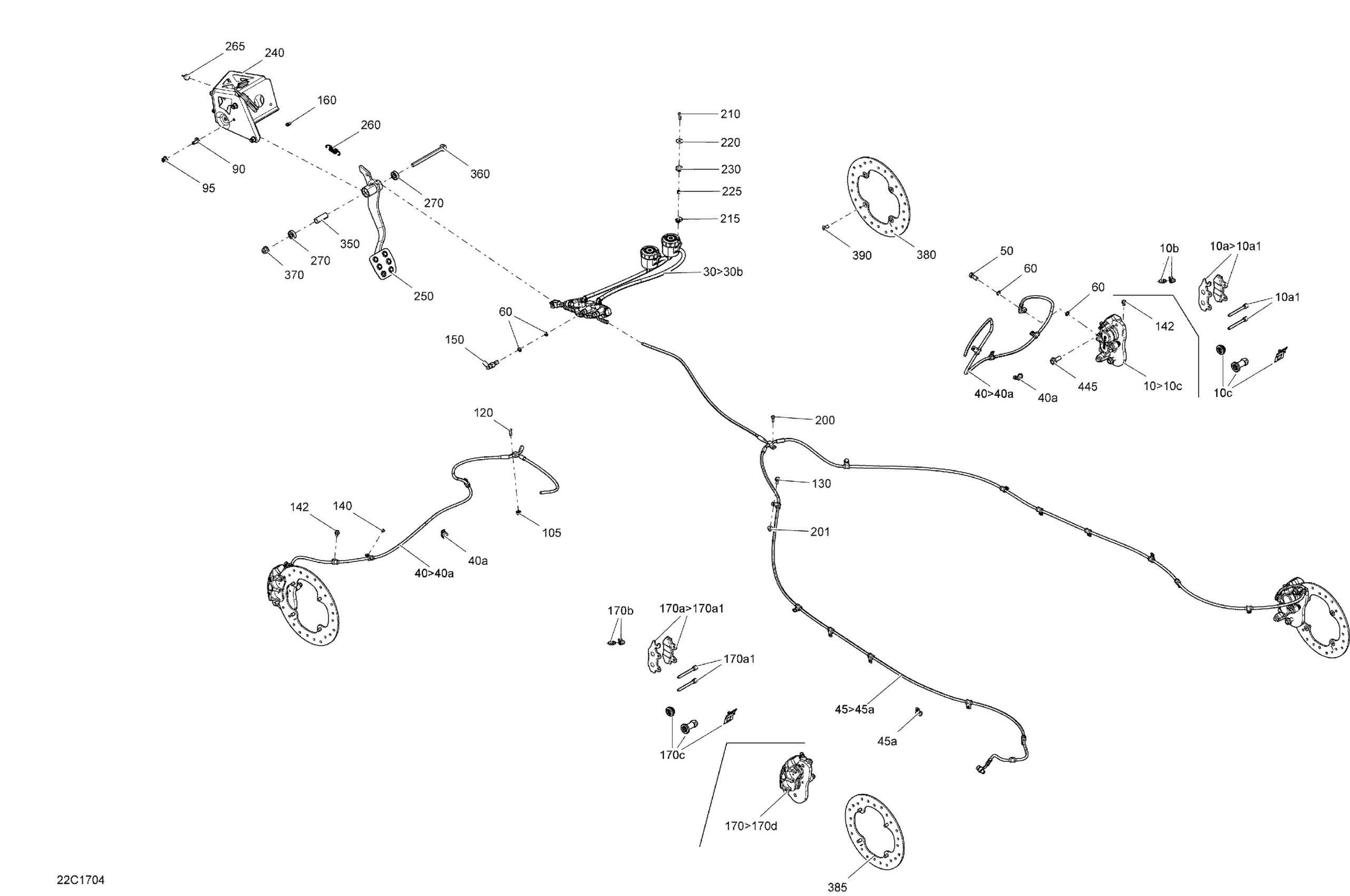

Can-Am 4-Maverick X3 MAX, 2017 06- Brakes Diagram

LH Front Brake Caliper | LH Front

RH Front Brake Caliper | RH Front

LH Brake Pads

RH Brake Pads

Pin Kit | Packages STD & PRO

Bleeding Screw

Cap Spring Kit

Master Cylinder

Oil Tank

Oil Housing Hose

Front Flexible Hose | Includes 40 to 40a

Clamp

Front Flexible Hose | Includes 40 to 40a

Rear Flexible Hose | Includes 45 to 45a

Clamp

Rear Flexible Hose | Includes 45 to 45a

Banjo Bolt (M10 x 1.25 thread)

Copper Washer

Hex. Flange Screw M8 X 25

Hex. Flange Elastic Nut M8

Threaded Insert M6 X 1.0

Torx Screw M6 X 16 | Not shown

Hex. Flange Screw M6 X 16

Pop Rivet 3/16"

Hex. Flange Screw M6 X 10

Brake Switch

Tie Wrap 142 mm

LH Rear Brake Caliper | Includes 170 to 170d

RH Rear Brake Caliper | Includes 170 to 170d

LH Brake Pads

RH Brake Pads

Pin Kit | Packages STD & PRO

Bleeding Screw

Cap Spring Kit

Torx Screw K50 X 16

Hex. Flange Elastic Nut M6 x 1.0

Torx Screw M5 X 20

Panel Nut M5 X 0.8

Flat Washer

Bushing

Grommet

Brake Support Plate Ass'y

Brake Pedal

Brake Pedal Spring

Rubber Stopper

Bearing

Bushing | RT

Hex. Flange Screw, M10 X 130

Hex. Flange Elastic Nut M10

Brake Disc

Brake Disc

Torx Screw M8 X 16, Scotch Grip

Hex. Flange Screw M10 X 25
