Description

Price

1

Turbocharger Ass'y

420893730

Unavailable

2

Gasket | Included in gasket kit

420631205

$4.29

3

Oil Return Line

420456455

$66.49

4

Torx Flange Screw M6 X 16

420440164

$2.19

5

Water Cooling Tube

420822842

$158.99

6

O-Ring

420650928

$3.17

7

Allen Screw M6 X 10

420241081

$2.11

8

Gasket | Included in gasket kit

420431850

$15.89

9

Washer

420827521

$5.50

10

Collar Screw M8 X 35

420440693

$4.79

11

Torx Flange Screw M8 X 35

420641188

$7.41

12

Hex Nut M6-10

420842890

$2.30

13

Solenoid Valve

420664636

$129.99

14

Hose 640mm

420260283

$23.99

15

Gear Clamp

420851463

$7.51

16

Clamp 9.2-10.9 mm

420853133

$3.56

17

Upper Heat Shield

420975120

$229.99

18

Lower Heat Shield

420975125

$264.99

19

Allen Screw M6 X 10

420241081

$2.11

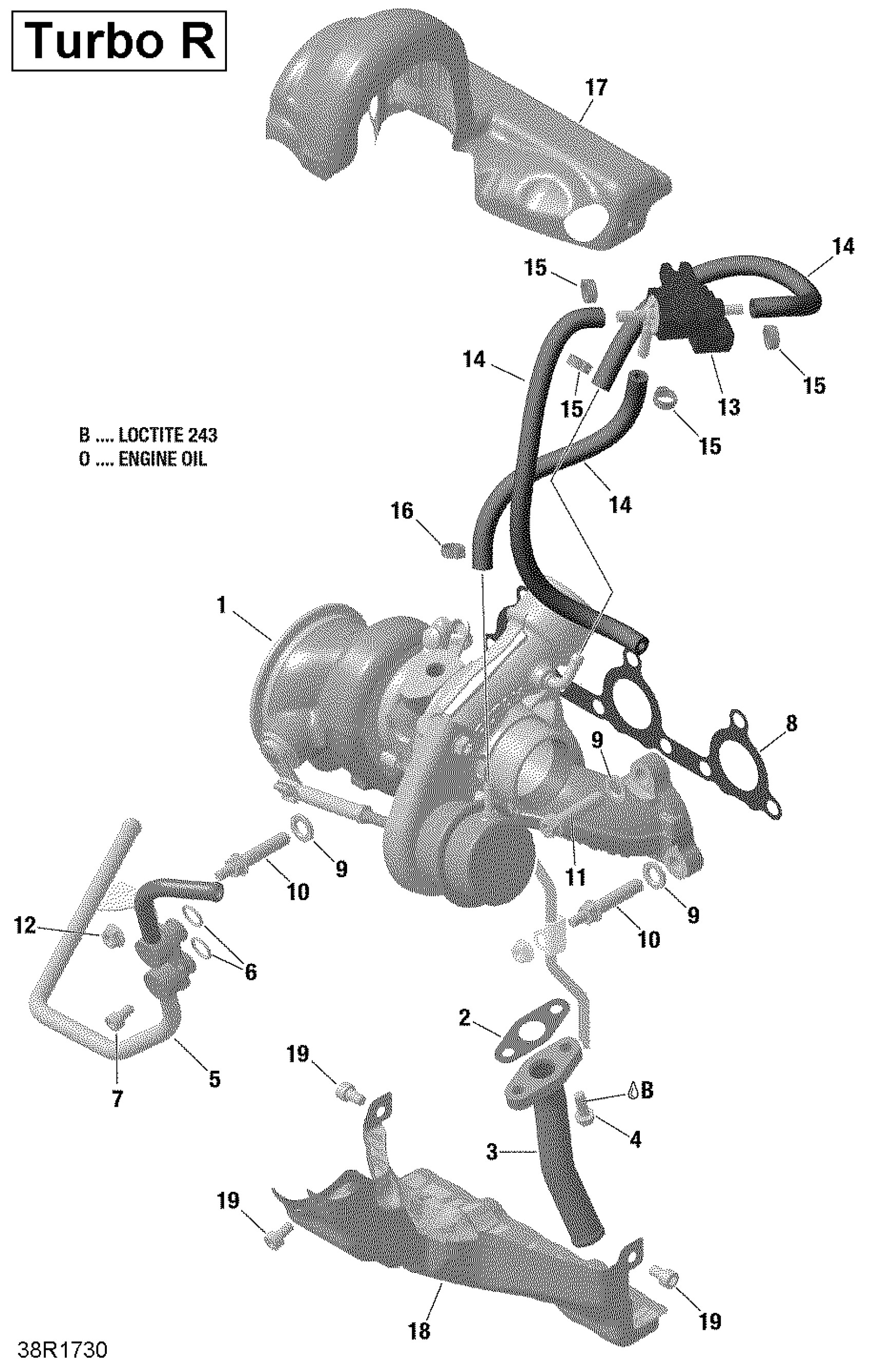

Can-Am 4-Maverick X3 MAX, 2017 01- Turbocharger Diagram

Turbocharger Ass'y

Gasket | Included in gasket kit

Oil Return Line

Torx Flange Screw M6 X 16

Water Cooling Tube

O-Ring

Allen Screw M6 X 10

Gasket | Included in gasket kit

Washer

Collar Screw M8 X 35

Torx Flange Screw M8 X 35

Hex Nut M6-10

Solenoid Valve

Hose 640mm

Gear Clamp

Clamp 9.2-10.9 mm

Upper Heat Shield

Lower Heat Shield

Allen Screw M6 X 10
