Description

Price

10>10c

Muffler | Includes 10 to 10c

707601731

$847.49

10a

Heat Shield | Includes 10f to 10f2

707602046

$30.99

10b

Spark Arrestor | Not Shown

707602087

$35.99

10c

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

20

PIPE_EXHAUST WELD - Call your local BRP dealership

707601671

$609.99

30

Seal

707601835

$38.99

40

V Clamp

707602570

$59.99

50

Nut

707602143

$6.19

90

Spring

707601834

$6.35

100

Oxygen Sensor

707600872

$144.99

110

Gear Clamp

293650255

$12.71

140

Hex. Flange Screw M8 X 40

207684044

$1.48

150

Hex. Flange Screw M8 X 20

207682044

$1.15

170

Hex. Flange Nut M8

233081416

$1.15

190

Muffler Support

707601765

$30.49

200

Exhaust Mount | Includes 200 to 200c

707602815

$30.49

210

Carriage Bolt, M8 X 20

207782044

$1.90

230

C Support

707601896

$30.49

240

Muffler Stopper

707601897

$3.29

250

Gasket

707601908

$23.99

410

Lateral Heat Shield

707601768

$22.49

440

Hex. Flange Screw M6 X 16

210261650

$1.67

450

Washer | Not Shown

503193995

$4.54

470

Hex Screw Washer Head M8 X 20

207582054

$3.17

500

Upper Heat Shield

707601795

$27.99

510

Lower Heat Shield

707601796

$27.99

540

Rubber Stopper

707601845

$20.99

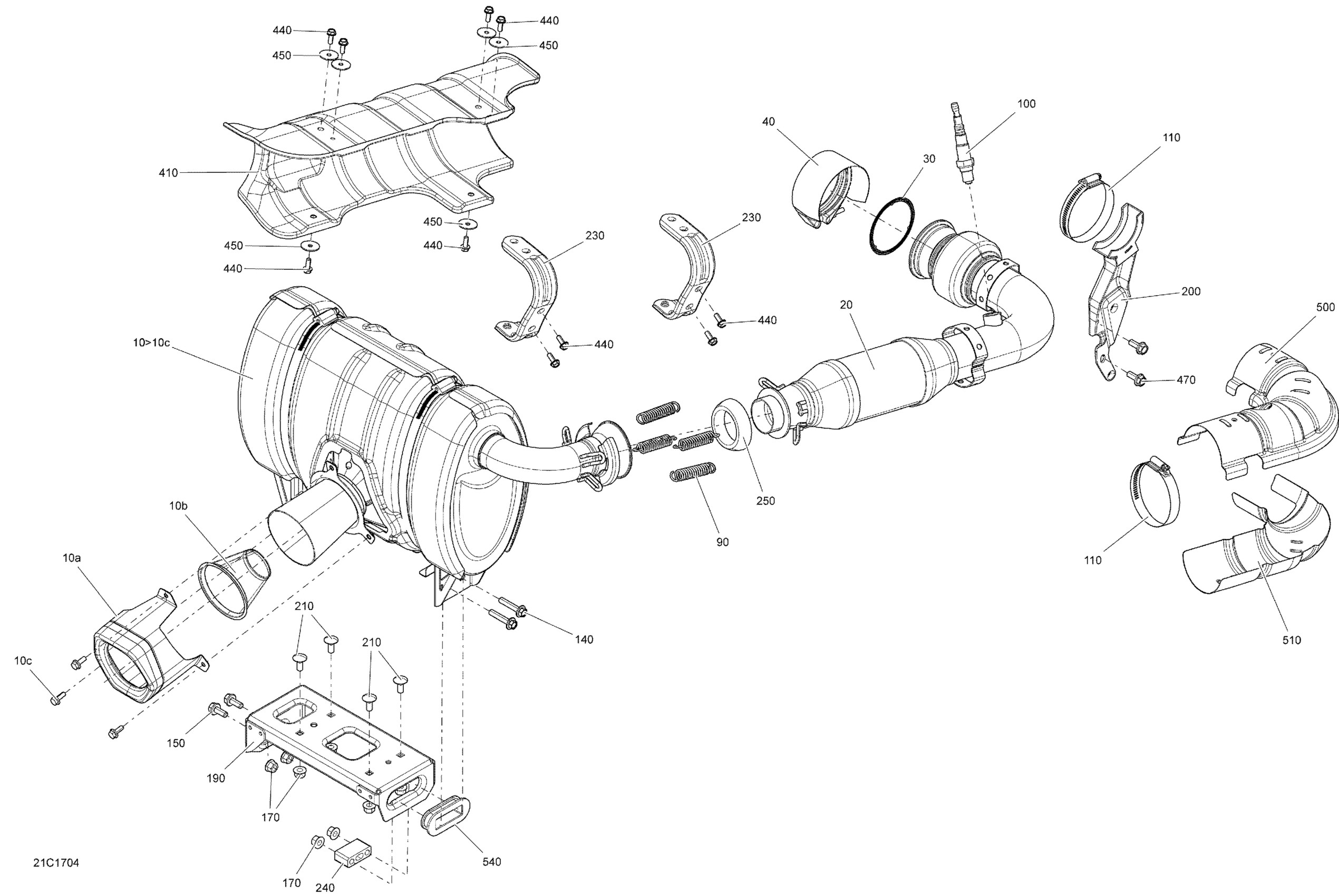

Can-Am 4-Maverick X3 MAX, 2017 01- Exhaust System Diagram

Muffler | Includes 10 to 10c

Heat Shield | Includes 10f to 10f2

Spark Arrestor | Not Shown

Hex. Flange Screw M6 X 16, Scotch Grip

PIPE_EXHAUST WELD - Call your local BRP dealership

Seal

V Clamp

Nut

Spring

Oxygen Sensor

Gear Clamp

Hex. Flange Screw M8 X 40

Hex. Flange Screw M8 X 20

Hex. Flange Nut M8

Muffler Support

Exhaust Mount | Includes 200 to 200c

Carriage Bolt, M8 X 20

C Support

Muffler Stopper

Gasket

Lateral Heat Shield

Hex. Flange Screw M6 X 16

Washer | Not Shown

Hex Screw Washer Head M8 X 20

Upper Heat Shield

Lower Heat Shield

Rubber Stopper
