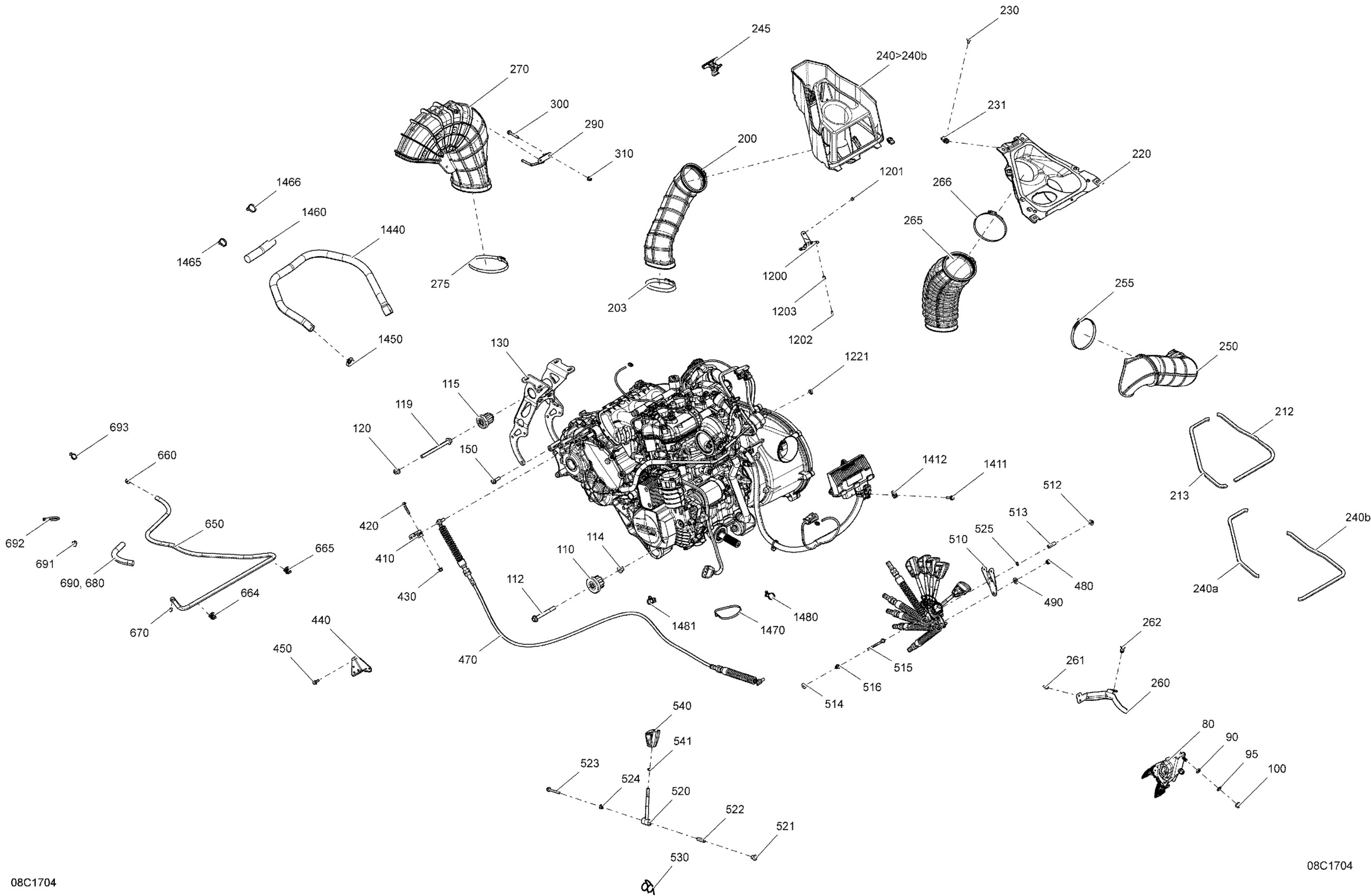

Can-Am 4-Maverick X3 MAX, 2017 01- Engine And Engine Support Diagram

#

Description
Price

80

Throttle Pedal

707001803

$284.99

90

Bushing

707001990

$2.79

95

Push Nut

250100031

$7.29

100

Hex. Flange Nut M8

233081416

$1.15

110

Vibration Damper

707002952

$15.81

112

Hex. Flange Screw M10 X 90

207609046

$6.77

114

Hex. Flange Elastic Nut M10

233201436

$2.11

115

Anti-Vibration Mount

707001808

$35.99

119

Hex. Flange Screw M10 X 125

230602546

$7.41

120

Hex. Flange Elastic Nut M10

233201436

$2.11

130

Rear Engine Support

707001881

$104.99

150

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

200

Front Inlet Duct

706600077

$25.99

203

Norma Clamp

514052924

$14.22

212

Seal

706600137

$35.99

213

Seal

706600138

$34.99

220

Adaptor

706600129

$42.49

230

Torx Truss Screw M6 X 16

250000721

$1.69

231

Panel Nut M6 X 1.0

250100198

$2.11

240>240b

CVT Filter | Includes 240 to 240b

706600148

$66.99

240a

Seal

706600136

$35.99

240b

Seal

706600139

$34.99

245

Latch

708000909

$6.29

250

Front Outlet Duct

706600078

$27.99

255

Norma Gear Clamp

514052983

$15.89

260

Hose Support

706600147

$15.49

261

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

262

Tuflok Plastic Rivet

293150230

$1.47

265

Rear Inlet Duct

706600080

$25.99

266

Norma Gear Clamp

514052983

$15.89

270

Rear Outlet Duct

706600081

$99.99

275

Gear Clamp (Norma)

514052861

$8.29

290

Outlet Support

707002056

$11.99

300

Hex. Flange Screw M6 X 40

207664044

$2.22

310

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

410

Lever

707000911

$20.49

420

Hex. Flange Screw M6 X 35

207663544

$0.90

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

440

Cable Support

707001614

$16.87

450

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

470

Shifting Cable

707002037

$70.99

480

Hex. Elastic Stop Nut M8

232581414

$0.56

490

Flat Washer 10 mm

234001410

$1.26

510

Lower Lever Arm

707000828

$19.99

512

Flanged Bushing

707000847

$1.25

513

Bushing

707001376

$5.24

514

Flat Washer 6 mm

234062410

$0.77

515

Hex. Flange Screw M6 X 70

207667056

$4.44

516

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

520

Upper Lever Arm

707000711

$39.99

521

Flanged Bushing

707000869

$2.89

522

Bushing

707001376

$5.24

523

Hex. Flange Screw M6 X 50

207665044

$4.12

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

525

Circlip

504152282

$3.17

530

Lever Arm Spring

707000750

$2.68

540

Lever Trim

707003211

$8.49

541

Hex. Jam Nut M8

232180491

$7.51

650

Hose

219704549

$50.99

660

Oetiker Clamp

293650042

$3.09

664

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

665

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

670

Straight Fitting

293710039

$7.59

680

Polyurethane Hose 10000Mm Long

219704410

$56.99

690

TUBING 13MM I.D. 300MM LONG - Call your local BRP dealership

219704449

Unavailable

691

Tie-Rap 180 mm

414115200

$0.11

692

Tie-Rap 180 mm

414115200

$0.11

693

Tie-Rap 180 mm

414115200

$0.11

1200

Valve Support

707001981

$2.68

1201

Pop Rivet 3/16" | DS 650 X

390402000

$0.33

1202

Hex. Flange Screw, Scotch Grip

207551634

$2.00

1203

Insert M5 X 0.8

293450268

$2.09

1221

Oeticker Clamp

293650262

$1.29

1411

Hex. Flange Screw M6 X 25

207662554

$1.48

1412

Panel Nut M6 X 1.0

250100198

$2.11

1440

Hose Vent

707001931

$52.99

1450

Tridon Gear Clamp

293650051

$4.19

1460

Corrugated Sheath 23 MM ID 1000MM Long

219704450

$13.76

1465

Tie-Rap 180 mm

414115200

$0.11

1466

Tie-Rap 180 mm

414115200

$0.11

1470

Tie Wrap 368 mm

293750008

$1.04

1480

Dart Tie Rap 200MM

710003168

$7.09

1481

Clip Tie-Rap | Package North Edition

710005037

$9.17
