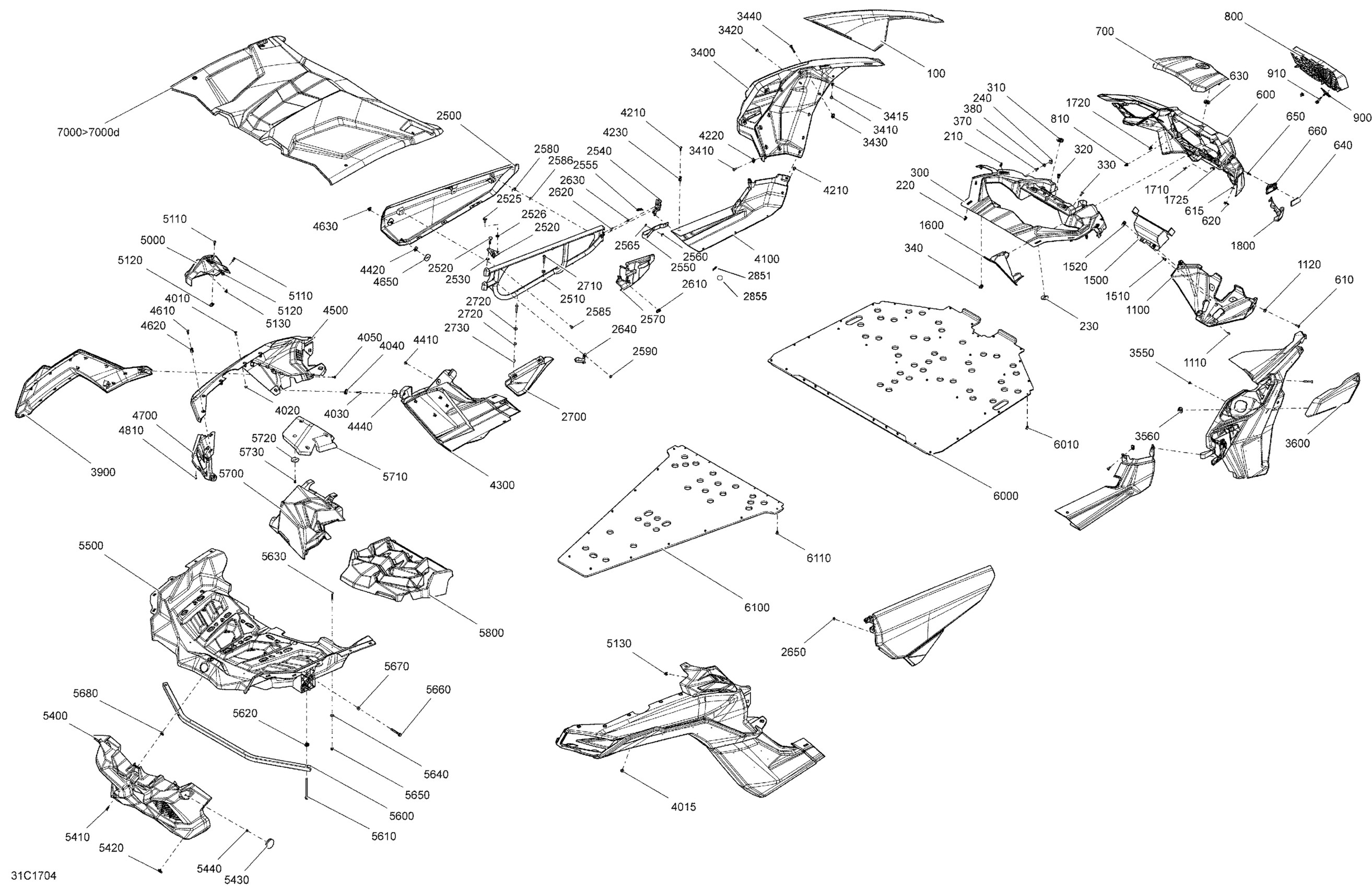

Can-Am 3-Maverick X3, 2017 09- Body And Accessories Diagram

Black, LH Front Fender | Model Black

705011087

$204.99

Black, RH Front Fender | Model Black

705011091

$204.99

Gold, LH Front Fender | Model Gold

705011092

$204.99

Gold, RH Front Fender | Model Gold

705011093

$204.99

White, LH Front Fender | Model White

705009505

$204.99

White, RH Front Fender | Model White

705009506

$204.99

YELLOW LH FRONT FENDER - Call your local BRP dealership | Model Yellow

705011084

Unavailable

YELLOW RH FRONT FENDER - Call your local BRP dealership | Model Yellow

705011086

$214.99

Clip

705010721

$2.61

Edge Clip

517302785

$0.88

Support Plate

705003841

$0.99

Panel Nut M6 X 1.0

250100198

$2.11

Central Hood

705014684

$75.99

Grommet

705010718

$2.69

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw M6 X 20

250000722

$1.68

Stainless Steel Flat Washer

234062670

$2.11

Front Facia

705009508

$74.99

Torx Screw M6 X 20

250000722

$1.68

Stainless Steel Flat Washer

234062670

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Grommet

517303756

$4.09

Amber, Reflector

520000271

$19.99

Torx Screw K50 X 16

250000720

$1.69

LH Reflector Support

705011806

$4.09

RH Reflector Support

705011814

$4.09

White, Facia Cover | Model White

705010277

$109.99

YELLOW FACIA COVER - Call your local BRP dealership | Model Yellow

705011094

Unavailable

Timeless Black, Front Hood

705014313

$174.99

Gold, Facia cover | Model Gold

705011097

$189.99

Radiator Front Grille

703501021

$51.99

Edge Clip

517302785

$0.88

Logo | Except Model X3

705010885

$11.99

Screw M4 X 16

250000725

$3.49

Front Deflector

705009978

$76.99

Pop Rivet 3/16"

293150103

$0.55

Panel Nut M6 X 1.0

250100198

$2.11

Lower Radiator deflector

705010742

$20.99

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

LH Front Radiator Deflector

705017559

$20.99

RH Front Radiator Deflector

705017560

$20.99

Torx Screw M6 X 20

250000722

$1.68

Edge Clip

517302785

$0.88

Panel Nut M6 X 1.0

250100198

$2.11

LH Light Cover

705010628

$33.99

RH Headlight Trim

705017566

$33.99

Timeless Black, LH Front Door Panel

705014331

$214.99

Timelesss Black, RH Front Door Panel

705014337

$214.99

Gold, LH Door Panel | Model Gold

705011117

$214.99

Gold, RH Door Panel | Model Gold

705011118

$214.99

White LH Door Panel | Model White

705010067

$149.99

White RH Door Panel | Model White

705010068

$149.99

Yellow LH Door Panel | Model Yellow

705011113

$214.99

Yellow RH Door Panel | Model Yellow

705011114

$214.99

Deep Black, LH Front Door

705018468

$159.99

Deep Black, RH Front Door

705018470

$159.99

Red LH Door Frame | Model Gold

705011346

$139.99

Can-Am Red, RH Front Door | Model Gold

705016021

$154.99

Hex Screw Washer Head M8 X 20

207582054

$3.17

Flat Washer M8

234081430

$2.11

Flat Washer 8 mm, Nylon

234081100

$1.39

LH Latch

705013095

$43.99

RH Latch

705013096

$43.99

Belt

293850135

$14.99

Not Available As Spare Part - Friction Washer

Unavailable

Belt Stopper

293730070

$2.29

Belt Stopper

293730072

$2.29

LH Latch Cover

705010734

$38.99

RH Latch Cover

705010735

$39.99

Panel Nut M6 X 1.0

250100198

$2.11

Torx Truss Screw M6 X 16

250000721

$1.69

Stainless Steel Flat Washer

234062670

$2.11

Pop Rivet 3/16"

293150103

$0.55

Panel Nut M6 X 1.0

250100198

$2.11

Torx Truss Screw M6 X 16

250000721

$1.69

Torx Screw M6 X 20

250000722

$1.68

Stainless Steel Flat Washer

234062670

$2.11

Door Belt

293850129

$16.49

Pop Rivet 3/16"

293150103

$0.55

LH Lower Door Panel

705010732

$58.99

RH Lower Door Panel

705010733

$61.99

Torx Truss Screw M6 X 50

250000749

$3.17

Torx Truss M6 X 50

250000868

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Hex. Flange Elastic Nut M6

233261466

$2.00

Pop Rivet 3/16”

293150108

$1.19

Bushing

293900112

$10.06

Black, LH Front Lateral Panel Kit

715006594

$124.99

RH Front Lateral Panel Kit

715004074

$104.99

Torx Screw M6 X 20

250000722

$1.68

Hex. Flange Elastic Nut M6

233261466

$2.00

Threaded Insert M6 X 1.0

250100242

Unavailable

Panel Nut M6 X 1.0

250100198

$2.11

Torx Truss M6 X 50

250000868

$2.11

Flange Elastic Nut M6

233261434

$4.44

Grommet

517303756

$4.09

Lateral Cover

705017564

$43.99

LH Rear Fender Deflector

705009511

$52.99

RH Rear Fender Deflector

705017543

$48.99

Torx Screw M6 X 20

250000722

$1.68

Stainless Steel Flat Washer

234062670

$2.11

Hex. Elastic Flange Nut M6

233161464

$1.01

Torx Truss Screw M6 X 25

250000807

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw K50 X 16

250000720

$1.69

LH Central Lateral Panel

705009513

$67.99

Deep Black, RH Central Body Panel

705017555

$73.99

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

Insert

705016606

$2.79

LH Rear Lateral Panel

705010676

$119.99

Deep Black, RH Rear Lateral Panel

705010677

$119.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Panel Nut M6 X 1.0

250100198

$2.11

Support Plate

705003841

$0.99

White, LH Rear Fender | Model White

705009515

$204.99

Yellow LH Rear Fender | Model Yellow

705011119

$409.99

Timeless Black, LH Rear Fender

705014343

$204.99

Gold, LH Rear Fender | Model Gold

705011123

$409.99

White, RH Rear Fender | Model White

705009516

$204.99

Yellow RH Rear Fender | Model Yellow

705011120

$409.99

Timeless Black, RH Rear Fender

705014349

$309.99

Gold, RH Rear Fender | Model Gold

705011124

$409.99

Torx Screw M6 X 20

250000722

$1.68

Insert

705016606

$2.79

Panel Nut M6 X 1.0

250100198

$2.11

Support Plate

705003841

$0.99

LH Rear Lateral Cover

705010686

$36.99

RH Rear Lateral Cover

705010687

$36.99

Torx Screw K50 X 16

250000720

$1.69

LH Rear Cage Trim

705010335

$35.99

RH Rear Cage Trim

705010336

$35.99

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

Clip

293650268

$0.73

Rear Fairing

705017558

$209.99

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

Red Reflector

705011221

$14.49

Elastic Flange Nut M5

233251494

$2.11

Luggage Rack Kit

715006590

$455.49

Luggage rack Tube

705012589

$36.99

Hex. Flange Screw M8 X 130

230683034

$7.51

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

Torx Truss M6 X 50

250000868

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

Hex. Flange Screw M8 X 70

207687044

$7.41

Hex. Flange Nut M8

233081416

$1.15

Panel Nut M6 X 1.0

250100198

$2.11

Air Inlet Cover

705017568

$43.99

Foam Air Intake Cover

705011293

$13.49

Support Plate

705003841

$0.99

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Rear Cover

705013757

$224.99

Central Skid Plate | Except Model X3 Xrs

705016193

$301.99

Central Skid Plate

705016870

$359.99

Pop Rivet 3/16”

293150108

$1.19

Rear Skid Plate

705016686

$174.49

Rear Skid Plate

705016687

$174.49

Pop Rivet 3/16”

293150108

$1.19

Door Support

705011187

$12.99

Sport Roof Kit | Model X3 Xrs

715002902

$479.99

Decal "Can-Am" | Not Shown

704904566

$10.99

Quarter Turn Service Kit

715003815

$27.49

Not Available As Spare Part - Friction Washer

Unavailable

Torx Screw M5 X 20

250000792

$2.11

Flat washer M6

250200164

$1.01

Quarter Turn Urethane Washer

705011055

$1.05

Elastic Flange Nut M5

233251494

$2.11

Was 293250424 Seal | Model X3 Xrs

219704385

$59.49

Strap

705011280

$20.49
