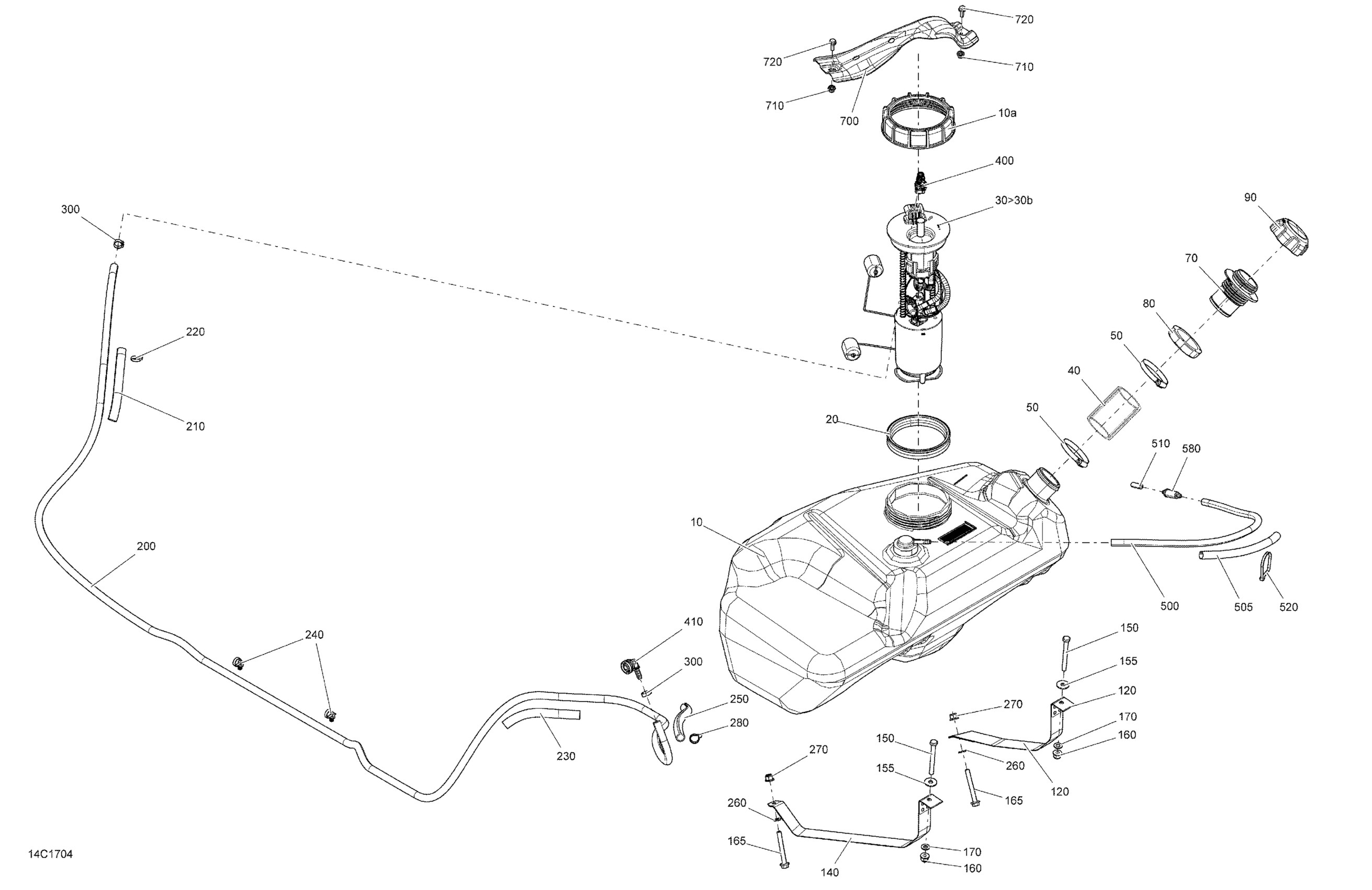

Can-Am 3-Maverick X3, 2017 02- Fuel System Diagram

#

Description
Price

10

Fuel Tank | Includes 10 to 10c

709000706

$309.99

10a

Special Nut M130

250100062

$21.99

20

Gasket

293250173

$18.49

30>30b

Fuel Pump | Includes 30 to 30b

709001056

$372.49

30a

Fuel Filter

270600113

$33.99

30b

Fuel Sender

715900424

$144.99

40

Filler Neck

709000748

$31.99

50

Norma Clamp

293650081

$12.18

70

Filler Neck

709000725

$18.49

80

Filler Neck Nut, Fuel

211100012

$14.22

90

Fuel Cap

513033816

$34.99

120

Fuel Tank Strap

709000910

$41.49

140

Fuel Tank Strap

709000911

$41.49

150

Hex. Screw, M8 X 75

207187544

$0.92

155

Flat Washer 8 mm

234082410

$1.47

160

Hex. Flange Elastic Nut M8

233281414

$1.47

165

Hex. Flange Screw, M8 X 65

207686544

$13.16

170

Flat Washer 8 mm

234081410

$0.83

200

Hose

709000908

$116.49

210

Was 409901800 Tubing (13 mm)

219704400

$14.49

220

Tie-Rap 180 mm

414115200

$0.11

230

Was 409901800 Tubing (13 mm)

219704400

$14.49

240

Dart Tie Rap 200MM

710003168

$7.09

250

Was 409901800 Tubing (13 mm)

219704400

$14.49

260

Flat Washer 8 mm

234081410

$0.83

270

Hex. Flange Elastic Nut M8

233281414

$1.47

280

Tie-Rap 180 mm

414115200

$0.11

300

Crimp Clamp, 15.3-706R

293650047

$3.29

400

Quick Disconnect

275500921

$16.49

410

Elbow Fitting 90°

293710105

$14.22

500

Was 275500549 Hose 1/4"

219704357

$194.99

505

Tubing 10 MM 1000MM Long

219704407

$2.79

510

Polyurethane Hose 10000Mm Long

219704410

$56.99

520

Tie Wrap 368 mm

293750008

$1.04

580

Filter

709000330

$7.79

700

Connector Protector

707900594

$22.49

710

Threaded Insert M6 X 1.0

250100242

Unavailable

720

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90
