Description

Price

10a

Backrest Ass'y Black | XTP

708002246

$349.99

10a

BACKREST - Call your local BRP dealership | Package XMR, XXC

708002271

Unavailable

10a

BACKREST - Call your local BRP dealership | Package XMR

708002265

Unavailable

10a1

Backrest Cover Black | XTP

708002248

$128.99

10a1

COVER - Call your local BRP dealership | Package XMR, XXC

708002272

Unavailable

10a1

COVER - Call your local BRP dealership | Package XMR

708002266

Unavailable

10b

Cushion Ass'y Black | XTP

708002247

$319.99

10b

Cushion Ass'y Gulfstream Blue | Package XMR, XXC

708002273

$249.99

10b

CUSHION - Call your local BRP dealership | Package XMR

708002267

Unavailable

10b1

Cushion Cover Black | XTP

708002249

$81.49

10b1

Seat Cover Gulfstream Blue | Package XMR, XXC

708002274

$128.99

10b1

Seat Cover Can-Am Red | Package XMR

708002268

$128.99

10c

LH Rail

708000848

$53.99

10d

RH Rail

708001739

$35.99

10e

Operator Seat Frame

708001356

$329.99

10f

Seat Member

708001174

$80.99

10g

Seat Latch

708001355

$2.59

10h

Rubber Bumper

708001671

$2.89

10j

Spring

708000921

$1.29

10k

Socket Screw M10 X 16

205501644

$4.29

10m

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

10n

Hex. Elastic Stop Nut M6

232561600

$1.15

10p

Hex. Flange Screw M6 X 25

207562544

$1.69

10q

Socket Head Screw M8 X 1.25 X 40

205084044

$2.85

10r

Hex. Flange Elastic Nut M8

233281414

$1.47

10s

Hex. Flange Screw M6

250000672

$2.11

10t

Head Rest

708001074

$104.99

10u

Seat Support

708001245

$28.99

10v

Hex. Flange Screw K50 X 40

250000897

Unavailable

20a

Backrest Ass'y Black | XTP

708002246

$349.99

20a

BACKREST - Call your local BRP dealership | Package XMR

708002265

Unavailable

20a

BACKREST - Call your local BRP dealership | Package XMR, XXC

708002271

Unavailable

20a1

Backrest Cover Black | XTP

708002248

$128.99

20a1

COVER - Call your local BRP dealership | Package XMR

708002266

Unavailable

20a1

COVER - Call your local BRP dealership | Package XMR, XXC

708002272

Unavailable

20b

Cushion Ass'y Black | XTP

708002247

$319.99

20b

CUSHION - Call your local BRP dealership | Package XMR

708002267

Unavailable

20b

Cushion Ass'y Gulfstream Blue | Package XMR, XXC

708002273

$249.99

20b1

Cushion Cover Black | XTP

708002249

$81.49

20b1

Seat Cover Can-Am Red | Package XMR

708002268

$128.99

20b1

Seat Cover Gulfstream Blue | Package XMR, XXC

708002274

$128.99

20c

Passenger Seat Frame

708001357

$319.99

20d

Seat Latch

708001355

$2.59

20e

Rubber Bumper

708001671

$2.89

20f

Spring

708000921

$1.29

20g

Socket Screw M10 X 16

205501644

$4.29

20h

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

20j

Hex. Elastic Stop Nut M6

232561600

$1.15

20k

Hex. Flange Screw M6 X 25

207562544

$1.69

20m

Hex. Flange Screw M6

250000672

$2.11

20n

Head Rest

708001074

$104.99

20p

Seat Support

708001245

$28.99

20q

Hex. Flange Screw K50 X 40

250000897

Unavailable

25a

Backrest Ass'y Black | XTP

708002246

$349.99

25a

BACKREST - Call your local BRP dealership | Package XMR, XXC

708002271

Unavailable

25a

BACKREST - Call your local BRP dealership | Package XMR

708002265

Unavailable

25a1

Backrest Cover Black | XTP

708002248

$128.99

25a1

COVER - Call your local BRP dealership | Package XMR, XXC

708002272

Unavailable

25a1

COVER - Call your local BRP dealership | Package XMR

708002266

Unavailable

25b

Cushion Ass'y Black | XTP

708002247

$319.99

25b

Cushion Ass'y Gulfstream Blue | Package XMR, XXC

708002273

$249.99

25b

CUSHION - Call your local BRP dealership | Package XMR

708002267

Unavailable

25b1

Cushion Cover Black | XTP

708002249

$81.49

25b1

Seat Cover Gulfstream Blue | Package XMR, XXC

708002274

$128.99

25b1

Seat Cover Can-Am Red | Package XMR

708002268

$128.99

25c

Rear Anchor

708001474

$19.99

25d

LATERAL TUBE - Call your local BRP dealership

708001196

Unavailable

25d

Side Tube

708001476

$30.99

25e

Seat Support

708001198

$68.99

25g

Hex. Flange Screw M6 X 25

207562544

$1.69

25h

Hex. Flange Screw M6

250000672

$2.11

25j

Hex. Elastic Flange Nut M6

233161464

$1.01

25k

Stainless Steel Flat Washer

234062670

$2.11

25m

Head Rest

708001074

$104.99

25n

Seat Support

708001245

$28.99

25p

Hex. Flange Screw K50 X 40

250000897

Unavailable

30

Driver Buckle Side

708002061

$70.99

35

Tie Wrap 368 mm

293750008

$1.04

40

Passenger Buckle Side

708002064

$67.99

45

Rear Passenger Buckle Side

708002063

$67.99

50

Safety Belt | Model-North America, International

708001854

$274.99

55

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$7.09

56

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

70

Threaded Insert M6 X 1.0

250100242

Unavailable

110

Anchor

708001212

$19.99

115

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

120

Anchor

708001213

$24.49

125

Hex. Flange Nut M6

233061414

$1.68

126

Stainless Steel Flat Washer

234062670

$2.11

130

Seat Support

708001214

$67.99

135

Hex. Flange Screw M6 X 1.0 X 45

250000213

$2.11

136

Panel Nut M6 X 1.0

250100171

$4.09

137

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

140

Support

708001804

$49.99

150

Panel Nut M6 X 1.0

250100171

$4.09

160

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

170

Conical Spring Washer M8

234281474

$1.48

171

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$7.09

172

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

173

Safety Belt Screw

708000890

$3.79

174

Position Washer

708000891

$1.29

175

Hex. Elastic Flange Nut M6

233161464

$1.01

176

Hex. Flange Screw M6

250000672

$2.11

200

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$7.09

210

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.90

220

Safety Belt Screw

708000890

$3.79

230

Position Washer

708000891

$1.29

240

Hex. Elastic Flange Nut M6

233161464

$1.01

250

Hex. Flange Screw M6

250000672

$2.11

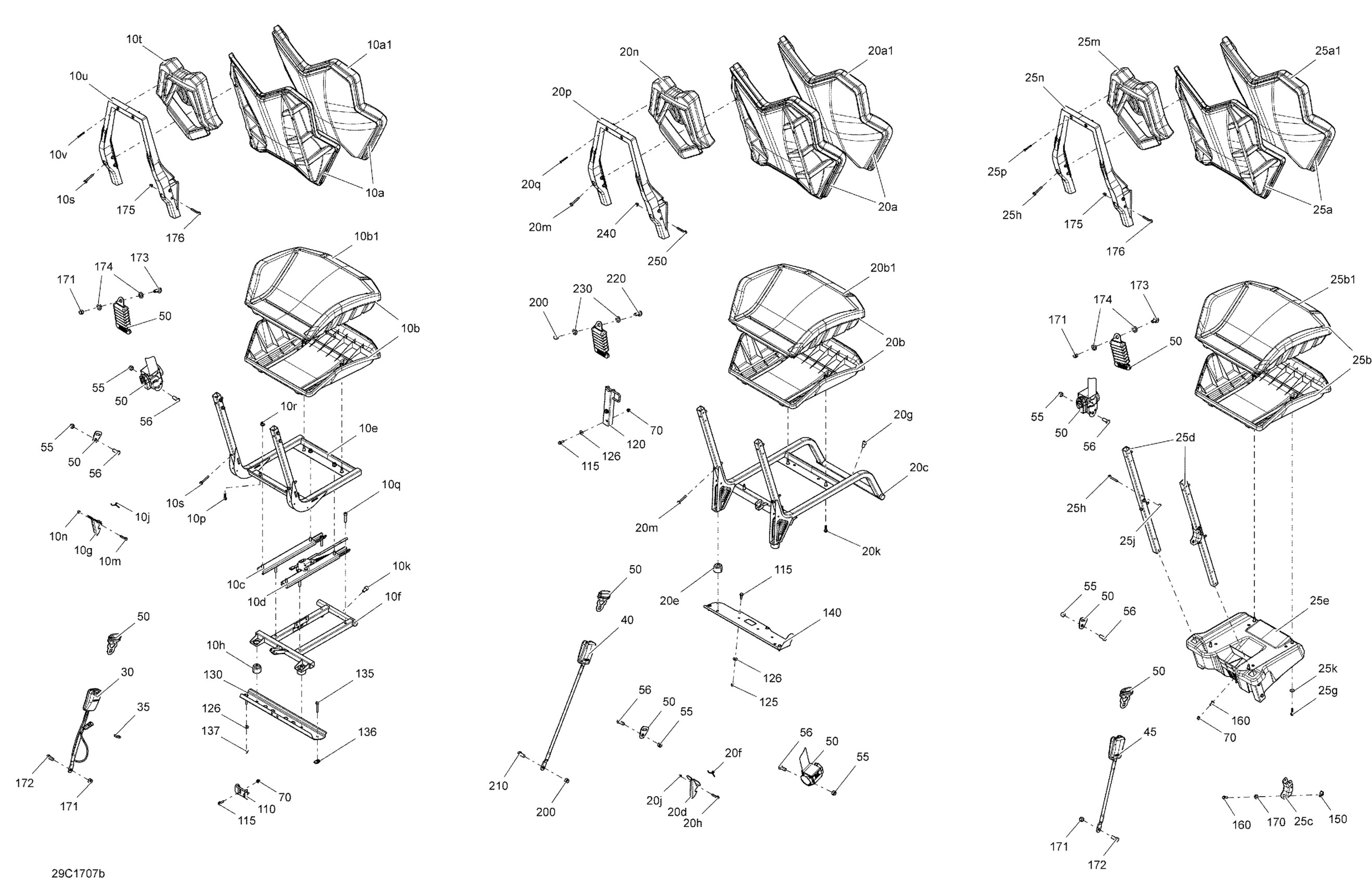

Can-Am 2-Maverick MAX, 2017 09- Seat - Turbo Diagram
