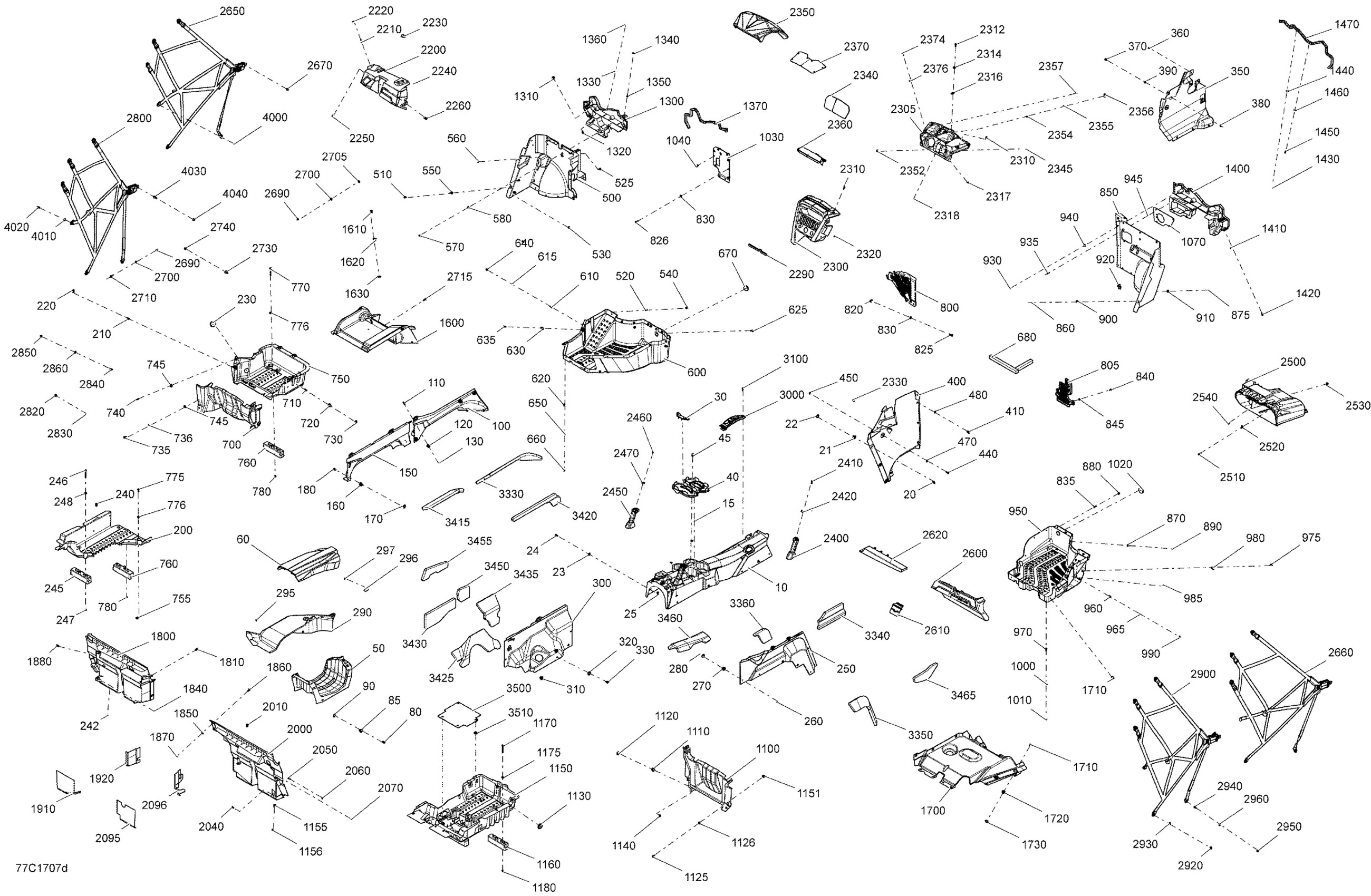

Can-Am 2-Maverick MAX, 2017 09- Cab Interior - Package XMR Diagram

Front Console Kit | MAX Model Except Package XDS-DPS

715003370

$164.99

Push Nut

732610072

$2.19

Tuflok Plastic Rivet

293150230

$1.47

Insert

707900133

$2.89

Washer

503189273

$3.28

Stainless Steel Flat Washer

234062670

$2.11

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

Cup Retainer

707900036

$6.89

Cup Holder

707900100

$18.49

Tuflok Plastic Rivet

293150230

$1.47

Rear Console

707900468

$66.99

Rear Console Cover Kit

707900229

$44.99

Tuflok Plastic Rivet

293150230

$1.47

Insert

707900133

$2.89

Washer

503189273

$3.28

LH Side Console

707900001

$44.99

Tuflok Plastic Rivet

293150230

$1.47

Insert

707900133

$2.89

Washer

503189273

$3.28

Rear LH consol

707900391

$83.99

Insert

707900133

$2.89

Washer

503189273

$3.28

Tuflok Plastic Rivet

293150230

$1.47

Under cover

707900387

$159.99

Hex. Flange Screw M6 X 20

207662054

$1.01

Panel Nut M6 X 1.0

250100198

$2.11

Rubber Cover

293250242

$6.99

Tuflok Plastic Rivet

293150230

$1.47

Washer

506151252

$3.17

Support Plate

707900099

$16.49

Hex. Flange Screw M6 X 70

207667056

$4.44

Threaded Insert M6 X 1.0

250100242

Unavailable

Stainless Steel Flat Washer

234062670

$2.11

RH Side Console

707900002

$36.99

Tuflok Plastic Rivet

293150230

$1.47

Insert

707900133

$2.89

Washer

503189273

$3.28

Rear Floor cap

707900388

$159.99

Tuflok Plastic Rivet

293150230

$1.47

INSERT SUPPORT - Call your local BRP dealership

705205445

Unavailable

Pop Rivet 3/16"

293150103

$0.55

RH Rear Console Panel

707900080

$68.99

Insert

707900133

$2.89

Washer

503189273

$3.28

Tuflok Plastic Rivet

293150230

$1.47

Front Side Dash Panel

707900193

$69.99

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw M6 X 20

250000722

$1.68

Threaded Insert M6 X 1.0

250100242

Unavailable

Stainless Steel Flat Washer

234062670

$2.11

RH FIXE SIDE CONSOLE - Call your local BRP dealership

707900203

Unavailable

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw M6 X 20

250000722

$1.68

Threaded Insert M6 X 1.0

250100242

Unavailable

Stainless Steel Flat Washer

234062670

$2.11

Washer

506151252

$3.17

LH Front Upper Floor

707900175

$83.99

Torx Screw M6 X 20

250000722

$1.68

Torx Screw M6 X 20

250000712

$2.11

Torx Screw M6 X 25

250000758

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

Stainless Steel Flat Washer

234062670

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Torx Screw K50 X 16

250000720

$1.69

Flat Washer 6 mm

234062410

$0.77

LH Lower Floor

707900022

$269.99

Torx Screw M6 X 20

250000712

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Torx Screw M6 X 20

250000722

$1.68

Torx Truss Screw M6 X 25

250000807

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw M6 X 20

250000722

$1.68

Hex. Flange Elastic Nut M6

233261494

$1.58

Stainless Steel Flat Washer

234062670

$2.11

Threaded Insert M6 X 1.0

250100242

Unavailable

Rubber Cover

293250242

$6.99

Was 293250381 Seal Tray

219704382

$43.99

LH Rear Upper Floor Cover

707900082

$53.99

Tuflok Plastic Rivet

293150230

$1.47

Insert

707900133

$2.89

Washer

503189273

$3.28

Torx Screw M6 X 20

250000722

$1.68

Stainless Steel Flat Washer

234062670

$2.11

Torx Screw M6 X 25

250000758

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Rear Floor | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900331

$83.99

Panel Nut M6 X 1.0

250100198

$2.11

Support Plate

707900099

$16.49

Hex. Flange Screw M6 X 70

207667056

$4.44

Hex. Flange Screw M6 X 20

207662054

$1.01

Stainless Steel Flat Washer

234062670

$2.11

Threaded Insert M6 X 1.0

250100242

Unavailable

Grille

707900178

$10.99

Grille

707900180

$10.99

Panel Nut M6 X 1.0

250100198

$2.11

Torx Truss Screw M6 X 30

250000843

$2.11

Torx Screw M6 X 20

250000722

$1.68

Stainless Steel Flat Washer

234062670

$2.11

Torx Truss Screw M6 X 30

250000843

$2.11

Torx Screw K50 X 16

250000720

$1.69

Washer M5

250200025

$0.74

RH Front Floor

707900004

$83.99

Torx Screw M6 X 20

250000722

$1.68

Torx Screw M6 X 20

250000712

$2.11

Torx Screw M6 X 25

250000758

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

Stainless Steel Flat Washer

234062670

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Oblong Grommet

705003668

$5.79

Torx Screw K50 X 16

250000720

$1.69

Torx Screw M5 X 20

250000724

$1.69

Flat Washer 6 mm

234062410

$0.77

Elastic Flange Nut M5

233251494

$2.11

RH Lower Floor

707900023

$194.99

Torx Screw M6 X 20

250000712

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Torx Screw M6 X 20

250000722

$1.68

Torx Truss Screw M6 X 25

250000807

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw M6 X 20

250000722

$1.68

Hex. Flange Elastic Nut M6

233261494

$1.58

Stainless Steel Flat Washer

234062670

$2.11

Threaded Insert M6 X 1.0

250100242

Unavailable

Rubber Cover

293250242

$6.99

Deflector | XRS-DPS

707900204

$17.49

Tuflok Plastic Rivet

293150230

$1.47

Hose Support

707900217

$18.49

Seat Cover

707900083

$46.49

Insert

707900133

$2.89

Washer

503189273

$3.28

Torx Screw M6 X 20

250000722

$1.68

Stainless Steel Flat Washer

234062670

$2.11

Rubber Cover

293250242

$6.99

Tuflok Plastic Rivet

293150230

$1.47

RH Lower Rear Floor

707900670

$194.99

Panel Nut M6 X 1.0

250100198

$2.11

Tuflok Plastic Rivet

293150230

$1.47

Washer

506151252

$3.17

Support Plate

707900099

$16.49

Hex. Flange Screw M6 X 70

207667056

$4.44

Stainless Steel Flat Washer

234062670

$2.11

Threaded Insert M6 X 1.0

250100242

Unavailable

Floor Support LH

707900561

$21.99

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw M6 X 20

250000722

$1.68

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Flat Washer

224060201

$1.26

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Flat Washer

224060201

$1.26

Was 293200017 Neoprene Seal

219704365

$149.99

RIGHT FLOOR SUPPORT - Call your local BRP dealership

707900563

Unavailable

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw M6 X 20

250000722

$1.68

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Flat Washer

224060201

$1.26

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Flat Washer

224060201

$1.26

Was 293200017 Neoprene Seal

219704365

$149.99

Under Seat Cover

707900130

$81.99

Tuflok Plastic Rivet

293150230

$1.47

Insert

707900133

$2.89

Washer

503189273

$3.28

RH Under Seat Plate

707900006

$114.99

Tuflok Plastic Rivet

293150230

$1.47

Insert

707900133

$2.89

Washer

503189273

$3.28

DEFLECTOR_BODY PANEL REAR L - Call your local BRP dealership

707900220

Unavailable

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw K50 X 16

250000720

$1.69

Flat Washer

250200040

$1.90

Torx Screw M6 X 20

250000712

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

Tuflok Plastic Rivet

293150230

$1.47

Heat Shield

707900182

$8.89

Heat Shield

707900183

$5.29

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900219

Unavailable

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw K50 X 16

250000720

$1.69

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Tuflok Plastic Rivet

293150230

$1.47

Heat Shield

707900167

$9.39

Heat Shield

707900184

$5.29

Dashboard Ass'y

715001250

$79.99

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Support Plate

705003841

$0.99

Edge Clip

517302785

$0.88

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

Was 271000110 Protection Trim

219704353

$15.99

Central Dashboard Ass'y

715002187

$38.99

Upper Central Console Ass'y

707900199

$40.99

Torx Screw M5 X 25

250000762

$2.11

Hexagonal Head Screw

210262050

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw K50 X 16

250000720

$1.69

Push Nut

732610072

$2.19

Panel Nut M5 X 0.8

250000958

$4.23

Tuflok Plastic Rivet

293150230

$1.47

GPS Cover And Radio Control

707900104

$13.22

Torx-Truss Pt K40 X 16

250000759

$2.11

BLUE DASH CAP - Call your local BRP dealership | Package XMR Silver

707900369

Unavailable

Tuflok Plastic Rivet

293150230

$1.47

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

Stainless Steel Flat Washer

234062670

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw M6 X 20

250000722

$1.68

CENTRAL FILTER - Call your local BRP dealership

707900215

Unavailable

DASHBOARD COVER - Call your local BRP dealership

707900216

Unavailable

Hexagonal Head Screw

210262050

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Passenger Handle

707900011

$13.75

Torx Screw M6 X 20

250000722

$1.68

Connector Tube

707900048

$6.19

Handle

707900103

$15.36

Torx Screw M6 X 20

250000722

$1.68

Connector Tube

707900048

$6.19

Storage Bin | XT

707900046

$104.99

Hex. Flange Screw M6 X 20

207662054

$1.01

Panel Nut M6 X 1.0

250100198

$2.11

CAP - Call your local BRP dealership

414859400

Unavailable

Rubber Bumper

293830005

$8.09

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

$49.99

Latch

707900031

$8.49

Trim Glove Box

707900062

$18.49

Front LH Safety Net

707900237

$119.99

Front RH Safety Net

707900238

$119.99

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Flat Washer 6 mm

234062410

$0.77

Stainless Steel Flat Washer

234062670

$2.11

Hex. Flange Screw M6 X 20

207662054

$1.01

Torx Screw M6 X 25

250000758

$2.11

Flat Washer 8 mm

234082410

$1.47

Hex. Flange Elastic Nut M8

233281414

$1.47

Rear LH Safety Net | Upper Link 707900049

707900239

$224.99

Hex. Flange Elastic Nut M8

233281414

$1.47

Flat Washer 8 mm

234082410

$1.47

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Stainless Steel Flat Washer

234062670

$2.11

Rear RH Safety Net | Upper Link 707900049

707900240

$224.99

Hex. Flange Elastic Nut M8

233281414

$1.47

Flat Washer 8 mm

234082410

$1.47

Hex. Flange Screw M6 X 20

207662054

$1.01

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Stainless Steel Flat Washer

234062670

$2.11

Shift Lever Indicator

707900088

$15.49

Torx Screw M6 X 25 | XT Models

250000728

$4.44

LH Lower Lateral Console Foam

707900621

$23.99

RH Lateral Console Foam

707900622

$16.49

RH Lateral Console Foam

707900623

$16.49

RH Lateral Console Foam

707900624

$16.49

LH Rear Lateral Foam | Model-Black Carbon (Turbo), White/Gray/Green (Turbo)

707900625

$23.99

LH Rear Lateral Foam

707900626

$16.49

INSULATION_ACOUSTIC - Call your local BRP dealership

707900121

Unavailable

INSULATION_ACOUSTIC - Call your local BRP dealership

707900205

Unavailable

RH Rear Lateral Foam

707900627

$16.49

INSULATION_ACOUSTIC - Call your local BRP dealership

707900209

Unavailable

Front Central Foam

707900628

$11.49

Front Central Foam

707900629

$17.49

Front Central Foam

707900630

$11.49

Battery Cover

707900163

$18.49

Grommet

705003264

$4.09

Torx Screw M5 X 14

250000742

$1.47

Flat Washer

250200040

$1.90

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Elastic Nut M8

233281414

$1.47
