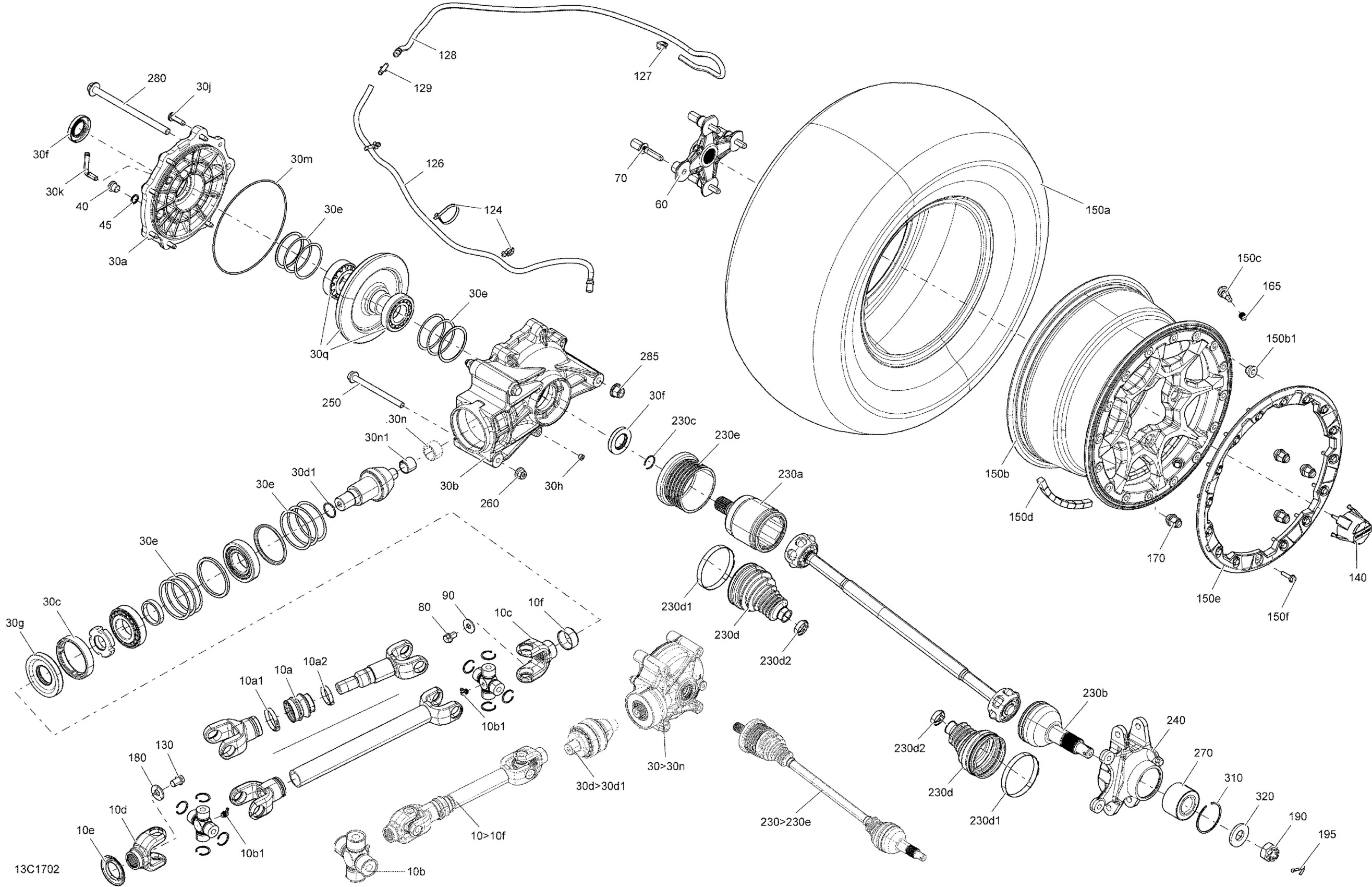

Can-Am 2-Maverick MAX, 2017 08- Drive System, Rear - All Models Diagram

#

Description
Price

10>10f

Shaft Ass'y Kit | Includes 10 to 10g

703500994

$307.49

10>10f

Drive Shaft Ass'y

703500939

$259.49

10a

Rubber Boot

715900118

$14.30

10a1

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.89

10a2

Oetiker Gear Clamp 36.1MM

509000045

$8.29

10b

Universal Joint Ass'y | T3

703500846

$59.49

10b1

Grease Fitting | T3

715900295

$5.24

10c

Joint

715900271

$24.99

10d

Joint | T3

715900436

$24.99

10e

Protector

705501123

$7.55

10f

Wear Ring | 4X4

705400036

$26.49

30>30n

Final Drive Unit | Includes 30 to 30m

705502275

$1,268.49

30a

REAR COVER - Call your local BRP dealership

705502171

Unavailable

30b

PINION COVER - Call your local BRP dealership

705502172

Unavailable

30c

NUT - Call your local BRP dealership

705501740

Unavailable

30d>30d1

Pinion Kit

703500867

$429.99

30d1

O-Ring

705501554

$5.03

30e

Differential Shim Kit

703500839

$51.99

30f

Oil Seal

705501556

$17.99

30g

Oil Seal

705502276

$15.34

30h

Plug Drain

705501724

$5.95

30j

Screw

705502063

$3.24

30k

Breather Tube

705501584

$14.99

30m

Oil Seal

705501749

$9.27

30n

Needle Bearing

703500840

$62.49

30n1

Needle Bearing

703500840

$62.49

30q

Gear Kit

703500868

$429.99

40

Fill Level Plug | 4X4

705500504

$10.01

45

Copper Washer | 4X4

705500506

$0.45

60

Wheel Hub ( 29 Splines )

705502223

$126.99

70

Wheel Stud

250300060

$11.49

80

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$2.11

90

Flat Washer M10 | 4X4

250200014

$1.49

124

Tie-Rap 180 mm

414115200

$0.11

124

Dart Tie Rap 200MM

710003168

$7.09

126

Was 293830177 Hose

219704388

$11.63

127

Clip

414227300

$1.67

128

Polyurethane Hose 10000Mm Long

219704410

$56.99

129

Straight Fitting

293710039

$7.59

130

Hex Flange Screw M12 X 16

250001039

$2.11

140

Wheel Cap

705400928

$10.49

140

Wheel Cap | Package XMR 850, XMR 1000

705401541

$11.49

150a

TIRE_30X9R14 - Call your local BRP dealership | XMR

705401501

Unavailable

150a

Rear Tire 27X11X12 | X

705502938

$254.49

150a

Rear Tire Maxxis 28X11X14 | Model-North America, International

705502603

$275.49

150b

Front Rim | Package XMR 850, XMR 1000

705401848

$207.49

150b

Deep Black, 12 Inch Rim X 7,5 | STD

705501853

$206.49

150b

Rear Rim | Package-XT Int.Brush Aluminum

705502637

$206.49

150

Black, Rim | Includes 150b to 150ba

705502146

$297.99

150b1

Insert | XXC

293450317

$7.29

150c

Rim Valve With Cap

705400193

$8.69

150d

1/2 Oz Weight

219704465

$3.89

150e

Red, Reinforcement Disk | Package XMR Red

705401837

$92.99

150e

Blue Reinforcement Disk | Package XMR Blue

705401702

$92.99

150f

Hex. Flange Screw M6 X 25

250000787

$2.22

165

Valve Cap

293000110

$1.59

170

Black, Wheel Nut M10 X 1.25

250100184

$4.51

180

Conical Spring Washer M12

250200005

$3.27

190

Castle Nut M20

250100193

$8.05

195

Cotter Pin

250400071

$2.11

230>230e

CV Joint

705502412

$243.99

230>230e

CV Joint

705502414

$275.49

230a

Plunging Joint

715900433

$259.49

230a

Plunging Joint | Except Package XDS, XDS STD

715900432

$259.49

230b

JOINT_CV EXT - Call your local BRP dealership

715900429

$244.99

230c

Circlip

705501781

$6.50

230d

Boot Kit

705501864

$42.49

230d1

Oetiker Clamp, 82.1 mm

715900241

$10.33

230d2

Oetiker Clamp, 27.3 mm

715900242

$10.33

230e

HEAT DISSIPATOR - Call your local BRP dealership

705501841

Unavailable

240

LH Rear Knuckle

705501730

$185.49

245

RH Rear Knuckle

705501731

$195.99

250

Hex. Flange Screw M10 X 125

230602546

$7.41

260

Hex. Flange Elastic Nut M10

233201436

$2.11

270

Ball Bearing

293350150

$52.99

280

Hex. Flange Screw M12 X 190

230629087

$19.99

285

Elastic Flange Nut M12

233221416

$2.85

310

Circlip

293370019

$4.68

320

Washer M20

250200147

$13.24
