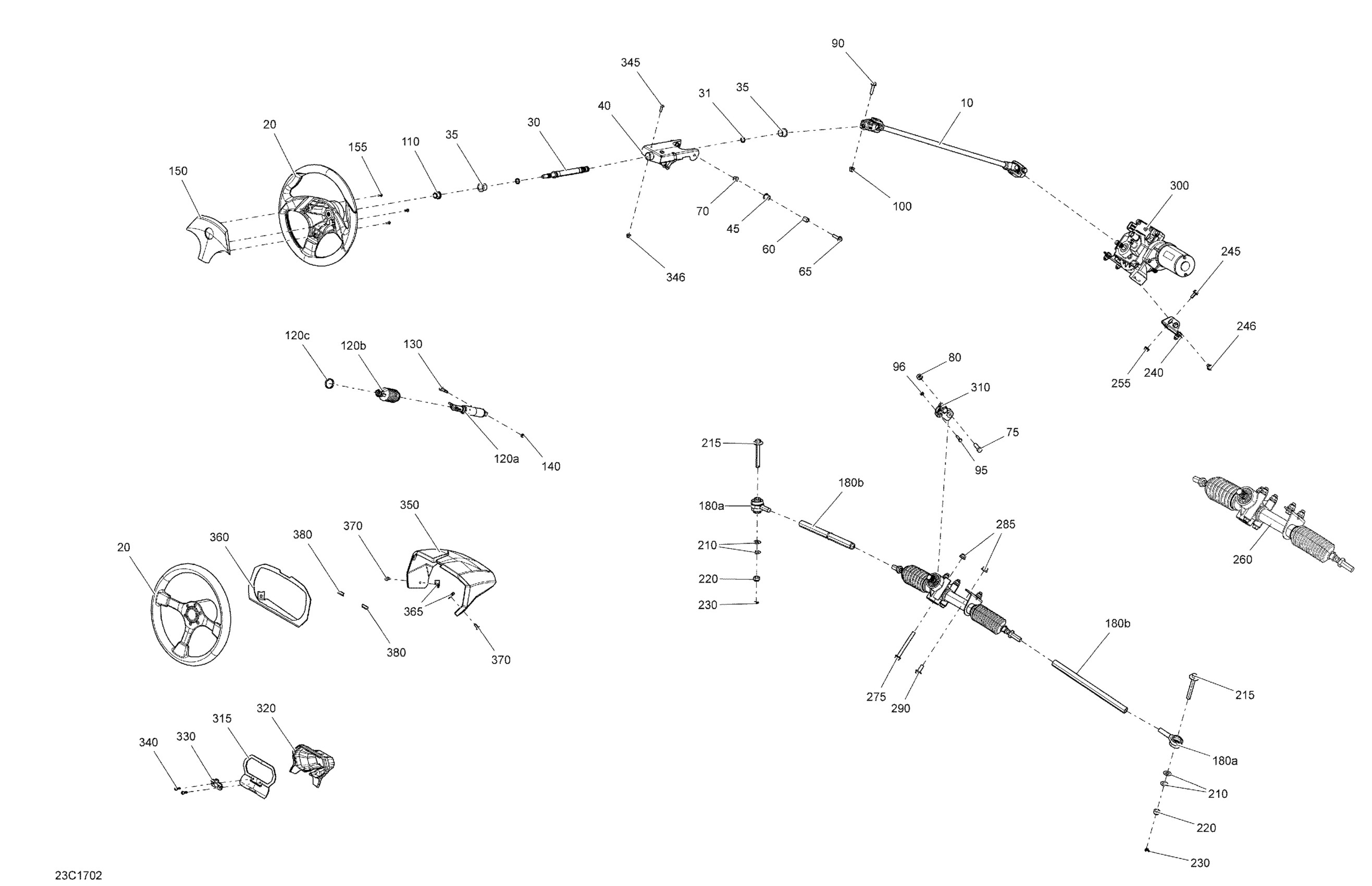

Can-Am 2-Maverick MAX, 2017 07- Steering - All Models Diagram

#

Description
Price

10

STEERING SHAFT ASS'Y - Call your local BRP dealership | Model With DPS

709401607

Unavailable

20

Steering Wheel | STD

709400650

$137.49

20

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

$194.99

30

Steering Shaft

709401167

$48.99

31

O-Ring

293300144

$3.82

35

Steering Bushing

709402725

$3.28

40

Painted Steering Wheel Support

709401391

$85.99

45

Bushing

705600799

$3.72

60

Bushing

293900106

$4.55

65

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

70

Hex. Flange Elastic Nut M8

233281414

$1.47

75

Hex. Screw M10 X 35

207103586

$1.15

80

Elastic Stop Nut M10

232500416

$1.90

90

Hex. Flange Screw M8 X 35, Scotch Grip | Sub 250000986

207583586

Unavailable

95

Hex. Screw M6 X 30

207063044

$1.26

96

Elastic Stop Nut M6

232561414

$0.55

100

Hex. Elastic Flange Nut M8

233281416

$1.48

110

Hex. Flange Elastic Nut M12

233221414

$7.69

120a

Adjustment Cylinder

709402506

$72.99

120b

Boot Tube Side

709401232

$18.99

120c

Tie-Rap 180 mm

414115200

$0.11

130

Socket Head Screw M8 X 16

250000669

$3.17

140

Elastic Stop Nut M6

232561414

$0.55

150

Steering Center | STD

709400780

$13.49

155

Phillips Screw K40 X 16

250000723

$0.98

180a

Ball Joint

709401125

$52.99

180b

Tie Rod

709401427

$32.99

210

Hardened Washer

706200281

$2.85

215

Hexagonal Screw M12 X 88

250000657

$6.77

220

Elastic Stop Nut M12

232521416

$1.69

230

Cotter Pin

211400017

$0.33

240

DPS Support | Model With DPS

709401612

$13.49

245

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

246

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

255

Hex. Flange Elastic Nut M8

233281414

$1.47

260

Rack and Pinion Steering | Package DPS - XMR -XC -XXC

709401610

$381.49

260

Rack and Pinion Steering | Package X-RS

709401611

$381.49

275

Hex. Screw M10 X 100, Scotch Grip

230500046

$7.41

285

Hex. Flange Elastic Nut M10

233201436

$2.11

290

Hex. Flange Screw M10 X 25

207602546

$2.11

300

Power Steering Ass'y | Package-DPS, XT, XTP

709401921

$999.49

310

Machined Coupling | Package-DPS, XT, XTP

709401494

$33.99

315

Cluster Support | STD

709400760

$21.99

320

Speedometer Cover

709400514

$16.99

330

Latch Indicator Cover

709400573

$11.99

340

Torx Screw Truss Head K50X20 T20

250000760

$2.11

345

Torx Screw M6 X 20

250000722

$1.68

346

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

350

Upper Cluster Cover | X, XT

707900124

$16.49

360

Cluster Support | X, XT

707900013

$16.49

365

Panel Nut M6 X 1.0

250100198

$2.11

370

Torx Truss Screw M6 X 16

250000721

$1.69

380

Gasket, Neoprene 2000Mm Long

219704476

$15.36
