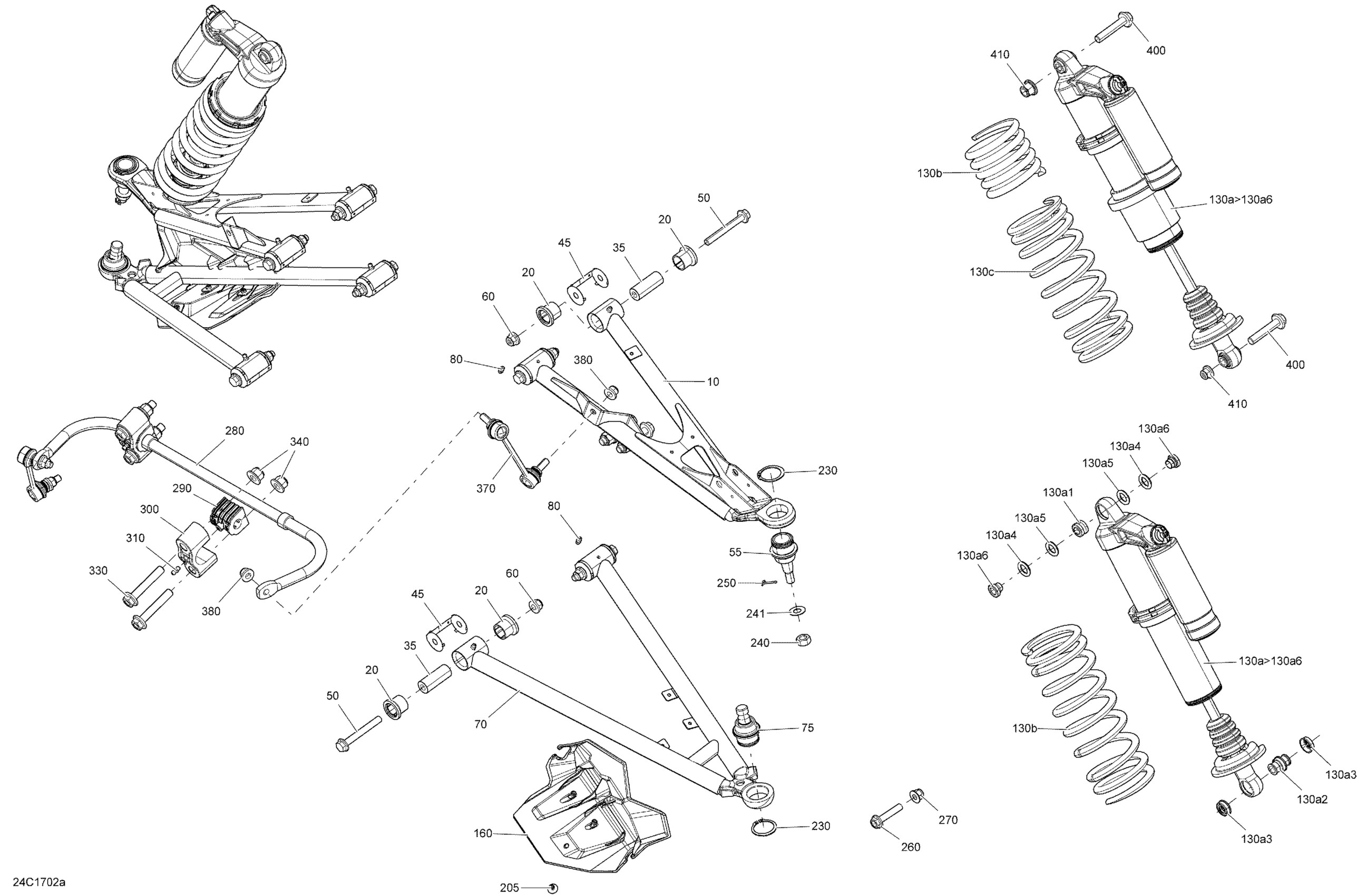

Can-Am 2-Maverick MAX, 2017 07- Front Suspension - All Models Diagram

#

Description
Price

10

Front Suspension Arm LH Black | Package XDS STD

706202570

$190.99

10

Black, LH Front Upper Arm | Package DPS

706202563

$201.49

10

CAN-AM RED FRONT LEFT SUSPENSION ARM - Call your local BRP dealership | Package XDS XRS

706202598

Unavailable

10

Front Suspension Arm LH Gulfstream Blue | Package XDS

706202600

$201.49

10

SUSPENSION ARM FR ECOAT - Call your local BRP dealership | Package XDS STD

706202571

Unavailable

10

Black, RH Front Upper Arm | Package DPS

706202564

$201.49

10

Front Suspension Arm RH Gulfstream Blue | Package XMR

706202597

$201.49

10

CAN-AM RED FRONT LEFT SUSPENSION ARM - Call your local BRP dealership | Package XDS XRS

706202599

Unavailable

10

GULFSTREAM BLUE FRONT RH SUSPENSION AR - Call your local BRP dealership | Package XDS

706202601

Unavailable

20

Suspension Arm Bushing

706204409

$9.10

35

Sleeve

706201590

$11.99

45

Wear Plate

706201660

$0.95

50

Hex Flange Screw M10 X 80

207608046

$6.69

55

Ball Joint

706202044

$35.99

60

Hex. Flange Elastic Nut M10

233201436

$2.11

70

RH Front Lower Arm

706201862

$201.49

70

LH Front Lower Arm

706201861

$201.49

75

Ball Joint

706202045

$35.99

80

Grease Fitting

408200700

$3.49

130a>130a6

Front Shock | Model-MAV-MAX

706202157

$919.99

130a>130a6

FRONT SHOCK - Call your local BRP dealership | Package XDS STD, XDS DPS

706202753

Unavailable

130a>130a6

Front Shock | Package XMR

706202692

$649.99

130a>130a6

Front Shock | Package DPS

706202751

$649.99

130a1

Spherical Bearing

715900266

$82.99

130a1

Spherical Bearing

715900329

$84.99

130a2

Spherical Bearing

715900330

$84.99

130a3

Protector

715900331

$13.99

130a4

O-Ring Bushing

715900268

$14.75

130a5

Retaining Ring

715900252

$12.49

130a6

Internal Bushing

715900267

$26.49

130b

SPRING - Call your local BRP dealership | Package XDS XRS

706202677

Unavailable

130b

SPRING - Call your local BRP dealership | Package XDS STD, XDS DPS

706202578

Unavailable

130b

FRONT SPRING - Call your local BRP dealership | Package XMR

706202693

Unavailable

130b

SPRING - Call your local BRP dealership | Package DPS

706202676

Unavailable

130c

Front Spring Can-Am Red | Package XDS XRS

706202678

$100.49

130c

SPRING - Call your local BRP dealership | Package XDS STD, XDS DPS

706202585

Unavailable

160

RH Joint Protector

706202809

$9.90

160

LH Joint Protector

706202808

$9.90

205

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

230

Circlip

293370035

$2.64

240

Nut M12

250100099

$2.09

241

Hardened Washer

706200281

$2.85

250

Cotter Pin

211400017

$0.33

260

Hex. Flange Screw M10 X 50

207605044

$5.29

270

Hex. Flange Elastic Nut M10

233201414

$1.58

280

Stabilizer Bar Ass'y | Except Europe

706202687

$99.49

290

Stabilizer Bar Bushing | Except Europe

706204802

$12.65

300

Clamp

706002303

$17.05

310

Grease Fitting

408200700

$3.49

330

Hex. Flange Screw M12 X 70

250000858

$3.80

340

Elastic Flange Nut M12

233221416

$2.85

370

RH Stabilizer Bar Link | Except Europe

706202538

$67.99

370

LH Stabilizer Bar Link | Except Europe

706202539

$67.99

380

Hex. Flange Elastic Nut M10

233201436

$2.11

400

Hex. Flange Screw M12 X 60

207626046

$7.41

410

Elastic Flange Nut M12

233221416

$2.85
