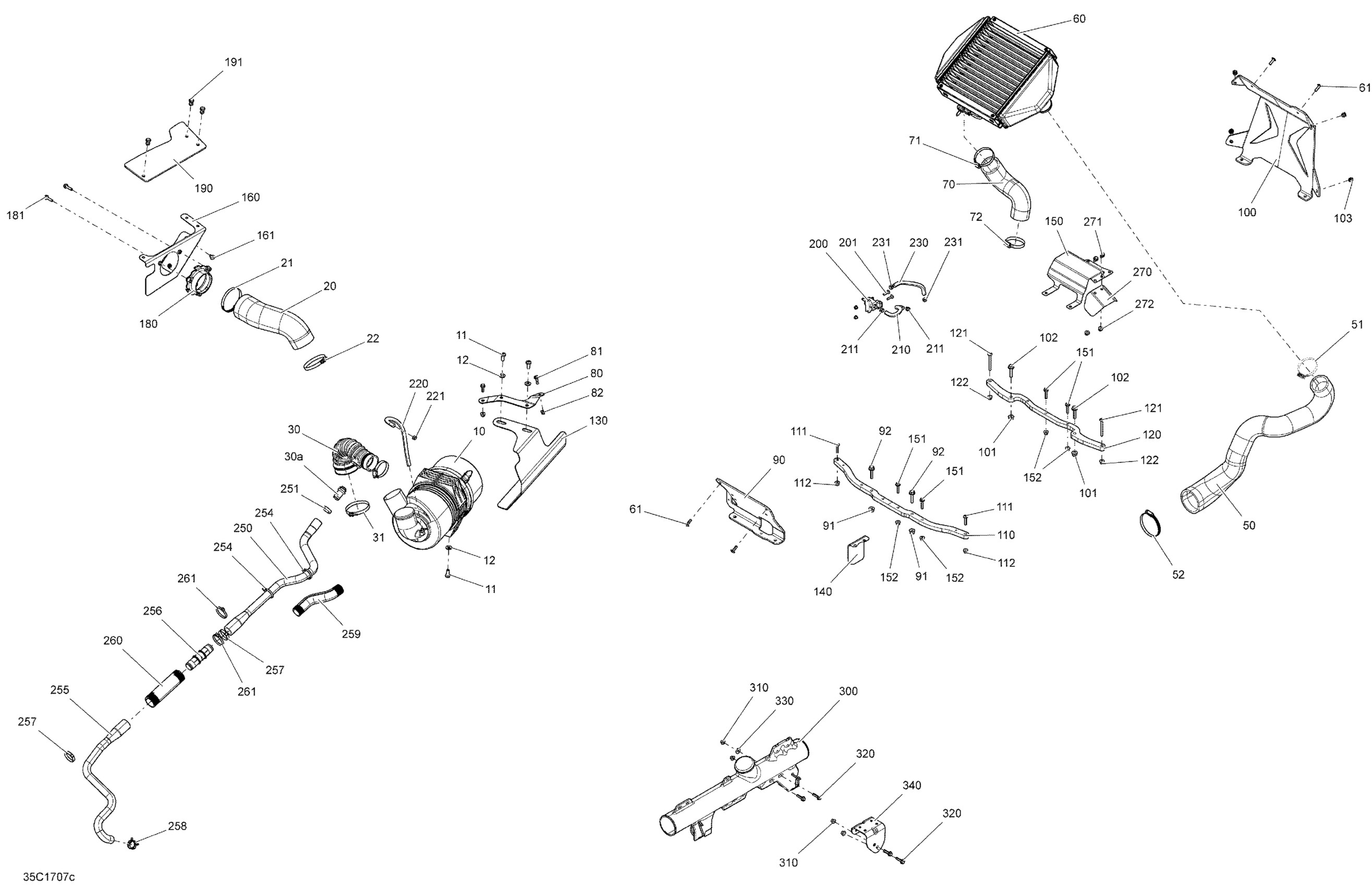

Can-Am 2-Maverick MAX, 2017 02- Air Intake - Turbo Diagram

#

Description
Price

10

Air Silencer Ass'y | Includes 50 to 54

707800612

$214.99

11

Hex. Screw M8 X 20

236282054

$1.47

12

Conical Spring Washer M8

234281474

$1.48

20

AIR INTAKE - Call your local BRP dealership

707800605

Unavailable

21

Norma Clamp

293650091

$11.12

22

Norma Clamp

293650091

$11.12

30

AIR INTAKE - Call your local BRP dealership | Includes 48 to 49

707800611

Unavailable

31

Norma Clamp

293650091

$11.12

50

AIR INTAKE - Call your local BRP dealership

707800608

Unavailable

51

Norma Gear Clamp

293650118

$13.16

52

Norma Clamp

293650091

$11.12

60

INTERCOOLER ASSY - Call your local BRP dealership

707800721

Unavailable

61

Torx Screw M6 X 20

250000722

$1.68

70

AIR INTAKE - Call your local BRP dealership

707800607

Unavailable

71

Norma Gear Clamp

293650118

$13.16

72

Norma Gear Clamp

293650118

$13.16

80

SUPPORT - Call your local BRP dealership

707800653

Unavailable

81

Hex. Flange Screw M6 X 20

207662044

$2.00

82

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

90

FRONT SUPPORT - Call your local BRP dealership

707800675

Unavailable

91

Hex. Flange Elastic Nut M8

233281414

$1.47

92

Hex. Flange Screw M8 X 35

207683544

$1.69

100

REAR SUPPORT - Call your local BRP dealership

707800622

$239.99

101

Hex. Flange Elastic Nut M8

233281414

$1.47

102

Hex. Flange Screw M8 X 35

207683544

$1.69

103

Insert

293450278

$4.49

110

FRONT SUPPORT - Call your local BRP dealership

707800623

Unavailable

111

Stainless, Torx Screw M6 X 30

250000842

$2.11

112

Flange Elastic Nut M6

233261434

$4.44

120

REAR SUPPORT - Call your local BRP dealership

707800624

Unavailable

121

Torx Screw M6 X 60

250000648

$7.51

122

Flange Elastic Nut M6

233261434

$4.44

130

Deflector

707800625

$43.99

140

DEFLECTOR - Call your local BRP dealership

707800626

Unavailable

150

DEFLECTOR - Call your local BRP dealership

707800628

Unavailable

151

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

152

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

160

SUPPORT - Call your local BRP dealership

707800631

Unavailable

161

Torx Truss Screw M6 X 16

250000721

$1.69

180

CVT Filter Base

707001171

$8.59

181

Hex. Flange Screw M6 X 25

207562544

$1.69

190

COVER - Call your local BRP dealership

707800630

Unavailable

191

Tuflok Plastic Rivet

293150230

$1.47

200

THREE-WAY ELECTRIC VALVE - Call your local BRP dealership

707800632

Unavailable

201

Torx Screw M5 X 20

250000792

$2.11

210

FUEL LINE 1000MM LONG - Call your local BRP dealership

219704437

Unavailable

211

Oetiker Clamp | Europe

293650044

$5.09

220

FUEL LINE 1000MM LONG - Call your local BRP dealership

219704437

Unavailable

221

Oetiker Clamp | Europe

293650044

$5.09

230

FUEL LINE 1000MM LONG - Call your local BRP dealership

219704437

Unavailable

231

Oetiker Clamp | Europe

293650044

$5.09

250

HOSE - Call your local BRP dealership

707800645

Unavailable

251

Crimp Clamp

293650099

$4.29

254

Tie Wrap 368 mm

293750008

$1.04

255

HOSE - Call your local BRP dealership

707800646

Unavailable

256

Fitting

509000914

$7.59

257

Oetiker Gear Clamp

509000181

$4.44

258

Norma Spring Clamp

293650213

$3.17

259

Tubing 25 MM 1000MM Long

219704402

$15.99

260

Tubing 35 MM 1000MM Long

219704428

$10.99

261

Tie Wrap 368 mm

293750008

$1.04

270

DEFLECTOR - Call your local BRP dealership

707800643

Unavailable

271

Hex. Flange Screw M6 X 12

207661244

$2.11

272

Hex. Flange Nut M6

233061414

$1.68

300

Intake Adaptor

707800515

$67.99

310

Hex. Flange Nut M6

233061414

$1.68

320

Hex. Flange Screw M6 X 25

207562544

$1.69

330

Flat Washer 6 mm

234062410

$0.77

340

Rear Support

707800560

$18.55

30a

Breather Valve

273000234

$14.49
