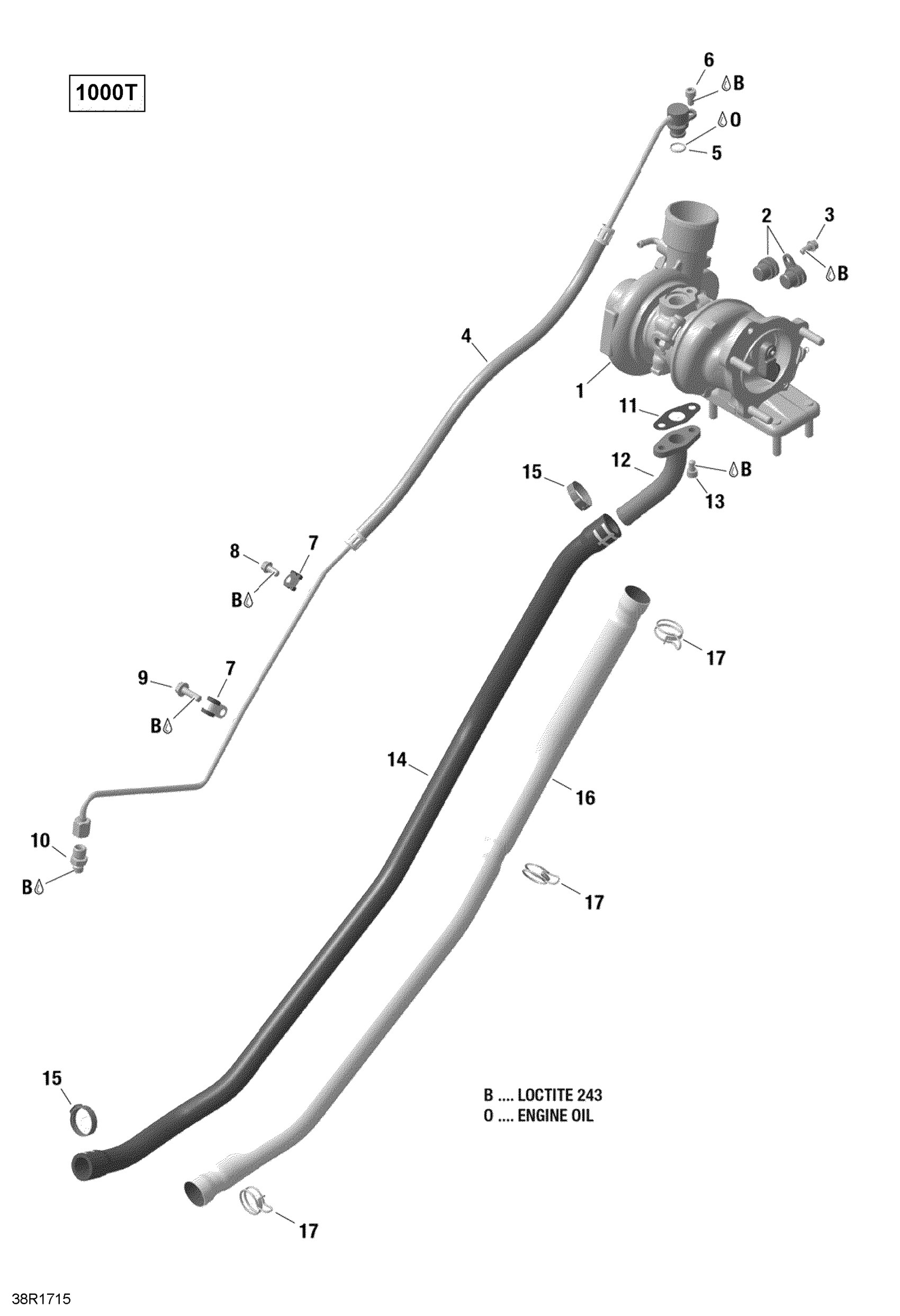

Can-Am 2-Maverick MAX, 2017 01- Turbocharger Diagram

#

Description
Price

1

Turbocharger

420893840

$1,869.99

2

PLUG - Call your local BRP dealership

420622030

Unavailable

3

Hex. Flange Screw M6 X 12

420440149

$2.11

4

PRESSURE OIL LINE - Call your local BRP dealership | Include 7

420456353

Unavailable

5

O-Ring

420650928

$3.17

6

Torx Flange Screw M6 X 16

420440164

$2.19

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Hex. Flange Screw M6 X 12

420440149

$2.11

9

Hex.Screw M6 X 20

420441311

$5.18

10

Adapter M10/M12

420456420

$20.49

11

Gasket | Included in gasket kit

420631205

$4.29

12

OIL TUBE - Call your local BRP dealership

420456400

Unavailable

13

Torx Flange Screw M6 X 16

420440164

$2.19

14

RETURN OIL LINE - Call your local BRP dealership

420456360

Unavailable

15

Gear Clamp

420851668

$7.73

16

PROTECTION TUBE - Call your local BRP dealership

420860652

Unavailable

17

CLAMP - Call your local BRP dealership

420851440

Unavailable
