Description

Price

22

Hex. Flange Screw M6 X 20

207662044

$2.00

23

External Serrated Lock Washer 6 mm

234461608

$1.15

25

Hex. Flange Nut M6

233061414

$1.68

26

External Serrated Lock Washer 6 mm

234461608

$1.15

27

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

30

Not Available As Spare Part - Friction Washer

Unavailable

40

Positive Cable | Package STD

710004384

$35.99

45

POSITIVE CABLE - Call your local BRP dealership | Package DPS Except MAX Model

710004878

Unavailable

50

Positive Cable

710004383

$42.99

51

Elastic Stop Nut M6

232561414

$0.55

130

Switch, Over ride

710002053

$19.49

140

Hi/Low Switch | Except Europe

710001725

$21.49

150

4X4 Switch

710001737

$31.99

160

Switch PPS Sport

710003541

$19.49

190

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

210

Ignition Switch

710008400

$78.49

220

Engine Start Button

710002594

$60.49

300

WIRING HARNESS ASSY - Call your local BRP dealership | MAVERICK

710005228

Unavailable

305

WIRING HARNESS ASSY - Call your local BRP dealership

710004349

Unavailable

310

WIRING HARNESS REAR - Call your local BRP dealership

710004685

$44.99

408

Mount Dart

293730040

$1.04

486

Tie Wrap 142 mm

293750002

$1.25

493

Tie Wrap 368 mm

293750008

$1.04

458

Tie-Rap 173 mm

293750009

$1.04

404

Tie-Rap 180 mm

414115200

$0.11

600>600c

Speedometer Ass'y | Model-XT

710005116

$439.99

600a

Gauge Ring

415129348

$13.99

600b

Lens | XTP

415129349

$24.49

600c

Speedometer Button | XTP

415129355

$15.80

700>700a

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

700a

Halogen Bulb

415129249

$41.49

701

RH Low Front Housing

710001081

$19.99

702

RH Low Rear Housing

710001082

$12.99

703

RH Low Light Support

710001094

$9.09

704

LH Low Front Housing

710001083

$19.99

705

LH Low Rear Housing

710001084

$12.99

706

LH Low Light Support

710001037

$9.09

707

Phillips Screw K40 X 16

250000723

$0.98

708

Setting Screw

710001147

$12.71

710>710a

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

710a

Halogen Bulb

415129249

$41.49

711

RH High Front Housing

710001085

$19.99

712

RH High Rear Housing

710001086

$12.99

713

RH High Light Support

710001115

$5.29

714

LH High Front Housing

710001087

$19.99

715

LH High Rear Housing

710001088

$12.99

716

LH High Light Support

710001036

$5.29

717

Hex. Screw M4 X 25

207142544

$2.00

718

Flat Washer M5

234051410

$0.53

719

Elastic Stop Nut M4

232541414

$0.58

740>740a

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

740a

Bulb

520000758

$9.10

900>900a

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

900a

Battery Bolt Kit

250000282

$7.29

910

Battery Support

710003129

$48.99

911

Flat Washer 6 mm

234062410

$0.77

912

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

920

Battery Holder

710001916

$21.99

926

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

930

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

931

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

932

Hex. Flange Elastic Nut M6

233261494

$1.58

933

Stainless Steel Flat Washer

234062670

$2.11

1100

DC Outlet

710001248

$37.99

1200

Fuse Holder

710003335

$10.11

1201

Pop Rivet 3/16"

293150103

$0.55

1210

Clip

270000141

$11.49

1211

Pop Rivet 3/16"

390402400

$0.35

1213

Housing

710003006

$8.79

1400

Starter Relay

710007777

$48.49

1401

Lock Washer Helical M6

234161601

$1.15

1402

Torx Head Screw M6 X 16

250000717

$2.11

1403

Hex. Nut M6

232061600

$1.15

1404

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

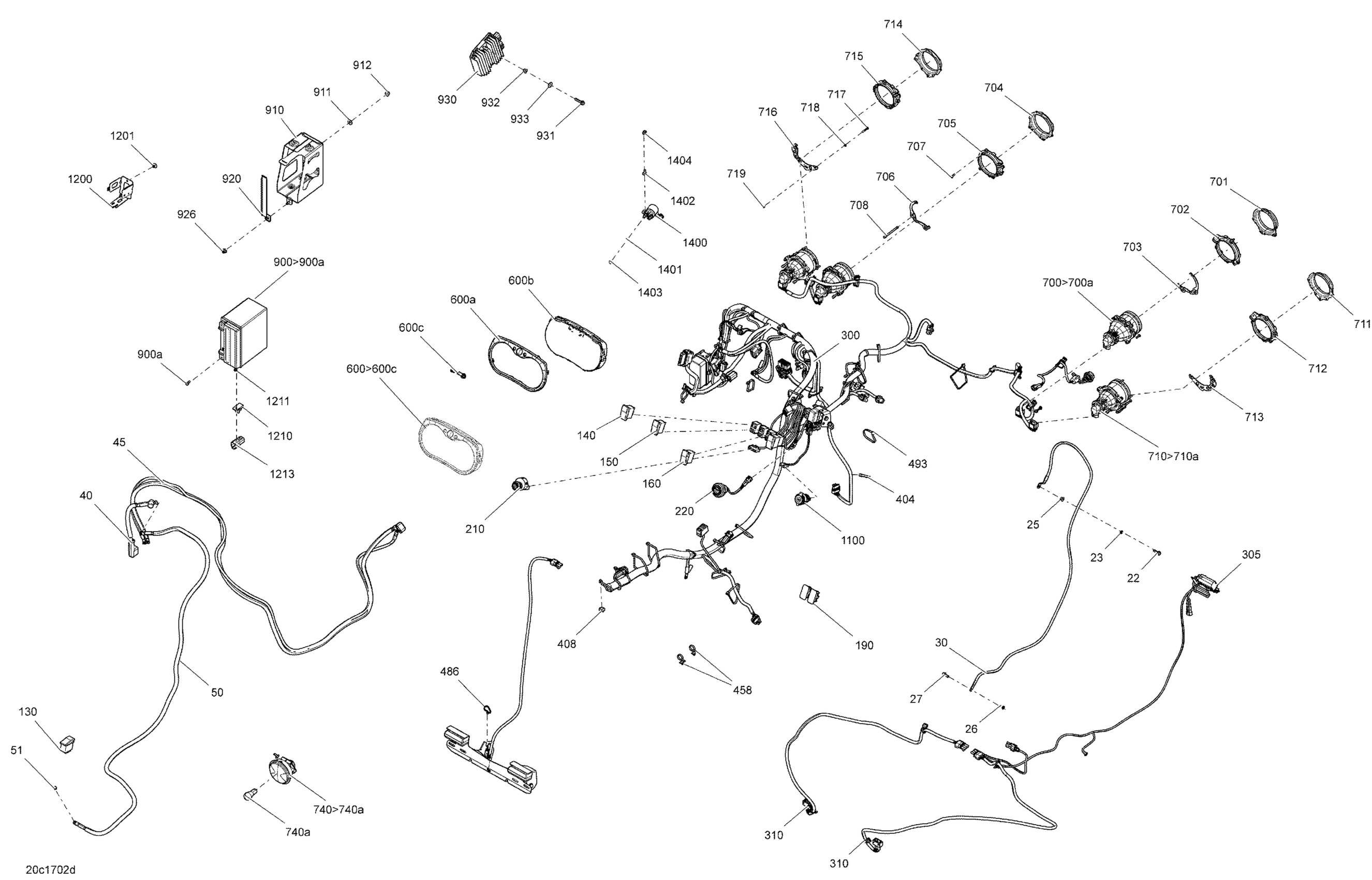

Can-Am 1-Maverick, 2017 10- Electrical System - Turbo Diagram

Hex. Flange Screw M6 X 20

External Serrated Lock Washer 6 mm

Hex. Flange Nut M6

External Serrated Lock Washer 6 mm

Hex. Flange Screw M6 X 16, Scotch Grip

Not Available As Spare Part - Friction Washer

Positive Cable | Package STD

POSITIVE CABLE - Call your local BRP dealership | Package DPS Except MAX Model

Positive Cable

Elastic Stop Nut M6

Switch, Over ride

Hi/Low Switch | Except Europe

4X4 Switch

Switch PPS Sport

Plug Carling | Australia, Brazil, Europe, Japan

Ignition Switch

Engine Start Button

WIRING HARNESS ASSY - Call your local BRP dealership | MAVERICK

WIRING HARNESS ASSY - Call your local BRP dealership

WIRING HARNESS REAR - Call your local BRP dealership

Mount Dart

Tie Wrap 142 mm

Tie Wrap 368 mm

Tie-Rap 173 mm

Tie-Rap 180 mm

Speedometer Ass'y | Model-XT

Gauge Ring

Lens | XTP

Speedometer Button | XTP

Low Beam Ass'y | Includes 1 to 2

Halogen Bulb

RH Low Front Housing

RH Low Rear Housing

RH Low Light Support

LH Low Front Housing

LH Low Rear Housing

LH Low Light Support

Phillips Screw K40 X 16

Setting Screw

High Beam Ass'y | Includes 11 to 12

Halogen Bulb

RH High Front Housing

RH High Rear Housing

RH High Light Support

LH High Front Housing

LH High Rear Housing

LH High Light Support

Hex. Screw M4 X 25

Flat Washer M5

Elastic Stop Nut M4

Tail Light Ass'y | Includes 32 to 33

Bulb

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

Battery Bolt Kit

Battery Support

Flat Washer 6 mm

Hex. Flange Elastic Nut M6 x 1.0

Battery Holder

Hex. Flange Elastic Nut M6 x 1.0

Voltage Regulator | XT, XTP, LTD

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

Hex. Flange Elastic Nut M6

Stainless Steel Flat Washer

DC Outlet

Fuse Holder

Pop Rivet 3/16"

Clip

Pop Rivet 3/16"

Housing

Starter Relay

Lock Washer Helical M6

Torx Head Screw M6 X 16

Hex. Nut M6

Hex. Flange Elastic Nut M6 x 1.0
