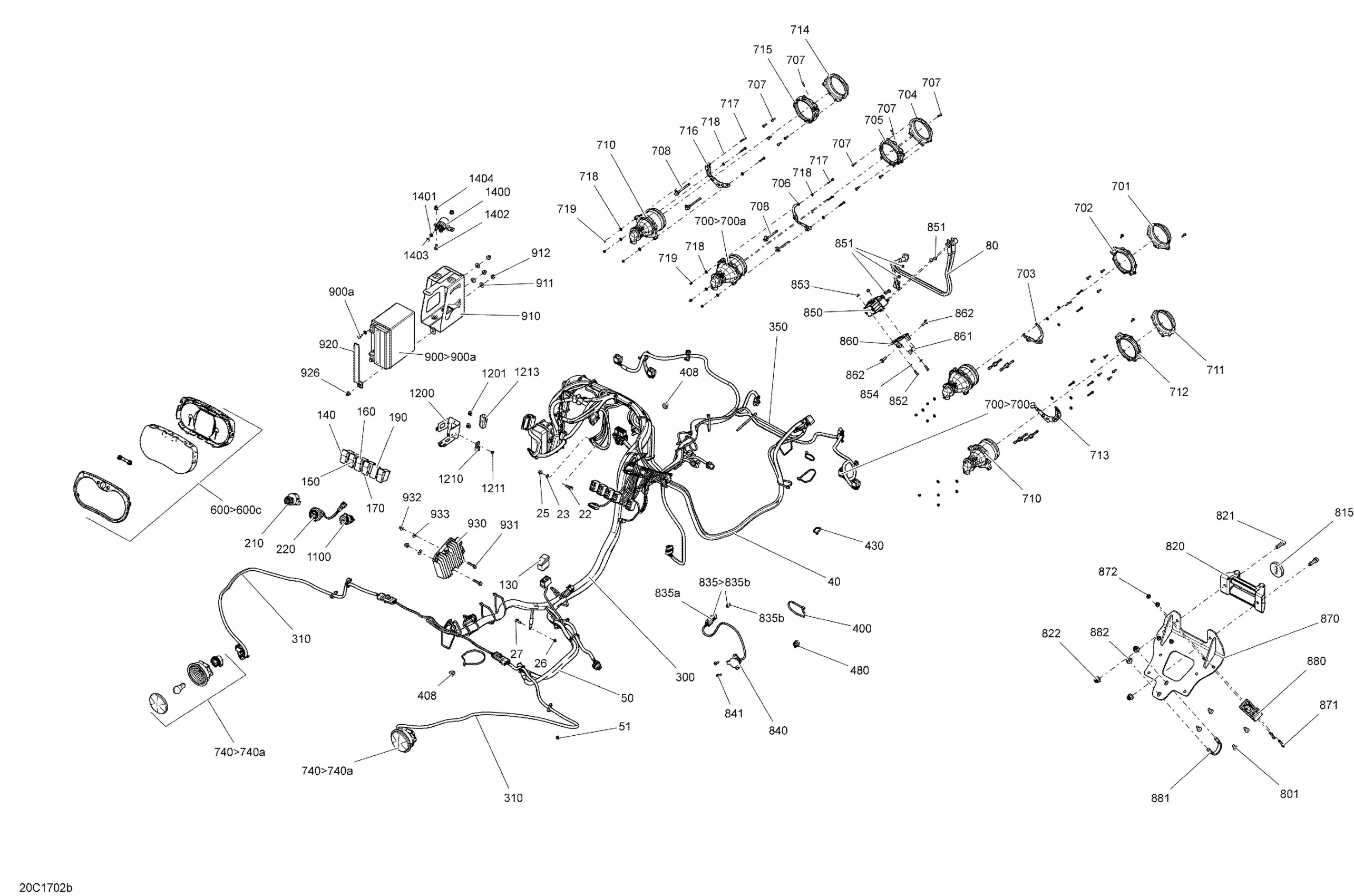

Can-Am 1-Maverick, 2017 10- Electrical System - 1000R EFI Package XMR Diagram

Hex. Flange Screw M6 X 20

207662044

$2.00

External Serrated Lock Washer 6 mm

234461608

$1.15

Hex. Flange Nut M6

233061414

$1.68

External Serrated Lock Washer 6 mm

234461608

$1.15

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Negative Winch Cable

710005214

$84.99

Positive Cable

710004383

$42.99

Elastic Stop Nut M6

232561414

$0.55

WINCH CABLES - Call your local BRP dealership

710005216

Unavailable

Switch, Over ride

710002053

$19.49

Hi/Low Switch | Except Europe

710001725

$21.49

4X4 Switch

710001737

$31.99

Switch PPS Sport

710003541

$19.49

Switch DPS

710001781

$22.99

Switch Winch

710002052

$28.49

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Ignition Switch

710008400

$78.49

Engine Start Button

710002594

$60.49

WIRING HARNESS ASSY - Call your local BRP dealership | MAVERICK

710005228

Unavailable

WIRING HARNESS REAR - Call your local BRP dealership

710004685

$44.99

Winch Harness Ass'y

710005215

$23.99

Mount Dart

293730040

$1.04

Tie Wrap 142 mm

293750002

$1.25

Tie Wrap 368 mm

293750008

$1.04

Tie-Rap 173 mm

293750009

$1.04

Tie-Rap 180 mm

414115200

$0.11

Clip

414227300

$1.67

Tie-Rap Clip

710002896

$4.39

Dart Tie Rap 200MM

710003168

$7.09

Speedometer Ass'y | Model-XT

710005116

$439.99

Gauge Ring

415129348

$13.99

Lens | XTP

415129349

$24.49

Speedometer Button | XTP

415129355

$15.80

Low Beam Ass'y | Includes 1 to 2

710002524

$104.99

Halogen Bulb

415129249

$41.49

RH Low Front Housing

710001081

$19.99

RH Low Rear Housing

710001082

$12.99

RH Low Light Support

710001094

$9.09

LH Low Front Housing

710001083

$19.99

LH Low Rear Housing

710001084

$12.99

LH Low Light Support

710001037

$9.09

Phillips Screw K40 X 16

250000723

$0.98

Setting Screw

710001147

$12.71

High Beam Ass'y | Includes 11 to 12

710002525

$119.99

RH High Front Housing

710001085

$19.99

RH High Rear Housing

710001086

$12.99

RH High Light Support

710001115

$5.29

LH High Front Housing

710001087

$19.99

LH High Rear Housing

710001088

$12.99

LH High Light Support

710001036

$5.29

Hex. Screw M4 X 25

207142544

$2.00

Flat Washer M5

234051410

$0.53

Elastic Stop Nut M4

232541414

$0.58

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

Bulb

520000758

$9.10

Electric Winch | Includes 800 to 800a

710006993

$208.49

TORX SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership

235382046

$1.69

Winch Hook Kit

705014949

$24.99

Stopper

710007028

$3.82

Fairlead Roller

710007082

$59.49

Socket Screw M10 x 30 | XT

205003044

$3.17

Hex. Flange Elastic Nut M10

233201414

$1.58

Connector Ass'y | XT, Includes 55 to 57

710001059

$9.10

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

Clip

710000992

$4.29

Wiring Harness_Switch Winch | Package XT

710007053

$60.99

Torx Screw K50 X 16

250000720

$1.69

Solenoid

710006991

$62.49

Elastic Stop Nut M6

232561434

$1.99

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

Elastic Flange Nut M5

233251494

$2.11

Flat Washer M5

234051410

$0.53

Solenoids Support

710004119

$24.99

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M6 X 20

207662044

$2.00

Winch Support

715001699

$143.49

Hex. Screw M6 X 40

207064044

$1.48

Hex. Flange Elastic Nut M6

233261494

$1.58

CLAMP - Call your local BRP dealership

705006999

Unavailable

U-Bolt M10

705203504

$13.24

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

Battery Bolt Kit

250000282

$7.29

Battery Support

710003129

$48.99

Flat Washer 6 mm

234062410

$0.77

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Battery Holder

710001916

$21.99

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

Stainless Steel Flat Washer

234062670

$2.11

DC Outlet

710001248

$37.99

Fuse Holder

710003335

$10.11

Pop Rivet 3/16"

293150103

$0.55

Clip

270000141

$11.49

Pop Rivet 3/16"

390402400

$0.35

Housing

710003006

$8.79

Starter Relay

710007777

$48.49

Lock Washer Helical M6

234161601

$1.15

Torx Head Screw M6 X 16

250000717

$2.11

Hex. Nut M6

232061600

$1.15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
