Description

Price

1

Harness Ass'y | Europe

710004346

$429.99

CAD

Seal

409012300

$4.54

CAD

Female Terminal

409012100

$4.55

CAG

Seal

409012300

$4.54

CAG

Female Terminal

409012100

$4.55

D3

Diode

409012700

$11.12

D4

Diode

409012700

$11.12

FPD1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

FPD1

Cap Protector | Model-Europe

710003269

$12.11

FPD1

Female Terminal

409010300

$4.39

FPD2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

FPD2

Female Terminal

409010300

$4.39

FPG1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

FPG1

Cap Protector | Model-Europe

710003269

$12.11

FPG1

Female Terminal

409010300

$4.39

FPG2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

FPG2

Female Terminal

409010300

$4.39

HIBM

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

HIBM

Terminal

710002863

Unavailable

HIC6L

Clip

710001038

$5.39

HIC6L

Female Housing, 2 Circuits

278000217

$9.59

HIC6L

Wire Seal

278001065

$7.69

HIC6L

Male Terminal | XT Models

278000222

$3.19

HIC6R

Clip Bracket Connector (edge)

409210100

$2.09

HIC6R

Female Housing, 2 Circuits

278000217

$9.59

HIC6R

Wire Seal

278001065

$7.69

HIC6R

Male Terminal | XT Models

278000222

$3.19

HZ

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

HZ

Housing

710002000

$7.90

HZ

Terminal

710001931

$2.09

KX1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

KX1

SHRINK TUBING 500MM LONG - Call your local BRP dealership

219704448

Unavailable

KX1

Female Terminal Housing, 1 Circuit

409010400

$7.62

KX1

Female Terminal

409010100

$5.61

KX2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

KX2

SHRINK TUBING 500MM LONG - Call your local BRP dealership

219704448

Unavailable

KX2

Female Terminal Housing, 1 Circuit

409010400

$7.62

KX2

Female Terminal

409010100

$5.61

MC1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

MC1

Housing

710002314

$17.04

MC1

Terminal

710002315

$4.55

MC2

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

MC2

Housing

710002313

$19.49

MC2

Terminal

710002315

$4.55

MGB

Female Housing, 6 Circuits

710000081

$8.79

MGB

Cap

710000080

$8.29

MGB

Seal

409012300

$4.54

MGB

Female Terminal

409012100

$4.55

MGC

Female Housing, 6 Circuits

710000081

$8.79

MGC

Cap

710000080

$8.29

MGC

Seal

409012300

$4.54

MGC

Female Terminal

409012100

$4.55

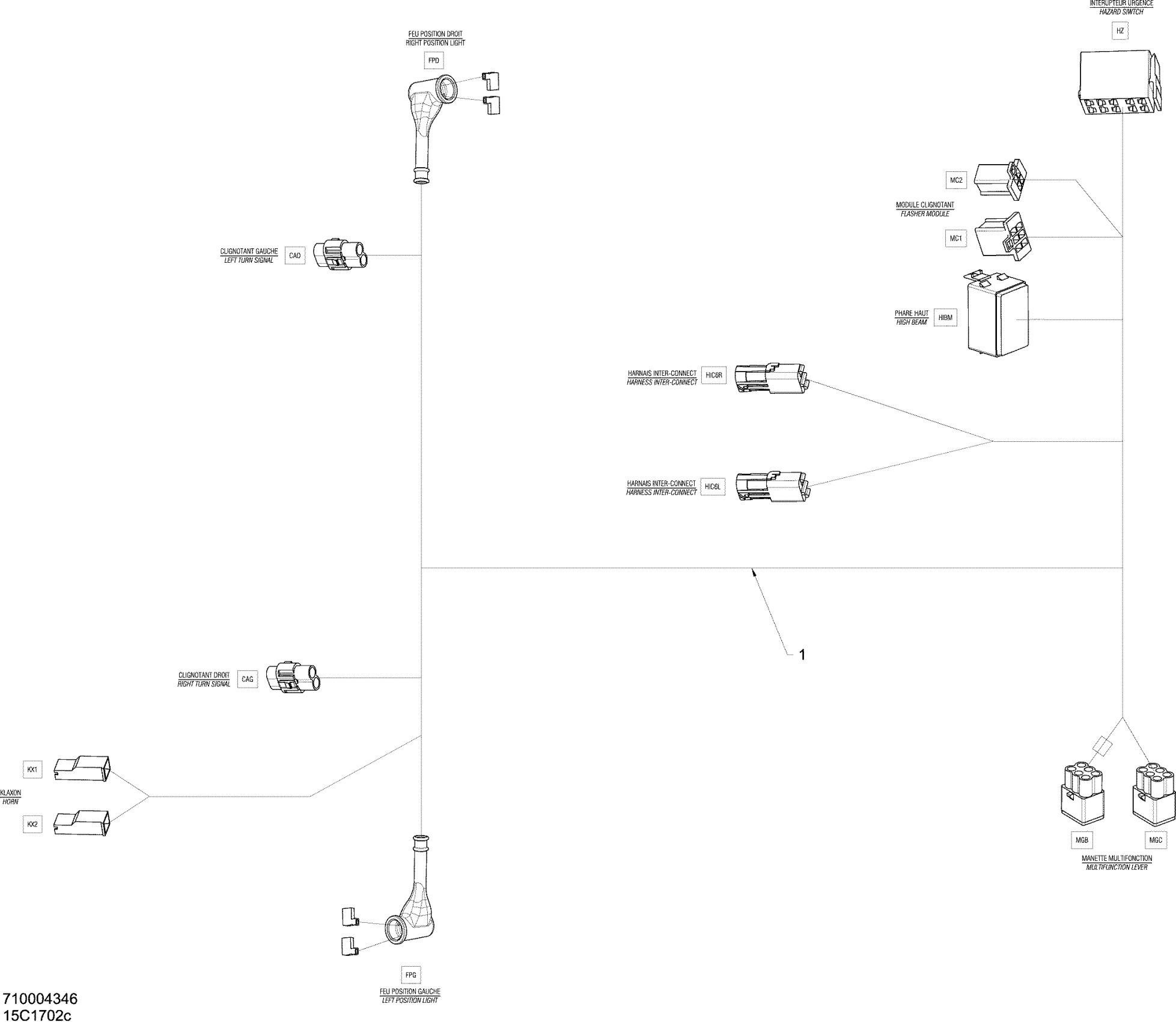

Can-Am 1-Maverick, 2017 10- Electrical Harness - Europe Diagram

Harness Ass'y | Europe

Seal

Female Terminal

Seal

Female Terminal

Diode

Diode

Was 293550004 Dielectric Grease, 150 g

Cap Protector | Model-Europe

Female Terminal

Was 293550004 Dielectric Grease, 150 g

Female Terminal

Was 293550004 Dielectric Grease, 150 g

Cap Protector | Model-Europe

Female Terminal

Was 293550004 Dielectric Grease, 150 g

Female Terminal

Was 293550004 Dielectric Grease, 150 g

Terminal

Clip

Female Housing, 2 Circuits

Wire Seal

Male Terminal | XT Models

Clip Bracket Connector (edge)

Female Housing, 2 Circuits

Wire Seal

Male Terminal | XT Models

Was 293550004 Dielectric Grease, 150 g

Housing

Terminal

Was 293550004 Dielectric Grease, 150 g

SHRINK TUBING 500MM LONG - Call your local BRP dealership

Female Terminal Housing, 1 Circuit

Female Terminal

Was 293550004 Dielectric Grease, 150 g

SHRINK TUBING 500MM LONG - Call your local BRP dealership

Female Terminal Housing, 1 Circuit

Female Terminal

Was 293550004 Dielectric Grease, 150 g

Housing

Terminal

Was 293550004 Dielectric Grease, 150 g

Housing

Terminal

Female Housing, 6 Circuits

Cap

Seal

Female Terminal

Female Housing, 6 Circuits

Cap

Seal

Female Terminal
