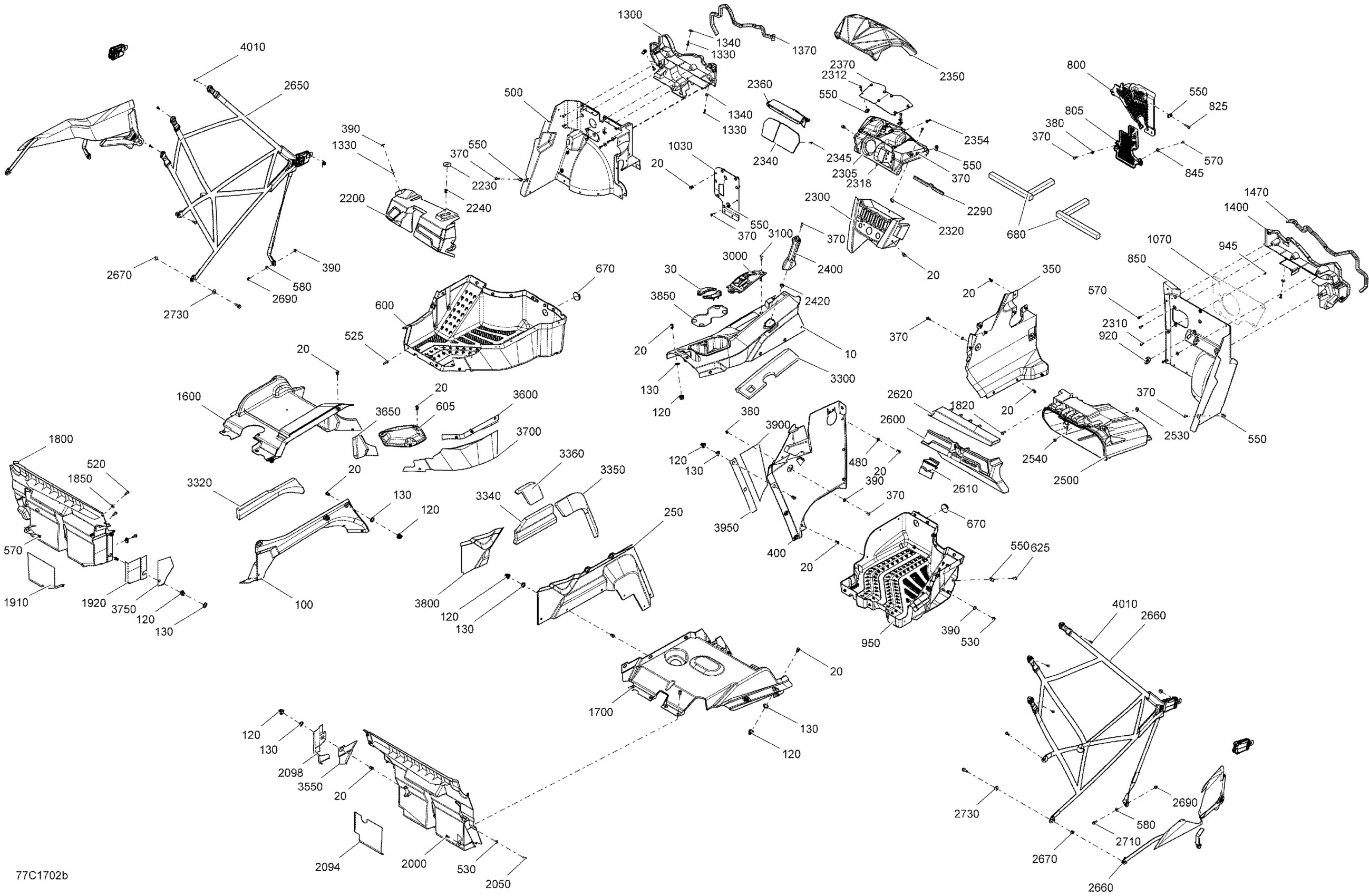

Can-Am 1-Maverick, 2017 09- Cab Interior - Package XMR Diagram

#

Description
Price

10

Console Kit | Package XMR

715003362

$73.99

20

Tuflok Plastic Rivet

293150230

$1.47

30

Cup Retainer

707900036

$6.89

100

PANEL_CONSOLE LWR L - Call your local BRP dealership | Model-White/Grey/Green (Turbo)

707900308

Unavailable

120

Insert

707900133

$2.89

130

Washer

503189273

$3.28

250

RH Side Console

707900002

$36.99

350

Front Side Dash Panel

707900193

$69.99

370

Torx Screw M6 X 20

250000722

$1.68

380

Threaded Insert M6 X 1.0

250100242

Unavailable

390

Stainless Steel Flat Washer

234062670

$2.11

400

RH FIXE SIDE CONSOLE - Call your local BRP dealership

707900203

Unavailable

480

Washer

506151252

$3.17

500

LH Front Floor

707900181

$83.99

520

Torx Screw M6 X 20

250000712

$2.11

525

Torx Screw M6 X 25

250000758

$2.11

530

Hex. Flange Elastic Nut M6

233261494

$1.58

550

Panel Nut M6 X 1.0

250100198

$2.11

570

Torx Screw K50 X 16

250000720

$1.69

580

Flat Washer 6 mm

234062410

$0.77

600

LH Lower Floor | Model-White/Grey/Green (Turbo)

707900309

$209.99

605

Floor Cap | Model-White/Grey/Green (Turbo)

707900311

$43.99

625

Torx Truss Screw M6 X 25

250000807

$2.11

670

Rubber Cover

293250242

$6.99

680

Was 293250381 Seal Tray

219704382

$43.99

800

Grille

707900178

$10.99

805

Grille

707900180

$10.99

825

Torx Truss Screw M6 X 30

250000843

$2.11

845

Washer M5

250200025

$0.74

850

RH Front Floor

707900004

$83.99

920

Oblong Grommet

705003668

$5.79

945

Elastic Flange Nut M5

233251494

$2.11

950

RH Lower Floor

707900023

$194.99

1030

Deflector | XRS-DPS

707900204

$17.49

1070

Hose Support

707900217

$18.49

1300

Floor Support LH

707900561

$21.99

1330

Torx Screw Truss Head K50X20 T20

250000760

$2.11

1340

Flat Washer

224060201

$1.26

1370

Was 293200017 Neoprene Seal

219704365

$149.99

1400

RIGHT FLOOR SUPPORT - Call your local BRP dealership

707900563

Unavailable

1470

Was 293200017 Neoprene Seal

219704365

$149.99

1600

LH Under Seat Plate | Model-Black Carbon (Turbo)

707900310

$81.99

1700

RH Under Seat Plate

707900006

$114.99

1800

LH Rear Deflector

707900164

$97.99

1820

Hex. Flange Screw M6 X 20

207662034

$2.11

1850

Flat Washer

250200040

$1.90

1910

Heat Shield

707900182

$8.89

1920

Heat Shield

707900183

$5.29

2000

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900166

Unavailable

2050

Torx Screw M6 X 16

250000755

$0.87

2094

Heat Shield

707900167

$9.39

2098

Heat Shield

707900184

$5.29

2200

Dashboard Ass'y

715001250

$79.99

2230

Support Plate

705003841

$0.99

2240

Edge Clip

517302785

$0.88

2290

Was 271000110 Protection Trim

219704353

$15.99

2300

Central Dashboard Ass'y

715002187

$38.99

2305

Upper Central Console Ass'y

707900199

$40.99

2310

Torx Screw M5 X 25

250000762

$2.11

2312

Hexagonal Head Screw

210262050

$2.11

2314

Stainless Steel Flat Washer

234062670

$2.11

2316

Panel Nut M6 X 1.0

250100198

$2.11

2318

Push Nut

732610072

$2.19

2320

Panel Nut M5 X 0.8

250000958

$4.23

2340

GPS Cover And Radio Control

707900104

$13.22

2345

Torx-Truss Pt K40 X 16

250000759

$2.11

2350

BLUE DASH CAP - Call your local BRP dealership | Package XMR Silver

707900369

Unavailable

2350

DASH CAP - Call your local BRP dealership

707900467

Unavailable

2354

Hex. Flange Forming Screw M6 X 25

210262550

$1.90

2355

Stainless Steel Flat Washer

234062670

$2.11

2356

Panel Nut M6 X 1.0

250100198

$2.11

2360

CENTRAL FILTER - Call your local BRP dealership

707900215

Unavailable

2370

DASHBOARD COVER - Call your local BRP dealership

707900216

Unavailable

2376

Panel Nut M6 X 1.0

250100198

$2.11

2400

Passenger Handle

707900011

$13.75

2420

Connector Tube

707900048

$6.19

2500

Storage Bin | XT

707900046

$104.99

2530

CAP - Call your local BRP dealership

414859400

Unavailable

2540

Rubber Bumper

293830005

$8.09

2600

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

$49.99

2610

Latch

707900031

$8.49

2620

Trim Glove Box

707900062

$18.49

2650

Front LH Safety Net

707900237

$119.99

2660

Front RH Safety Net

707900238

$119.99

2670

Hex. Flange Elastic Nut M8

233281414

$1.47

2690

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2710

Hex. Flange Screw M6 X 20

207662044

$2.00

2730

Flat Washer 8 mm

234082410

$1.47

3000

Lever Indicator

707900070

$15.49

3100

Torx Screw M6 X 25 | XT Models

250000728

$4.44

3300

Front Central Console Foam

707900619

$18.99

3320

LEFT UPPER LATERAL CONSOLE FOAM - Call your local BRP dealership | Model-White/Grey/Green (Turbo)

707900631

Unavailable

3340

RH Lateral Console Foam

707900622

$16.49

3350

RH Lateral Console Foam

707900623

$16.49

3360

RH Lateral Console Foam

707900624

$16.49

3550

Heat Sheet

707900148

$7.49

3600

HEAT SHEET - Call your local BRP dealership | Model-Black Carbon (Turbo)

707900313

Unavailable

3650

HEAT SHEET - Call your local BRP dealership | Model-White/Grey/Green (Turbo)

707900314

Unavailable

3700

HEAT SHEET - Call your local BRP dealership | Model-Black Carbon (Turbo)

707900315

Unavailable

3750

Heat Sheet

707900146

$11.99

3800

Heat Sheet

707900147

$8.89

3850

Heat Sheet

707900145

$11.99

3900

Heat Sheet

707900190

$9.39

3950

Heat Sheet

707900191

$1.09

4010

Torx Screw M5 X 14

250000742

$1.47
