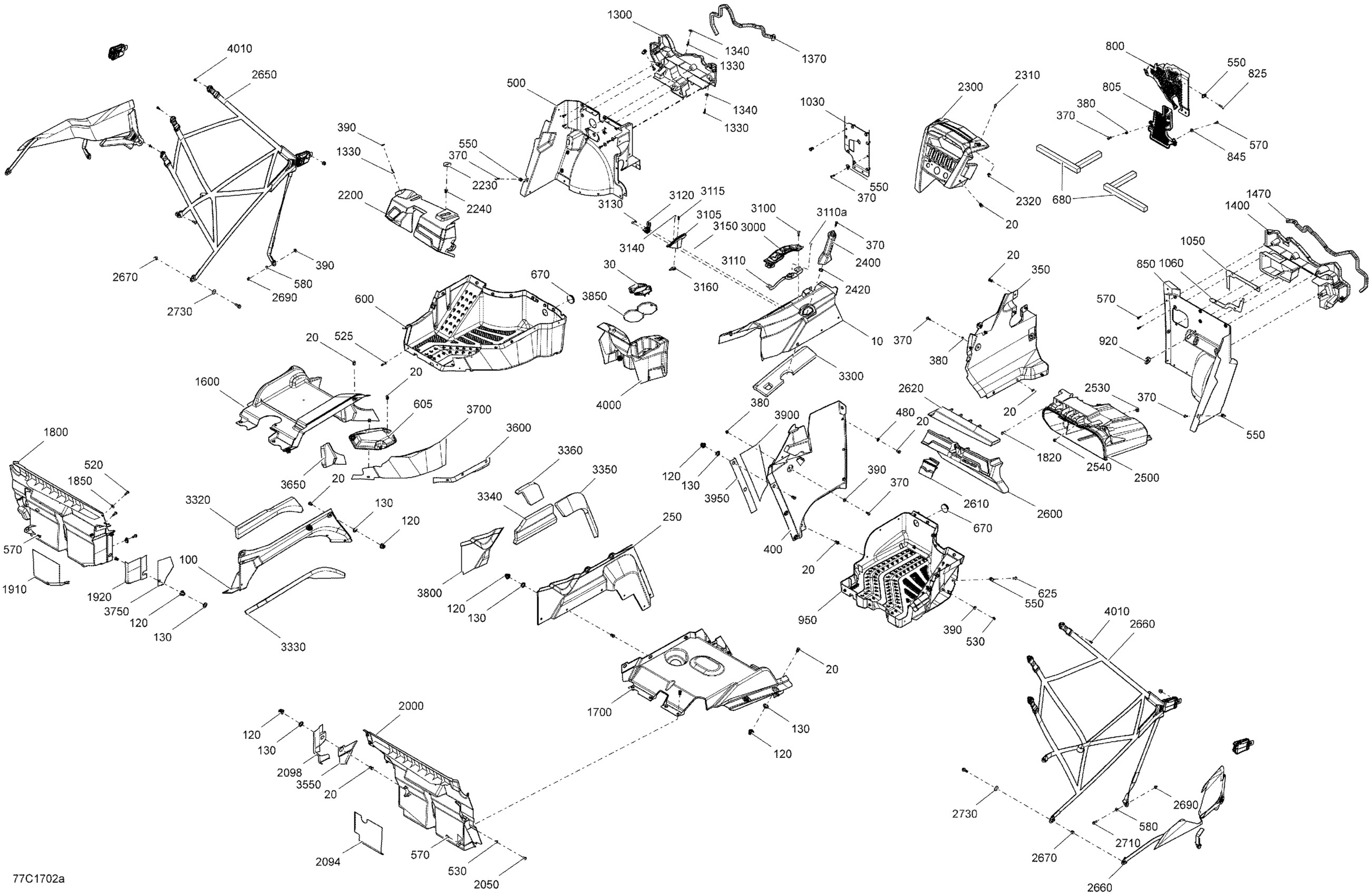

Can-Am 1-Maverick, 2017 09- Cab Interior - Except Package XMR Diagram

CONSOLE ASSEMBLY - Call your local BRP dealership | Package XDS STD North America

715004335

Unavailable

CONSOLE ASSEMBLY - Call your local BRP dealership | Package XDS STD International

715004177

Unavailable

Console Kit | Engine 1000R Except Europe Model, Except XMR

715003355

$46.99

CONSOLE KIT - Call your local BRP dealership | Engine 1000R Europe Model

715003359

Unavailable

Tuflok Plastic Rivet

293150230

$1.47

Cup Retainer

707900036

$6.89

LH Side Console

707900001

$44.99

PANEL_CONSOLE LWR L - Call your local BRP dealership | Model-White/Grey/Green (Turbo)

707900308

Unavailable

Insert

707900133

$2.89

Washer

503189273

$3.28

RH Side Console

707900002

$36.99

Front Side Dash Panel

707900193

$69.99

Torx Screw M6 X 20

250000722

$1.68

Threaded Insert M6 X 1.0

250100242

Unavailable

Stainless Steel Flat Washer

234062670

$2.11

RH Fixe Side Console

707900021

$76.99

Washer

506151252

$3.17

LH Front Floor

707900181

$83.99

Torx Screw M6 X 20

250000712

$2.11

Torx Screw M6 X 25

250000758

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw K50 X 16

250000720

$1.69

Flat Washer 6 mm

234062410

$0.77

LH Lower Floor

707900022

$269.99

LH Lower Floor | Model-White/Grey/Green (Turbo)

707900309

$209.99

Floor Cap | Model-White/Grey/Green (Turbo)

707900311

$43.99

Torx Truss Screw M6 X 25

250000807

$2.11

Rubber Cover

293250242

$6.99

Was 293250381 Seal Tray

219704382

$43.99

Grille

707900178

$10.99

Grille

707900180

$10.99

Torx Truss Screw M6 X 30

250000843

$2.11

Washer M5

250200025

$0.74

RH Front Floor

707900004

$83.99

Oblong Grommet

705003668

$5.79

RH Lower Floor

707900023

$194.99

DEFLECTOR - Call your local BRP dealership

707900152

Unavailable

Deflector | XRS-DPS

707900204

$17.49

Upper Seal

293250252

$2.59

Bottom Seal

293250253

$2.79

Floor Support LH

707900561

$21.99

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Flat Washer

224060201

$1.26

Was 293200017 Neoprene Seal

219704365

$149.99

RIGHT FLOOR SUPPORT - Call your local BRP dealership

707900562

Unavailable

Was 293200017 Neoprene Seal

219704365

$149.99

LH Under Seat Plate

707900218

$81.99

LH Under Seat Plate | Model-Black Carbon (Turbo)

707900310

$81.99

RH Under Seat Plate

707900006

$114.99

LH Rear Deflector

707900164

$97.99

Hex. Flange Screw M6 X 20

207662034

$2.11

Flat Washer

250200040

$1.90

Heat Shield

707900182

$8.89

Heat Shield

707900183

$5.29

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900166

Unavailable

Torx Screw M6 X 16

250000755

$0.87

Heat Shield

707900167

$9.39

Heat Shield

707900184

$5.29

Dashboard Ass'y

715001250

$79.99

Support Plate

705003841

$0.99

Edge Clip

517302785

$0.88

Central Dashboard Ass'y

715002178

$38.99

Torx Screw M5 X 20

250000724

$1.69

Panel Nut M5 X 0.8

250000958

$4.23

Passenger Handle

707900011

$13.75

Connector Tube

707900048

$6.19

Storage Bin

707900009

$114.99

CAP - Call your local BRP dealership

414859400

Unavailable

Rubber Bumper

293830005

$8.09

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

$49.99

Latch

707900031

$8.49

Trim Glove Box

707900062

$18.49

Front LH Safety Net

707900237

$119.99

Front RH Safety Net

707900238

$119.99

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M6 X 20

207662044

$2.00

Flat Washer 8 mm

234082410

$1.47

Lever Indicator

707900070

$15.49

Lever Indicator | Europe

707900071

$18.49

Shift Lever Indicator

707900088

$15.49

Torx Screw M6 X 25 | XT Models

250000728

$4.44

PADLOCK TRIM - Call your local BRP dealership | Europe

707900373

Unavailable

LOCK SUPPORT - Call your local BRP dealership | Europe

707900303

Unavailable

Torx Truss Screw M5 X 16, T25

250000578

$2.11

Padlock with Key

707000666

$25.99

Socket Head Screw M5 X 10

205951046

$2.43

Torx Truss Screw K40 X 12

250000577

$2.11

Rivet

390401400

$0.53

WASHER - Call your local BRP dealership

391301000

$0.70

CAP - Call your local BRP dealership | Europe

707900060

Unavailable

Front Central Console Foam

707900619

$18.99

Left Upper Lateral Console Foam

707900620

$16.49

LEFT UPPER LATERAL CONSOLE FOAM - Call your local BRP dealership | Model-White/Grey/Green (Turbo)

707900631

Unavailable

LH Lower Lateral Console Foam

707900621

$23.99

RH Lateral Console Foam

707900622

$16.49

RH Lateral Console Foam

707900623

$16.49

RH Lateral Console Foam

707900624

$16.49

Heat Sheet

707900148

$7.49

Heat Sheet

707900149

$8.89

HEAT SHEET - Call your local BRP dealership | Model-Black Carbon (Turbo)

707900313

Unavailable

Heat Sheet

707900150

$1.09

HEAT SHEET - Call your local BRP dealership | Model-White/Grey/Green (Turbo)

707900314

Unavailable

Heat Sheet

707900151

$10.99

HEAT SHEET - Call your local BRP dealership | Model-Black Carbon (Turbo)

707900315

Unavailable

Heat Sheet

707900146

$11.99

Heat Sheet

707900147

$8.89

Heat Sheet

707900145

$11.99

HEAT SHEET - Call your local BRP dealership | Model-White/Grey/Green (Turbo)

707900302

Unavailable

Heat Sheet

707900190

$9.39

Heat Sheet

707900191

$1.09

REAR LOWER CONSOLE - Call your local BRP dealership | Model-White/Grey/Green (Turbo)

707900278

Unavailable

Torx Screw M5 X 14

250000742

$1.47

LOCK SUPPORT ASS'Y - Call your local BRP dealership | Model-Europe

707900376

Unavailable

Insert M5 X 0.8

293450268

$2.09
