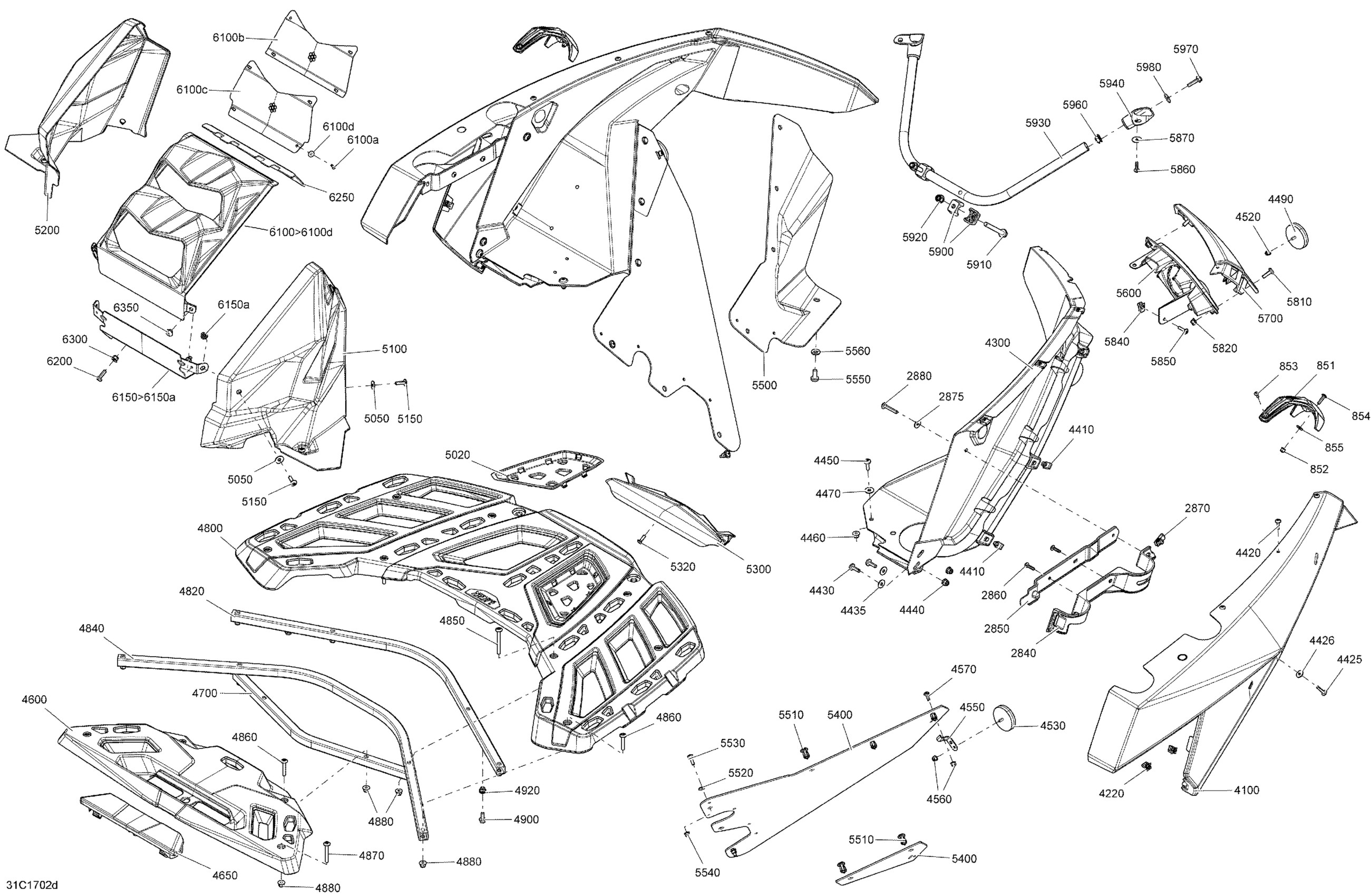

Can-Am 1-Maverick, 2017 09- Body And Accessories - Rear Section All Models Diagram

CAP - Call your local BRP dealership | Package XMR Silver/Black/Blue

707001943

Unavailable

Cap Can-Am Red | Package XMR White/Red/Black

707001978

$23.99

Elastic Flange Nut M5

233251494

$2.11

Torx Truss Screw K40 X 12

250000577

$2.11

Torx Screw M5 X 20

250000792

$2.11

Flat Washer 5 mm, Stainless

234052600

$0.77

LH REAR FENDER SUPPORT - Call your local BRP dealership

705007918

Unavailable

RH REAR FENDER SUPPORT - Call your local BRP dealership

705007919

$12.49

Support Plate

705007917

$13.99

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Black, Torx Screw M6 X 35

250000646

$0.98

FENDER REAR L B-101 - Call your local BRP dealership | Package XMR

705010785

Unavailable

RIGHT REAR FENDER - Call your local BRP dealership | Package XMR

705010786

$129.99

Hyper Silver, LH Rear Fender | Package XDSDPS Silver

705011822

$409.99

Painted Hyper Silver Rh Rear Fender | Package XDSDPS Silver

705011824

$409.99

FENDER REAR L B-365 - Call your local BRP dealership

705008949

Unavailable

Quarry Gray RH Rear Fender

705008951

$139.99

Painted Timeless Black Lh Rear Fender | Package XMR Silver

705011819

$409.99

Painted Timeless Black Rh Rear Fender | Package XMR Silver

705011820

$409.99

White LH Rear Fender | Model-STD White

705009037

$139.99

White RH Rear Fender | Model-STD White

705009038

$139.99

FENDER REAR L B-190 - Call your local BRP dealership

705009033

Unavailable

Yellow RH Rear Fender

705009034

$139.99

Edge Clip

517302785

$0.88

INNER FENDER - Call your local BRP dealership

705009445

Unavailable

LH Inner Fender

705009548

$55.99

RH Inner Fender

705009549

$55.99

Panel Nut M5 X 0.8

250000958

$4.23

Torx Screw M5 X 20

250000724

$1.69

Torx Screw M5 X 25

250000762

$2.11

Washer M5

250200025

$0.74

Torx Screw M6 X 20

250000712

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Torx Screw M6 X 20

250000712

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Stainless Steel Flat Washer

234062670

$2.11

Red Reflector

705011221

$14.49

Elastic Flange Nut M5

233251494

$2.11

Red Reflector

705011221

$14.49

REFLECTOR SUPPORT - Call your local BRP dealership | Europe

705006828

Unavailable

Elastic Flange Nut M5

233251494

$2.11

Torx Screw M5 X 14

250000742

$1.47

Bagage Central Rack

705006128

$53.99

Central Bagage Rack Cap

705006132

$10.99

Bagage Rack Tube

705006279

$38.99

REAR RACK KIT - Call your local BRP dealership

715004179

Unavailable

Sectional Bent Tube

705016640

$38.99

Bent Sectional Tube

705016092

$42.99

Torx Screw M6 X 60

250000648

$7.51

Black, Torx Screw M6 X 35

250000646

$0.98

Torx Screw M6 X 45

250000647

$6.82

Flange Elastic Nut M6

233261434

$4.44

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$2.11

Threaded Insert M6 X 1.0

250100242

Unavailable

LH Bagage Rack Cover

705006713

$10.99

RH BAGAGE RACK COVER - Call your local BRP dealership

705006714

Unavailable

Stainless Steel Flat Washer

234062670

$2.11

LH INTERCOOLER COVER - Call your local BRP dealership

705009046

Unavailable

Torx Screw M6 X 20

250000722

$1.68

RH INTERCOOLER COVER - Call your local BRP dealership

705009047

Unavailable

LOGO Support

705005994

$13.99

Torx Screw K50 X 16

250000720

$1.69

Deflector

705007828

$55.99

SUPPORT - Call your local BRP dealership

705009408

$25.99

DEFLECTOR - Call your local BRP dealership

705009143

Unavailable

Tuflok Plastic Rivet

293150230

$1.47

Washer M5

250200025

$0.74

Torx Screw M5 X 20

250000724

$1.69

Elastic Flange Nut M5

233251494

$2.11

Hex. Screw M8 X 20

236282054

$1.47

Conical Spring Washer M8

234281474

$1.48

LH Rear Facia | North America, International

705004731

$19.99

LH Rear Facia | Europe

705004927

$15.99

RH Rear Facia | North America, International

705004732

$19.99

RH Rear Facia | Europe

705004926

$15.99

Trim LH Can-Am Red | Package XMR

705010793

$13.99

TRIM_HEADLIGHT REAR R B-101 - Call your local BRP dealership | Package XMR

705010794

Unavailable

PAINTED HYPER SILVER LEFT REAR TRIM - Call your local BRP dealership | Package XDSDPS Silver

705011835

Unavailable

PAINTED HYPER SILVER RIGHT REAR TRIM - Call your local BRP dealership | Package XDSDPS Silver

705011836

Unavailable

TRIM_HEADLIGHT REAR L B-365 - Call your local BRP dealership

705008952

$13.49

TRIM_HEADLIGHT REAR R B-365 - Call your local BRP dealership

705008953

Unavailable

Painted Timeless Black Lh Rear Trim | Package XMR Silver

705011833

$129.99

TIMELESS BLACK RH TRIM - Call your local BRP dealership | Package XMR Silver

705009732

Unavailable

WHITE LH REAR FACIA TRIM - Call your local BRP dealership | Model-STD White

705007370

Unavailable

WHITE RH REAR FACIA TRIM - Call your local BRP dealership | Model-STD White

705007371

Unavailable

YELLOW LH REAR FACIA TRIM - Call your local BRP dealership

705005990

Unavailable

Yellow RH Rear Facia Trim

705005991

$13.99

Torx Screw M6 X 20

250000712

$2.11

Flange Elastic Nut M6

233261434

$4.44

Panel Nut M5 X 0.8

250000958

$4.23

Torx Screw M5 X 20

250000724

$1.69

Torx Screw Truss Head K50X20 T20

250000760

$2.11

Flat Washer

224060201

$1.26

Rear Support Facia Clip

705007044

$2.79

Hex. Flange Screw M8 X 70

207687044

$7.41

Hex. Flange Elastic Nut M8

233281414

$1.47

Body Tube

705007299

$73.99

LH Rear Facia Support

705007045

$11.49

RH Rear Facia Support

705007046

$11.49

TUBE CONNECTOR - Call your local BRP dealership

705007047

Unavailable

Hex. Flange Screw M6 X 25

207562544

$1.69

Flat Washer

224061201

$1.37

SCOOP ASS'Y - Call your local BRP dealership

705204547

$114.99

Screw K40 X 10

241140060

$1.48

Upper Grille

705009260

$20.99

Lower Grille

705009261

$20.99

WASHER - Call your local BRP dealership

391301000

$0.70

Air Duct Support

705009262

$74.99

Threaded Insert M6 X 1.0

250100242

Unavailable

Torx Screw M6 X 20

250000712

$2.11

REAR SUPPORT - Call your local BRP dealership

705009343

Unavailable

Flange Elastic Nut M6

233261434

$4.44

Pop Rivet 3/16"

293150103

$0.55

LH Front Deflector | Model-Red

705008988

$53.99
