Description

Price

100

Black LH Front Fender

705006558

$139.99

100

Black RH Front Fender

705006559

$139.99

100

Painted Hyper Silver Lh Front Fender | Package XDSDPS Silver

705011797

$409.99

100

Hyper Silver RH Front Fender | Package XDSDPS Silver

705009669

$409.99

100

FENDER FL B-365 - Call your local BRP dealership

705008941

Unavailable

100

Quarry Gray RH Front Fender

705008942

$139.99

100

TIMELESS BLACK LH FRONT FENDER - Call your local BRP dealership | Package XMR Silver

705009666

Unavailable

100

PAINTED TIMELESS BLACK RH FRONT FENDER - Call your local BRP dealership | Package XMR Silver

705011796

Unavailable

100

WHITE LH FRONT FENDER - Call your local BRP dealership | Model-STD White

705007978

Unavailable

100

White RH Front Fender | Model-STD White

705007979

$139.99

100

FENDER FL B-190 - Call your local BRP dealership

705005779

Unavailable

100

Yellow RH Front Fender

705005780

$139.99

300

BLACK LH FRONT FENDER TRIM - Call your local BRP dealership

705006562

$25.99

300

Black RH Front Fender Trim

705006563

$28.99

300

GULFSTREAM BLUE LH FENDER TRIM - Call your local BRP dealership | Package XDSDPS Silver

705009672

Unavailable

300

Gulfstream Blue RH Fender Trim | Package XDSDPS Silver

705009673

$31.99

300

QUARRY GREY LH FENDER TRIM - Call your local BRP dealership | Package DPS Quarry Gray Model

705009670

Unavailable

300

QUARRY GREY RH FENDER TRIM - Call your local BRP dealership | Package DPS Quarry Gray Model

705009671

Unavailable

300

PAINTED TIMELESS BLACK LH FRONT TRIM - Call your local BRP dealership | Package XDS STD

705011808

Unavailable

300

PAINTED TIMELESS BLACK RH FRONT TRIM - Call your local BRP dealership | Package XDS STD

705011809

Unavailable

300

WHITE LH FRONT FENDER TRIM - Call your local BRP dealership | Model-STD White

705007981

Unavailable

300

WHITE RH FRONT FENDER TRIM - Call your local BRP dealership | Model-STD White

705007982

Unavailable

300

Yellow LH Front Fender Trim

705005953

$28.99

300

YELLOW RH FRONT FENDER TRIM - Call your local BRP dealership

705005954

Unavailable

410

Edge Clip

517302785

$0.88

420

Self Tapping Screw #8 X 5/8

250000202

$1.48

430

Torx Screw K50 X 16

250000720

$1.69

440

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

500

Cover Fender LH Can-Am Red | Package XMR

705010783

$22.99

500

Cover Fender RH Can-Am Red | Package XMR

705010784

$22.99

500

Painted Hyper Silver Lh Cover Fender | Package XDSDPS Silver

705011803

$219.99

500

Painted Hyper Silver Rh Cover Fender | Package XDSDPS Silver

705011804

$219.99

500

CAP_PANEL BODY FL B-365 - Call your local BRP dealership | Quarry Gray Model

705009676

Unavailable

500

CAP_PANEL BODY FR B-365 - Call your local BRP dealership | Quarry Gray Model

705009677

Unavailable

500

Painted Timeless Black Lh Cover Fender | Package XMR Silver

705011801

$219.99

500

Painted Timeless Black Rh Cover Fender | Package XMR Silver

705011802

$219.99

500

White LH Cover Front Fender | Model-STD White

705007983

$24.49

500

White RH Cover Front Fender | Model-STD White

705007984

$24.49

500

Yellow LH Cover Front Fender

705005852

$24.49

500

Yellow RH Cover Front Fender

705005853

$24.49

610

Grommet

517303756

$4.09

620

Grommet

705003264

$4.09

700

PAINTED BLACK DARTH VADER LH FIXED HOOD - Call your local BRP dealership | Package XDS STD

705011791

Unavailable

700

BLACK RIGHT FIX HOOD - Call your local BRP dealership | Package XDS STD

705010887

$499.99

700

Deep Black LH Fixe Hood

705008945

$134.99

700

Deep Black RH Fixe Hood

705008946

$134.99

700

Painted Hyper Silver Lh Fixed Hood | Silver Model

705011789

$549.99

700

Painted Hyper Silver Rh Fixed Hood | Silver Model

705011790

$549.99

700

HOOD LH B-365 - Call your local BRP dealership

705008947

Unavailable

700

Quarry Gray RH Fixe Hood

705008948

$134.99

700

Timeless Black, LH Fixed Hood

705011787

$549.99

700

Painted Timeless Black Right Fixed Hood

705011788

$549.99

700

White LH Fixe Hood | Model-White

705007348

$134.99

700

White RH Fixe Hood | Model-White

705007349

$134.99

700

Yellow LH Fixe Hood

705005781

$559.99

700

Yellow RH Fixe Hood

705005782

$559.99

810

Black, Dart

414644300

$0.98

820

Panel Nut M6 X 1.0

250100198

$2.11

830

Torx Screw M6 X 20

250000722

$1.68

900

Fixe Center Hood

705005821

$399.99

900

FIXE CENTER HOOD - Call your local BRP dealership

705007960

Unavailable

910

Panel Nut M6 X 1.0

250100198

$2.11

920

Torx Screw M6 X 20

250000722

$1.68

925

Stainless Steel Flat Washer

234062670

$2.11

930

Support Plate

705003841

$0.99

940

Edge Clip

517302785

$0.88

950

Torx Screw Truss Head K50X20 T20

250000760

$2.11

960

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

970

Clamp

705006623

$3.98

975

Hex. Flange Screw M6 X 20

207662054

$1.01

980

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

985

Stainless Steel Flat Washer

234062670

$2.11

1000

Black Removable Hood | Black Models

705007060

$339.99

1000

Bright White, Removable Hood

705008186

$389.99

1000

PAINTED TIMELESS BLACK HOOD - Call your local BRP dealership | Silver Model

705011746

Unavailable

1010

Oval Washer

705005156

$4.97

1200

LH Bumper Grille

705007497

$21.99

1200

LH BUMPER GRILL - Call your local BRP dealership | Europe

705007499

Unavailable

1250

RH Bumper Grille

705007498

$21.99

1250

RH BUMPER GRILL - Call your local BRP dealership | Europe

705007500

Unavailable

1300

YELLOW LH BUMPER CAP - Call your local BRP dealership

705005824

Unavailable

1300

WHITE LH BUMPER CAP - Call your local BRP dealership | Model-STD White

705007352

Unavailable

1300

Gulfstream Blue LH Bumper Cap | Package XMR Silver

705009711

$97.99

1300

TRIM_BUMPER FL B-101 - Call your local BRP dealership | Model-XRS White

705010791

Unavailable

1300

PAINTED TIMELESS BLACK LEFT BUMPER CAP - Call your local BRP dealership | Package XDS STD

705011812

Unavailable

1400

YELLOW RH BUMPER CAP - Call your local BRP dealership

705005825

Unavailable

1400

WHITE RH BUMPER CAP - Call your local BRP dealership | Model-STD White

705007353

$91.99

1400

TRIM_BUMPER RH B-352 - Call your local BRP dealership | Package XMR Silver

705009712

Unavailable

1400

TRIM_BUMPER FR B-101 - Call your local BRP dealership | Model-XRS White

705010792

Unavailable

1400

BLACK RIGHT BUMPER CAP - Call your local BRP dealership | Package XDS STD

705010889

Unavailable

1410

Torx Screw Truss Head K50X20 T20

250000760

$2.11

1420

Torx Screw M5 X 20

250000724

$1.69

1430

Panel Nut M5 X 0.8

250000958

$4.23

1440

Washer M5

250200025

$0.74

1500

Front Radiator Grille

705005784

$62.49

1510

Radiator Grille Bracket

705006635

$11.06

1520

Torx Truss Screw M6 X 16

250000721

$1.69

1600

LH Rear Radiator Grille

705005983

$20.49

1650

Rubber Bumper

293830005

$8.09

1700

RH Rear Radiator Grille

705005984

$20.49

1710

Edge Clip

517302785

$0.88

1740

Panel Nut M5 X 0.8

250000958

$4.23

1750

Torx Screw M5 X 20

250000724

$1.69

1760

Washer M5

250200025

$0.74

1780

Amber Reflector | Except Europe Model

705011222

$14.49

1800

LH Front Facia

705004508

$51.99

1800

RH Front Facia

705004509

$51.99

1910

Torx Screw M6 X 25

250000758

$2.11

1920

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

1930

Torx Screw M6 X 20

250000712

$2.11

1940

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

2100

LH Front Facia Trim

705005992

$11.49

2100

RH Front Facia Trim

705005993

$11.49

2300

LH Front Facia Support

705006078

$11.49

2300

RH Front Facia Support

705006079

$11.49

2410

Torx Screw Truss Head K50X20 T20

250000760

$2.11

2420

Panel Nut M6 X 1.0

250100198

$2.11

2450

Torx Screw M6 X 20

250000722

$1.68

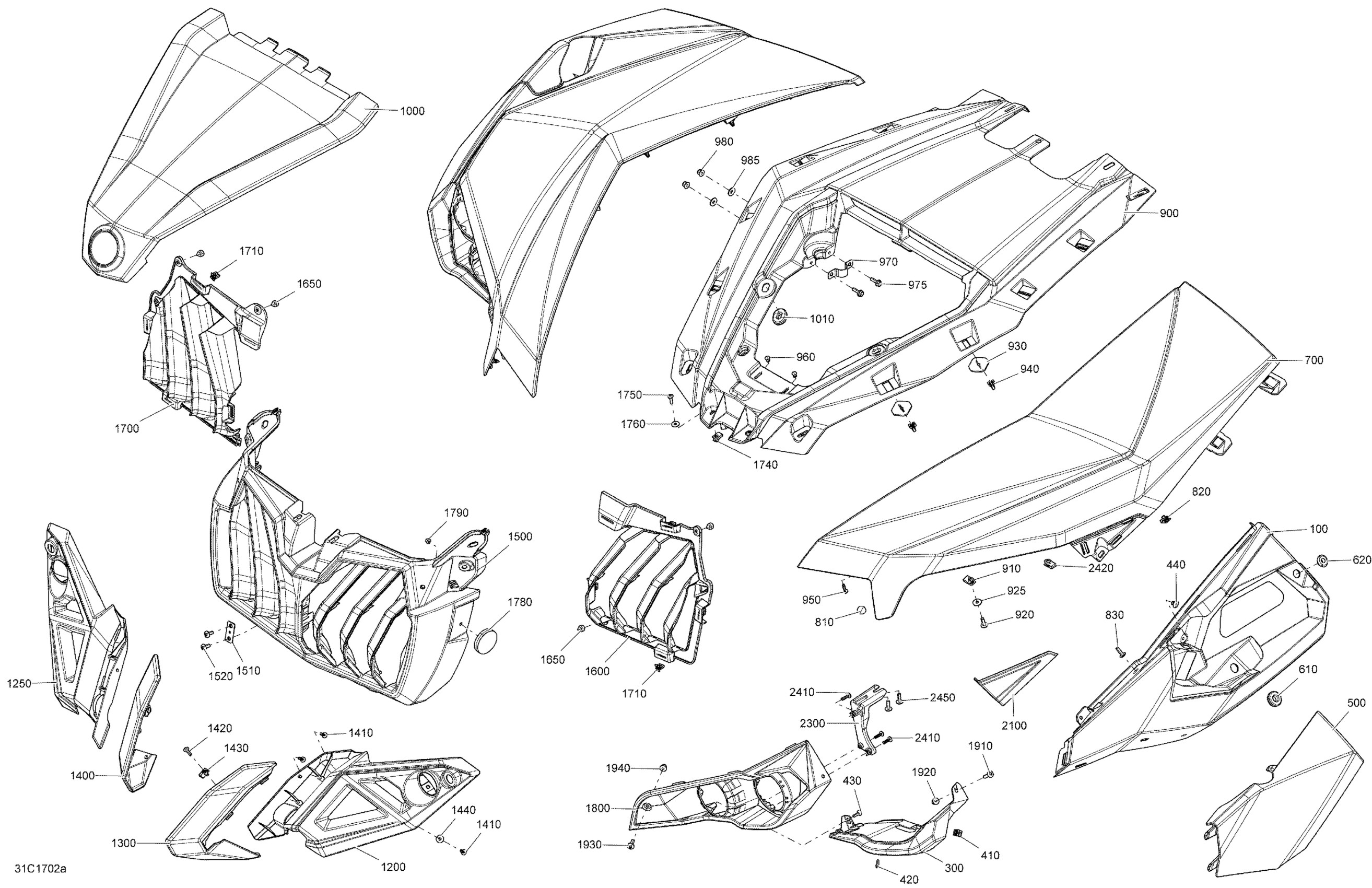

Can-Am 1-Maverick, 2017 09- Body And Accessories - Front Section All Models Diagram

Black LH Front Fender

Black RH Front Fender

Painted Hyper Silver Lh Front Fender | Package XDSDPS Silver

Hyper Silver RH Front Fender | Package XDSDPS Silver

FENDER FL B-365 - Call your local BRP dealership

Quarry Gray RH Front Fender

TIMELESS BLACK LH FRONT FENDER - Call your local BRP dealership | Package XMR Silver

PAINTED TIMELESS BLACK RH FRONT FENDER - Call your local BRP dealership | Package XMR Silver

WHITE LH FRONT FENDER - Call your local BRP dealership | Model-STD White

White RH Front Fender | Model-STD White

FENDER FL B-190 - Call your local BRP dealership

Yellow RH Front Fender

BLACK LH FRONT FENDER TRIM - Call your local BRP dealership

Black RH Front Fender Trim

GULFSTREAM BLUE LH FENDER TRIM - Call your local BRP dealership | Package XDSDPS Silver

Gulfstream Blue RH Fender Trim | Package XDSDPS Silver

QUARRY GREY LH FENDER TRIM - Call your local BRP dealership | Package DPS Quarry Gray Model

QUARRY GREY RH FENDER TRIM - Call your local BRP dealership | Package DPS Quarry Gray Model

PAINTED TIMELESS BLACK LH FRONT TRIM - Call your local BRP dealership | Package XDS STD

PAINTED TIMELESS BLACK RH FRONT TRIM - Call your local BRP dealership | Package XDS STD

WHITE LH FRONT FENDER TRIM - Call your local BRP dealership | Model-STD White

WHITE RH FRONT FENDER TRIM - Call your local BRP dealership | Model-STD White

Yellow LH Front Fender Trim

YELLOW RH FRONT FENDER TRIM - Call your local BRP dealership

Edge Clip

Self Tapping Screw #8 X 5/8

Torx Screw K50 X 16

Pop Rivet 3/16" | DS 650 X

Cover Fender LH Can-Am Red | Package XMR

Cover Fender RH Can-Am Red | Package XMR

Painted Hyper Silver Lh Cover Fender | Package XDSDPS Silver

Painted Hyper Silver Rh Cover Fender | Package XDSDPS Silver

CAP_PANEL BODY FL B-365 - Call your local BRP dealership | Quarry Gray Model

CAP_PANEL BODY FR B-365 - Call your local BRP dealership | Quarry Gray Model

Painted Timeless Black Lh Cover Fender | Package XMR Silver

Painted Timeless Black Rh Cover Fender | Package XMR Silver

White LH Cover Front Fender | Model-STD White

White RH Cover Front Fender | Model-STD White

Yellow LH Cover Front Fender

Yellow RH Cover Front Fender

Grommet

Grommet

PAINTED BLACK DARTH VADER LH FIXED HOOD - Call your local BRP dealership | Package XDS STD

BLACK RIGHT FIX HOOD - Call your local BRP dealership | Package XDS STD

Deep Black LH Fixe Hood

Deep Black RH Fixe Hood

Painted Hyper Silver Lh Fixed Hood | Silver Model

Painted Hyper Silver Rh Fixed Hood | Silver Model

HOOD LH B-365 - Call your local BRP dealership

Quarry Gray RH Fixe Hood

Timeless Black, LH Fixed Hood

Painted Timeless Black Right Fixed Hood

White LH Fixe Hood | Model-White

White RH Fixe Hood | Model-White

Yellow LH Fixe Hood

Yellow RH Fixe Hood

Black, Dart

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Fixe Center Hood

FIXE CENTER HOOD - Call your local BRP dealership

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Stainless Steel Flat Washer

Support Plate

Edge Clip

Torx Screw Truss Head K50X20 T20

Pop Rivet 3/16" | DS 650 X

Clamp

Hex. Flange Screw M6 X 20

Hex. Flange Elastic Nut M6 x 1.0

Stainless Steel Flat Washer

Black Removable Hood | Black Models

Bright White, Removable Hood

PAINTED TIMELESS BLACK HOOD - Call your local BRP dealership | Silver Model

Oval Washer

LH Bumper Grille

LH BUMPER GRILL - Call your local BRP dealership | Europe

RH Bumper Grille
