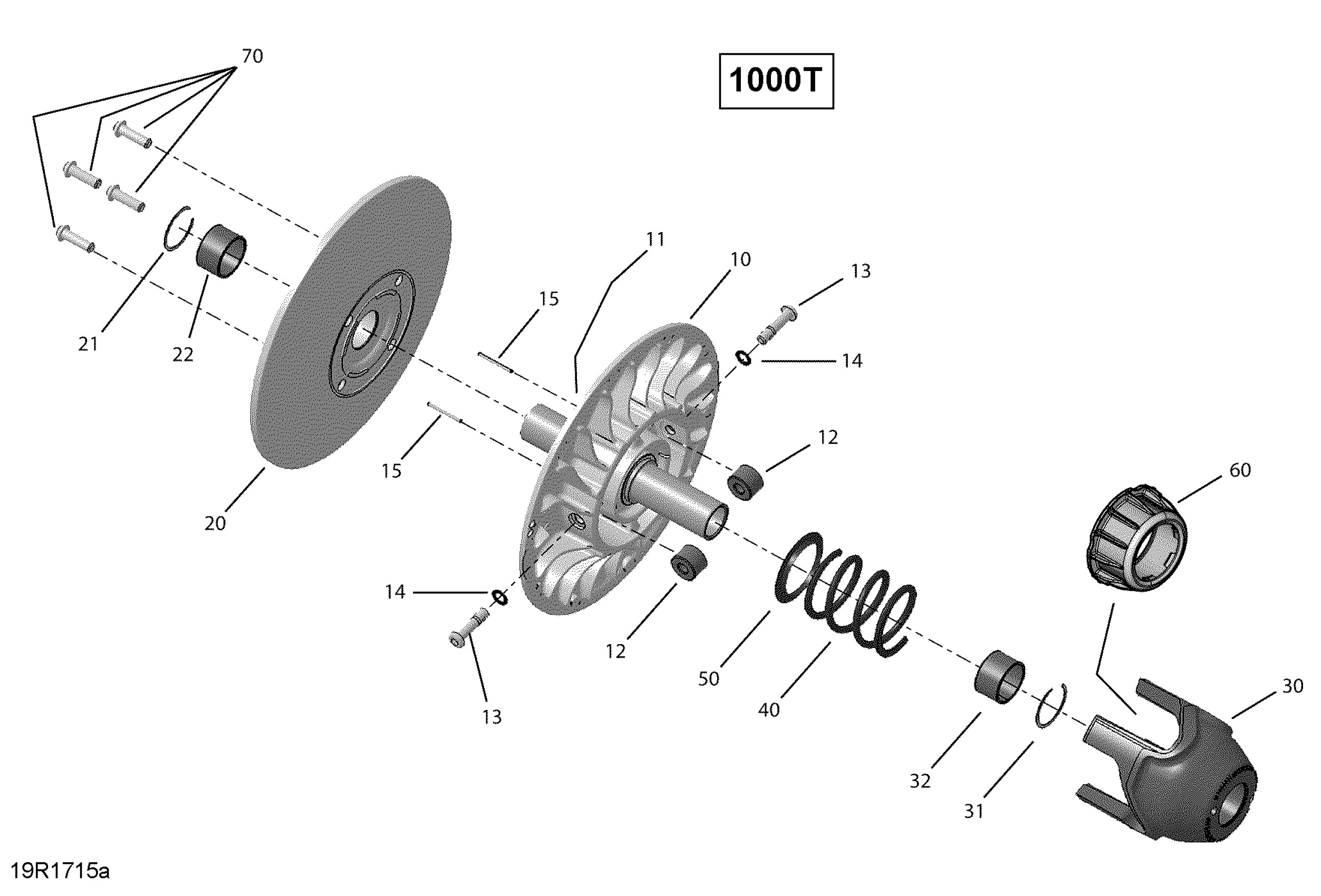

Can-Am 1-Maverick, 2017 05- Transmission, Driven Pulley - Turbo Diagram

Description

Price

Fixed Flange Ass'y | Includes 10 to 15

707001812

$349.99

RING - Call your local BRP dealership

707001648

$26.99

Pulley Roller

417127016

$24.49

Pivot Stud

417127294

$14.49

Lock Washer 8 mm

250200009

$2.11

Spring Pin

250400070

$2.00

Sliding Flange Ass'y | Includes 20 to 22

707001770

$349.99

Circlip

293370052

$4.99

Bushing

707001651

$20.99

Cam Ass'y | Includes 30 to 32

707001769

$328.49

Circlip

293370052

$4.99

Bushing

707001651

$20.99

Spring, Violet/pink

414949500

$41.49

SWIVEL ABUTMENT - Call your local BRP dealership

707001650

Unavailable

Spring Chamber

707001777

$13.78

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00
