Description

Price

10

Norma Clamp

293650091

$11.12

20a

Air Intake Silencer Base

707800517

$54.99

20b

Air Intake Silencer Cover

707800326

$33.99

20c

Air Filter

707800327

$52.99

20d

Cover Bracket

707800249

$9.39

20e

Intake Adaptor

707800329

$48.99

20f

Drain Tube

707800080

$8.29

20g

Retainer Clip

707800278

$13.99

30

Intake Adaptor

707800532

$61.99

30

Intake Adaptor

707800576

$61.99

35

Intake Adaptor Tank

707800533

$5.59

40

Norma Clamp

293650079

$11.60

50

Norma Clamp

293650079

$11.60

60

Hex. Flange Screw M6 X 20

207662044

$2.00

70

Flat Washer

250200082

$0.42

80

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

90

Was 707800411 Hose 15.88 mm

219704438

$12.99

100

Norma Spring Clamp

293650213

$3.17

220

Air Intake

707800577

$37.99

230

Air Intake

707800578

$36.99

250

Adaptor | XMR

707001383

$12.12

260

Norma Clamp

293650091

$11.12

290

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

300

Hex. Flange Nut M6

233061414

$1.68

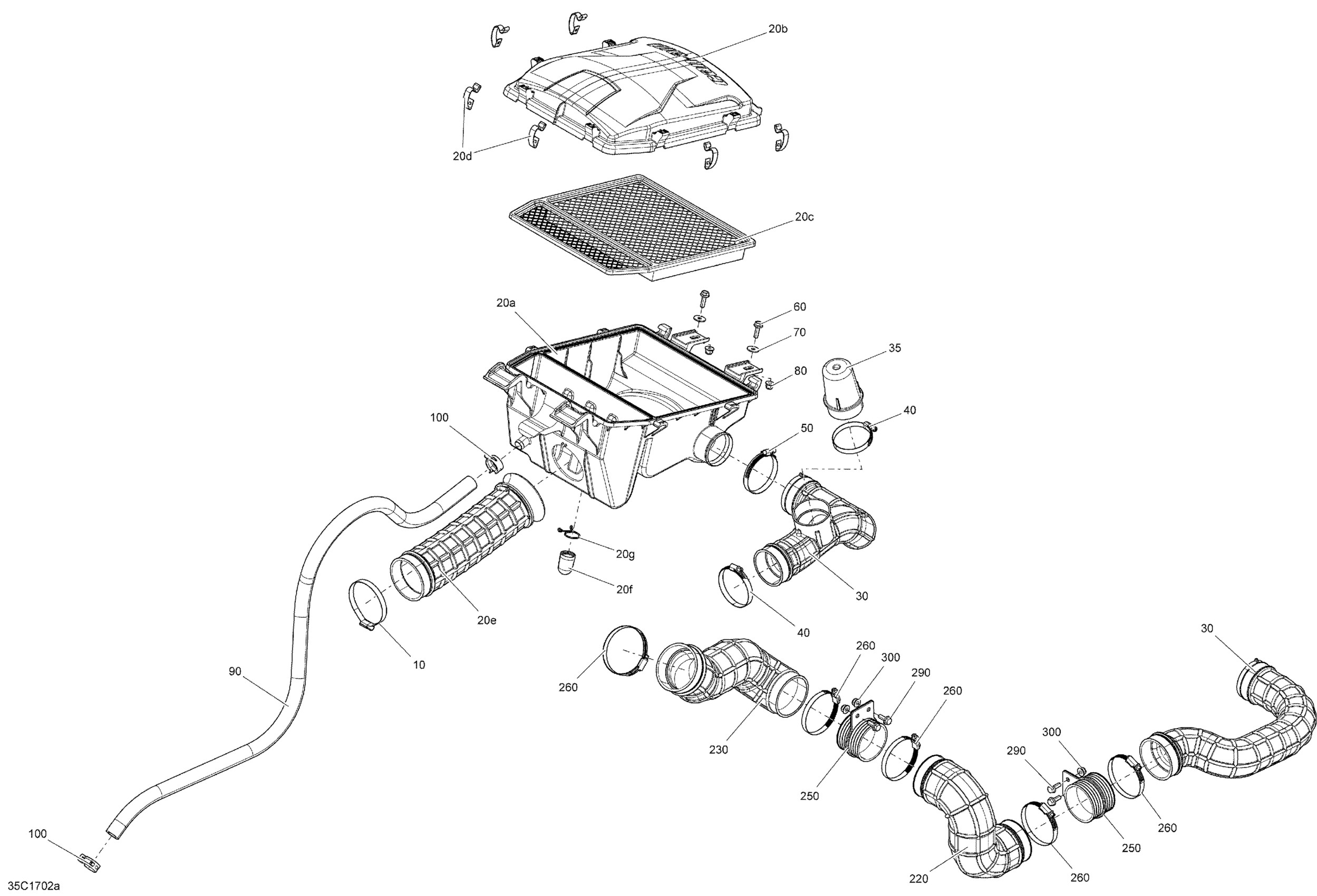

Can-Am 1-Maverick, 2017 02- Air Intake - 1000R EFI Diagram

Norma Clamp

Air Intake Silencer Base

Air Intake Silencer Cover

Air Filter

Cover Bracket

Intake Adaptor

Drain Tube

Retainer Clip

Intake Adaptor

Intake Adaptor

Intake Adaptor Tank

Norma Clamp

Norma Clamp

Hex. Flange Screw M6 X 20

Flat Washer

Hex. Flange Elastic Nut M6 x 1.0

Was 707800411 Hose 15.88 mm

Norma Spring Clamp

Air Intake

Air Intake

Adaptor | XMR

Norma Clamp

Hex. Flange Screw M6 X 16, Scotch Grip

Hex. Flange Nut M6
