Description

Price

20

Torx Screw K50 X 16

250000720

$1.69

30

Tubing 16 Mm 1000Mm Long

219704408

$7.49

40

Hex. Flange Screw M6 X 50

207665044

$4.12

50

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

60

External Serrated Lock Washer 6 mm

234461608

$1.15

70

Insulator Pad

710000073

$11.12

80

Accelerator Pedal

707001166

$274.99

90

Bushing

707000848

$1.35

100

Hex. Flange Nut M8

233081416

$1.15

110

Anti Vibration Buffer

707001170

$20.99

120

Hex. Flange Screw M10 X 125

230602546

$7.41

130

Hex. Flange Elastic Nut M10

233201436

$2.11

140

Upper Engine Bracket

707000707

$8.79

150

Hex. Flange Screw M10 X 25

207602544

$1.69

170

Rubber Isolator

707000949

$11.49

180

Flange Screw M8 x 10, Scotch Grip

207581046

$4.86

190

Hex. Elastic Stop Nut M8

232581414

$0.56

210

Norma Clamp

293650091

$11.12

220

AIR INLET - Call your local BRP dealership | MAVERICK XMR

707001361

Unavailable

230

Panel Nut M6 X 1.0

250100198

$2.11

240

Flat Washer

250200082

$0.42

250

Torx Screw M6 X 20

250000722

$1.68

260

Reflective Sheet

707000924

$33.99

270

Flexibale Adaptor

707002585

$10.99

280

AIR INLET - Call your local BRP dealership | XMR

707001377

Unavailable

290

Air Inlet | XMR

707001378

$44.99

320

Norma Gear Clamp

293650118

$13.16

325

Tie Wrap 368 mm

293750008

$1.04

330

CVT Outlet | XMR

707001380

$66.99

390

Reflective Sheet

707000991

$10.49

410

Lever

707000911

$20.49

420

Hex. Flange Screw M6 X 35

207663544

$0.90

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

440

Cable Support | Engine 1000

707000919

$16.87

450

Hex. Flange Screw M10 X 25

207602544

$1.69

470

Shifting Cable

707001210

$67.99

480

Hex. Elastic Stop Nut M8

232581414

$0.56

490

Flat Washer 10 mm

234001410

$1.26

500

Lower Lever Arm

707000828

$19.99

510

Flanged Bushing

707000847

$1.25

520

Bushing

707000801

$2.68

530

Flat Washer 6 mm

234062410

$0.77

540

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

550

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

580

Flanged Bushing

707000869

$2.89

590

Bushing

707001376

$5.24

600

Hex. Flange Screw M6 X 50

207665044

$4.12

610

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

620

Lever Arm Spring

707000750

$2.68

630

Lever Handle

707000284

$19.99

640

Hex. Jam Nut M8

232180491

$7.51

655

Tie Wrap 368 mm

293750008

$1.04

660

Spring Clamp

414415200

$0.88

690

CVT OUTLET - Call your local BRP dealership

707001866

Unavailable

700

Norma Gear Clamp

293650118

$13.16

705

PLUG - Call your local BRP dealership

707001911

Unavailable

706

Norma Clamp

514052924

$14.22

710

Front CVT Outlet | XMR

707001381

$49.99

720

Front Support

707001231

$15.81

740

Tuflok Plastic Rivet

293150230

$1.47

770

Plug

707001185

$1.15

780

Retainer Clip

707800506

$12.63

790

Tie Wrap 368 mm

293750008

$1.04

800

Clip Tie-Rap

710002899

$8.49

810

CVT Outlet

707001532

$51.99

815

Front CVT Outlet | XMR

707001855

$49.99

820

Adaptor | XMR

707001383

$12.12

840

CVT Outlet | XMR

707001385

$49.99

850

Rear CVT Outlet | XMR

707001386

$49.99

860

Support | XMR

707001483

$27.49

870

Right Support | XMR

707001388

$18.49

880

Norma Clamp

293650091

$11.12

885

Tie Rap 367mm | XMR

293750065

$4.79

890

Hex. Flange Screw M6 X 20

207662054

$1.01

895

Tuflok Plastic Rivet

293150230

$1.47

900

Hex. Flange Elastic Nut M6

233261494

$1.58

910

Central Support | XMR

707001389

$28.99

920

LEFT SUPPORT - Call your local BRP dealership | XMR

707001390

$26.99

930

Right Support | XMR

707001391

$28.99

950

Air Inlet

707001910

$46.49

990

Norma Clamp

293650091

$11.12

1000

Tuflok Plastic Rivet

293150230

$1.47

1070

Norma Clamp

293650091

$11.12

1080

Hose Retainer

293650218

$9.39

1100

AIR INLET - Call your local BRP dealership | XMR

707001640

Unavailable

1110

CVT Filter | XMR

707001482

$16.88

1120

Deflector | XMR

707001481

$43.99

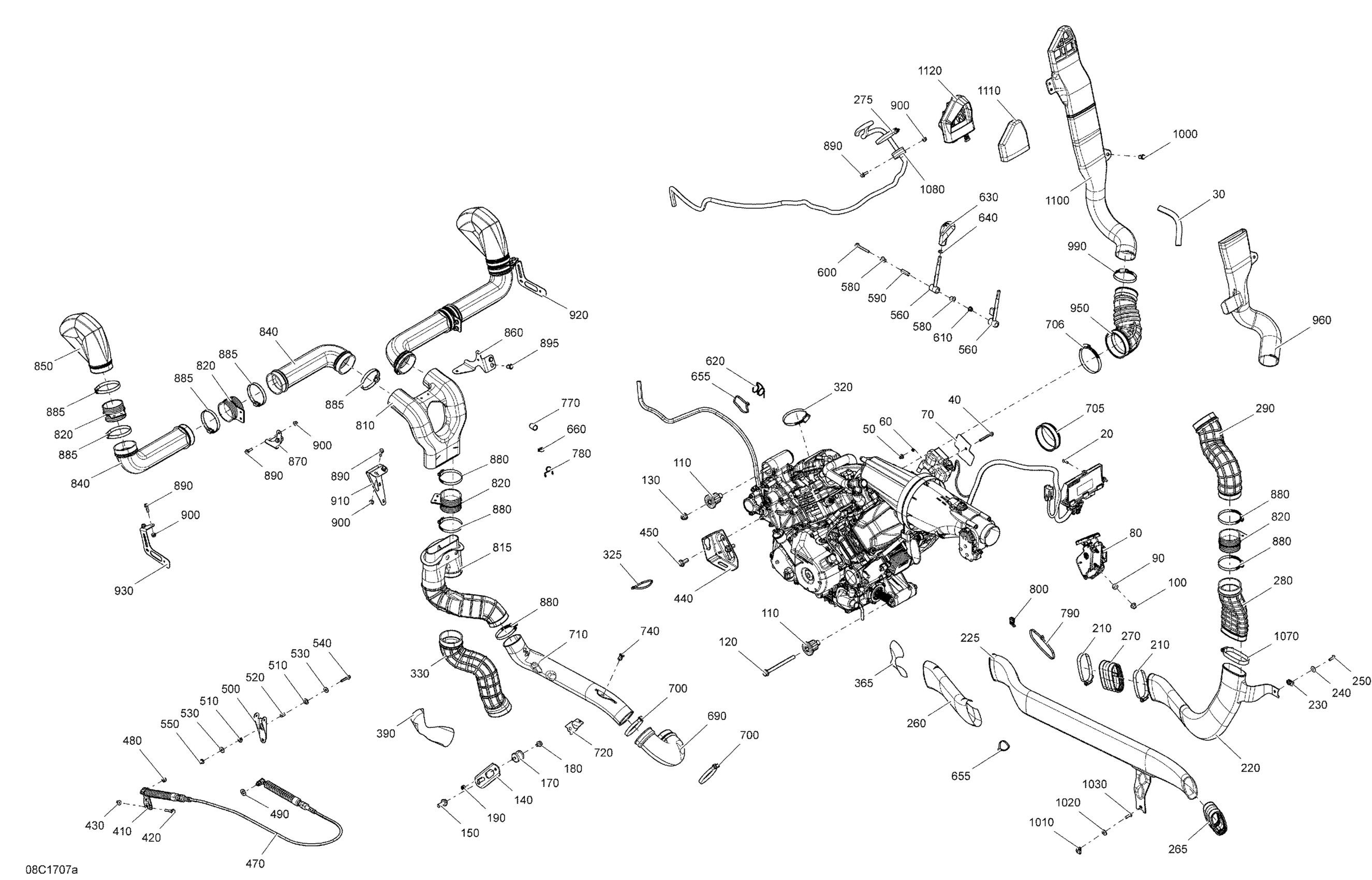

Can-Am 1-Maverick, 2017 01- Engine - 1000R XMR Diagram

Torx Screw K50 X 16

Tubing 16 Mm 1000Mm Long

Hex. Flange Screw M6 X 50

Hex. Flange Elastic Nut M6 x 1.0

External Serrated Lock Washer 6 mm

Insulator Pad

Accelerator Pedal

Bushing

Hex. Flange Nut M8

Anti Vibration Buffer

Hex. Flange Screw M10 X 125

Hex. Flange Elastic Nut M10

Upper Engine Bracket

Hex. Flange Screw M10 X 25

Rubber Isolator

Flange Screw M8 x 10, Scotch Grip

Hex. Elastic Stop Nut M8

Norma Clamp

AIR INLET - Call your local BRP dealership | MAVERICK XMR

Panel Nut M6 X 1.0

Flat Washer

Torx Screw M6 X 20

Reflective Sheet

Flexibale Adaptor

AIR INLET - Call your local BRP dealership | XMR

Air Inlet | XMR

Norma Gear Clamp

Tie Wrap 368 mm

CVT Outlet | XMR

Reflective Sheet

Lever

Hex. Flange Screw M6 X 35

Hex. Flange Elastic Nut M6 x 1.0

Cable Support | Engine 1000

Hex. Flange Screw M10 X 25

Shifting Cable

Hex. Elastic Stop Nut M8

Flat Washer 10 mm

Lower Lever Arm

Flanged Bushing

Bushing

Flat Washer 6 mm

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

Hex. Flange Elastic Nut M6 x 1.0

Flanged Bushing

Bushing

Hex. Flange Screw M6 X 50

Hex. Flange Elastic Nut M6 x 1.0

Lever Arm Spring

Lever Handle

Hex. Jam Nut M8

Tie Wrap 368 mm

Spring Clamp

CVT OUTLET - Call your local BRP dealership

Norma Gear Clamp

PLUG - Call your local BRP dealership

Norma Clamp

Front CVT Outlet | XMR

Front Support

Tuflok Plastic Rivet

Plug

Retainer Clip

Tie Wrap 368 mm

Clip Tie-Rap

CVT Outlet

Front CVT Outlet | XMR

Adaptor | XMR

CVT Outlet | XMR

Rear CVT Outlet | XMR

Support | XMR

Right Support | XMR

Norma Clamp

Tie Rap 367mm | XMR

Hex. Flange Screw M6 X 20

Tuflok Plastic Rivet

Hex. Flange Elastic Nut M6

Central Support | XMR

LEFT SUPPORT - Call your local BRP dealership | XMR

Right Support | XMR
