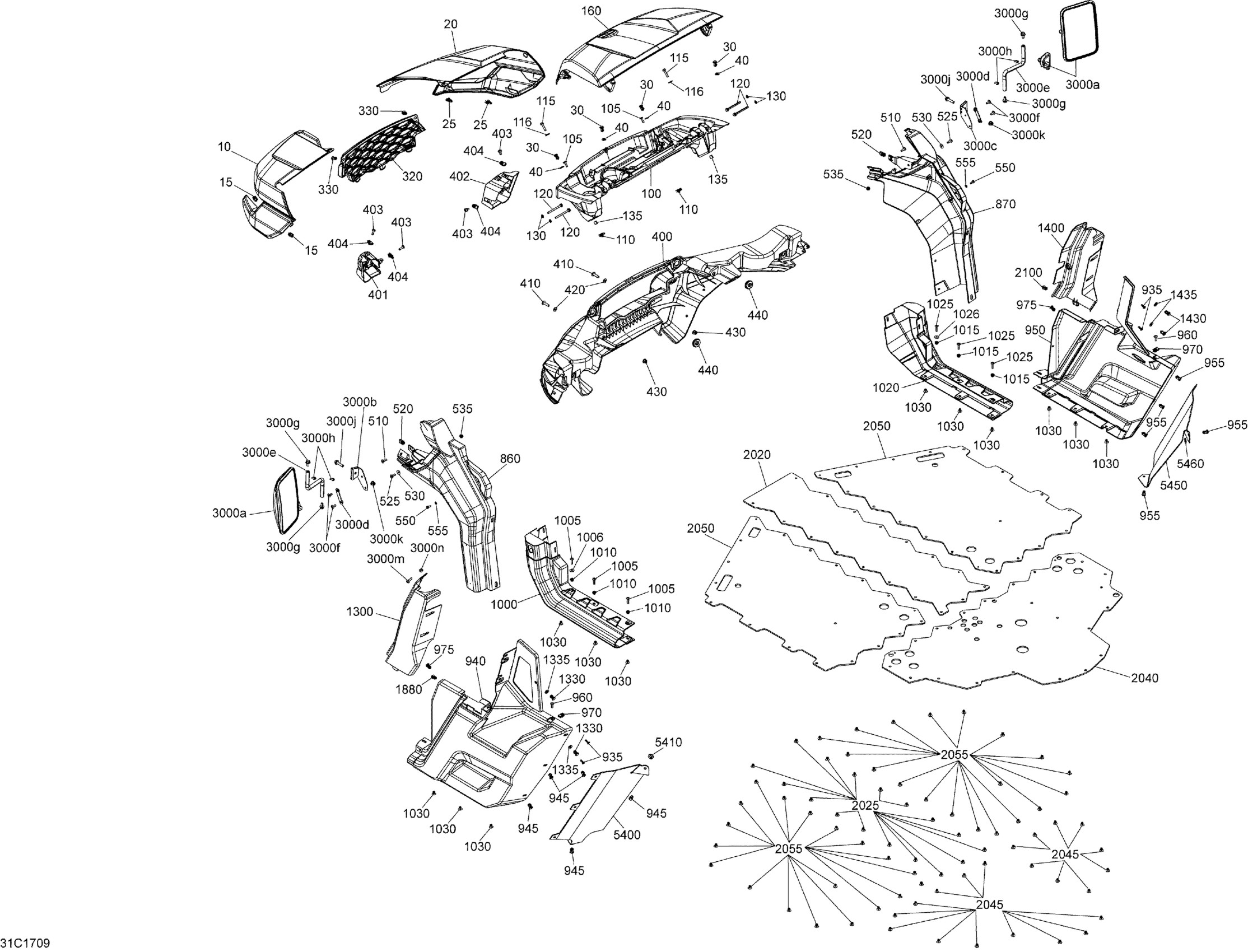

Can-Am Defender T, 2017 09- Body And Accessories - All Models Diagram

Magnesium LH Front Fender | Magnesium Model

705011409

$204.99

Squadron Green, LH Front Fender | Green Model

705012590

$309.99

Panel Nut M6 X 1.0

250100198

$2.11

Magnesium RH Front Fender | Magnesium Model

705011410

$204.99

Squadron Green, RH Front Fender | Green Model

705012591

$309.99

Panel Nut M6 X 1.0

250100198

$2.11

Tuflok Plastic Rivet

293150230

$1.47

Washer

503192494

$3.17

Service Center

705011391

$64.99

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

Stainless Steel Flat Washer

234062670

$2.11

Hex. Flange Screw M6 X 75

207667554

$4.44

Push Nut

732610072

$2.19

Bushing

293900125

$2.69

Magnesium Front Service Cover | Magnesium Model

705011401

$389.99

Squadron Green, Removable Hood | Green Model

705012592

$144.99

Grid Front Fascia

705009364

$28.99

Tuflok Plastic Rivet

293150230

$1.47

Front Facia

705011576

$229.99

LH Flasher Cap

705012285

$14.49

RH Flasher Cap

705012286

$14.49

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw M8 X 30

250000886

$2.11

Washer

503192494

$3.17

Hex. Flange Elastic Nut M8

233281414

$1.47

Grommet

705010718

$2.69

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

Torx Screw M6 X 20

250000722

$1.68

Stainless Steel Flat Washer

234062670

$2.11

Threaded Insert M6 X 1.0

250100242

Unavailable

Torx Screw K50 X 16

250000720

$1.69

Flat Washer M5

234051670

$2.11

LH Front Lateral Panel

705008152

$62.99

RH Front Lateral Panel

705008153

$62.99

Torx Screw K50 X 16

250000720

$1.69

Rear LH Side Panel | Order 705012704 panel + 414916600 Nylon Cap

705012704

$93.99

Tuflok Plastic Rivet

293150230

$1.47

RH Rear Side Panel

705012705

$114.99

Tuflok Plastic Rivet

293150230

$1.47

Torx Screw M6 X 20

250000722

$1.68

Panel Nut M6 X 1.0

250100198

$2.11

Tuflok Plastic Rivet

293150230

$1.47

LH Side Central Panel

705017552

$71.99

Torx Truss Screw M6 X 25

250000807

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Threaded Insert M6 X 1.0

250100242

Unavailable

Threaded Insert M6 X 1.0

250100242

Unavailable

Deep Black, RH Central Panel

705019038

$74.99

Torx Truss Screw M6 X 25

250000807

$2.11

Stainless Steel Flat Washer

234062670

$2.11

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

LH Rear Cage Cover Kit

715003564

$82.99

Tuflok Plastic Rivet

293150230

$1.47

Washer

503192494

$3.17

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$82.99

Tuflok Plastic Rivet

293150230

$1.47

Washer

503192494

$3.17

Tuflok Plastic Rivet

293150230

$1.47

Central Skid Plate

705009151

$62.49

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Rear Skid Plate

705011292

$88.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Lateral Skid Plate

705010422

$86.99

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Tuflok Plastic Rivet

293150230

$1.47

Mirror

705011497

$80.49

LH Mirror Support

705012151

$28.99

RH Mirror Support

705012152

$28.99

Plate

705010469

$16.37

Mirror Rod

705012671

$33.99

Flat Washer

250200178

$2.11

Torx Truss Screw M6 X 16

250000348

$2.11

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

Snap Ring

293370131

$1.35

Hex. Flange Screw M8 X 35

207683544

$1.69

Hex. Flange Elastic Nut M8

233281414

$1.47

Torx Screw M6 X 25

250000758

$2.11

Hex. Flange Elastic Nut M6

233261494

$1.58

LH Rear Deflector

705010426

$53.99

Flat Washer 8 mm, Nylon

292001663

$1.47

RH Rear Deflector

705010427

$53.99

Flat Washer 8 mm, Nylon

292001663

$1.47
